Boneco W200 Bedienungsanleitung

W200

MANUAL

READ AND SAVE THESE INSTRUCTIONS

BONECO W200

INSTRUCTION FOR USE

TABLE OF CONTENTS

Items included and technical data 18

Dear customer, 18

Items included 18

Technical data 18

Overview and part names 19

Putting into operation 20

Handling 21

Operating modes 21

Fragrance container 21

Notes on cleaning 22

About cleaning 22

Recommended cleaning intervals 22

Cleaning the water base and the drum 23

Water base and drum 23

Cleaning the evaporator mat 24

About the evaporator mat 24

Cleaning in the washing machine 24

Cleaning by hand 24

Cleaning the fan / replacing the Ionic Silver Stick®25

Cleaning the fan 25

Ionic Silver Stick®25

BONECO APP

Benefit from the free BONECO App with many useful tips

concerning your BONECO Humidifier. This ensures hygienic

operation and improves indoor air quality permanently.

Your Benefits:

■Online Shopping for Accessories and Devices

■Product Information

■User Manual

■Practical Maintenance Calendar

■…and much more

en ITEMS INCLUDED AND TECHNICAL DATA

BONECO W200

TECHNICAL DATA*

Type designation BONECO W200

Mains voltage 230 V / 50 Hz

Power consumption Standby 0 W

Level 1 12 W

Level 2 22.5 W

Humidity output 350 g/h (2.2 gal/day)

Recommended room size Up to 50 m2/ 125 m3(540 square feet / 4400 cubic feet)

Water capacity Max. 4.5 liters (1.2 gallons)

Dimensions L×W×H280×280×412 mm (11×11×16.2 in.)

Weight (empty) 4.9 kg (10.8 lb)

Operating noise level Level 1 27 db(A)

Level 2 43 db(A)

* Subject to change

ITEMS INCLUDED

A7017 Ionic Silver Stick®Printed quick start guide

DEAR CUSTOMER,

Congratulations on your purchase of the BONECO W200.

The high-performance air washer keeps humidity at

a comfortable level at all times and improves the well-

being of people and pets – especially during the dry win-

ter months. At the same time, dust and dirt particles get

caught in the evaporator mat, resulting in a significant

improvement in air hygiene.

Cleaning the BONECO W200 is as easy as handling it:

Because the water tray, drum and the evaporator mat

can be cleaned in the washing machine, upkeep efforts

are kept to a minimum.

Regardless of whether it is summer or winter: You will not

want to give up your newly gained comfort.

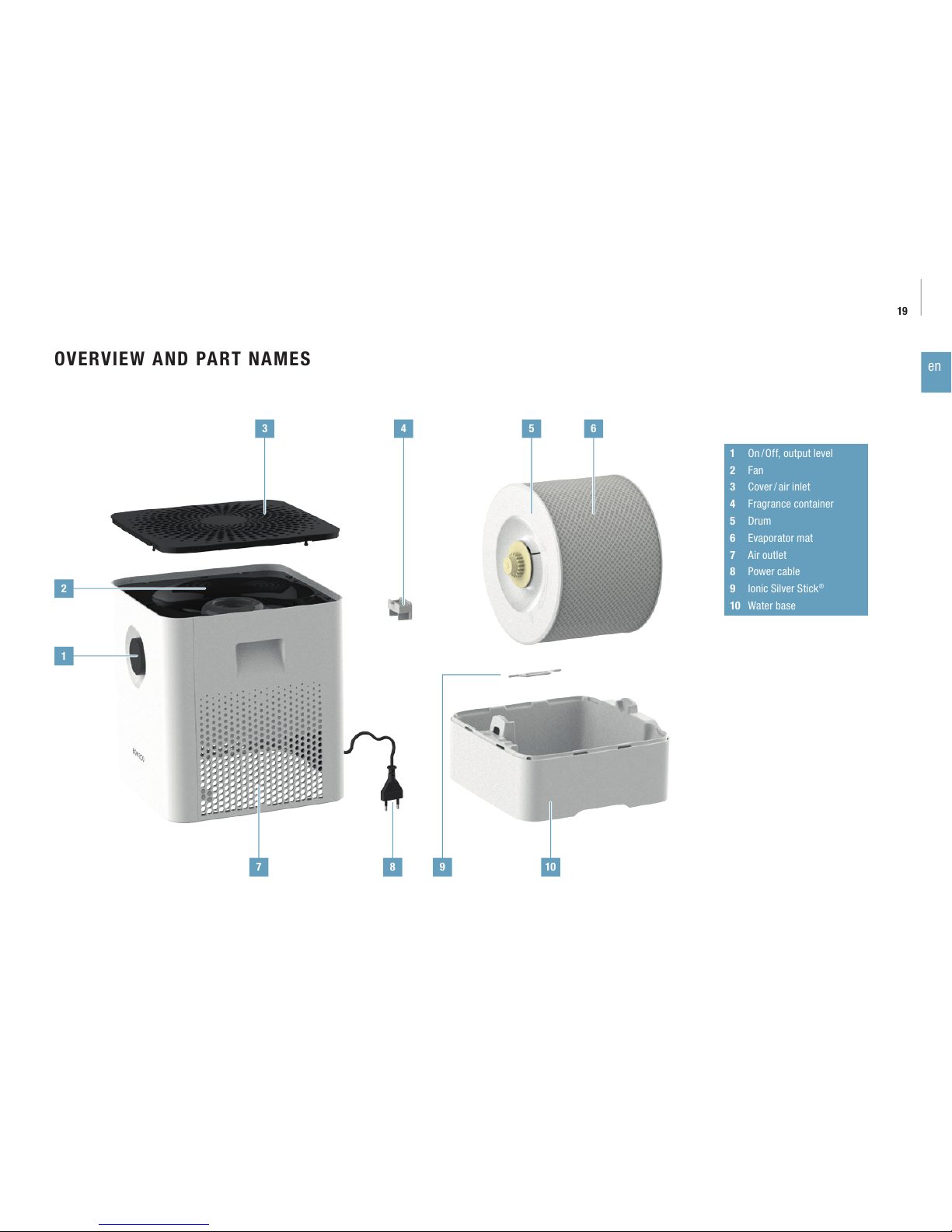

OVERVIEW AND PART NAMES

1On /Off, output level

2Fan

3Cover / air inlet

4Fragrance container

5Drum

6Evaporator mat

7Air outlet

8Power cable

9Ionic Silver Stick®

10 Water base

3 4 5 6

87 9 10

en PUTTING INTO OPERATION

Fill with cold tap water up to the marking.

Put the upper part back on the water base (do not

pinch cable!)

Place the BONECO W200 on a flat surface. Lift the upper part from the water base.

2 3

Plug the power cord into a power outlet.

Switch on the appliance.

HANDLING

OPERATING MODES

The BONECO W200 has two operating modes that can be

switched between using the rotary switch).

• In position , the BONECO W200 works with normal

performance (day mode).

• In position , the BONECO W200 works quietly

(night mode).

A green LED indicates that the BONECO W200 is operat-

ing correctly. The LED is red if the water tank is empty.

FRAGRANCE CONTAINER

Commercially available fragrances and essential oils can

be inserted into the fragrance container on the rear side.

Never mix any additives into the water base itself,

since doing so can decrease the performance of the

BONECO W200 and even cause damage. Such dam-

ages are not covered by the warranty.

1. Press down on the fragrance container to take out

the drawer.

2. Sprinkle the felt insert in the drawer with the fra-

grance of your choice.

The fragrance container can be cleaned in the dish-

washer. The temperature may not exceed 55°C

(130 °F).

en NOTES ON CLEANING

ABOUT CLEANING

This means regular maintenance and cleaning is neces-

sary to ensure unimpaired and clean operation.

Recommended cleaning and maintenance intervals vary

depending on air and water quality, and operating time.

Dishwashing liquid and a scrub brush are recommended

for cleaning by hand.

Always unplug the BONECO W200 before you begin

cleaning! Failure to do so can result in electric shock

and fatal injury!

In the case of cleaning the drum and the water base

in the dishwasher, a temperature of 50 °C may not

be exceeded, as temperatures higher than this can

cause the plastic parts to deform.

RECOMMENDED CLEANING INTERVALS

Interval Action

After the third day without operation Empty water base and fill with fresh water

Every 2 weeks Clean water base, drum and evaporator mat

Yearly Replace the Ionic Silver Stick®

Clean fan and the inner area of the appliance

5. Remove the evaporator mat from the drum.

6. Clean the water base and the drum either by hand or

in the dish washer at a max. temperature of 50 °C

(130 °F).

CLEANING THE WATER BASE AND THE DRUM

WATER BASE AND DRUM

1. Take off the upper part of the BONECO W200.

2. Remove the drum with the evaporator mat.

3. Take out the Ionic Silver Stick®.

4. Rotate both drum discs to loosen. In doing so, ob-

serve the markings on the outer side of the disc.
