INSTRUCTIONS

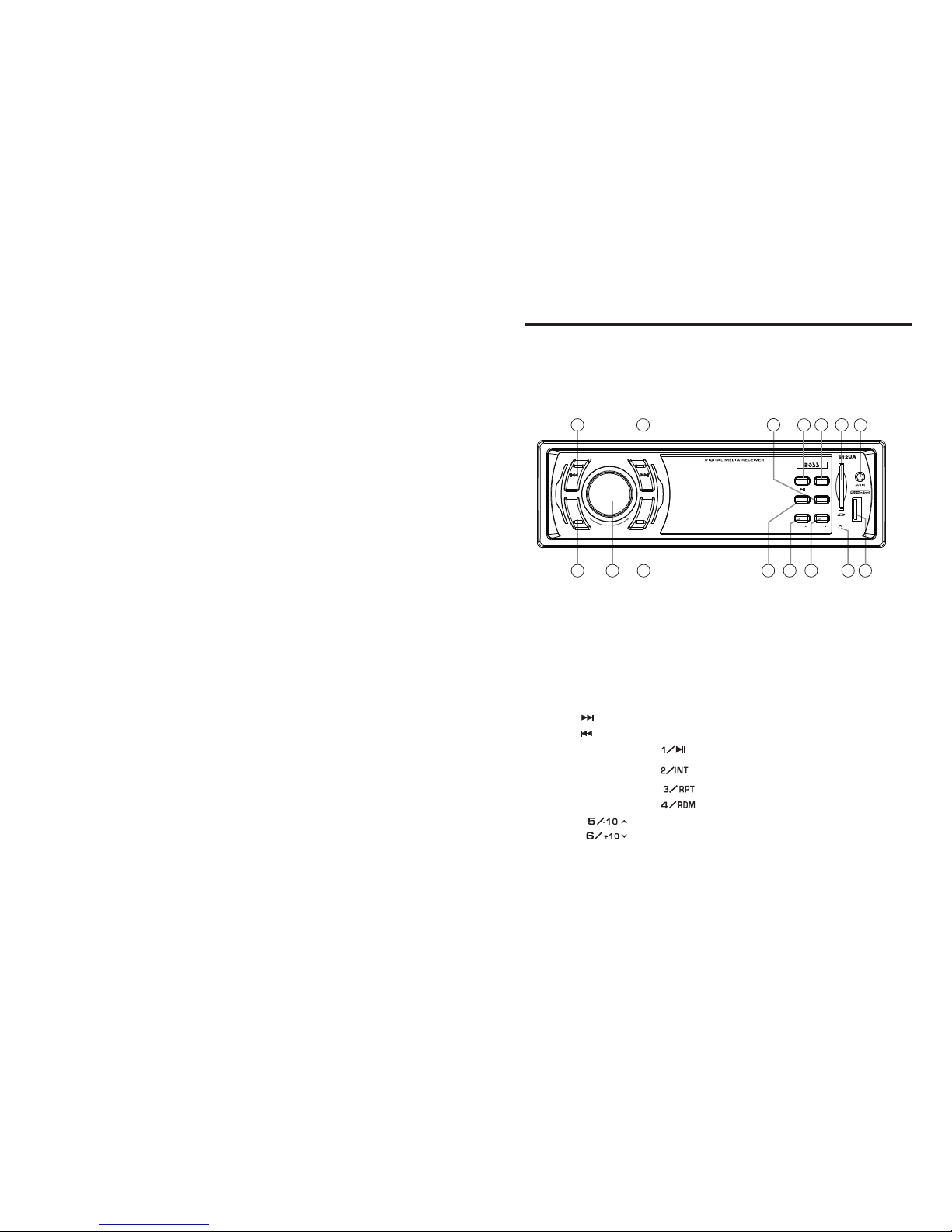

Panel Function

1 2

45 6 7

10 11 12

13 14

9.Number button (random playback)

8.Number button (repeat playback)

7.Number button (track browse & playback)

6 Number button (play/pause).

4 STATION SCANNING/REWIND/TURN UP.

5 STATION SCANNING/REWIND/TURN DOWN.

1. PWR/SEL/VOL (power/mode select/volume button)

2. BAND/AST (band switch/station auto scan &store)

3. MODE/CLOCK (mode shift/clock time display & setup)

12.Reset (system reset) button

13.SD

14.AUX

15.USB

10. button

11. button

-03-

BAN D

AST

MOD E

CLK

IN T

RD M

RP T

-1 0 +1 0

VOL

PWR /S EL

RE SE T

US B

INSTRUCTIONS

1. PWR/SEL/VOL (power/mode select/volume button)

After the unit getsconnected to the power supply, short press the button to turn

The unit on,long press it to turn the unit off.Repeatedly short press SEL button

to select your desired mode in the following sequence:

Work with VOL button, rotate it to make adjustment.

Rotate the button to adjust the volume level, the change value of volume level

shall be displayed on LCD screen.

2. BAND/AST (band switch/station auto scan &store)

Under radio status, press the button to shift band cyclically as shown below,

the actual shift is the standard.

Hold AST button for 3 seconds to automatically scan station in the whole band

and store station. Press the number button to listen to stored stations.

During reading a card, long press the button to display TRK SCH to search for

track. Work with VOL+/- to make adjustment and press SEL for confirmation.

If no adjustment is made within 3 seconds, system automatically skips from

units to tens and hundreds. During adjustment, press BND to move back to the

previous digit level. Short press this button to browse ID3 information.

VOL→BASS→TRE→BAL→FAD→LOUD→EQ→ST→BEEP→AREA

(USA: America/EUR: Europe)

1 Fm1→Fm2→Fm3→Am1→Am2→Fm1;

2 Fm1→Fm2→Fm3→Mw1→Mw2→Fm1;

3. MODE/CLOCK (mode shift/clock time display & setup)

When the power is on, each time the button is pressed, the mode switches

Between RADIO/USB/SD(MMC)/AUX.

Note: When there is no USB/SD card connected to the unit, system shall

automatically skip the unconnnected modes.

-04-

INSTRUCTIONS

4 STATION SCANNING/REWIND/TURN UP.

In radio mode, short press the button to automatically scan station

downward, long press the button to scan station downward manually.

Inplayback mode, short press the button to select song downward, long

press the button to perform fast forward playback.

5 STATION SCANNING/REWIND/TURN DOWN.

In radio mode, short press the button to automatically scan station upward,

long press the button to scan station upward manually.

In playback mode, short press the button to select song upward, long press

the button to perform fast backward playback.

6 Number button (play/pause).

Press the button to switch between play and pause.

7.Number button (track browse & playback)

Under FM radio status,short press the button to get into the corresponding

stored radio channels;under AM radio status, short press the button to get

into the corresponding stored channels. After searching for a station manually,

hold the button for 2 seconds to save the station in the number button 2’s

position. Browse & playback: Under USB playback status, press the button to

browse and play the previous 10 songs, each for 10 seconds, repress it to cancel

browsing and playback.

8.Number button (repeat playback)

Under FM radio status, short press the button to get into the corresponding

stored radio channels; under AM radio status, short press the button to get

into the corresponding stored channels. After searching for a station manually,

hold the button for 2 seconds to save the station in the number button 3’s

position. Repeat playback: Under USB playback status, press the button to

repeatedly play the current song, repress it to cancel repeat playback.

9.Number button (random playback)

Under FM radio status, short press the button to get into the corresponding

stored radio channels; under AM radio status, short press the button to get

into the corresponding stored channels. After searching for a station manually,

hold the button for 2 seconds to save the station in the number button 4’s

position. Random playback: Under USB playback status, press the button to

play songs in the disc randomly, repress it to cancel random playback.

-05-

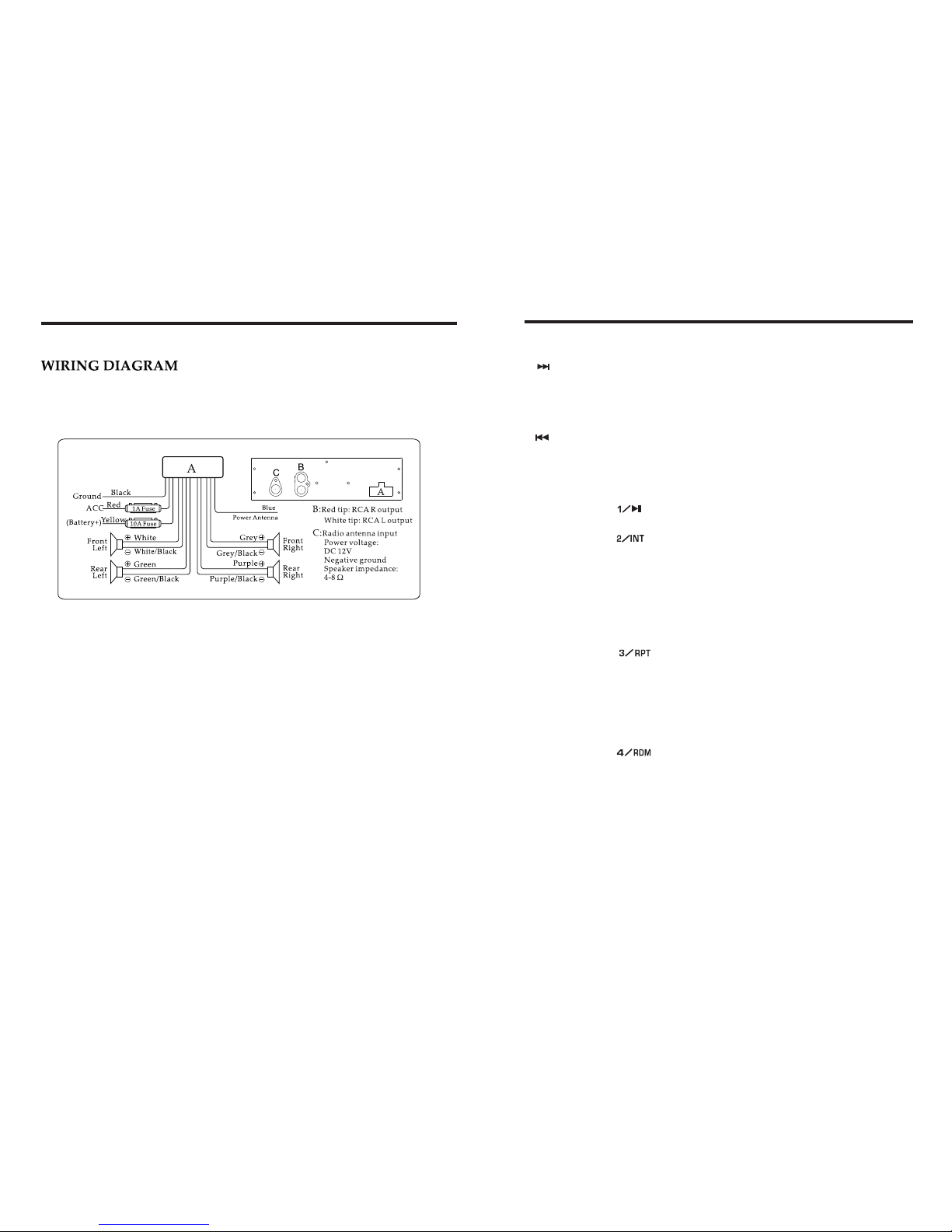

-08-

INSTRUCTIONS

Comprehensive Functions

1.There are 18 FM stations and 12 AM stations pre-stored in the unit (6 stations

each on the FM1/FM2/FM3/AM1/AM2 band).

2.Excellent anti-interference electronic tuning radio system

3.In FM stereo status, the stereo indicators lights up.

4.EDC system

Performance Figure

FM Band

Frequency Range: 87.5~107.9MHz

FM Mid Frequency: 10.7MHz ± 0.1MHz

FM Stereo SNR: ≥ 5 5dB

FM Stop Sensitivity: ≤ 2 0dB

FM Stereo Indicator On Sensitivity: ≤ 20 dB

FM Stereo Separation: ≥ 3 2 dB

FM Harmonic Distortion: ≤ 1 %

AM Band

Frequency Range: 530~1710MHz

AM SNR: ≥ 4 5dB

AM AUTO SEEK SENS: ≤ 3 0dB

AM Distortion: ≤ 3 %

Rated Voltage: 12V

Output Power: 4 * 50W

Output Impedance: 4～8Ω

10.Long press to select the previous foldershort press to play the

song

Under FM radio status, short press the button to get into the corresponding

stored radio channels; under AM radio status, short press the button to get

into the corresponding stored channels. After searching for a station manually,

hold the button for 2 seconds to save the station in the number button 5’s

position.

Under USB playback status, press the button to select the -10 song cyclically.

Long press the button to select the previous folder.

11.Long press to select the previous foldershort press to play the

song

Under FM radio status, short press the button to get into the corresponding

stored radio channels; under AM radio status, short press the button to get

into the corresponding stored channels. After searching for a station manually,

hold the button for 2 seconds to save the station in the number button 6’s

position.

Under USB playback status, press the button to select the +10 song cyclically.

Long press the button to select the next folder.

12.Reset (system reset)

If the unit crashes or has a low response, or if some other abnormal conditions

occur, press the button to resume system default settings; the times, channels

and breakpoint memories stored before are all canceled.

13.SD

SD/MMC CARD SLOT

14.AUX

External audio input socket

15.USB

USB slot

-06- -07-
