10 R - 02 0896

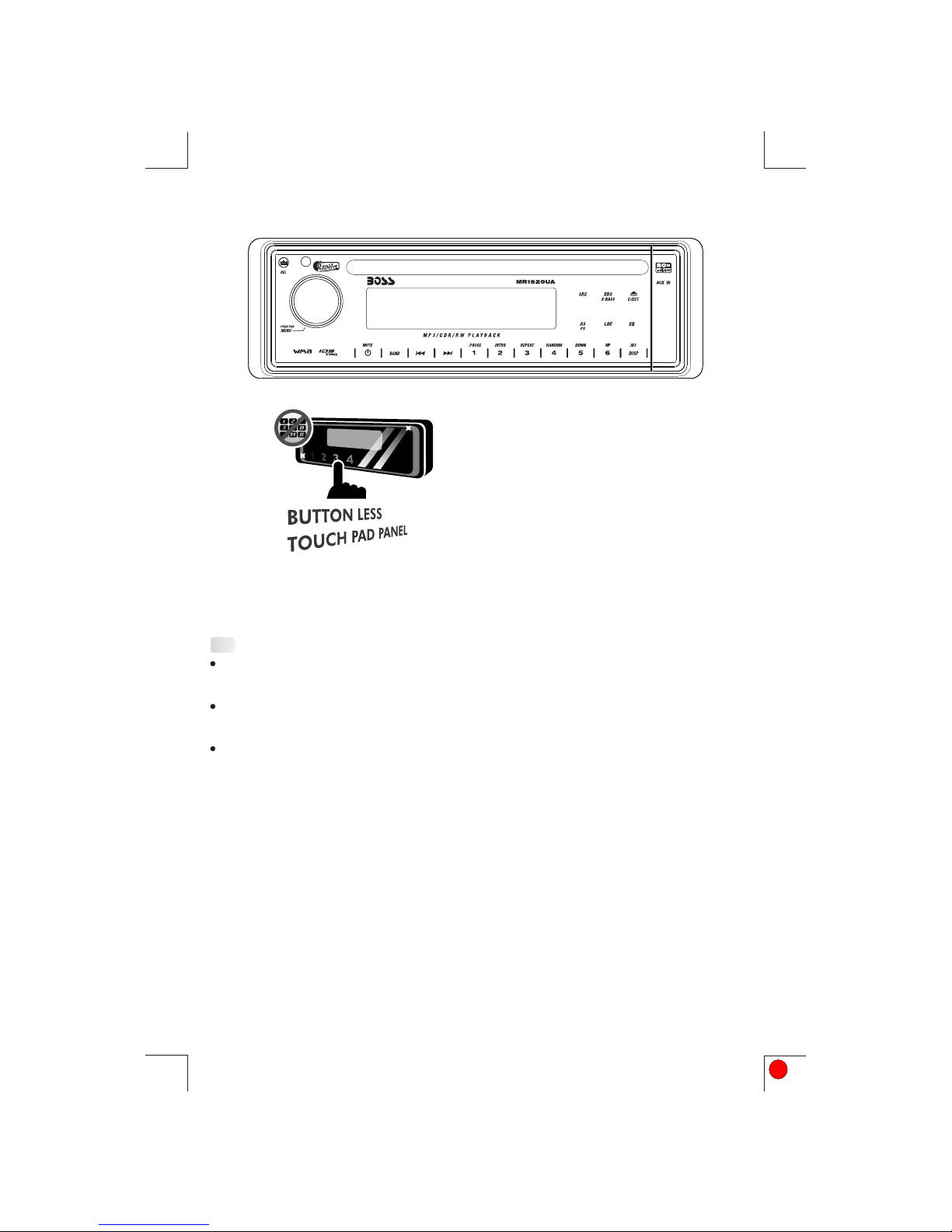

This radio is equipped with the most advanced "TOUCH SENSE PANEL", so that it is easy and

convenient to use while driving.

Here are some tips to show you how easy it is to use this touch sense panel:

Tips

Using a very light touch on the radio panel will activate that feature. You will not need to

"PRESS" hard on the panel to make this radio change features.

The power button along with some of the buttons that have dual functions, will need to be

"TOUCHED" from 2 to 3 seconds to make the change.

The best area to "TOUCH" on the panel to make it activate is the illuminated or lighted area. For

example, just touch for 2 to 3 seconds the illuminated power symbol and the unit will turn on or

off.

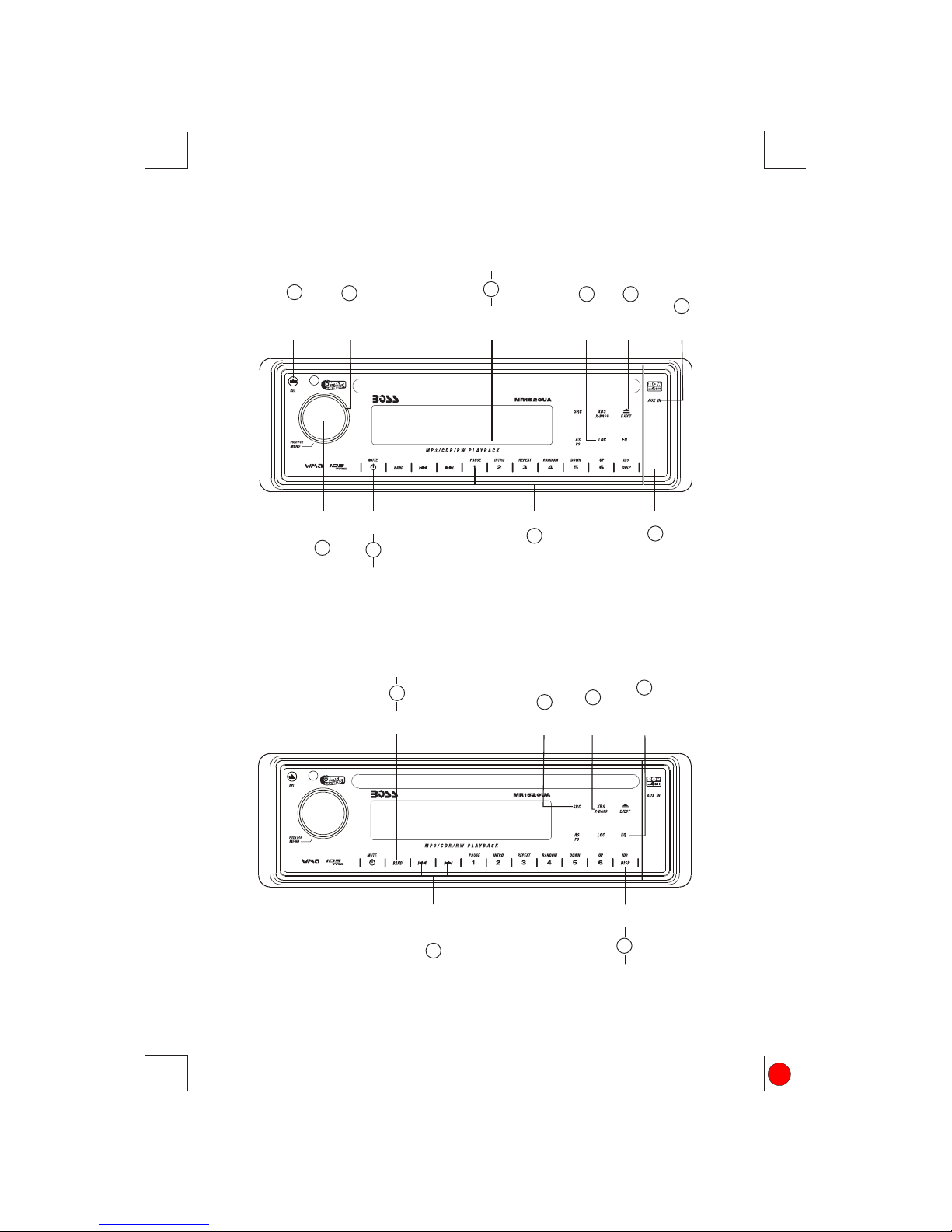

1. BUTTONS LOCATION AND FUNCTIONS

Power

Button Preset Memory Button (M1~M6) USB Slot

Mute

Button

Panel

Release

Button

Source

Button

Automatically

Store/Preset

Scan Button

Encoder

Volume

Knob

Local/

Distant

Button

Eject

Button

Aux In

Jack

7 15

MP3 Menu

Button

11 13

MP3 Enter

Button

Band

Button

Preset

Equalizer

Button

iX-Bass

Button

Display

Button

Tuning Up/Down

Track Up/Down

Buttons

ID3

Information

Button

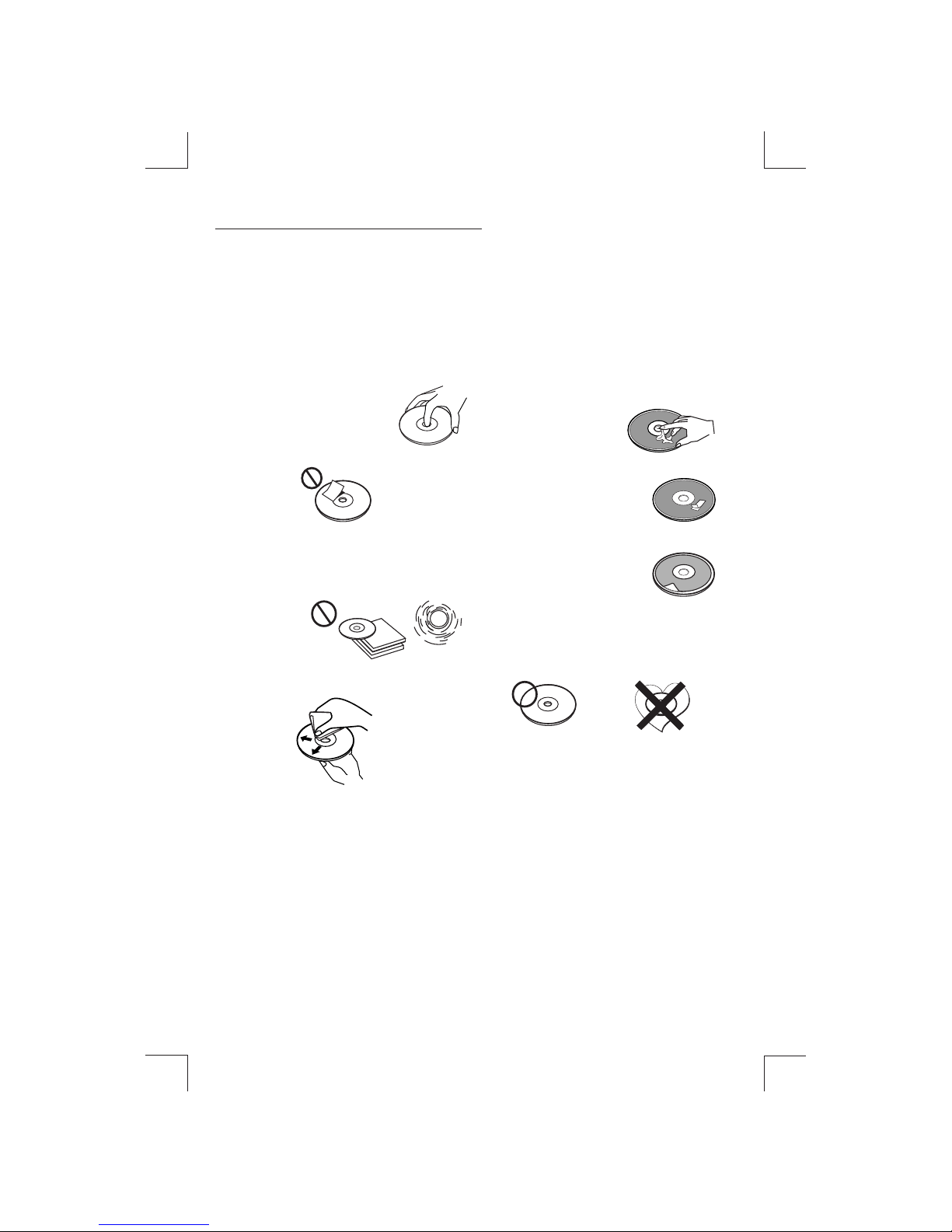

2. HANDLING COMPACT DISCS

MOISTURE CONDENSATION

NOTES ON CDs

P. 2

P. 3

P. 4

P. 1 P. 5

P. 6

P. 7

NOTES ON DISCS

There are paste residue.

Ink is sticky (P.5).

Stickers that are beginning

to peel away, leaving a

sticky residue (P.6).

Labels are attached (P.7).

On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit.

Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for

about an hour until the moisture has evaporated.

A dirty or defective disc may cause sound

dropouts while playing. To enjoy optimum

sound, handle the disc as follows.

Handle the disc by its edge. To keep the disc

clean, do not touch the surface (P.1).

If you use the discs explained below, the

sticky residue can cause the CD to stop

spinning and may cause malfunction or ruin

your discs.

Do not use second-hand or rental CDs that

have a sticky residue on the surface (for

example, from peeled-off stickers or from

ink, or glue leaking from under the stickers).

Do not stick paper or tape on the disc (P.2).

Before playing, clean the discs with an

optional cleaning cloth. Wipe each disc from

the centre out (P.4).

Do not use solvents such as benzine,

thinner,commercially available cleaners, or

antistatic spray intended for analog discs.

Do not expose the discs to direct sunlight or

heat sources such as hot air-ducts, or leave

them in a car parked in direct sunlight where

there can be a considerable rise in

temperature inside the car (P.3).

Do not use rental CDs with old labels that

are beginning to peel off.

Do not use your CDs with labels or

stickers attached.

**************

*******

****

*******

******* *******

*******

Do Not Use Special Shape CDs

Be sure to use round shape CDs only for

this unit and do not use any special shape

CDs. Use of special shape CDs may cause

the unit to malfunction.(P.8).

Be sure to use CDs with disc mark

P. 8

CD-Rs and CD-RWs which have not

undergone finalization processing cannot

be played. (For more information on

finalization processing, refer to the manual

for your CD-R/CD-RW writing software or

CD-R/CD-RW recorder.) Additionally,

depending on the recording status, it may

prove impossible to play certain CDs record

on CD-R or CD-RW.

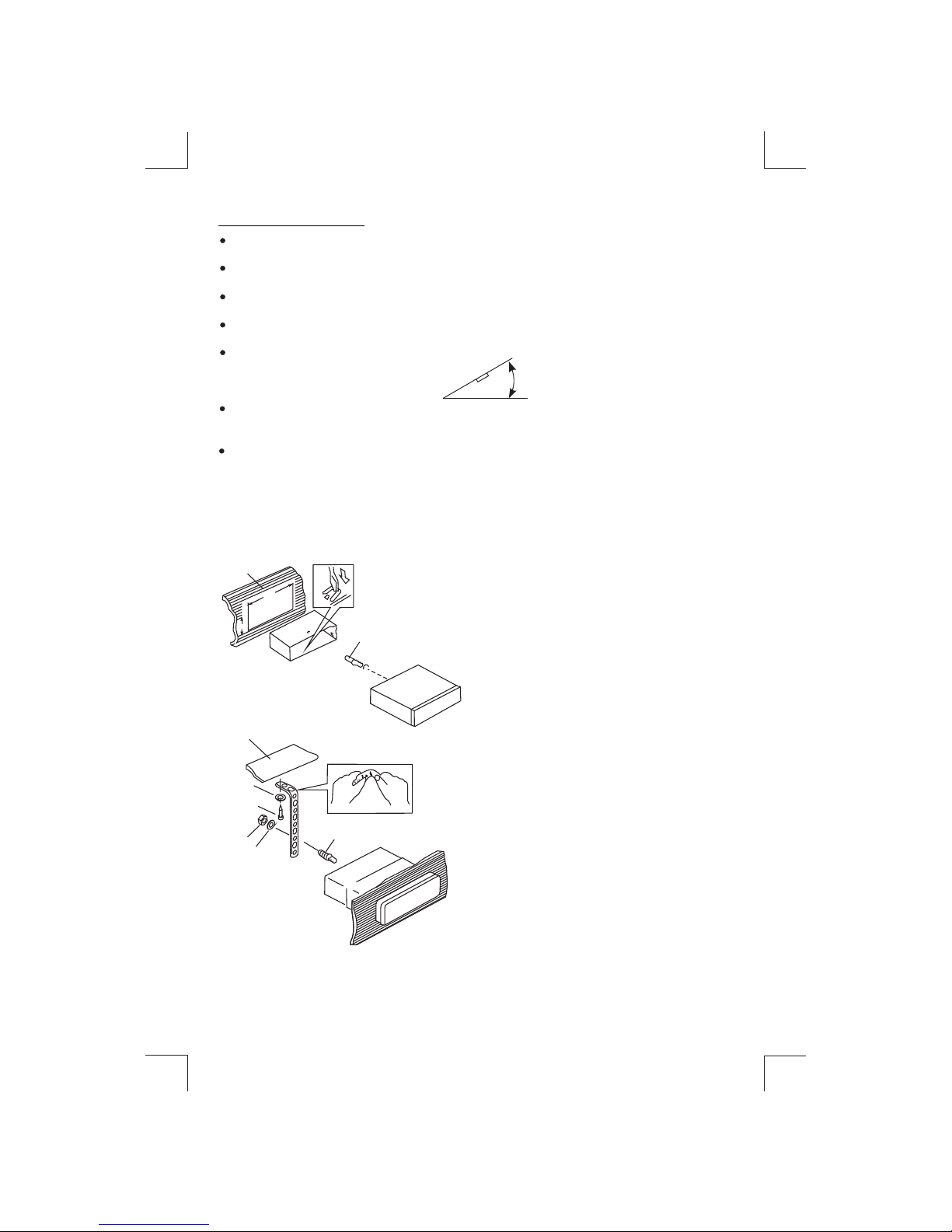

3. INSTALLATION

Before finally installing the unit, connect the wiring temporarily and make sure it is all connected

up properly and the unit and system work properly.

Use only the parts included with the unit to ensure proper installation. The use of unauthorized

parts can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or other

modifications of the vehicle.

Install the unit where it does not get in the driver's way and cannot injure the passenger if there is

a sudden stop, like an emergency stop.

If installation angle exceeds 30° from horizontal, the unit might not give its optimum

performance.

Avoid installing the unit where it would be subject to high temperature, such as from direct

sunlight, or from hot air, from heater, or where it would be subject to dust dirt or excessive

vibration.

Be sure to remove the front panel before installing the unit.

DIN FRONT/REAR-MOUNT

This unit can be property installed either from “Front” (conventional DIN Front-mount) or “Rear”(DIN

Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details,

refer to the following illustrated installation methods A and B.

DIN FRONT-MOUNT (Method A)

Installation the unit

1. Dashboard

2. Holder

After inserting the half sleeve into the

dashboard, select the appropriate tab

according to the thickness of the

dashboard material and bend them

inwards to secure the holder in place.

3. Screw

30°

61. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (4x12mm)

5. Screw

6. Support Strap

Be sure to use the support strap to secure

the back of the unit in place. The strap can

be bent by hand to the desired angle.

7. Plain washer

182

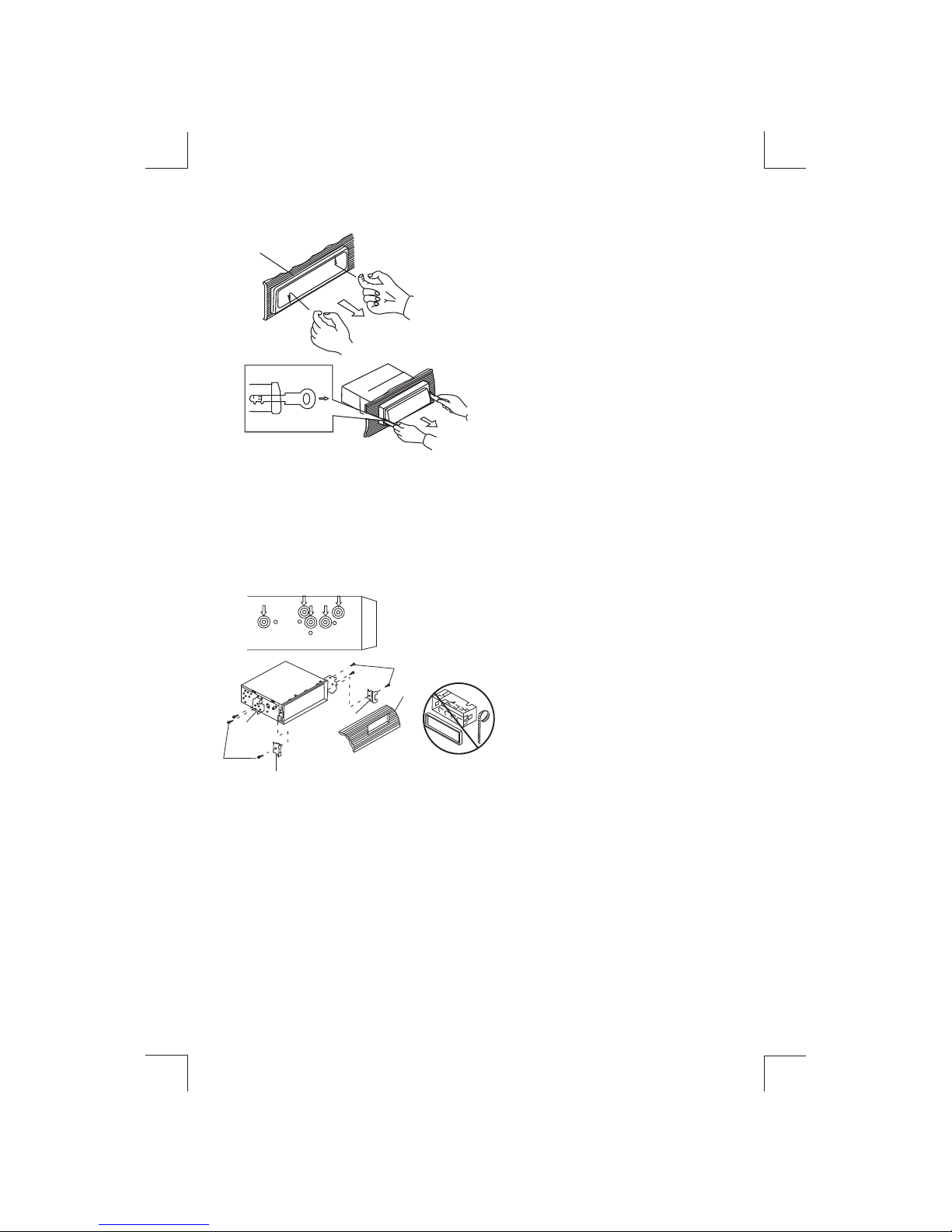

DIN REAR-MOUNT (METHOD B)

Installation using the screw holes on the sides of the unit.

Fastening the unit to the factory radio mounting bracket.

1. Select a position where the screw

holes of the bracket and the screw

holes of the main unit become

aligned (are fitted) and tighten the

screws at 2 places on each side.

2. Screw

3. Factory radio mounting bracket.

4. Dashboard or Console

5. Hook (Remove this part)

Note: the mounting box, outer trim ring,

and half-sleeve are not used for method

B installation.

a. Frame

b. Insert fingers into the groove in the

front of frame and pull out to remove

the frame. (When re-attaching the

frame, point the side with a groove

down wards and attach it.)

c. Insert the levers supplied with the

unit into the grooves at both sides of

the unit as shown in figure until they

click. Pulling the levers makes it

possible to remove the unit from the

dashboard.

Trim Plate Installation:

Push the trim plate against the chassis until it is fitted.

You must do this before you install the front panel, otherwise it can't be attached.

Removing the unit

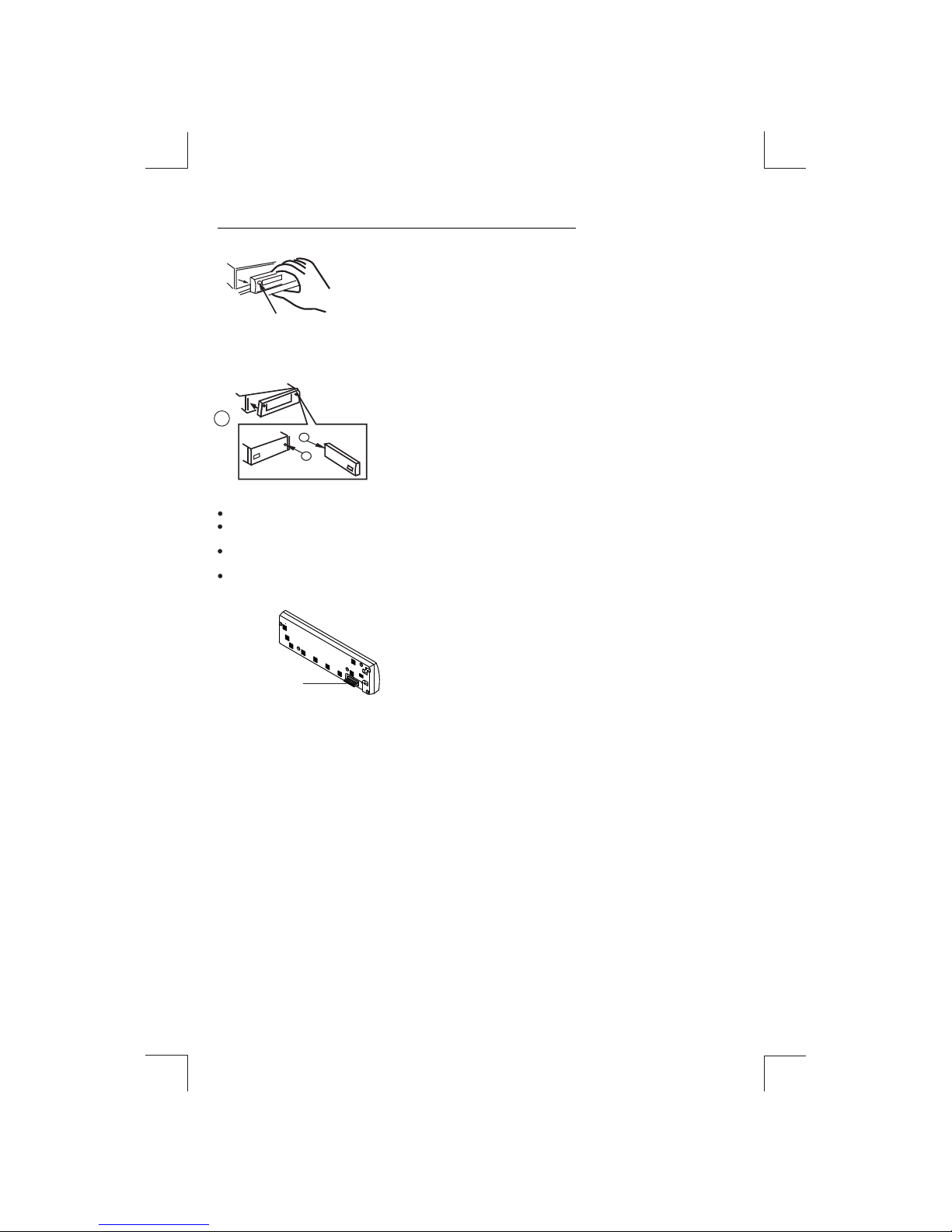

4. DETACHABLE CONTROL PANEL (D.C.P.)

Removing The Detachable Control Panel (D.C.P.).

1. Turn the power off

2. Press the D.C.P. release button

3. Remove the D.C.P.

PANEL RELEASE

BUTTON

Attaching the DCP

CAUTION

1. Attach the panel at the right side first, with

point B on the main unit touching point A on the

D.C.P. (As shown on the digram).

2. Then press the left side of D.C.P. onto the main

unit until a “click” sound is heard.

DO NOT insert the D.C.P from the left side. Doing so may damage it.

The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case and be careful not

to drop it or subject it to strong shocks.

When the release button is pressed and the D.C.P is unlocked, the car's vibrations may cause it to fall. To

prevent damage to the D.C.P, always store it in a protective case after detaching it.

The rear connector that connects the main unit and the D.C.P is an extremely important part. Be careful not to

damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note:

If the D.C.P is dirty, wipe off the dirt with soft,

dry cloth only. And use a cotton swab soaked

in isopropyl alcohol to clean the socket on the

back of the D.C.P.

Socket

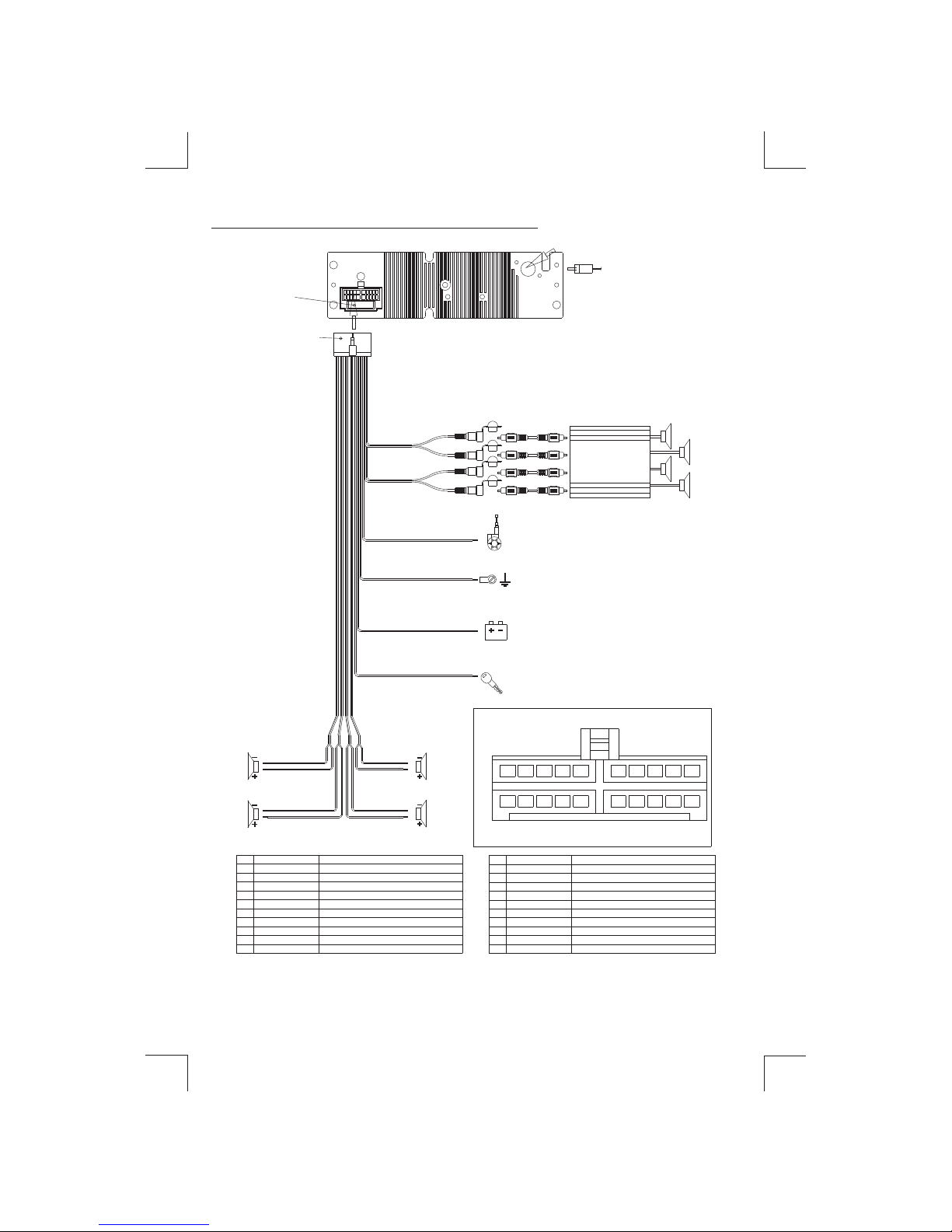

5. WIRING DIAGRAM (20 PIN HARNESS PLUG)

GREY-BLACK RF-

VIOLET-BLACK RR-

RED

YELLOW

BLACK

BLUE

VIOLET RR+

GREY RF+

GREEN-BLACK LR-

WHITE-BLACK LF-

GREEN LR+

WHITE LF+

LEFT REAR PRE-AMP LINE OUT

FRONT PRE-AMP LINE OUT COMMON

RIGHT FRONT PRE-AMP LINE OUT

LEFT FRONT PRE-AMP LINE OUT

LEFT FRONT SPEAKER (-)

LEFT FRONT SPEAKER (+)

FUNCTION/LABEL

RIGHT REAR

RIGHT FRONT

RIGHT FRONT SPEAKER (+)

REAR PRE-AMP LINE OUT COMMON

RIGHT FRONT SPEAKER (-)

RIGHT REAR SPEAKER (-)

LEFT REAR SPEAKER (-)

LEFT REAR SPEAKER (+)

RIGHT REAR SPEAKER (+)

RIGHT REAR PRE-AMP LINE OUT

LEFT REAR

8 RED

9 BLACK

2 GREY

3 VIOLET

6 GREEN

10 RED

WIRE COLOR

1 GREY/BLACK

4 VIOLET/BLACK

7 GREEN/BLACK

IGNITION(ACC)

LEFT FRONT

19 BLACK

16 BLACK

15 YELLOW

17 WHITE

14 BLUE

11 WHITE

WIRE COLOR

12 WHITE/BLACK

20 WHITE

18 RED

BATTERY(+)

CHASSIS GROUND

POWER ANTENNA

14 1513 16 17

21 4 53 6 7

BLACK

GREY

FUSE

REAR LINE OUT

WHITE

FRONT LINE OUT

RED

R-CH L-CH R-CH

WHITE

L-CH

8 109

Power Antenna Connect to power antenna or amplifier,If

not used,Tape bare end of wire.

Memory/Battery

Connect to battery or 12 volt power sourse that is always live.

The radio will not work if this wire is not connected

Accessory/Ignition Connect to existing radio wire or radio fuse.

Ground Connect to ground terminal or clean unpainted metal part of chassis

AMP

20-PIN AUDIO/POWER HARNESS

Pin View

Figure 1

HARNESS

AUDIO/POWER

20-PIN

(See Figure 1)

ANTENNA

JACK

RCA-TO-RCA CABLE

(not supplied)

ANTENNA SHOCKET

Press this button to remove the control panel.

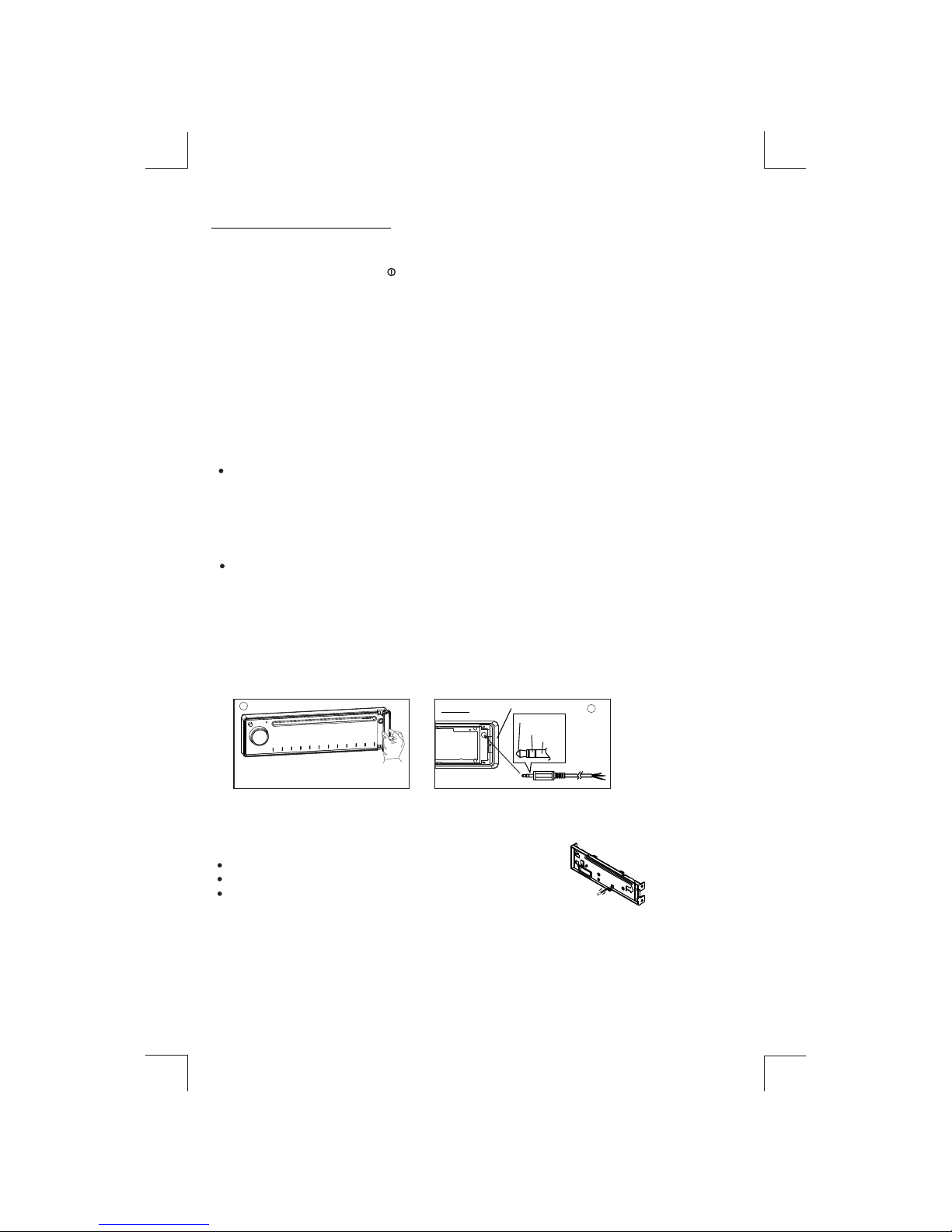

6. BASIC OPERATIONS

2) PANEL RELEASE BUTTON (REL)

12) DISP BUTTON(DISP)

Press this button briefly, the LCD will display the clock for about 5 seconds, then return to

previous display mode.

1) POWER ON/OFF BUTTON ( )

Press the POWER button on the front of the unit to turn on the unit. Long press the POWER

button to turn Off the unit.

1) MUTE BUTTON (MUTE)

Short Press the MUTE button to mute the audio output, and “Mute” will appear on the display.

Press the mute button again to restore the audio output to the previous level.

4) SOURCE BUTTON (SRC)

The RESET button is located on the main unit (as shown on the diagram). To press it vertically with

a ballpoint pen or metal object will activate it. The reset button is to be activated for the following

reasons:

Initial installation of the unit when all wiring is completed.

All the function buttons do not operate.

Error symbol on the display.

RESET BUTTON

Note: If press RESET button, the unit still cannot function normally, please use a cotton swab

soaked in isopropyl alcohol to clean the socket on the back of the control panel.

16) FRONT PANEL AUX-IN JACK

Connect the external signal to AUX in jack located at the front of the panel , then press

SOURCE button to select Aux mode. Press SOURCE Button again to cancel Aux Mode and

return to previous mode.

AUX IN FRONT CABINET

RIGHT TRACK

GROUND

AUX IN

LEFT TRACK

OPEN THE AUX-IN JACK DOOR/COVER

TO ACCESS TO THE AUX-IN JACK

Press this button to select different mode , sequence as follow:

SOURCE PRIORITY

A) Tuner mode (Radio)

B) CDP / MP3 (only if a CD or MP3 disc is inserted)

C) USB (only if a USB drive is inserted)

D) SD / MMC (Only if a SD or MMC card is inserted)

E) AUX IN (only if this unit with this features)

Whenever a USB or SD/MMC is being inserted, unit will automatically switch to USB or

SD/MMC mode, does not matter the unit is currently in what mode.

When in USB or SD / MMC mode, if the USB or SD / MMC is being removed, unit will

automatically switch to radio mode.

3) ENCODER VOLUME KNOB

Turn this knob to adjust desired volume level.

7. MENU OPERATIONS

TIME SET (CLK)

The time on the clock is set to “12:00” by default, Rotate the encoder volume knob to adjust the

minutes and hours.Press AUDIO/MENU button to select the hour or minute.

Note: Time format can not to set up, it should be follow the tunner area to change, when is in

U.S.A Latin then the time in 12H by default, when is in Europe Latin then the time in 24H by

default.

BEEP ON / OFF

Rotate the encoder volume knob to select Beep On / Off option.

Beep Off: disable audible beep tone when any function is accessed.

Beep On: enable audible deep tone.

8) PRESET EQUALIZER BUTTON (EQ)

Press this button to toggle the following EQ setting:

POP -> JAZZ -> CLAS -> BEAT -> ROCK

At DSP OFF mode, EQ will be controlled by Bass/Treble setting.

Programmable Turn-on Volume (P-VOL )

This option allows selection of the volume level the radio will automatically assume when first

turned on. " P - VOL 40 " is the default setting, which will turn the radio on at the volume level

selected when the unit was last turned off. To program a specific volume level for the radio to

turn on at, rotate the volume control to select "VOLUME LEVEL”. Within 5 seconds.

BASS ( Bass level )

Turn the encoder volume knob to adjust the desired Bass level range from -10 to +10, the

default is “0”.

TREBLE ( Treble level )

Turn the encoder volume knob to adjust the desired Treble level range from -10 to +10, the

default is “0”.

BALANCE

Rotate the encoder volume knob to adjust the Balance between the right and left speakers

from R10 to L10, the “C00” is default.

FADER

Rotate the encoder volume knob to adjust the Fader between the front and rear speakers from

F10 to R10, the “C00” is default.

To use this function keep press short AUDIO/MENU Button for few seconds, each time you press this

button the mode will move and the functions will shown on the display, turn the encoder volume knob

up/ down to set the desires functions ,the function states as following:

9) iX-BASS BUTTON

Press the iX-BASS button to switch the loudness on or off. When Loudness is on,display will

show ‘Loud On’ for a few seconds.

Inhaltsverzeichnis

Andere Boss Audio Systems Autoempfänger Handbücher

Boss Audio Systems

Boss Audio Systems BV9998B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems MR1465W Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9362BI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV8950 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9360B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9976B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems DVD-4200B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7332B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9978T Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7348B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 637UA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9967B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 612UA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV6000 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems MR1525UI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 750DI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems MR2180UA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9561B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9980NV Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9558 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems DVD-5000B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9158B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 634U Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 822UA Bedienungsanleitung

Beliebte Autoempfänger Handbücher anderer Marken

Motorola

Motorola VWA63 Bedienungsanleitung

Nextar

Nextar D3201 Bedienungsanleitung

Alpine

Alpine CDE-163BT Bedienungsanleitung

Pioneer

Pioneer DEH-P645R Bedienungsanleitung

Axxera

Axxera XDMA7600 Betriebsanleitung

XM OnyX Bedienungsanleitung

Sound Storm

Sound Storm STM93R Bedienungsanleitung

Soundstream

Soundstream VIR-5000 Bedienungsanleitung

Avson

Avson MKT Platform Bedienungsanleitung

Sony

Sony MEX-1HD - Audio Library System Bedienungsanleitung

Pioneer

Pioneer DVH-P500UB Bedienungsanleitung

JVC

JVC KD-AHD69 Bedienungsanleitung

Blaupunkt

Blaupunkt SANTIAGO CR 87 Bedienungsanleitung

Sony

Sony CDX-4160 - Cd Receiver Bedienungsanleitung

XFIRE AUDIO

XFIRE AUDIO BMW42S Bedienungsanleitung

VDO

VDO CD 2253 Bedienungsanleitung

Volvo

Volvo 13 84 580 Bedienungsanleitung

ZENEC

ZENEC ZE-160DVD Bedienungsanleitung
