Boss Audio Systems BV9158B Bedienungsanleitung

To ensure safety while driving

and to comply with laws,

drivers should not watch video or

operate the video device while driving.

4.5" Bluetooth-Enabled In-Dash Double-DIN

DVD/MP3/CD Receiver with USB, SD Memory Card

Ports and Front Panel AV Input

1. HANDLING COMPACT DISCS

MOISTURE CONDENSATION

NOTES ON CDs

P. 2

P. 3

P. 4

P. 1 P. 6

P. 7

Stickers that are beginning

to peel away leave a

sticky residue (P.6).

Labels are attached (P.7).

On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit.

Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for

about an hour until the moisture has evaporated.

A dirty or defective disc may cause sound

dropouts while playing. To enjoy optimum

sound, handle the disc as follows.

Handle the disc by its edge. To keep the disc

clean, do not touch the surface (P.1).

Do not stick paper or tape on the disc (P.2).

Before playing, clean the discs with an

optional cleaning cloth. Wipe each disc from

the centre out (P.4).

Do not use solvents such as benzine,

thinner,commercially available cleaners, or

antistatic spray intended for analog discs.

Do not expose the discs to direct sunlight or

heat sources such as hot air-ducts, or leave

them in a car parked in direct sunlight where

there can be a considerable rise in

temperature inside the car (P.3).

Do not use CDs with old labels that are

beginning to peel off.

Do not use CDs with labels or stickers

attached.

**************

*******

Do Not Use Special Shape CDs

Be sure to use round shape CDs only. Do

not use any special shape CDs. Use of

special shape CDs may cause the unit to

malfunction.(P.8).

P. 8

CD-Rs and CD-RWs which have not

undergone finalization processing cannot

be played. (For more information on

finalization processing, refer to the manual

for your CD-R/CD-RW writing software or

CD-R/CD-RW recorder.) Additionally,

depending on the recording status, it may

prove impossible to play certain CDs

recorded on CD-R or CD-RW.

E - 1

P. 5

NOTES ON DISCS

If you use the discs explained below, the sticky

residue can cause the CD to stop spinning and

may cause malfunction or ruin your discs.

Do not use CDs that have a sticky residue on the

surface (for example, from peeled-off stickers or

from ink, or glue leaking from under the

stickers).

****

*******

******* *******

*******

Paste or sticky residue.

E - 2

2. INSTALLATION

Before finally installing the unit, connect the wiring temporarily and make sure it is all

connected up properly and the unit and system work properly.

Use only the parts included with the unit to ensure proper installation. The use of

unauthorized parts can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or other

modifications of the vehicle.

Install the unit where it does not get in the driver's way and cannot injure the passenger if

there is a sudden stop, like an emergency stop.

If installation angle exceeds 30 from horizontal, the unit might not give its optimum

performance.

Avoid installing the unit where it would be subject to high temperature, such as from direct

sunlight, or from hot air, from heater, or where it would be subject to dust dirt or excessive

vibration.

Be sure to remove the front panel before installing the unit.

DIN FRONT/REAR-MOUNT

DIN FRONT-MOUNT (Method A)

Installation the unit 1. Dashboard

2. Screw

1. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (5x15mm)

5. Screw

6. Support Strap

Be sure to use the support strap to secure the

back of the unit in place. The strap can be bent by

hand to the desired angle.

7. Plain washer

Trim Plate Installation:

Push the trim plate against the chassis until it is fitted.

You must do this before you install the front panel, otherwise it can't be attached.

178

100

This unit can be property installed either from Front (conventional DIN Front-mount) or Rear (DIN

Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details,

refer to the following illustrated installation methods A and B.

REAR LINE OUT LEFT & RIGHT

FRONT LINE OUT LEFT & RIGHT

VIDEO OUT (1 & 2)

A/V IN (AUDO LEFT)

A/V IN (AUDIO RIGHT)

A/V IN (VIDEO IN)

ANTENNA JACK

BACKSIGHT RCA

SUB-W OUT

E - 3

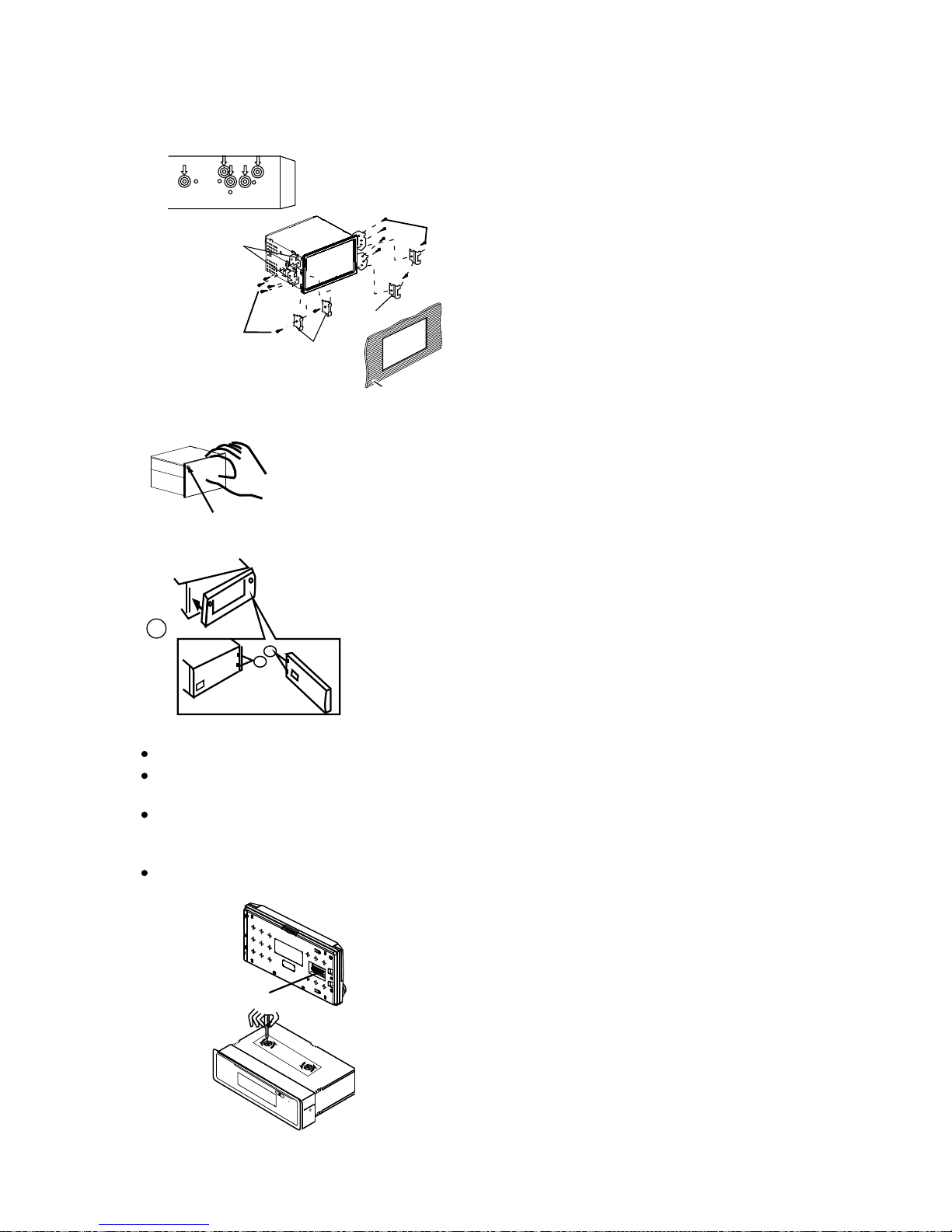

DIN REAR-MOUNT (METHOD B)

Installation using the screw holes on the sides of the unit.

Fastening the unit to the factory radio mounting bracket.

DETACHABLE CONTROL PANEL (D.C.P.)

Removing The Detachable Control Panel (D.C.P.).

Attaching the DCP

CAUTION

DO NOT insert the D.C.P from the left side. Doing so may damage it.

The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case

and be careful not to drop it or subject it to strong shocks.

When the release button is pressed and the D.C.P is unlocked, the car's vibrations may

cause it to fall. To prevent damage to the D.C.P, always store it in a protective case after

detaching it.

The rear connector that connects the main unit and the D.C.P is an extremely important

part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

These 2 screws are used to prevent damage to the CD

mechanism during transportation Please make sure to

remove the 2 screws before installing the unit into the

vehicle. DO NOT insert a CD into the unit before

removing the 2 screws.

IMPORTANT

Note:

If the D.C.P is dirty, wipe off the dirt with soft, dry cloth

only. And use a cotton swab soaked in isopropyl

alcohol to clean the socket on the back of the D.C.P.

1. Turn the power off

2. Press the D.C.P. release button

3. Remove the D.C.P.

1. Attach the panel at the right side first, with

point B on the main unit touching point A on

the D.C.P. (As shown on the digram).

2. Then press the left side of D.C.P. onto the

Socket

Screw

Factory radio

mounting bracket

Dashboard or console

Hook

Note: the mounting box, outer

trim ring,and half-sleeve are not

used for this installation.

Note: The mounting box, metal

half sleeve, hook & screws are

not included in the packnig.

PANEL RELEASE

BUTTON

main unit until a click sound is heard.

E - 4

3. ELECTRICAL CONNECTION

a. Make sure your car battery is a 12 volt (6 filler caps) negative ground system (if not, a

converter will be necessary).

b. Before starting wiring connections, disconnect the power supply by removing the fuse from

the fuse box.

c. Connect the power wire to one of the extra terminals of the fuse box.

d. Connect the black ground wire to a metal part of the car. It is important to make good

contact.

e. Make other wiring connections as shown.

f. If your car does not have ISO connector, you can purchase it from car accessory shops.

Notes: INCORRECT WIRING OR OPERATION WILL VOID THE WARRANTY OF THIS UNIT.

Fuse Replacement:

To replace the fuse, pull out the blown fuse

from the socket. Insert a new one with same

rating

(CAR UNIT BACK SIDE)

The RESET button is located on the main unit (as shown on the diagram). To press it vertically

with a ballpoint pen or metal object to activate it. The reset button should be activated for the

following reasons:

Initial installation of the unit when all wiring is completed.

All the function buttons do not operate.

Error symbol on the display.

RESET BUTTON

Note: If you press the RESET button, and the unit still cannot function normally, please use a

cotton swab soaked in isopropyl alcohol to clean the socket on the back of the control panel.

FUSE

E - 5

TALK

BUTTON

PANEL

RELEASE

BUTTON

POWER/

MUTE

BUTTON

FUNCTION

SELECT

BUTTON

BAND/

LOUDNESS/

APL/NTSC

BUTTON

AMS/

PLAY/PAUSE

BUTTON

LOC

BUTTON

SCAN

BUTTON

FM MONO /

STEREO

BUTTON

ENCODER

VOLUME

KNOB DISPLAY

BUTTON

CANCEL/

MODE

BUTTON

INFRARED

REMOTE

SENSOR

DSP/

LEFT/

RIGHT

BUTTON

TUNING /

SEEK

UP/DOWN

NEXT/BACK

BUTTON

EJECT

BUTTON

E - 6

5. BASIC OPERATION

E - 7

POWER BUTTON

Press power button to turn on/off the unit.

Press this button to remove the control panel.

PANEL RELEASE BUTTON

MUTE BUTTON ( MUTE)

Press MUTE button to mute the sound quickly. the display is flashing Press it again to restore the

previous sound level. When mute is on, the Mute indicator on the LCD will light up.

LOUDNESS BUTTON (LOUD)

Long press this LOUD button control to increase bass output.

MODE BUTTON

Press this button to select radio,DISC/USB/SD/MMC/

A/V- IN FRONT /A/V-IN REAR.

(MODE)

SELECT BUTTON (SEL)

press SEL button for less than 1 second to open the Audio menu.

press SEL repeatedly to navigate through the following functions:

VOLUME (VOL) -> BASS (BAS) -> TREBLE (TRE) -> BALANCE (BAL) -> FADER (FAD)

Use Volume Up/Down to adjust desired level within 5 seconds.

NOTE: BASS AND TREBLE WILL BE SKIPPED IF DSP MODE IS ACTIVATED

ENCODER VOLUME KNOB

Turn this knob to adjust desired volume level.

PRESET EQUALIZER BUTTON (DSP)

Press this PEQ button then use V-UP / V-DN to toggle the following EQ settings.

At DSP off mode preset equalizer will be controlled by Bass / Treble setting.

FRONT PANEL A/V IN JACK

NOTE:The unit is only support the 3.5mm A/V Jack Pin Assignment shown as the diagram remove

extra.

3.5mm A/V Cable ( not included )

Video

Right Audio

Left Audio

Ground

Press SELECT button for more than 3 seconds to activate or turn off the Sub-woofer

(Sub-woofer on/off is an optional feature)

SUB-WOOFER ON/OFF

DISPLAY BUTTON( DISP )

Press this button briefly, the LCD will display the clock for about 3 seconds,

The unit is allowed to connect with external Audio/Video

system such like digital Camera or Game Console, You

can connect the external A/V system thru the A/V in jack

on front panel. After connecting the external A/V system,

press mode to A/V IN FRONT to enjoy this external A/V

system on this unit.

POP -> ROCK -> CLASSIC -> DSP OFF

Andere Handbücher für BV9158B

Inhaltsverzeichnis

Andere Boss Audio Systems Autoempfänger Handbücher

Boss Audio Systems

Boss Audio Systems BV9364B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9386NV Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 760DI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 615UA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 637UA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9560B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9370NV Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 824UAB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems ELITE 455BRGB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9372BI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 812UAB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems CD-3125R Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7942 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems ELITE BECPA10W Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 840UBI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 758DBI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 4100 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 630U Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems CAP200CR Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV90BA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 825CA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 611UAB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9564BI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 638UA Bedienungsanleitung

Beliebte Autoempfänger Handbücher anderer Marken

Motorola

Motorola VWA63 Bedienungsanleitung

Nextar

Nextar D3201 Bedienungsanleitung

Alpine

Alpine CDE-163BT Bedienungsanleitung

Pioneer

Pioneer DEH-P645R Bedienungsanleitung

Axxera

Axxera XDMA7600 Betriebsanleitung

XM OnyX Bedienungsanleitung

Sound Storm

Sound Storm STM93R Bedienungsanleitung

Soundstream

Soundstream VIR-5000 Bedienungsanleitung

Avson

Avson MKT Platform Bedienungsanleitung

Sony

Sony MEX-1HD - Audio Library System Bedienungsanleitung

Pioneer

Pioneer DVH-P500UB Bedienungsanleitung

JVC

JVC KD-AHD69 Bedienungsanleitung

Blaupunkt

Blaupunkt SANTIAGO CR 87 Bedienungsanleitung

Sony

Sony CDX-4160 - Cd Receiver Bedienungsanleitung

XFIRE AUDIO

XFIRE AUDIO BMW42S Bedienungsanleitung

VDO

VDO CD 2253 Bedienungsanleitung

Volvo

Volvo 13 84 580 Bedienungsanleitung

ZENEC

ZENEC ZE-160DVD Bedienungsanleitung
