OWNER’S MANUAL

MobileAudio/VideoSystem

y3.2 Inch TFT Monitor

yDVD Player with Radio

yFold down detachable Panel

yBluetooth Hands-free function & A2DP (Advanced Audio

Distribution Profile) Stereo Audio Transmission

yMemory Card Interface

yUSB Interface

yAV IN interface on the front panel

yParental Control

yRemote Control

BV7335B

CONTENTS

SAFETY INFORMATION................................................................... 3

DISC NOTES ..................................................................................... 5

INSTALLATION.................................................................................. 6

USING THE DETACHABLE FRONT PANEL.................................... 9

CONNECTIONS................................................................................. 10

LOCATIONS AND FUNCTION OF THE PLAYER............................. 11

LOCATIONS AND FUNCTION OF THE REMOTE CONTROL......... 12

OPERATION ...................................................................................... 15

BASIC OPERATION....................................................................................... 15

DVD OPERATION............................................................................................ 16

USB PLAY OPERATION.................................................................................. 21

MEMORY CARD OPERATION........................................................................ 22

RADIO OPERATION ........................................................................................ 22

BLUETOOTH OPERATION.............................................................................. 23

AV IN O

TROUBLE SHOOTING...................................................................... 25

SPECIFICATIONS ............................................................................. 27

PERATION.......................................................................................... 24

Features

Compatible with PAL DVD (Video CD)

and NTSC DVD (Video CD)

This player can play discs recorded in

either PAL or NTSC format.

zL/R stereo analog audio outputs for

connection to existing head unit av

inputs. Video output is composite

video.

zSupplied remote handles

multi-function software

(multi-language audio-track/subtitle,

multi-angle, etc.), plus all basic

functions.

Use This Product Safely

This set has been designed and

manufactured to assure personal safety.

Improper use can result in electric

shock or fire hazard. The safeguards

incorporated in this unit protect you if

you observe the following procedures

for installation, use and servicing. This

unit doesn’t contain any parts that can

be repaired by the user.

When Driving

Keep the volume level low enough to be

aware of road and traffic conditions.

When Car Washing

Do not expose the product to water or

excessive moisture. This could cause

electrical shorts, fire or other damage.

When Parked

Parking in direct sunlight can produce

very high temperatures inside your

vehicle. Give the interior a chance to

cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with

a 12 volt DC, negative ground battery

system.

Protect the Disc Mechanism

Avoid inserting any foreign objects into

the slot of this player.

Failure to observe this may cause

malfunction due to the precise

mechanism of this unit.

Use Authorized Service Centers

Do not attempt to disassemble or adjust

this precision product. Please refer to

the Service Center list included with this

product for service assistance.

For Installation

The unit should be installed in a

horizontal position with the front end up

at a convenient angle, but not more

than 300.

SAFETY INFORMATION

CAUTION:

MOBILE DVD PLAYER IS A CLASS I

LASER PRODUCT. HOWEVER THIS

MOBILE DVD PLAYER USES A

VISIBLE/INVISIBLE LASER BEAM WHICH

COULD CAUSE HAZARDOUS

RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE THE MOBILE

DVD PLAYER CORRECTLY AS

INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS

OR PERFORMANCE OF PROCEDURES

OTHER THAN THOSE SPECIFIED

HEREIN MAY RESULT IN HAZARDOUS

RADIATION EXPOSURE.

DO NOT OPEN COVERS AND - DO NOT

REPAIR YOURSELF. REFER SERVICING

TO QUALIFIED PERSONNEL.

WARNING:

yTO REDUCE THE RISK OF FIRE OR

ELECTRICAL SHOCK, DO NOT

EXPOSE THIS EQUIPMENT TO RAIN

OR MOISTURE.

yTO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE

RECOMMENDED ACCESSORIES.

yTHIS DEVICE IS INTENDED FOR

CONTINUOUS OPERATION.

Region Management Information

Region Management Information: This

Mobile DVD Player is designed and

manufactured to respond to the Region

Management Information that is recorded

on a DVD disc. If the Region number

described on the DVD disc does not

correspond to the Region number of this

Mobile DVD Player, this Mobile DVD

Player cannot play this disc.

DISC NOTES

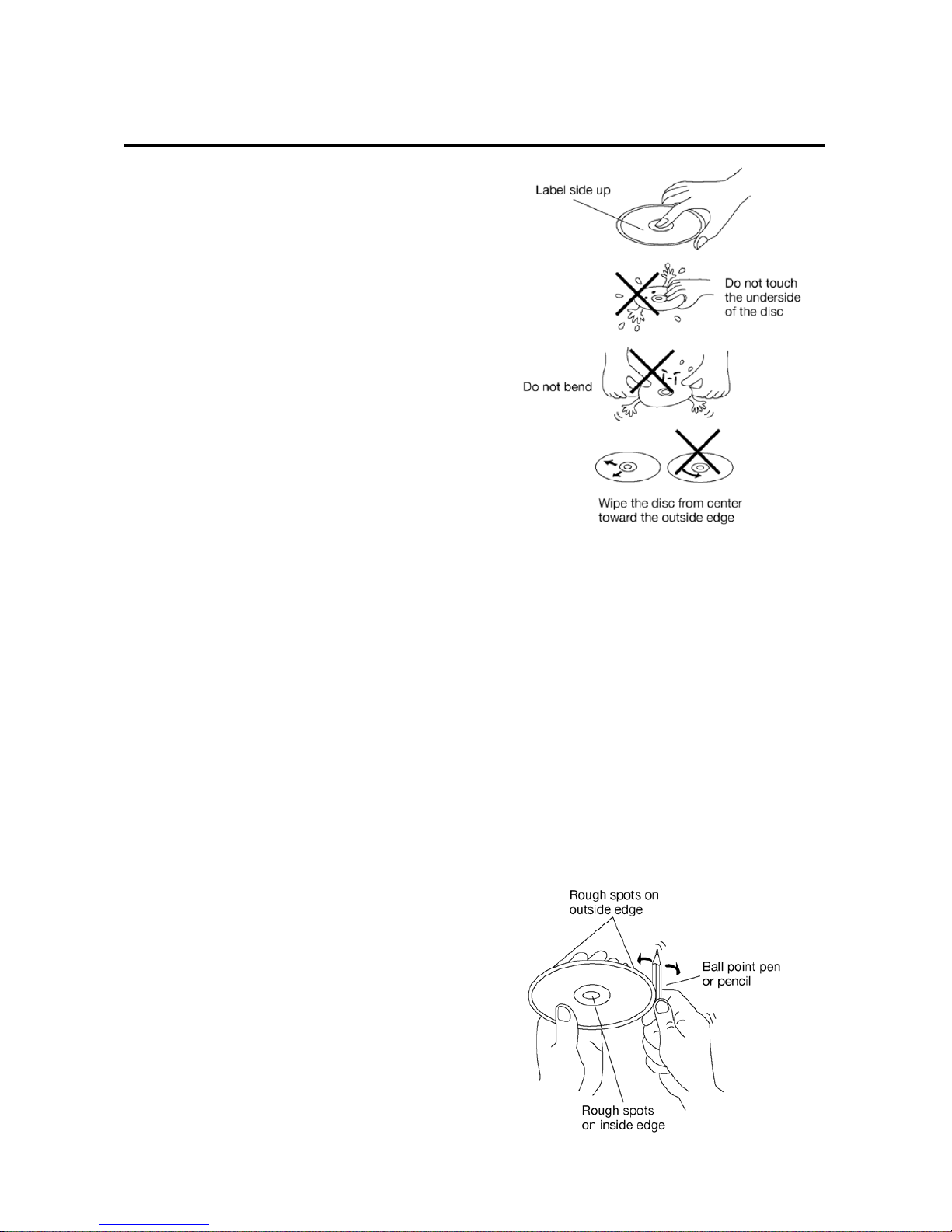

Handling and Cleaning

yDirt, dust, scratches and warping discs

will cause wrong operation.

yDo not place stickers or make

scratches on discs.

yDo not warp discs.

yA disc should always be kept in its case

when not in use to prevent from

damage.

yDo not place discs in the following

places:

1. Direct sunlight.

2. Dirty, dusty and damp areas.

3. Near car heaters.

4. On the seats or dashboard.

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, using a soft cloth

slightly dip with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Note:

A disc may become somewhat scratched

(although not enough to make it

unusable) depending on the way it is

handled and conditions in the usage

environment. Note these scratches are

not an indication of any problem with the

player.

Preparing New Discs with

Rough Spots

A new disc may have rough edges on

its inside and outside edges. If a disc

with rough edges is used, the proper

setting will not be performed and the

player will not play the disc. Therefore,

remove the rough edges in advance by

using a ballpoint pen or pencil as

shown on the right. To remove the

rough edges, press the side of the pen

or pencil against the inside and outside

edges of the disc.

INSTALLATION

Notes:

yChoose the mounting location where

the unit will not interfere with the

normal driving function of the driver.

yBefore finally installing the unit,

connect the wiring temporarily and

make sure it is all connected up

properly and the unit and the system

work properly.

yUse only the parts included with the

unit to ensure proper installation. The

use of unauthorized parts can cause

malfunctions.

yConsult with your nearest dealer if

installation requires the drilling of holes

or other modifications of the vehicle.

yInstall the unit where it does not get in

the driver’s way and cannot injure the

passenger if there is a sudden stop,

like an emergency stop.

yIf installation angel exceeds 30° from

horizontal, the unit might not give its

optimum performance.

yAvoid installing the unit where it would

be subject to high temperature, such

as from direct sunlight, or from hot air,

from the heater, or where it would be

subject to dust, dirt or excessive

vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either

from “Front” (conventional DIN

Front-mount) or “Rear” (DIN Rear-mount

installation, utilizing threaded screw holes

at the sides of the unit chassis). For details,

refer to the following illustrated installation

methods.

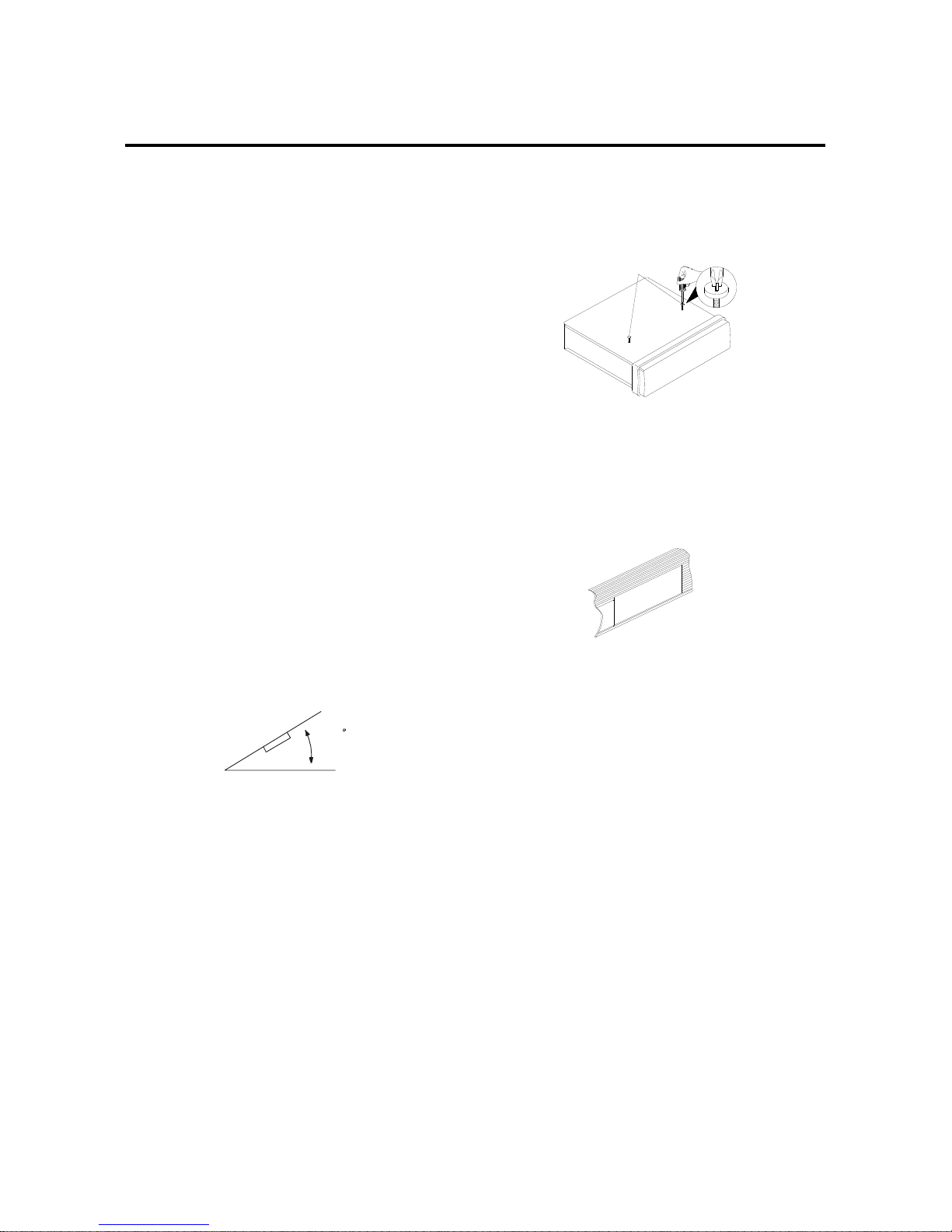

TAKE OUTSCREWBEFORE INSTALLATION

Before install the unit, please remove the

two screws.

DIN FRONT-MOUNT (Method A)

Installation Opening

This unit can be installed in any dashboard

having an opening as shown below:

Installing the unit

Be sure you test all connections first, and

then follow these steps to install the unit.

1. Make sure the ignition is turned off, and

then disconnect the cable from the

vehicle battery’s negative (-) terminal.

2. Disconnect the wire harness and the

antenna.

3. Press the release

button on the front

panel and remove the control panel

(see the steps of “removing the front

panel”).

4. Lift the top of the outer trim ring then

pull it out to remove it.

5. The two supplied keys release tabs

inside the unit’s sleeve so you can

remove it. Insert the keys as far as

Take out screw

before installation.

INSTALLATION

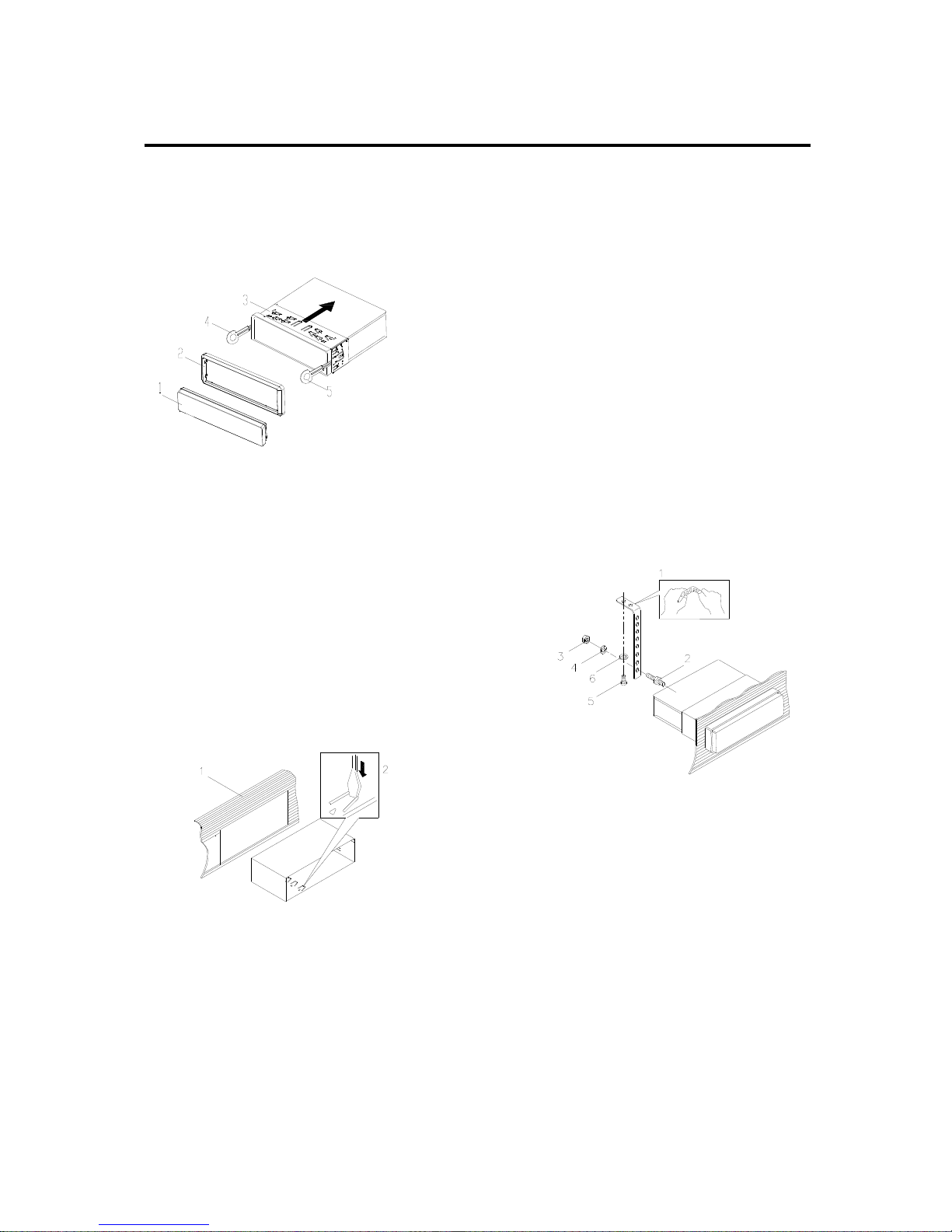

they will go (with the notches facing up)

into the appropriate slots at the middle

left and right sides of the unit. Then slide

the sleeve off the back of the unit.

(1) Front Panel; (2) Outer Trim Ring;

(3) Sleeve; (4) L key; (5) R key.

6. Mount the sleeve by inserting the

sleeve into the opening of the

dashboard and bend open the tabs

located around the sleeve with a

screwdriver. Not all tabs will be able to

make contact, so examine which ones

will be most effective. Bending open the

appropriate tabs behind the dashboard

to secure the sleeve in place.

(1) Dashboard (2) Taps

7. Reconnect the wire harness and the

antenna and be careful not to pinch any

wires or cables.

8. Slide the unit into the sleeve until it

locks into place.

9. To further secure the unit, use the

supplied metal strap to secure the

back of the unit in place. Use the

supplied hardware (Hex Nut (M5mm)

and Spring Washer) to attach one end of

the strap to the mounting bolt on the

back of the unit. If necessary, bend the

metal strap to fit your vehicle’s mounting

area. Then use the supplied hardware

(Tapping Screw (5x25mm) and Plain

Washer) to attach the other end of metal

strap to a solid metal part of the vehicle

under the dashboard. This strap also

helps ensure proper electrical grounding

of the unit.

Note to install the short threading

terminal of the mounting bolt to the back

of the unit and the other long threading

terminal to the dashboard.

(1) Metal Strap; (2) Mounting Bolt;

(3) Hex Nut; (4) Spring Washer;

(5) Tapping Screw; (6) Plain Washer

10. Reconnect the cable to the vehicle

battery’s negative (-) terminal. Then

replace the outer trim ring and install

the unit’s front panel (see the steps of

“installing the front panel”).

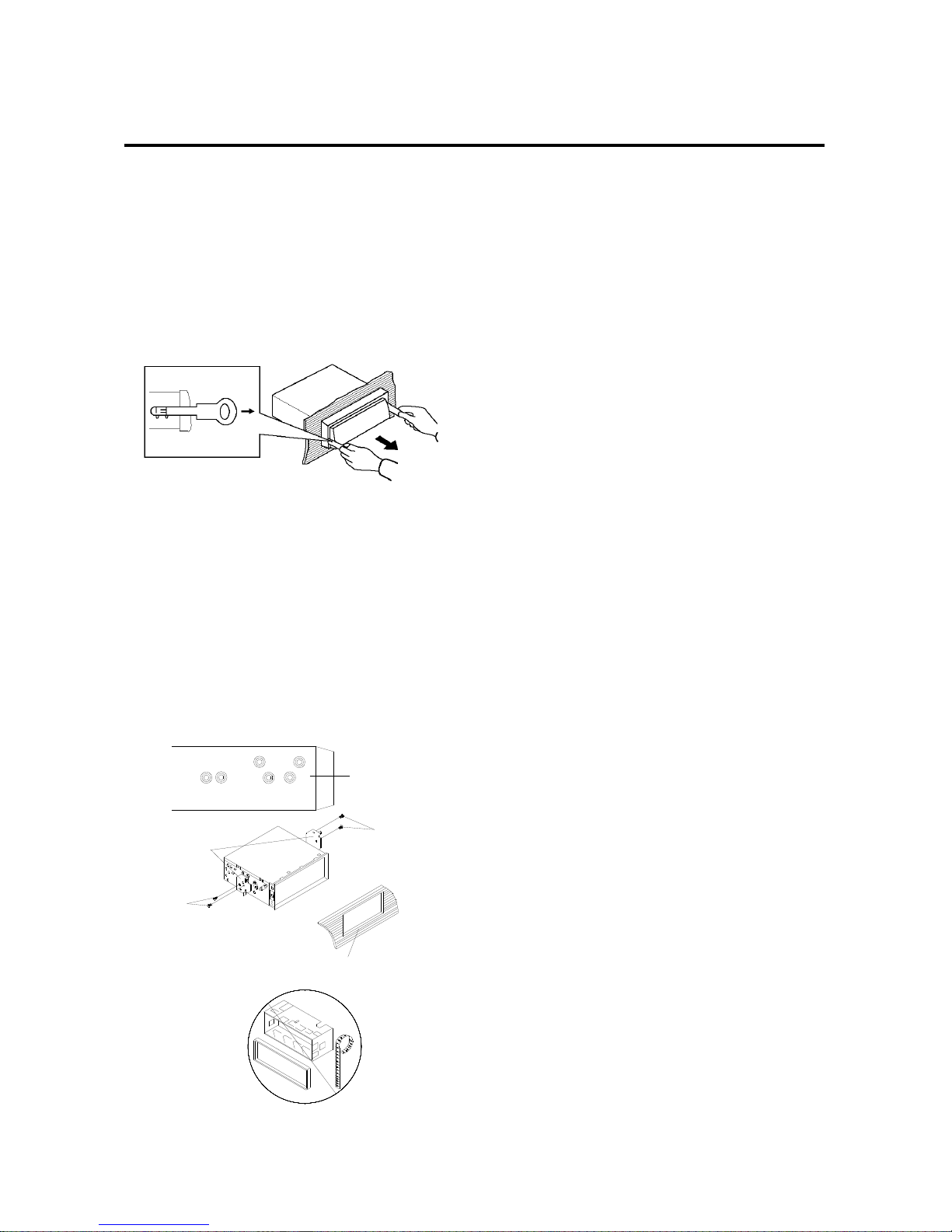

Removing the unit

1. Make sure the ignition is turned off, then

disconnect the cable from the vehicle

battery’s negative (-) terminal.

2. Remove the metal strap attached the

back of the unit (if attached).

INSTALLATION

3. Press the release button to remove the

front panel.

4. Lift the top of the outer trim ring then pull

it out to remove it.

5. Insert both of the supplied keys into the

slots at the middle left and right sides of

the unit, then pull the unit out of the

dashboard.

DIN REAR-MOUNT (Method B)

If your vehicle is a Nissan, Toyota, follow

these mounting instructions.

Use the screw holes marked T (Toyota), N

(Nissan) located on both sides of the unit

to fasten the unit to the factory radio

mounting brackets supplied with your

vehicle.

Dashboard or Console

Screw

Factory Radio

Mounting Bracket

Side View showing

Screw Holes marked

T, N

Screw

To fasten the unit to the factory radio

mounting brackets.

Align the screw holes on the bracket with

the screw holes on the unit, and then

tighten the screws (5x5mm) on each side.

Note: the outer trim ring, sleeve and the

metal strap are not used for method B

installation.

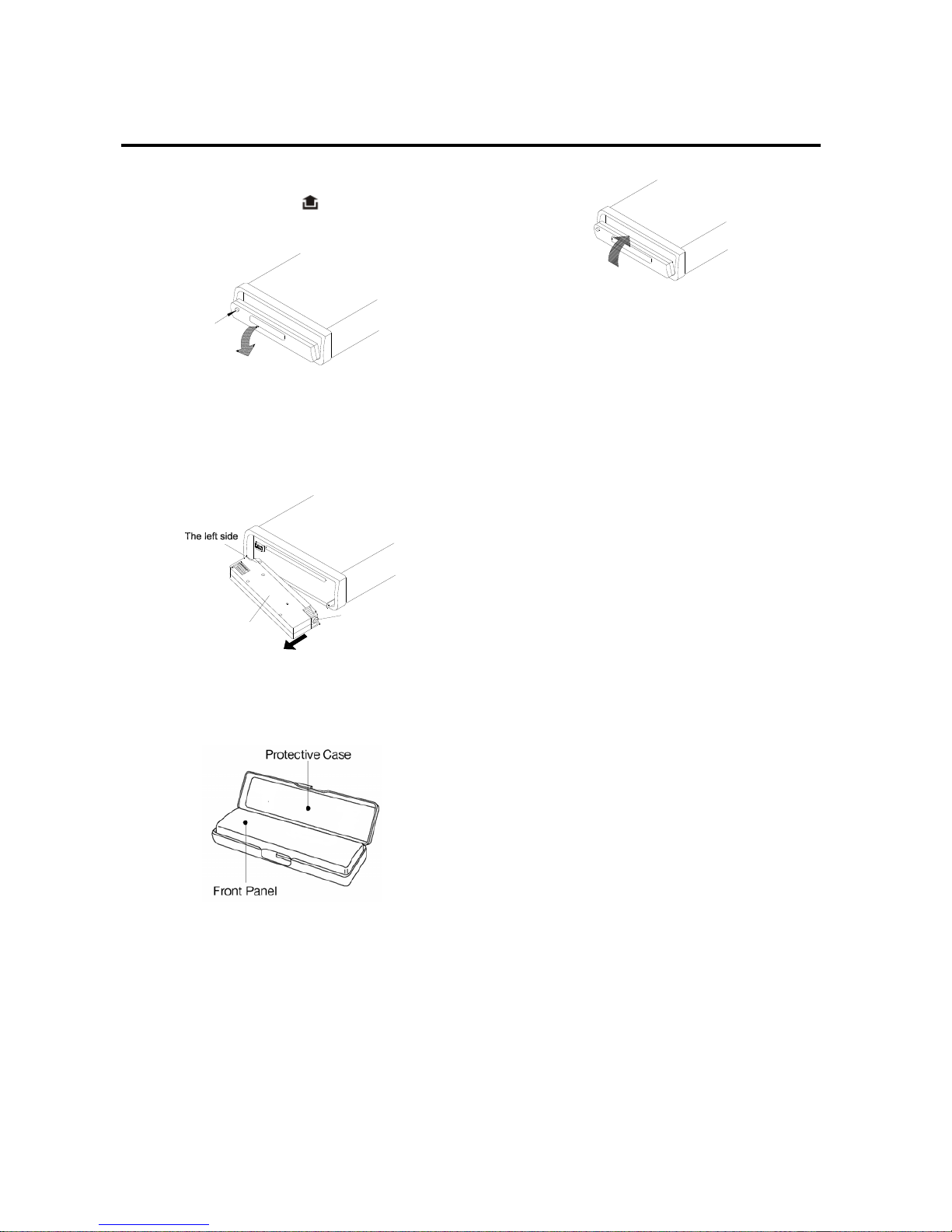

To Detach the Front Panel

1. Press the release ( ) button, then the

front panel will be folded down.

OPEN

2. To remove the front panel, lift it up at a

little angle from horizontal position, then

first pull out the right side and then pull

out the left side.

Front Panel

The right side

3. For safekeeping, store the front panel in

the supplied protective case immediately

after being removed.

To Install the Front Panel

1. To install the front panel, first insert the

left side into proper position then insert

the right side into place.

2. When the two sides fixed into place,

push the front panel into main unit.

3. Note that if the front panel fails to lock in

position properly, pressing control button

may not function and the display may be

missing some segments. Press the

release button and then reinstall the front

panel again.

Precautions when handling

1. Do not drop the front panel.

2. Do not put pressure on the display or

control buttons when detaching or

re-installing the front panel.

3. Do not touch the contacts on the front

panel or on the main unit body. It may

result in poor electrical contact.

4. If any dirt or foreign substances

adhered on the contacts, they can be

removed with a clean and dry cloth.

5. Do not expose the front panel to high

temperatures or direct sunlight in

anywhere.

6. Keep away any volatile agents (e.g.

benzene, thinner, or insecticides) from

touching the surface of the front panel

7. Do not attempt to disassemble the

front panel.

USING THE DETACHABLE FRONT PANEL

Release button

Andere Handbücher für BV7335B

Inhaltsverzeichnis

Andere Boss Audio Systems Auto-Videosystem Handbücher

Boss Audio Systems

Boss Audio Systems BV9354 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems Vision BV10.4IRF Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV860B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV11.2F Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems DVD-9800B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7HIR Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems DVD-2800T Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems Vision BV-17FLIP Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9372BI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems HIR70BL Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems Vision BVH6 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems MR634UAB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV12.1MCH Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9967BI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 7 (178mm) Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV8.5BA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems HR9.2-PAKB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems HIR7UBL Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems DVD-6000 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV-T5.0 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9967BI Benutzerhandbuch

Boss Audio Systems

Boss Audio Systems DVD9900B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV10.1MC Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV-T6.0 Bedienungsanleitung

Beliebte Auto-Videosystem Handbücher anderer Marken

Stinger

Stinger HEIGH10 RB10RAM13B Bedienungsanleitung

Eonon

Eonon E1057 Bedienungsanleitung

Milion

Milion D2223 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8153 Bedienungsanleitung

Voxx Electronics

Voxx Electronics HR8MA1 Bedienungsanleitung

Axxera

Axxera AV604Bi Bedienungsanleitung

Clarion

Clarion NX706E Bedienungsanleitung

Pyle view

Pyle view PLDN74BTi Bedienungsanleitung

Clarion

Clarion NX602 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5850N Bedienungsanleitung

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Benutzerhandbuch

Lanzar

Lanzar SVDVD5 Bedienungsanleitung

Kia

Kia MTXM100YPPE Bedienungsanleitung

Eonon

Eonon E1060 Bedienungsanleitung

Macrom

Macrom M-AN900 Bedienungsanleitung

Hyundai

Hyundai BAPE-L3000N Bedienungsanleitung

r.LiNK

r.LiNK RL2-UCON8-SM Bedienungsanleitung

Blaupunkt

Blaupunkt DVP 01C Bedienungsanleitung
