BOSS ILLUMINATION VESPER Bedienungsanleitung

www.bia.lighting | [email protected]page 1 / 2

PRODUCT MANUAL

Disclaimer: Please read these warranty

and installation instructions carefully

before installing the product.

BIA products are manufactured

and certied in accordance with all

mandatory Australian Standards.

All products must be installed by a

licensed electrician, in accordance

with relevant Australian Standards.

Technical data and information subject

to changes, visit our website for the

most updated version.

WARRANTY STATEMENT This product is covered by a 5 year replacement warranty.

BIA guarantees this product to be free of defects from the date of purchase for the stated period above. If product fails within the warranty period, BIA will x

or replace the product. This excludes any costs associated with the removal or installation of product. This warranty is subject to the terms and conditions stated

on www.bia.lighting. Failure to comply with installation guidelines will automatically void the warranty. Please retain purchase receipt. For more information on

warranty please visit www.bia.lighting/warranty

BIA reserves the right to change specications and other information, modify products and discontinue items without prior notication.

PRODUCT VARIANTS

Power/Weight: 20W 5.8kg

30W 5.8kg

40W 5.8kg

60W 5.8kg

80W 6.2kg

90W 6.2kg

Photocell: Yes

CCT : 3000K

4000K

5000K

PRODUCT SPECIFICATIONS

Input Voltage : 100-277 VAC 50-60Hz

Ambient Temperature : -10 to 45°C

Dimming : No

Beam Angle : 135°

VESPER

STREET LIGHT

Must be installed by

a licensed electrician.

Must be installed

in accordance with

relevant Australian

Standards.

ADDITIONAL INFORMATION

1. This luminaire is not dimmable.

2. Luminaire installation angle is adjustable. Refer instructions

overleaf.

3. Installation must be carried out with care to ensure the surface of

the luminaire is not scratched or damaged. Damaged surfaces will

result in material corrosion when exposed under harsh weather

conditions.

4. Please ensure luminaire cover is sealed.

5. If cleaning maintenance is required, use a clean microﬁbre cloth,

slightly dampened with a mild dilution of detergent that is PH

neutral, alcohol free and non-abrasive.

PARTS INCLUDED

8m CableLED

Luminaire

IP66 IK10

34~38mm

www.bia.lighting | [email protected]page 2 / 2

PRODUCT MANUAL

INSTALLATION INSTRUCTIONS

1. Ensure pole of the correct diameter has been installed/supplied.

2. Twist on the diffuser cover.

A WITH L-SHAPED BRACKET

3. Feed wiring cable through the L-shaped bracket provided.

4. Secure L-shaped bracket onto luminaire with screws provided.

5. Feed wiring cable through spigot.

6. Secure L-shaped bracket onto pole with screws provided.

7. Cable should be terminated within the pole and to the IP

rating required.

Note: If necessary, silicone should be applied

to wire entry points to enforce IP rating.

with photocell

B WITHOUT L-SHAPED BRACKET

3. Feed wiring cable through spigot.

4. Secure luminaire onto pole with screws provided.

5. Cable should be terminated within the pole and to the IP

rating required.

Ø32mm Ø32mm

158.5mm

106mm

Ø81mm

Ø40mm Ø40mm

160mm 160mm

90mm 60mm

120mm

130mm

10mm

Ø37mm

Ø40mm

Ø34mm Ø38mm

Ø45mm

Ø50mm

55mm

Ø560mm Ø560mm

411mm

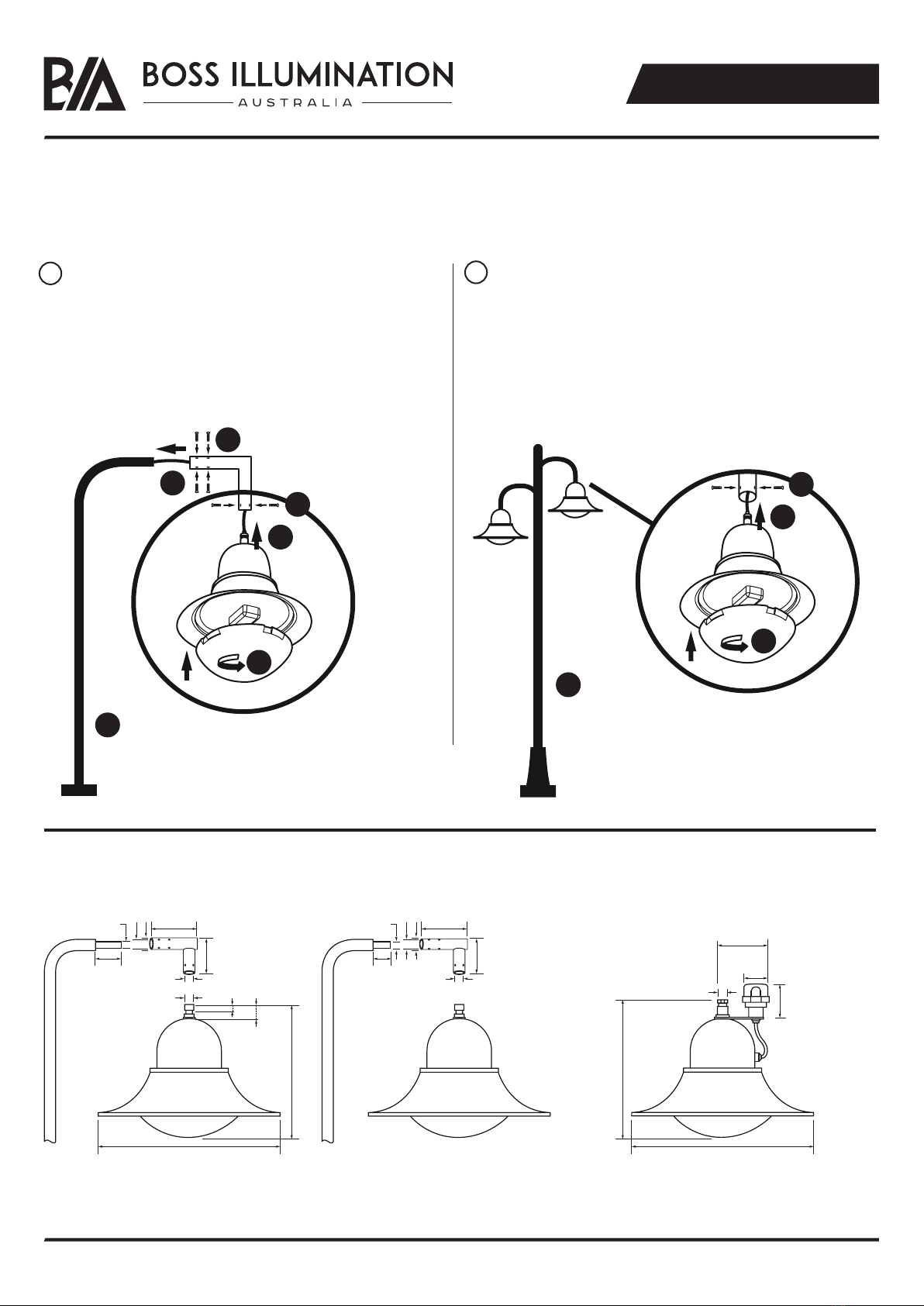

DIAMENSION DIAGRAM
