Braeburn 140404 Bedienungsanleitung

140404

4 Zone

Expandable Panel

Installer Manual

140404-100-03

Warning Read all of the instructions before proceeding

Can cause electrical shock or equipment damage. Always turn off power to the heating/air

conditioning system prior to installing or adjusting the expandable zone panel. Wire the entire

panel before applying transformer power.

This panel is designed for professional installation, and is to be installed and conﬁgured as

described in this manual. Any other use is not recommended and will void the warranty.

Install disconnect and overload protection on circuits as required by code authorities having

jurisdiction for the installation.

Voltage Hazard

Caution

Expandable up to 32 Zones

Up to 4 Heat / 2 Cool

Conventional or Heat Pump

Store this manual for future reference.

Speciﬁcations

Storage temperature:

-40˚–167˚F (-40˚–75˚C)

Operating temperature:

-22˚–167˚F (-30˚–75˚C)

Voltage:

24 VAC, Nominal 60Hz

18-30 VAC Maximum

Operating humidity:

5–95% RH

Panel Power:

6 VA @ 24 VAC

Current Draw Max:

100 VA @ 24 VAC

Current Draw Per Zone:

50 VA Max

2.1”

8”

10.2”

Protection:

Electronic self resetting current

limiting for panel power and

damper zones

Conﬁguration:

Conventional and Heat Pump

equipment up to 4 Heating Stages

and 2 Cooling Stages

Maximum Zones:

4 Zones Main Panel + 14 Two

Zone Expanders = 32 Total

Zones Maximum

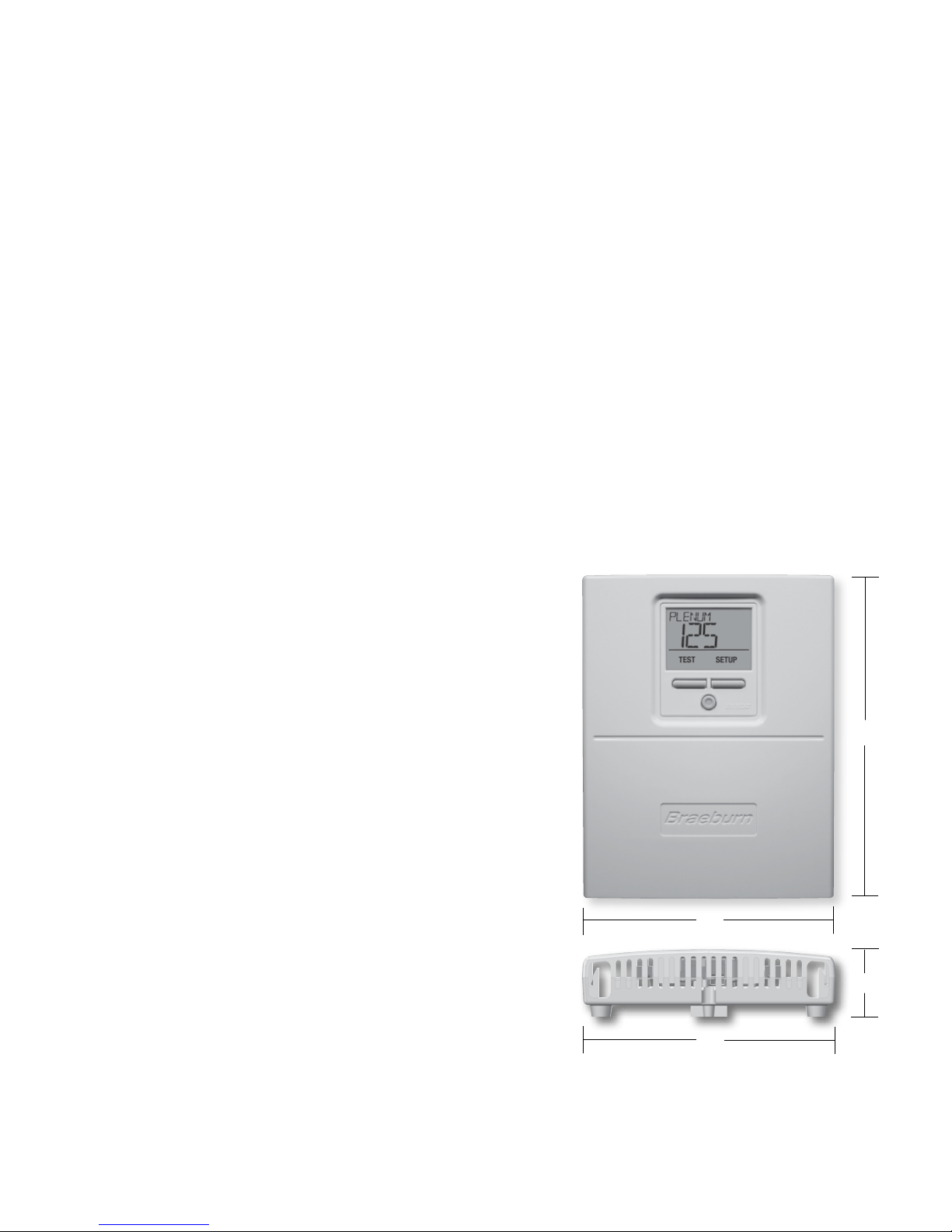

Dimensions:

See Figure 1

Figure 1

Table of Contents

Speciﬁcations

.....................................................................................................................2

Suitable Mounting Locations

...............................................................................................3

Wiring

.............................................................................................................................4-9

Conﬁguration

....................................................................................................................10

System Check-Out

............................................................................................................13

Operation

...............................................................................................................................14

ErrorConditions

.................................................................................................................17

Adding More Zones

...........................................................................................................19

Warranty

..........................................................................................................................22

Suitable Mounting Locations

Mount the Zone Panel near the HVAC equipment. The panel can be mounted in any orientation on a wall,

stud, roof truss, or the return-air plenum. For appearance, mount the panel level. Remove the panel cover

and use the base as a template to drill mounting holes (see Figure 2). Attach the panel with appropriate

screws. Use mounting anchors as needed for drywall or plaster installations.

Figure 2

EM HEAT

W1/E/AX1

W2/AX2

O/B/W3

HERMOSTAT

ONE 1

COMM

DAMPER

ZONE 1

W1/E/AX1

W2/AX2

O/B/W3

HERMOSTAT

ONE 2

DAMPER

ZONE 2

COMM

W1/E/AX1

W2/AX2

O/B/W3

HERMOSTAT

ONE 3

COMM

DAMPER

ZONE 3

24V

24C

POWER

24 VAC

EXPANSION

COM1

COM2

GND

COM3

COM4

EXPANSION

COM1

COM2

GND

COM3

COM4

W1/E/AX1

W2/AX2

O/B/W3

HERMOSTAT

ONE 4

COMM

DAMPER

ZONE 4

W1/E/AX1

W2/AX2

W3/O/B

QUIPMENT

FA1

FA2

FIRE

ALARM SENSORS

SA1

SA2

ODT1

ODT2

SENSORS

drill holes

Wiring the Panel

Always turn off power to the heating/air conditioning system prior to installing or adjusting the Zone Panel. Wire the

entire panel before applying transformer power. Use the following general wiring instructions for all systems. Speciﬁc

wiring will vary depending on the equipment and type of system (conventional or heat pump). NOTE: Up to 2 wires

can be inserted into each terminal. To release wires, press down on top of wiring terminal and gently pull out wire(s).

EM HEAT

W1/E/AX1

W2/AX2

O/B/W3

HERMOSTAT

ONE 1

COMM

DAMPER

ZONE 1

W1/E/AX1

W2/AX2

O/B/W3

HERMOSTAT

ONE 2

DAMPER

ZONE 2

COMM

W1/E/AX1

W2/AX2

O/B/W3

HERMOSTAT

ONE 3

COMM

DAMPER

ZONE 3

24V

24C

POWER

24 VAC

EXPANSION

COM1

COM2

GND

COM3

COM4

EXPANSION

COM1

COM2

GND

COM3

COM4

W1/E/AX1

W2/AX2

O/B/W3

HERMOSTAT

ONE 4

COMM

DAMPER

ZONE 4

W1/E/AX1

W2/AX2

W3/O/B

QUIPMENT

FA1

FA2

FIRE

ALARM

SENSORS

SA1

SA2

ODT1

ODT2

SENSORS

11 910 Figure 3

EM HEAT

W1/E/AX1

W2/AX2

O/B/W3

HERMOSTAT

ONE 1

COMM

DAMPER

ZONE 1

W1/E/AX1

W2/AX2

O/B/W3

HERMOSTAT

ONE 2

DAMPER

ZONE 2

COMM

W1/E/AX1

W2/AX2

O/B/W3

HERMOSTAT

ONE 3

COMM

DAMPER

ZONE 3

24V

24C

POWER

24 VAC

EXPANSION

COM1

COM2

GND

COM3

COM4

EXPANSION

COM1

COM2

GND

COM3

COM4

W1/E/AX1

W2/AX2

O/B/W3

HERMOSTAT

ONE 4

COMM

DAMPER

ZONE 4

W1/E/AX1

W2/AX2

W3/O/B

QUIPMENT

FA1

FA2

FIRE

ALARM

SENSORS

SA1

SA2

ODT1

ODT2

SENSORS

Terminal Qty. Function Description

PANEL 24V 1 INPUT 24 VAC Transformer Power 100 VA Maximum

POWER 24C 1 INPUT 24 VAC Transformer Common

DAMPERS PO 4 OUTPUT 24 VAC Power Open Zone Damper Terminal

COMM 4 OUTPUT Zone Damper Common Terminal

PC 4 OUTPUT 24 VAC Power Close Zone Damper Terminal

SUPPLY SA1 1 INPUT Plenum Supply Air Sensor Terminal 1 (No Polarity)

AIR SA2 1 INPUT Plenum Supply Air Sensor Terminal 2 (No Polarity)

OUTDOOR ODT1 1 INPUT Outdoor Air Sensor Terminal 1 (No Polarity)

AIR ODT2 1 INPUT Outdoor Air Sensor Terminal 2 (No Polarity)

FIRE FA1 1 INPUT Normally Closed or Open Dry Pair (No Polarity)

ALARM FA2 1 INPUT Normally Closed or Open Dry Pair (No Polarity)

EXPANSION COM1 2 PANEL Expander Panel Communication

COM2 2 PANEL Expander Panel Communication

GND 2 PANEL Expander Panel Communication Ground

COM3 2 PANEL Expander Panel Communication

COM4 2 PANEL Expander Panel Communication

EQUIPMENT Rh 1 INPUT 24 VAC Equipment Transformer Power Connection

Rc 1 INPUT

24 VAC Cooling Equipment Transformer (Dual Transformer Systems Only)

Y1 1 OUTPUT 1st Stage Compressor

Y2 1 OUTPUT 2nd Stage Compressor

G 1 OUTPUT 1st Stage Fan Control

G2 1 OUTPUT 2nd Stage Fan Control

W1/E/AX1 1 OUTPUT

[W1] 1st Stage Conventional Heat [E] Emergency Heat [AX1] 1st Stage Auxiliary Heat

W2/AX2 1 OUTPUT [W2] 2nd Stage Conventional Heat [AX2] 2nd Stage Auxiliary Heat

W3/O/B 1 OUTPUT [W3] 3rd Stage Conventional Heat [O] Cool Active Reversing Valve

[B] Heat Active Reversing Valve

L 1 INPUT System Malfunction Indicator

C 1 INPUT 24 VAC Transformer Common

THERMOSTAT R 4 OUTPUT 24 VAC Thermostat Power

Y1 4 INPUT 1st Stage Compressor Call

Y2 4 INPUT 2nd Stage Compressor Call

W1/E/AX1 4 INPUT [W1] 1st Stage Conventional Heat Call [E] Emergency Heat Call

[AX1] 1st Stage Auxiliary Heat Call

W2/AX2 4 INPUT [W2] 2nd Stage Conventional Heat Call [AX2] 2nd Stage Auxiliary Heat Call

O/B/W3 4 INPUT [O] Cool Active Reversing Valve Call [B] Heat Active Reversing Valve Call

[W3] 3rd Stage Conventional Heat Call

G 4 INPUT Fan Call

L 4 OUTPUT System Malfunction Indicator

C 4 OUTPUT 24 VAC Transformer Common

RESET BUTTON Press once to restart panel

Hold for 5 seconds to reset panel and restore all factory defaults

Rc/Rh TERMINAL JUMPER (J1) Open jumper for dual transformer installations

WIRE STRIP GUIDE Wires should be stripped 3/8 inch minimum

EXPANDABLE ZONE PANEL WIRING TERMINALS

Damper Wiring

3.1

Always turn off power to the heating/air conditioning system prior to installing or adjusting the zone panel. Wire

the entire panel before applying transformer power.

Use the following general wiring instructions for all systems. Speciﬁc wiring will vary depending on the equipment

and type of system (conventional or heat pump).

Install the system dampers using the instructions provided by the manufacturer. Connect the dampers to the zone

panel as shown for either a 2-wire or 3-wire damper. The sum of all dampers powered by the zone panel should

not exceed 100 VA at 24 VAC. Use a slave relay if additional damper power is required.

ALWAYS PROVIDE DISCONNECT AND OVERLOAD PROTECTION AS REQUIRED

Max. damper VA per Zone 50 VA @ 24 VAC

COM

Zone Panel 2-Wire Damper

COM

Zone Panel 3-Wire Damper

Thermostat Wiring

3.2

Install the system thermostats using the instructions provided by the manufacturer. Connect the thermostats to

the zone panel as shown. Do not mix conventional and heat pump thermostats on the same system. You can mix

single stage and multi-stage thermostats as long as they are all conventional or heat pump.

ALWAYS PROVIDE DISCONNECT AND OVERLOAD PROTECTION AS REQUIRED

1 HEAT / 1 COOL

24 VAC Power

W1 Heat Call

Y1 Cooling Call

G Fan Call

C 24 VAC Transformer Common

2 HEAT / 2 COOL

24 VAC Power

W1 Heat Call Stage 1

W2 Heat Call Stage 2

Y1 Cooling Call Stage 1

Y2 Cooling Call Stage 2

G Fan Call

C24 VAC Transformer Common

CONVENTIONAL THERMOSTATS

(for use on conventional or heat pump systems)

3 HEAT / 2 COOL

24 VAC Power

W1 Heat Call Stage 1

W2 Heat Call Stage 2

W3 Heat Call Stage 3

Y1 Cooling Call Stage 1

Y2 Cooling Call Stage 2

G Fan Call

C24 VAC Transformer Common

3 HEAT / 2 COOL

24 VAC Power

W1 Heat Call Stage 1

W2 Heat Call Stage 2

W3 Heat Call Stage 3

Y1 Cooling Call Stage 1

Y2 Cooling Call Stage 2

G Fan Call

C24 VAC Transformer Common

1 HEAT / 1 COOL -

No Auxiliary Heat

24 VAC Power

O/B Changeover Valve [Note 2]

Y1 Compressor Call (1st Stage Heating/Cooling)

G Fan Call

C 24 VAC Transformer Common [Note 1]

2 HEAT / 2 COOL - No Auxiliary Heat

24 VAC Power

O/B Changeover Valve [Note 2]

L Optional System Fault Monitor

Y1 Compressor Call Stage 1 (1st Stage Heating/Cooling)

Compressor Call Stage 2 (2nd Stage Heating/Cooling)

G Fan Call

C24 VAC Transformer Common [Note 1]

HEAT PUMP THERMOSTATS

(for use on heat pump systems only)

2 HEAT / 1 COOL - With Auxiliary Heat

24 VAC Power

O/B Changeover Valve [Note 2]

L Optional System Fault Monitor

W2 Auxiliary Heat Relay (2nd Stage Heating)

Y1 Compressor Call (1st Stage Heating/Cooling)

E Emergency Heat Call

GFan Call

C24 VAC Transformer Common [Note 1]

3 HEAT / 2 COOL - With Auxiliary Heat

24 VAC Power

O/B Changeover Valve [Note 2]

L Optional System Fault Monitor

AX1 Auxiliary Heat Relay (3rd Stage Heating)

Y1 Compressor Call (1st Stage Heating/Cooling)

Y2 Compressor Call (2nd Stage Heating/Cooling)

EEmergency Heat Call

GFan Call

C24 VAC Transformer Common [Note 1]

4 HEAT / 2 COOL - With Auxiliary Heat

24 VAC Power

O/B Changeover Valve [Note 2]

L Optional System Fault Monitor

AX1 Auxiliary Heat Relay (3rd Stage Heating)

AX2 Auxiliary Heat Relay (4th Stage Heating)

Y1 Compressor Call (1st Stage Heating/Cooling)

Y2 Compressor Call (2nd Stage Heating/Cooling)

EEmergency Heat Call

GFan Call

C24 VAC Transformer Common [Note 1]

NOTES

[1] Wiring to the C terminal is required only for thermostat power.

[2] O (Cool active) or B (Heat active) must match the zone panel

installer settings.

Thermostat Wiring

3.2

Supply Air Sensor Wiring

3.3

Install the supply air sensor in the supply air plenum at least 2-3 feet after

the heat exchanger and coil. Make sure there are no zone dampers before the

supply air sensor. Connect the supply air sensor to the zone panel as shown.

SA1

SA2

Transformer Wiring

3.4

Install the transformer using the instructions provided by the manufacturer. Size the

transformer to the damper requirements. The zone panel has built-in, self-resetting

fuses. The maximum damper power per panel is 100 VA at 24 VAC. Connect the

transformer to the zone panel as shown.

NOTE: Additional dampers or dampers with a higher current draw will require the

use of a separate slave relay.

ALWAYS PROVIDE DISCONNECT AND OVERLOAD PROTECTION AS REQUIRED

24V

24C

HOT

Dedicated

Zoning Transformer

Zone

Panel

Conventional Equipment Wiring

3.5

NOTE: For a heat pump system, see Section 3.6.

Connect a conventional heating system to the zone panel as shown. For a single stage heating and cooling

system, the 2nd and 3rd stage connections are not used. For a system using a dual transformer, remove

jumper Rc to Rh (see Figure 3, page 4). Make sure the neutrals (common) are connected. ALWAYS PROVIDE

DISCONNECT AND OVERLOAD PROTECTION AS REQUIRED

1 HEAT / 1 COOL Equipment

Set Equipment Type to SSC

24 VAC Power (Heating Transformer)

[Note 3]

Rc Cooling Transformer [Note 3]

W1 Heat Call

Y1 Cooling Call

G Fan Call

C24 VAC Transformer Common

2 HEAT / 2 COOL Equipment

Set Equipment Type to MSC

24 VAC Power (Heating Transformer)

[Note 3]

Rc Cooling Transformer [Note 3]

W1 Heat Call Stage 1

W2 Heat Call Stage 2

Y1 Cooling Call Stage 1

Y2 Cooling Call Stage 2

G Fan Call

C24 VAC Transformer Common

3 HEAT / 2 COOL Equipment

Set Equipment Type to MSC

24 VAC Power (Heating Transformer)

[Note 3]

Rc Cooling Transformer [Note 3]

W1 Heat Call Stage 1

W2 Heat Call Stage 2

W3 Heat Call Stage 3

Y1 Cooling Call Stage 1

Y2 Cooling Call Stage 2

G Fan Call

C24 VAC Transformer Common

NOTES

[3] Remove J1 jumper for dual transformer systems. Transformer common must come from cooling transformer.

Heat Pump Equipment Wiring

3.6

NOTE: For Conventional Systems, see Section 3.5

Connect a single or multi-stage heat pump system to the zone panel as shown. A conventional thermostat

may be used with a heat pump system, however, emergency heat will be controlled by the panel emergency

heat switch or the optional remote emergency heat switch. For a single stage system, the auxiliary heat

control is not used. ALWAYS PROVIDE DISCONNECT AND OVERLOAD PROTECTION AS REQUIRED

1 HEAT / 1 COOL -

No Auxiliary Heat

Set Equipment Type to SSH

24 VAC Power (Heating Transformer)

Rc Connected to Rh with Jumper

O/B Changeover Valve [Note 4]

Y1 Compressor Call (1st Stage Heating/Cooling)

G Fan Call

C24 VAC Transformer Common

2 HEAT / 2 COOL - No Auxiliary Heat

Set Equipment Type to MSH

24 VAC Power

(Heating Transformer)

Connected to Rh with Jumper

O/B Changeover Valve [Note 4]

L Optional System Fault Monitor

Y1 Compressor Call Stage 1 (1st Stage Heating/Cooling)

Compressor Call Stage 2 (2nd Stage Heating/Cooling)

G Fan Call

C24 VAC Transformer Common

2 HEAT / 1 COOL - With Auxiliary Heat

Set Equipment Type to MSH

24 VAC Power

(Heating Transformer)

Connected to Rh with Jumper

O/B Changeover Valve [Note 4]

L Optional System Fault Monitor

W2 Auxiliary Heat Relay (2nd Stage Heating) [Note 5]

Y1 Compressor Call Stage 1 (1st Stage Heating/Cooling)

E Emergency Heat Call

G Fan Call

C24 VAC Transformer Common

3 HEAT / 2 COOL - With Auxiliary Heat

Set Equipment Type to MSH

24 VAC Power

(Heating Transformer)

Connected to Rh with Jumper

O/B Changeover Valve [Note 4]

L Optional System Fault Monitor

AX1 Auxiliary Heat Relay (3rd Stage Heating)

Y1 Compressor Call (1st Stage Heating/Cooling)

Y2 Compressor Call (2nd Stage Heating/Cooling)

EEmergency Heat Call

GFan Call

C24 VAC Transformer Common

4 HEAT / 2 COOL - With Auxiliary Heat

Set Equipment Type to MSH

24 VAC Power

(Heating Transformer)

Connected to Rh with Jumper

O/B Changeover Valve [Note 4]

L Optional System Fault Monitor

AX1 Auxiliary Heat Relay (3rd Stage Heating)

AX2 Auxiliary Heat Relay (4th Stage Heating)

Y1 Compressor Call (1st Stage Heating/Cooling)

Y2 Compressor Call (2nd Stage Heating/Cooling)

EEmergency Heat Call

GFan Call

C24 VAC Transformer Common

NOTES

[4] O (cool active) or B (heat active) is selected in the installer

settings menu.

[5] Install a ﬁeld supplied jumper between the W2/AX2 and

W1/E/AX1 terminals if there is no separate emergency heat

relay installed.

Conﬁguration

Use the following instructions to conﬁgure the zone panel. The zone

panel is factory set for a 1 Heat / 1 Cool

Conventional System with Conventional Thermostats (Heat Call on W, Cool Call on Y). If the zone panel is installed

on other systems, you will need to make conﬁguration changes described in this section.

To start conﬁguration:

1. Press SETUP and hold for 3 seconds.

2. The panel backlight will turn on and the display

will change.

3. Change setting if needed by pressing SELECT.

4. To save and advance to the next setting press

the NEXT button.

5. Repeat steps 3-4 as necessary.

6. Press HOLD FOR BACK for 3 seconds to go back a step.

7. Press HOLD FOR EXIT for 3 seconds to exit setup menu.

Inhaltsverzeichnis

Andere Braeburn Thermostat Handbücher

Braeburn

Braeburn 1025NC Bedienungsanleitung

Braeburn

Braeburn 1020NC Bedienungsanleitung

Braeburn

Braeburn 2220 Bedienungsanleitung

Braeburn

Braeburn 7320 Montageanleitung

Braeburn

Braeburn 5020 Gebrauchsanweisung

Braeburn

Braeburn BlueLink 7205 Montageanleitung

Braeburn

Braeburn 2010 Bedienungsanleitung

Braeburn

Braeburn 2100 Bedienungsanleitung

Braeburn

Braeburn 3020 Benutzerhandbuch

Braeburn

Braeburn 5200 Bedienungsanleitung

Braeburn

Braeburn Economy 2030 Benutzerhandbuch

Braeburn

Braeburn 7320 Bedienungsanleitung

Braeburn

Braeburn Builder 1200NC Bedienungsanleitung

Braeburn

Braeburn Builder 2200 Bedienungsanleitung

Braeburn

Braeburn Premier 5100 Bedienungsanleitung

Braeburn

Braeburn 7320 Bedienungsanleitung

Braeburn

Braeburn Premier 5400 Bedienungsanleitung

Braeburn

Braeburn 1025NC Bedienungs- und Wartungshandbuch

Braeburn

Braeburn Premier 3300 Bedienungsanleitung

Braeburn

Braeburn 1020 Montageanleitung

Braeburn

Braeburn 3020 Bedienungs- und Wartungshandbuch

Braeburn

Braeburn Builder 2200 Bedienungsanleitung

Braeburn

Braeburn 1020NC Bedienungsanleitung

Braeburn

Braeburn 1005NC Bedienungsanleitung

Beliebte Thermostat Handbücher anderer Marken

EWELLY

EWELLY EW-181 Bedienungsanleitung

Prolon

Prolon T1100 Montageanleitung

Computherm

Computherm Q20 Bedienungsanleitung

Heatmiser

Heatmiser neoStat Bedienungsanleitung

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Bedienungsanleitung

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Bedienungsanleitung

Saswell

Saswell SAS920XWHB-7-S-RF Leitfaden

Aircalo

Aircalo TFP1-ET85P2 Bedienungsanleitung

Honeywell

Honeywell CM721 Bedienungsanleitung

Carrier

Carrier DEBONAIR 33CS Bedienungsanleitung

Lennox

Lennox iHarmony Zone Thermostat Montageanleitung

Gemtech

Gemtech GT7000 Bedienungsanleitung

Rollei

Rollei Smartes 45000 Bedienungsanleitung

Sinope

Sinope TH1300RF Bedienungsanleitung

Honeywell

Honeywell RLV4305 Bedienungsanleitung

Honeywell

Honeywell Prestige 2.0 THX9421 Bedienungsanleitung

NuTone

NuTone NTBZ48 Original Betriebsanleitung

Stelpro

Stelpro MAESTRO ASMT402AD Bedienungsanleitung
