Brennenstuhl JARO Bedienungsanleitung

DOperating Instructions

Mobile LED Light/Tripod LED Light

JARO

Note: Before use of the oodlight, please carefully read the operating instructions and store them

at a proper location!

TECHNICAL DATA

Protection class: I

IP class: IP 65

Nominal voltage 230 V versions: 220-240 V~ 50/60 Hz

Nominal voltage 110 V versions: 100-130 V~ 50/60 Hz

Connection line: H07RN-F 3G1,0

Power factor: see table (page 2)

These LED oodlights are suitable for indoor and outdoor lighting purposes.

OPERATION

Place the oodlight on a dry and level surface.The inclination of the oodlight is adjustable.To do

so, loosen the lateral quick release, turn the lamp head into the desired position and lock the quick

release again.

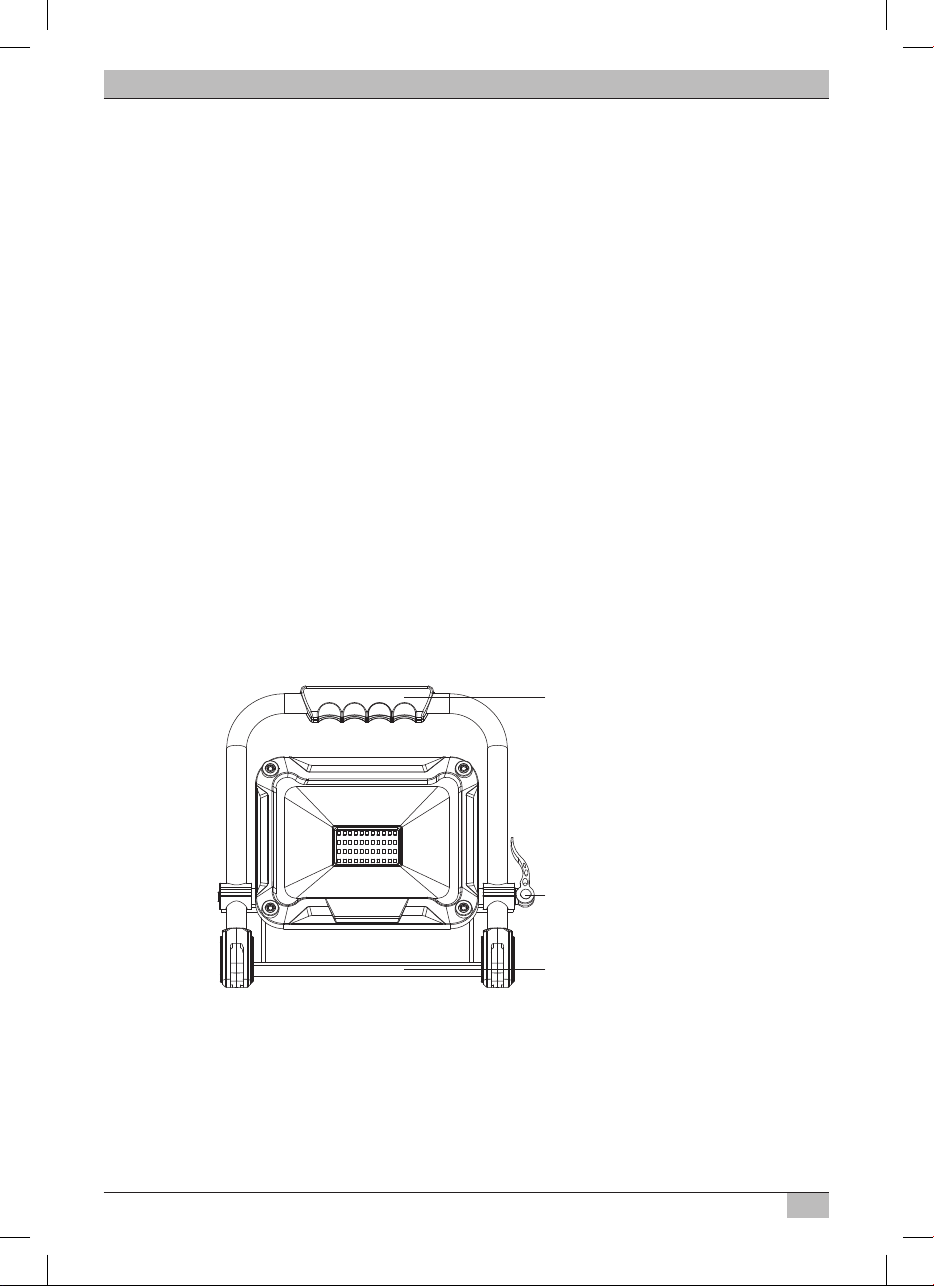

Quick-release lever

Framework

Carry handle

OPERATION

TRIPOD, LED FLOODLIGHT

The oodlight with type designation“T”is supplied with tripod.

In this connection, you must imperatively ensure sucient stability of the tripod and rm

assembly of the oodlight.

18P083 Mobiler_Stativ LED Strahler Jaro 498291 181120.indd 7 20.11.2018 13:52:41

DOperating Instructions JARO

Tripod for individual oodlight 20 W: extendible from 75 cm to 160 cm

Tripod for individual oodlight 30/50 W: extendible from 86 cm to 152 cm

Tripod for double oodlight 2 x 20 W: extendible from 82 cm to 142 cm

ASSEMBLY OF THE LED FLOODLIGHT ON THE TRIPOD

Loosen the locking screw (C). Fold out the feet completely.

Afterwards, re-tighten the locking screw (C).

There are two arrows at the tube. These mark the area

where the ring of the feet (1) have to be placed

to ensure sucient stability of the tripod. The

refore make sure that the ring of the feet (1)

matches insides the arrows area.

Fasten the LED oodlight by means of the locking screw (A) at the central hole of the fastening

bracket on the tripod.

To change the tripod height, loosen the tube nuts (B). Extend the tripod up to the desired height

and re-tighten the tube nuts (B).

SAFETY INFORMATION

1. Before use, always check the oodlight and the power supply line for any possible damage.

Never use the oodlight in case of any damage.

Caution! In case of a damaged oodlight or a damaged power supply line there will be a risk

of fatal injury from electrical current!

A Mounting screw

B Tube nuts

C Locking screw

18P083 Mobiler_Stativ LED Strahler Jaro 498291 181120.indd 8 20.11.2018 13:52:41

JARO Operating Instructions D

2. The external exible cable or cord of this luminaire cannot be replaced. If the cord is

damaged, the luminaire should be destroyed.

2.1. Valid for articles JARO 7000 M / JARO 7003 M / JARO 7003 CM / JARO 7002 M / JARO 7012 M.

If the external exible cable or cord of this luminaire is damaged, it shall be exclusively

replaced by the manufacturer or his service agent or a similar qualied person in order to

avoid a hazard.

3. The oodlight must be grounded properly.

4. The oodlight must not be used without properly attached sealing rings!

5. LED oodlights are extremely bright. Please never look directly into the light.

6. If the protective cover is broken, it should be replaced by an original Brennenstuhl protective

cover before further use of the oodlight.

7. Make sure that the oodlight has a safe and stable position.

Make sure that the cables are not crushed or damaged otherwise.

8. Keep the oodlight away from children. Children are not aware of the risks imposed by

electric current.

MAINTENANCE

The light source of this lamp cannot be replaced; if the light source has reached the end of its

service life, the entire lamp has to be replaced.

CLEANING

Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly

moistened cloth for cleaning.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner!

Electric appliances must not be disposed of in household waste!

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment

rules that used electric appliances should be collected separately and recycled in an

environmentally friendly manner.

For possibilities of disposal of the used appliance, please contact your local or municipal

administration.

DECLARATION OF CONFORMITY

The declaration of conformity is stored at the manufacturer’s.

Addresses

Hugo Brennenstuhl GmbH & Co. KG

Seestraße 1 – 3 · D-72074 Tübingen

H. Brennenstuhl S.A.S.

4 rue de Bruxelles ∙ F-67170 Bernolsheim

lectra-t ag

Blegistrasse 13 · CH-6340 Baar

www.brennenstuhl.com

18P083 Mobiler_Stativ LED Strahler Jaro 498291 181120.indd 9 20.11.2018 13:52:41
