Bresser 7004040 Bedienungsanleitung

CO2Air Quality Monitor INV

CO2Luftqualitätsmonitor INV

Moniteur de qualité de l’air INV au CO2

Monitor de calidad del aire CO2INV

Art. No.: 7004040

INSTRUCTION MANUAL

BEDIENUNGSANLEITUNG

MODE D’EMPLOI

MANUAL DE INSTRUCCIONES

Manual_7004040_CO2-Moniteur-INV_en-de-fr-es_BRESSER_v032022a.indb 1Manual_7004040_CO2-Moniteur-INV_en-de-fr-es_BRESSER_v032022a.indb 1 16.03.2022 11:39:5516.03.2022 11:39:55

Manual_7004040_CO2-Moniteur-INV_en-de-fr-es_BRESSER_v032022a.indb 2Manual_7004040_CO2-Moniteur-INV_en-de-fr-es_BRESSER_v032022a.indb 2 16.03.2022 11:39:5516.03.2022 11:39:55

TABLE OF CONTENTS

INSTRUCTION MANUAL .......................................................................................... 04

BEDIENUNGSANLEITUNG........................................................................................ 14

MODE D’EMPLOI ......................................................................................................... 24

MANUAL DE INSTRUCCIONES...................................................................................... 34

www.bresser.de/download/7004040

SOFTWARE & MANUAL

DOWNLOAD:

Manual_7004040_CO2-Moniteur-INV_en-de-fr-es_BRESSER_v032022a.indb 3Manual_7004040_CO2-Moniteur-INV_en-de-fr-es_BRESSER_v032022a.indb 3 16.03.2022 11:39:5616.03.2022 11:39:56

GENERAL WARNINGS

RISK OF CHOKING!

Keep packaging material, like plastic bags and

rubber bands, out of the reach of children, as these

materials pose a choking hazard.

RISK of ELECTRIC SHOCK!

This device contains electronic components that

operate via a power source (ac adaptor). Only use

the device as described in the manual; otherwise,

you run the risk of an electric shock.

RISK of FIRE/EXPLOSION!

Do not expose the device to high temperatures.

Excessive heat or improper handling could trigger



RISK of property damage!

Do not disassemble the device. In the event of a

defect, please contact your dealer. The dealer will

contact the Service Centre and can send the device

in to be repaired, if necessary.

Manual_7004040_CO2-Moniteur-INV_en-de-fr-es_BRESSER_v032022a.indb 4Manual_7004040_CO2-Moniteur-INV_en-de-fr-es_BRESSER_v032022a.indb 4 16.03.2022 11:39:5616.03.2022 11:39:56

EC DECLARATION OF CONFORMITY

Hereby, Bresser GmbH declares that the

equipment type with part number:

7004040 is in compliance with Directive:

2014/30/EU and 2014/35/EU. The full text of the EU

declaration of conformity is available at the

following internet address:

www.bresser.de/

download/7004040/CE/7004040_CE.pdf

www.bresser.de/download/7004040

SOFTWARE & MANUAL

DOWNLOAD:

SCOPE OF DELIVERY

• CO2Air Quality Monitor INV

• Micro USB cable

• AC power adapter

• Software via Download

• Instruction Manual

• Stand

• Screw

Manual_7004040_CO2-Moniteur-INV_en-de-fr-es_BRESSER_v032022a.indb 5Manual_7004040_CO2-Moniteur-INV_en-de-fr-es_BRESSER_v032022a.indb 5 16.03.2022 11:39:5616.03.2022 11:39:56

BUTTONS

°C/°F

REC

MODE

ALM



°C/°F

REC

MODE

ALM

• °C/°F (switch Celsius/Fahrenheit)

• UP Button (increase settings value)

°C/°F

REC

MODE

ALM

• Alarm (activate or deactivate CO2alarm)

• left button (move left to change item in

settings)

°C/°F

REC

MODE

ALM

• right button (move right to change item in

settings)

°C/°F

REC

MODE

ALM

• Record button (start recording)

• DOWN button (decrease settings value)

°C/°F

REC

MODE

ALM

• Mode button (hold down to enter settings)

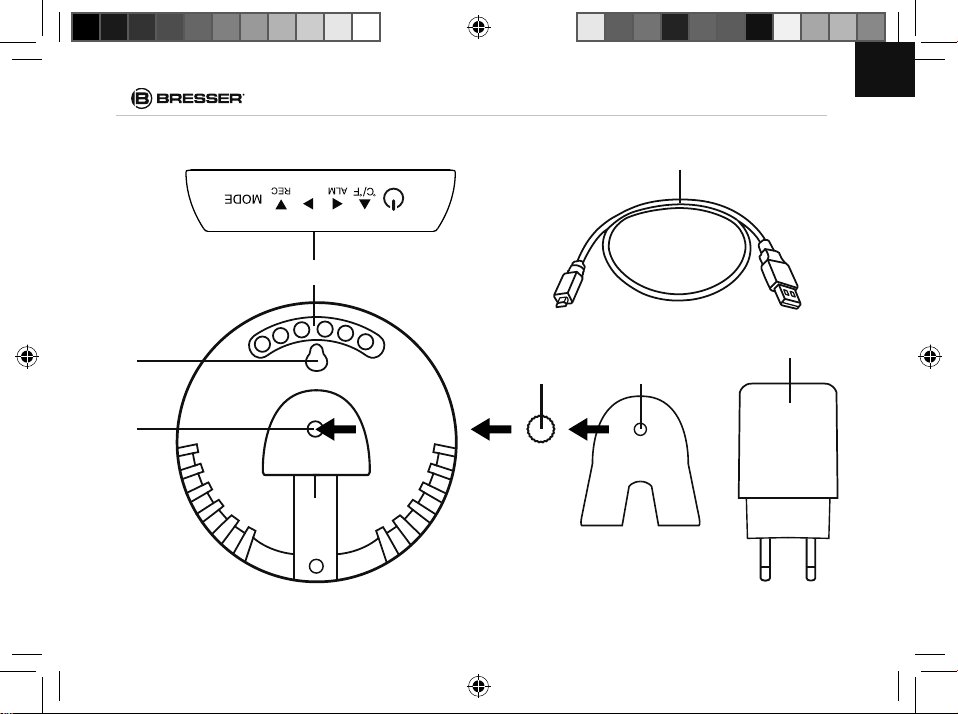

MONTAGE

Buttons

Wall mounting

Threaded hole on main unit

Micro USB port

Screw for stand

Threaded hole on stand

AC power adapter

Micro USB cable for AC power adapter

Manual_7004040_CO2-Moniteur-INV_en-de-fr-es_BRESSER_v032022a.indb 6Manual_7004040_CO2-Moniteur-INV_en-de-fr-es_BRESSER_v032022a.indb 6 16.03.2022 11:39:5716.03.2022 11:39:57







 







Manual_7004040_CO2-Moniteur-INV_en-de-fr-es_BRESSER_v032022a.indb 7Manual_7004040_CO2-Moniteur-INV_en-de-fr-es_BRESSER_v032022a.indb 7 16.03.2022 11:39:5716.03.2022 11:39:57

DISPLAY

Carbon dioxide display area

Temperature display area

Humidity display area

A1: Chemical formula CO

A2: Battery level indicator

A3: Set date (Month, day, minute,

seconds)

A4: Recording in progress indicator

A5: PPM Value. PPM stands for

"parts per million" and shows

the concentration of carbon

dioxide in the ambient air.

A6: Year / hour

A7: Alarm enabled indicator

A8: Temperature

A9: °C / °F indicator

A10: Humidity unit (%RH)

A11: Humidity

CO22

PPM

℃ ℉ %RH

MON-DAY

MIN-SEC

REC A5



 

A8 A11

A9 A10

Manual_7004040_CO2-Moniteur-INV_en-de-fr-es_BRESSER_v032022a.indb 8Manual_7004040_CO2-Moniteur-INV_en-de-fr-es_BRESSER_v032022a.indb 8 16.03.2022 11:39:5716.03.2022 11:39:57

CO²LEVEL:

CO²level Status Description

250 – 350ppm Outside Normal outdoor air level.

350–1000ppm Well ventilated, Ideal Typical level indoors with good ventilation. 1000 ppm =

Recommended maximum level in a closed room. Considered

maximum comfort level in many countries.

1000–1200ppm Under ventilated Poor air quality - requires ventilation.

General drowsiness, discomfort and odors.

2000–5000ppm Very poorly

ventilated

Danger! You may experience severe headaches, vomiting/

nausea, and dizziness within 20 minutes.

above 5000ppm Totally unacceptable Danger! Headache and dizziness in 5 to 10 minutes.

Increased risk for health damage by prolonged exposure.

Manual_7004040_CO2-Moniteur-INV_en-de-fr-es_BRESSER_v032022a.indb 9Manual_7004040_CO2-Moniteur-INV_en-de-fr-es_BRESSER_v032022a.indb 9 16.03.2022 11:39:5716.03.2022 11:39:57

TECHNICAL DATA

Power supply AC/DC power adapter

DC 5V 2000 mA

Built-in battery 3.7V lithium battery

Record mode • Manual measurement

• Immediate measurement

Record storage 12700

Response Time Within 1 seconds of any

change in CO2

Carbon dioxide

measurement range 0 - 9999 PPM

Accuracy ± 70 PPM ±3% readings

Resolution 1 PPM

Temperature measuring

range -10° to +70°C (14° to 158°F)

Temperature resolution 0.1°C

Temperature accuracy ±0.3°C

Humidity measuring range 0 to 99.9% RH

Humidity resolution 0.1%

Humidity accuracy ±3%

Work condition 0 - 50° C (0 - 85% RH)

Storage condition -20 - 60° C (0 - 90% RH)

Dimensions 107x107x33 mm

Weight 210 g

STAND OR WALL MOUNT

You can either mount the device on the wall (2) or use the



the screw (5) on the back of the unit and then use this screw

to attach the stand to the back. Tighten the screw hand-tight.

CHARGING

The device has a built-in rechargeable lithium battery.

When the low battery symbol [

°C/°F

REC

MODE

ALM

] is displayed on the

screen, please charge the unit using the AC power adapter.

Connect the micro USB cable to the unit, then to the AC

power adapter and then to the wall socket. Alternatively,

connect the unit to a computer USB port for charging.

CALIBRATION

a. The general environment is at 400ppm

b. Make sure the device is shut down

c. Press

the

°C/°F

REC

MODE

ALM

°C/°F

REC

MODE

ALM

buttons and power button at the same time

d. Release the power button and then release the

°C/°F

REC

MODE

ALM

°C/°F

REC

MODE

ALM

buttons ->it will show 400ppm on screen
