Livewire GPS Vehicle Tracker
User’s Guide
What’s Inside
1. Harness Wiring
2. Antenna
3. Livewire Base Unit
1
2
3

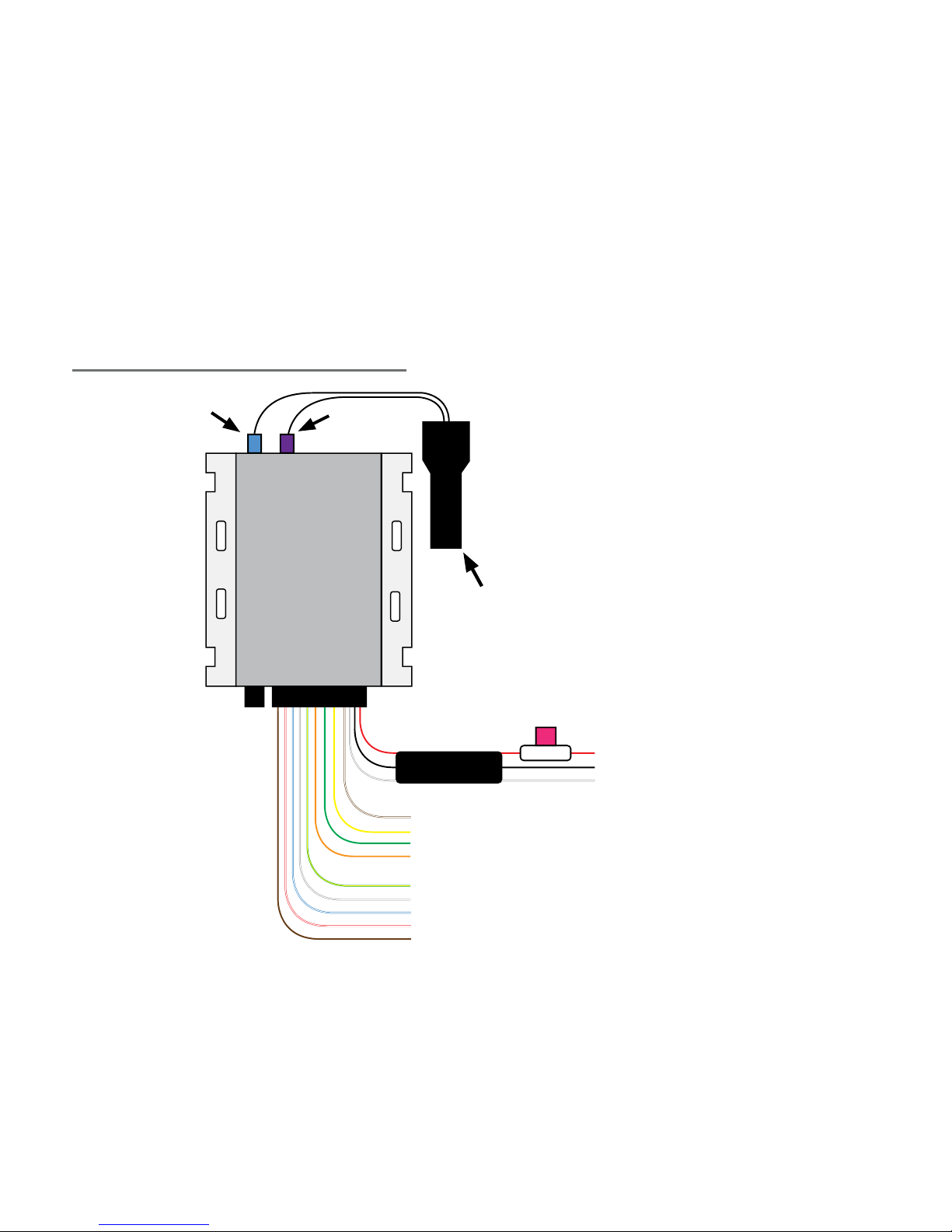

Livewire Wiring Diagram
FUSE RED
WHITE/BROWN
YELLOW
GREEN
ORANGE
GREEN/YELLOW
WHITE
BLUE
RED/WHITE
Brown
SW1 Input (+)
SW2 Input (+)
SW3 Input (-)
SW4 Input (-)
Analog Input
Relay 1 Output (-)
Relay 2 Output (-)
Relay 3 Output (-)
Relay 4 Output (-)
BLACK
WHITE
POWER (+12v/24v constant )
Ground
WHITE
3A
GPS
UP
Stealth Combo
Antenna
GPS
(FAKRA) CELL
(FAKRA)
Back Panel
Front Panel
CELL
Pin 2
Pin 2
Pin 1
Pin 1
GPS
Pin 20
Power Connector
Data Connector
3
4
5
6
7
8
9
10
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
PinD escription
Harness
Wire Color
1B lack GN D
Relay 2 output (-)
Relay 3 output (-)
Relay 4 output (-)
Switch 3 input (-)
1-Wi re Dat a
Not Used
Power input (+8 to +30v constant )
Backup Battery (12v/24v lead-acid type )
GN D
Switch 2 Input (+ )
Earphone Output (+) (option )
Switch 4 input (-)
Micr ophone Input (+) (option )
Ignition Input (+ )
Relay 1 output (-)
GN D
Switch 1 input(+ )
LED Output (+20mA max)
Analog Input (0-16v )
Yello w
Gr ee n
Orange
Blue
Red (bundle)
Black (bundle )
White
Red/White
White (bundle )
White/B ro wn
Gr een/ Yellow
Br ow n
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Getting Started
Your Livewire GPS Vehicle Tracker is usually activated within 24 hours of
the item being received by you, and you should have received an email
containing your default login information. If you did not receive your login
information, please contact our support team at 800-654-7966 or by email at
techsupport@brickhousesecurity.com.
Installation of the Livewire is similar to that of a car stereo. If you are not
confident of your ability to install the device, we suggest that you contact a
local car stereo/alarm installer. The Livewire is powered by your vehicle; to
install the device in your vehicle, connect the wiring harness to the base unit
as indicated in the diagram above. Once that’s done, connect the Red wire
to the vehicle’s power. Connect the Black wire to Ground. Connect the White
wire to the vehicle’s ignition or accessory power.
The Livewire features both an internal and an external antenna for improved
signal strength and easier installation. The external antenna on the device
is very sensitive; install the unit in the dash of the vehicle with the top facing
up with as little metallic obstruction as possible. Because of differences in
vehicle manufacturer, best placement will vary by vehicle. If signal strength
seems to be weak, try repositioning the device before taking further
troubleshooting steps.
The Livewire features both an internal and an external antenna for signal
strength. Both antennas are needed to ensure GPS communication.
The external antenna is highly sensitive: install it as indicated on the
antenna, with the antenna in the UP position. When installing the unit in
the dash of the vehicle, place the unit with the BHS logo facing up with as
little metallic obstruction above it as possible. Because of differences in
vehicle manufacturer, best placement will vary by vehicle. If signal strength
seems to be weak, try repositioning external antenna before taking further
troubleshooting steps.
Once finished, take the car for a drive for 15-20 minutes so the device can
register on the GPS network and begin reporting.
The Livewire is motion activated; it will only attempt to communicate with the
platform when motion is detected, which will update the tracker’s position on
the map.
The Red and Green LEDs on the back panel of the device are intended to
help you troubleshoot problems with your Livewire. When the car’s ignition is
first turned on, the device will power up. The Green LED will show solid for
approximately 30 seconds (there may be some brief flickers initially while the
processor initializes). At no other time should the Green LED remain solid for
such a long period.
The Red LED flashes 2-digit codes to help you troubleshoot issues with your
Livewire. Roughly speaking, the first digit tells you what general area is having
a problem (hardware, modem, GPS, et al). The second digit gives specific
error information. Since there can be more than one error condition at a time,
the device rotates through the error codes (for example, both the GPS is not
tracking a satellite and the modem is not registered).
Example: 3 Flashes followed by 4 Flashes would be code 3-4.
If you’re having trouble with your device, be sure the check the pattern of
flashing lights on your Livewire; this information will be crucial when you
contact technical support.
Navigation Arrows
Zoom Bar Dashboard Last Known Location
Change Map View
Tracking Your Device
To track your Livewire, open a browser window and go to http://l.bhs.net/gps-login
or go to www.brickhousesecurity.com, hover over Login on the top and select
GPS Tracking on the drop down menu. Enter your username and password,
and the tracking page will appear, the device’s last reported location will be
centered on the map. If you have multiple devices on your account, the first
3 that were registered will be automatically selected and appear on the map.
Along the bottom of your screen will be your dashboard.
Tracking information is displayed using Google Maps, so navigation is similar
to what most people have grown used to in using internet-based mapping
solutions. You can use the Navigation arrows and Zoom Bar to move
around the map, or drag the map using your mouse and zoom using a click-
wheel mouse.
At the bottom of the pop-up window are the Zoom, Street View, and Live
Tracker buttons.
• Zoom will perform the same task as using the Zoom bar on the left side of
the map; zooming in on the icon you have selected.
