Briggs & Stratton 20305 Einrichtungshandbuch

Model No. 020305 (2200 PSI (151.7 BARS) Pressure Washer) Manual No. 203786A Revision C (05/30/2007)

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

Questions? Help is just a moment away!

Call: Pressure Washer Helpline

1-800-743-4115 M-F 8-5 CT

Illustrated Parts List

2BRIGGSandSTRATTON.COM

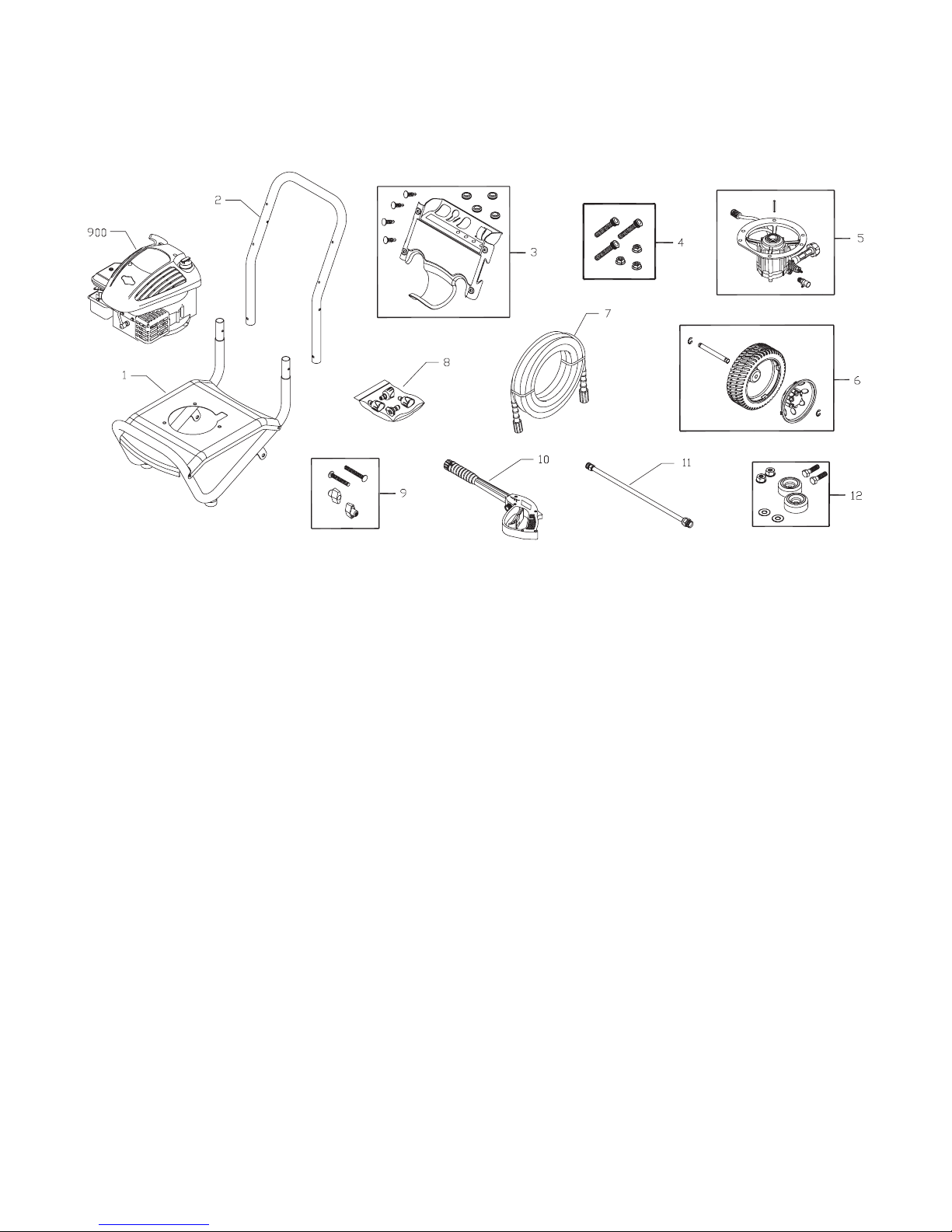

Exploded View and Parts List — Main Unit

tem Part # Description

1 202481GS ASSY, Base

2 J199110GS HANDLE

3 202482GS KIT, Bllbrd Assy w/Decals & Clips

195964GS Clips, Tree

30809GS Grommet

4 192649GS KIT, Pump Mounting Hardware

5 200200GS ASSY, Pump

194298GS Valve, Thermal Relief

23139GS Key

6 202483GS KIT, Wheel

201313GS Axle

200520GS Hubcap

192050GS E-Ring

7 202017GS HOSE

8 202181GS KIT, Nozzles

198841GS Nozzle, Soap

201580AEGS Nozzle, QC, Project Pro, Red

201580XGS Nozzle, QC, Project Pro, Orange

201580RGS Nozzle, QC, Project Pro, Yellow

9 B2203GS KIT, Handle Connector

10 193482GS GUN

11 200595GS EXTENSION

12 192310GS KIT, Vibration Mount

900 § ENGINE

IItems Not Illustrated:

203786 MANUAL, Operator’s

195015GS KIT, Tag/Warning Srv

BB3061BGS OIL BOTTLE

200672GS DECAL, Warning, Hearing

202243GS DECAL, Shroud

793973 ASSY, Shroud/Label

794693 LABEL, Warning

87815GS GOGGLES

Optional Accessories

6048 KIT, O-Ring Maintenance

6039 PUMP SAVER

§ - Contact Engine Manufacturer

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

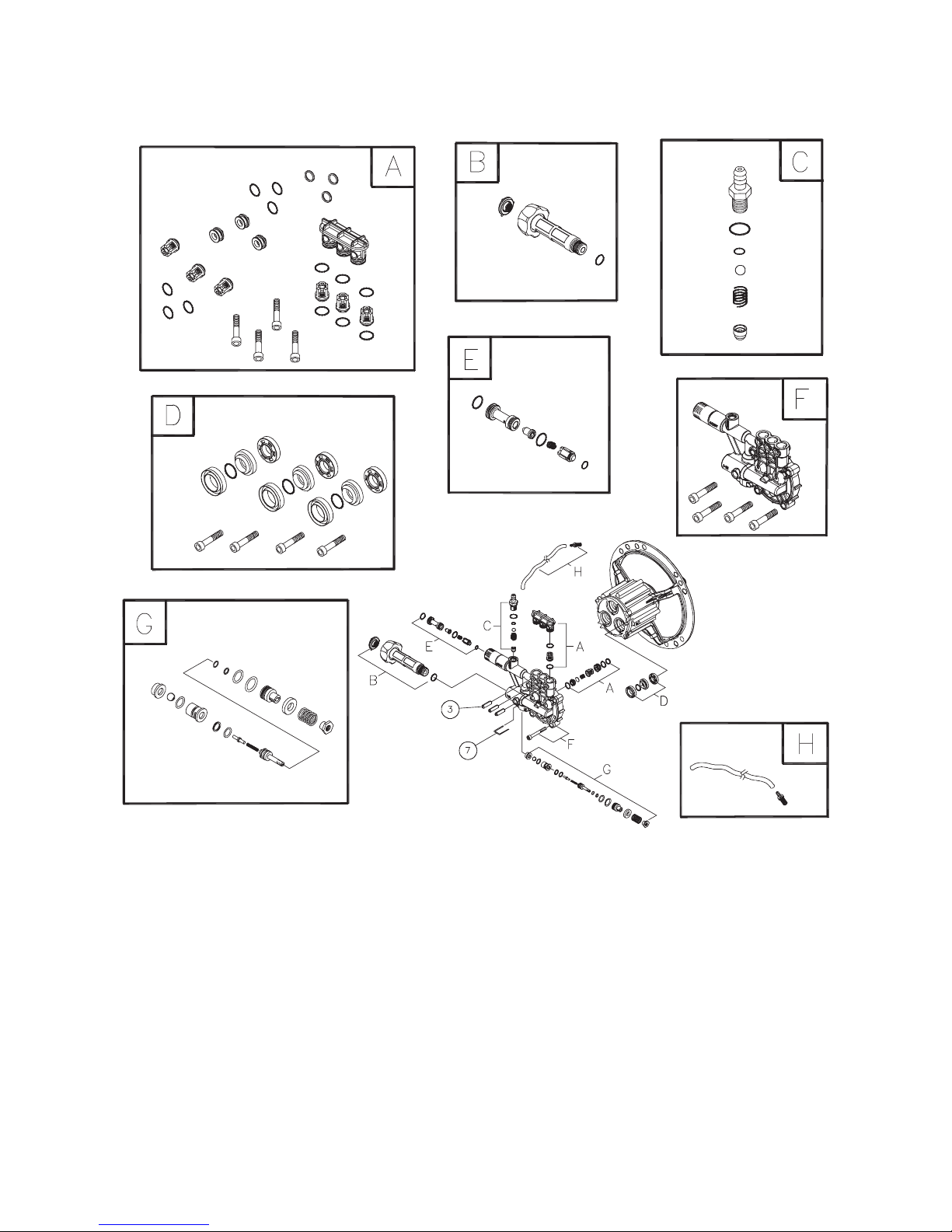

Exploded View and Parts List — Pump

IItem Part # Description

3 200274GS PLUG, Elastic

7 190578GS PIN

A 200298GS KIT, CHECK VALVES

B 200278GS KIT, WATER INLET

C 200279GS KIT, CHEMICAL INJECTION

D 200280GS KIT, HIGH PRESSURE SEALS

E 200281GS KIT. CHEM INJECT VENTURI

F 200282GS KIT, PUMP HEAD, ALUM

G 200283GS KIT, BY-PASS

H 189971GS KIT, CHEMICAL HOSE

Parts Not Illustrated

B2384GS FILTER, Inlet

NOTE: Item letters A - H are service kits and include all

parts shown within the box.
