Roll Feeder 2

Read Before Use ......................................................................................................................................................... 2

Accessories.....................................................................................................................................................................................................2

Operating Precautions ....................................................................................................................................................................................2

Creating Data for the Roll Feeder............................................................................................................................... 3

Activating the Roll Feeder Function ................................................................................................................................................................3

Creating Data ..................................................................................................................................................................................................4

Weeding Box Function....................................................................................................................................................................................5

Exporting Data as FCM File ............................................................................................................................................................................7

Sending Data to the Machine..........................................................................................................................................................................8

Installing the Roll Feeder ............................................................................................................................................ 9

Installing the Base Attachment to the Machine ..............................................................................................................................................9

Installing the Roll Holder ...............................................................................................................................................................................10

Loading Material Into the Roll Feeder ...........................................................................................................................................................10

Checking the End of the Material..................................................................................................................................................................11

Evenly Trimming the End of the Material ......................................................................................................................................................12

Attaching the Leader Sheet to the Material ..................................................................................................................................................14

Feeding the Material......................................................................................................................................................................................15

Retrieving Roll Feeder Data On the Machine and Cutting........................................................................................ 16

Retrieving Data on the Machine ....................................................................................................................................................................16

Cutting...........................................................................................................................................................................................................17

Trial Cutting...................................................................................................................................................................................................19

Trial Feeding..................................................................................................................................................................................................21

Changing the Cutting Start Position .............................................................................................................................................................22

Continuous Cutting .......................................................................................................................................................................................23

Removing the Roll Feeder To Feed Using a Mat ....................................................................................................... 24

Consumables/Maintenance....................................................................................................................................... 26

Replacement Criteria.....................................................................................................................................................................................26

Replacing the Trimmer Blade........................................................................................................................................................................26

Cleaning the Trimmer Blade..........................................................................................................................................................................28

Troubleshooting........................................................................................................................................................ 29

When Material Has Become Jammed in the Machine ..................................................................................................................................31

Error Messages.......................................................................................................................................................... 33

Cutting Machine Error Messages..................................................................................................................................................................33

CanvasWorkspace Error Messages..............................................................................................................................................................33

Useful Information ................................................................................................................................................... 34

Roll Feeder Usage.........................................................................................................................................................................................34

Compatible Materials ....................................................................................................................................................................................34

Examples of Materials That Can Be Used ....................................................................................................................................................34

Non-Compatible Material..............................................................................................................................................................................36

Sizes of Rolled Material That Can Be Loaded Into the Roll Feeder..............................................................................................................36

Blades That Can Be Used.............................................................................................................................................................................36

Scanner Lever Position .................................................................................................................................................................................37

CONTENTS

Accessories

After purchasing this kit, check the contents.

*1 This part is attached to the roll holder (B).

*2 This part is attached to the trimmer (C). Do not remove it except when replacing it. If it is removed, see “Installing the Trimmer

Blade” on page 27.

This part is a consumable. When the cutting edge becomes blunt, purchase CADXRFC1 (trimmer blade). Purchase consumables

from the authorized retailer where the roll feeder was purchased.

*3 This accessory is a consumable. If the adhesiveness becomes weak, purchase CADXRFLS1 (Leader Sheet).

Operating Precautions

●This attachment was specially designed for the ScanNCut DX model. It cannot be used with any model other than the

ScanNCut DX.

●In order to use the roll feeder function, the dedicated application CanvasWorkspace (Windows/Mac) must be installed on your

computer.

●Only rolled material with a width of 305 mm (12") can be used.

●To use this product, the software on the cutting machine must be updated to Ver. 1.60 or later. If the software you are using is

older than Ver. 1.60, download the latest software from the Brother support website (http://s.brother/cuoad/). For details on

updates, refer to the Operation Manual of the cutting machine.

●Do not store in a location exposed to direct sunlight, high temperatures or high humidity.

●To maintain the adhesive strength, attach the protective sheet to the leader sheet after use.

●Do not bend the leader sheet when storing it.

●The contents of this document are subject to change without notice.

●The screens in this manual are for illustration purposes only and may differ from the actual screens.

Before beginning, please read the “Useful Information” on page 34.

Read Before Use

ABCD

E F G Arrangement of packaged

content

Part name

ABase attachment

BRoll holder

CTrimmer

DTrimmer blade

ELeader Sheet

FActivation card for roll feeder function on CanvasWorkspace (Windows/Mac) and 1 free sample design

GInsertion

Create data for the roll feeder with CanvasWorkspace (Windows/Mac).

●CanvasWorkspace (Windows/Mac) (ver. 2.0.0 or later) must be downloaded and installed on your computer.

(http://s.brother/cuoad/)

●In order to use CanvasWorkspace, a CanvasWorkspace login ID is required.

If you do not have a free account, click [Create New Account] in the screen that appears after installation, and then follow the on-

screen instructions to create an account.

●Data cannot be created and edited in CanvasWorkspace (Web).

Activating the Roll Feeder Function

aStart up CanvasWorkspace on a computer.

bIn CanvasWorkspace, select [Account Settings...] from the

[Help] menu.

cClick [Premium Function Activation].

dType in the activation code on the included activation

card, and then click [Activate].

• A connection to the Internet is required for activation.

• The uppercase letters “O” and “I” are not used in the activation

code.

• The activation code is valid for only one CanvasWorkspace

eWhen the activation confirmation message appears,

confirm the information, and then click [Activate] if it is

correct.

fClick [OK] to finish the activation.

Creating Data for the Roll Feeder

Creating Data

Create data for the roll feeder with CanvasWorkspace.

■Preparing the Format

aStart up CanvasWorkspace on a computer.

bClick (Artboard) on the right side of the screen.

The [Artboard] Panel appears in the Control Panel.

cSelect [Rolled Material] under [Artboard Size].

No mat appears in the background.

dIf necessary, change the height and orientation of the

artboard.

aArtboard height

bArtboard orientation (Portrait/Landscape)

Preparation of the format is finished.

Memo

• The orientation of the data does not change automatically

if the orientation of the artboard was changed.

• Even if data is created in the landscape orientation, it will

be changed to the portrait orientation when exported as

cutting data (FCM file). For details on cutting data, see

“Exporting Data as FCM File” on page 7.

• The size of the artboard appears as the size of the material.

The red box indicates the cutting area. Cutting cannot be

done in the areas above and below and to the left and right

of the box.

aRed box

■Creating Cutting Data

You can either create original data in CanvasWorkspace or

import data, then edit it. For this example, we will create data

by editing the pre-installed sample pattern.

aSelect (Roll Feeder) in the object panel, and then drag

the pattern into the drawing area.

Memo

• Adjust the pattern so that it fits within the red box. For

details, see “Creating Data” on page 4.

• A pattern can also be positioned in the drawing area by

clicking the pattern.

• Data created with the machine, for example, scanned data

or built-in patterns, can also be used with the roll feeder.

After importing the data into CanvasWorkspace, select

[Rolled Material] under [Artboard Size], and then export it

as an FCM file.

bEdit the sample pattern.

Memo

• For details on editing in CanvasWorkspace, select [Online

Video Tutorials...] from the [Help] menu.

• By adding a margin at the beginning of the data, multiple

copies can be continuously cut out with a certain amount

of space between them.

After creating the cutting data, export it or transfer it to the

cutting machine. For details on exporting data to a computer

or USB flash drive as an FCM file (which can be retrieved on

a cutting machine), see “Exporting Data as FCM File” on

page 7.

For details on transferring the data to the machine, see

“Sending Data to the Machine” on page 8.

Weeding Box Function

Weeding is the process of removing the unnecessary parts

around a cut pattern to leave the desired parts on the backing

paper or backing film.

By using the Weeding Box function, a box (weeding box) can

be cut around the pattern, making it easier to peel off

unnecessary parts.

For this example, we will use patterns included with the

application.

aWeeding box

The following shows the difference between weeding with and

without a weeding box.

●Without a weeding box

When peeling off large

unnecessary parts, they stick to

each other or to the desired parts,

making weeding difficult.

●With a weeding box

Cutting a weeding box breaks up

unnecessary parts into smaller

parts, making weeding easier.

aClick (Edit) on the right side of the screen.

The [Edit] Panel appears in the Control Panel.

bSelect the pattern, and then click [Weeding Box...].

The [Create Weeding Box] dialog box appears.

cSelect how to specify the size of the weeding box.

■Optimize the Weeding Lines

Memo

• If no weeding lines are to be added between multiple

patterns grouped to form a single pattern, select the “No

Weeding Lines in Grouped Objects” check box.

■[Specify the Spacing from the Selected

Object]

Specify the values, and then click [OK].

■[Specify the Rectangle Size]

Specify the values, and then click [OK].

dRepeat steps band cfor each object that will be cut

with a weeding box.

The weeding box is created.

aWeeding box

Memo

• The data for a created weeding box is saved on a layer

separate from that for the pattern data.

Exporting Data as FCM File

Save data as an FCM file on a computer or USB flash drive, and

then use a USB flash drive to transfer the data to the cutting

machine.

For details on transferring data directly from

CanvasWorkspace to a cutting machine, see “Sending Data

to the Machine” on page 8.

■Saving to a USB Flash Drive

aPlug the USB flash drive into a USB port on the computer.

bIn CanvasWorkspace, select [Export/Transfer FCM File]

from the [File] menu.

Note

• In order to export data for a roll feeder, [Rolled Material]

must have been selected under [Artboard Size] when the

data was edited. Before exporting the data, recheck this

setting. For details, see “Creating Data” on page 4.

cSelect [Export FCM File].

dSelect [USB Drive (*)] as the destination, and then click

[Save].

* This designation differs depending on the operating system

being used.

The data is saved as an FCM file on the USB flash drive.

Sending Data to the Machine

Data opened in CanvasWorkspace can be transferred to a

cutting machine as an FCM file (which can be retrieved on the

cutting machine).

Note

• In order to transfer data for a roll feeder, [Rolled Material]

must have been selected under [Artboard Size] when the

data was edited. Before transferring the data, recheck this

setting. For details, see “Creating Data” on page 4.

■Transferring Using a USB Cable (compatible

only with Windows)

aInsert the USB cable connectors into the corresponding

USB ports on the computer and on the cutting machine.

aUSB port for a computer

bUSB cable

Note

• The connectors on the USB cable can only be inserted into

a port in one direction. If it is difficult to insert the cable

connector, do not insert it with force and check the

orientation of the connector.

• When transferring data for a roll feeder to the cutting

machine, the home screen must be displayed on the

machine.

bIn CanvasWorkspace, select [Export/Transfer FCM File]

from the [File] menu.

cSelect [Transfer FCM File to ScanNCut DX via USB

Cable].

When a message appears, indicating that the data has been

sent to the machine, confirm the details, and then click [OK].

■Transferring Via Wireless Network

Connection

●A connection to the Internet is required.

●The machine must be connected to the wireless network. This

function can be used only after a connection to

CanvasWorkspace has been established. For details on

establishing a connection, refer to the Operation Manual for the

cutting machine.

aIn CanvasWorkspace, select [Export/Transfer FCM File]

from the [File] menu.

bSelect [Transfer FCM File via the Internet].

When a message appears, indicating that the data has been

sent to the machine, confirm the details, and then click [OK].

In order to install the roll feeder for cutting, the cutting machine must be prepared, and preparations must be made to install the roll

feeder and rolled material onto the machine.

Check that the software version on the cutting machine is Ver. 1.60 or later before attaching the roll feeder. If the version is older

than Ver. 1.60, update the software.

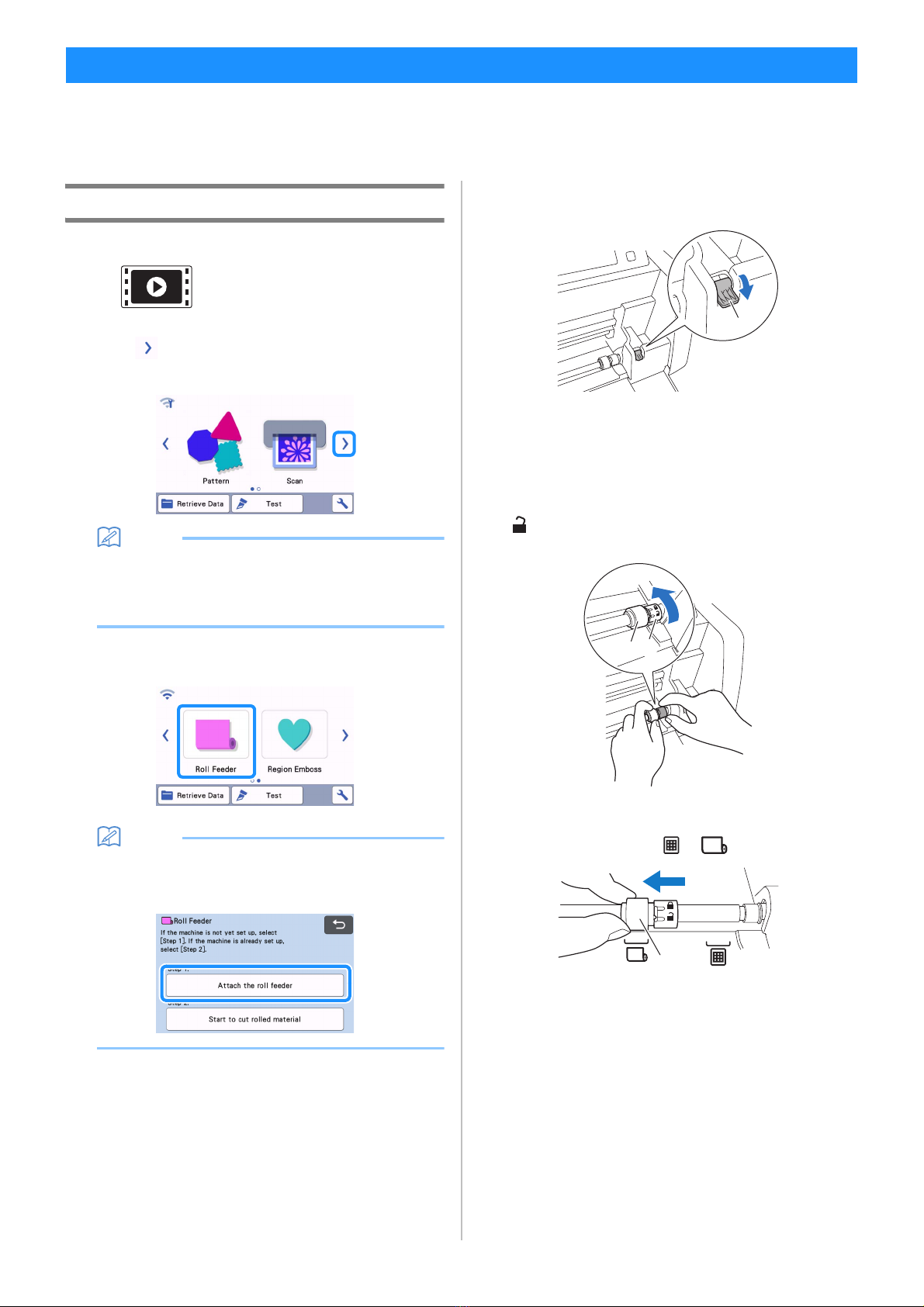

Installing the Base Attachment to the Machine

• You can also view a video of the installation of the roll feeder.

http://s.brother/cvsae/

aTouch in the home screen to display the following

screen.

Memo

• When using the roll feeder, “Retrieve Data” and “Test” are

not available. Select “Roll Feeder” to use those functions.

(page 16 and page 19)

• When using the roll feeder, “Scan” is not available.

bSelect “Roll Feeder”.

Memo

• After “Roll Feeder” is selected, the following screen

appears. Select “Attach the roll feeder” to confirm the

instructions for installing the roll feeder.

cPull the feeder release lever (on the right side of the

machine) toward you.

aFeeder release lever

Only the right side of the shaft is raised, and the shaft is

unlocked.

dGrab the feed roller and feed roller lock dial, and then,

while holding the feed roller in place, rotate the feed

roller lock dial toward the back to the unlock position

().

The feed roller can be slid.

aFeed roller

bFeed roller lock dial

eSlide the feed roller from to .

aFeed roller

Installing the Roll Feeder

Andere Handbücher für ScanNCut DX

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Brother Plotter Handbücher

Brother

Brother ScanNCut DX Bedienungsanleitung

Beliebte Plotter Handbücher anderer Marken

MUTOH

MUTOH Kona 760 Bedienungsanleitung

HP 7475a Bedienungsanleitung

Vulcan-Hart

Vulcan-Hart FC-500VC Bedienungsanleitung

Roland

Roland TrueVIS VG-640 Betriebsanleitung

Furuno

Furuno RP-180 Bedienungsanleitung

Roland

Roland VersaCamm SP-540V Bedienungsanleitung

MIMAKI

MIMAKI CF2 Series Bedienungsanleitung

Ioline

Ioline Summit Bedienungsanleitung

Summa

Summa S CLASS Bedienungsanleitung

Gerber Technology

Gerber Technology GERBERplotter MP Series Bedienungsanleitung

Furuno

Furuno RP-17 Bedienungsanleitung

HP 7470A Bedienungsanleitung

SII

SII LP-1010 Bedienungsanleitung

Great Computer

Great Computer JII-61 Bedienungsanleitung

Roland

Roland VersaUv LEF - 12i Bedienungsanleitung

Lectra

Lectra Alys 120 Bedienungsanleitung

MUTOH

MUTOH Ultima SC-850D Bedienungsanleitung

Skycut

Skycut D Series Bedienungsanleitung
