Start Here

Quick Setup Guide

ARL/ASA/NZ Version 0

ADS-1100W

ADS-1600W

Brother Industries, Ltd.

15-1, Naeshiro-cho, Mizuho-ku, Nagoya 467-8561, Japan

Thank you for choosing Brother. Your support is important to us and we value your business. Your Brother product

is engineered and manufactured to the highest standards to deliver reliable performance, day-in and day-out.

Please read the Product Safety Guide on page 19 before you set up your machine. Then, please return to

this page of the Quick Setup Guide for the correct setup and installation procedure.

Unpack the machine and check the components

The components included in the box may differ depending on your country.

You can download the User’s Guide and Network User’s Guide for your model from the Brother Solutions Center

at http://solutions.brother.com/. If your computer does not have a DVD-ROM drive, the supplied DVD-ROM does

not contain drivers for your operating system, or you want to download manuals and utilities, visit your model page

at http://solutions.brother.com/. Some software applications included on the DVD-ROM may not be available as a

download.

WARNING

• This product was packaged in a plastic bag. To avoid suffocation, keep plastic bags away from babies

and children. Do not use the bag in cribs, beds, carriages or play pens. The bag is not a toy.

• Use only the AC adapter supplied with this product.

aRemove the protective tape and film covering the machine and the LCD or Control Panel.

bMake sure you have all the components.

WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death

or serious injuries.

CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor

or moderate injuries.

IMPORTANT IMPORTANT indicates a potentially hazardous situation which, if not avoided, may result in

damage to property or loss of product functionality.

NOTE Notes tell you how you should respond to a situation that may arise or give tips about how the

operation works with other features.

NOTE

Unless otherwise specified, illustrations in this guide show the ADS-1600W.

Quick Setup Guide USB Interface Cable

AC adapter

DVD-ROM

NOTE

• We recommend that you save the original packaging in case you must ship your machine.

• Please use the supplied USB cable if you want to connect the machine to a computer.

Connect the AC adapter

aConnect the AC adapter. (Example for

Australia)

bOpen the Top Cover aand push the flap of the

Top Cover bfirmly back until it clicks.

NOTE

DO NOT connect the USB cable yet.

Windows®Macintosh

USB Wireless Network

Choose your connection type

These installation instructions are for Windows®XP Home, XP Professional, Windows Vista®, Windows®7,

Windows®8, and Mac OS X v10.6.8, 10.7.x and 10.8.x.

If your computer does not have a DVD-ROM drive, the supplied DVD-ROM does not contain drivers for your

operating system, or you want to download manuals and utilities, visit your model page at

http://solutions.brother.com/. Some software applications included on the DVD-ROM may not be available as

a download.

NOTE

Windows®8 users: If the Brother manuals are in PDF format, use Adobe®Reader®to open them. If Adobe®

Reader®is installed on your computer but you cannot open the files in Adobe®Reader®, change the file

association for PDF (see How to open a PDF file in Adobe®Reader®(Windows®8) on page 18).

For USB interface cable

Windows

, go to page 4

Macintosh, go to page 6

For Wireless Network

Windows

and Macintosh,

go to page 7

Windows®

USB

For Windows

USB interface users

(Windows®XP Home/XP Professional/Windows Vista®/Windows®7/Windows®8)

Before you install

Make sure that your computer and machine are ON.

Install MFL-Pro Suite

aPut the DVD-ROM into your DVD-ROM drive. If

the model name screen appears, choose your

machine. If the language screen appears,

choose your language.

bClick Install MFL-Pro Suite, and then click

Yes if you accept the license agreements.

cChoose Local Connection (USB), and then

click Next.

dFollow the on-screen instructions.

NOTE

• DO NOT connect the USB cable yet.

• If there are any programs running, close them.

• The screens may differ depending on your

operating system.

• The DVD-ROM includes Nuance™

PaperPort™12SE. This software supports

Windows®XP Home (SP3 or greater), XP

Professional (SP3 or greater), Windows Vista®

(SP2 or greater), Windows®7 and

Windows®8. Update to the latest Windows®

Service Pack before installing MFL-Pro Suite.

NOTE

• If the Brother screen does not appear

automatically, go to Computer (My

Computer).

(For Windows®8: click the (File Explorer)

icon on the taskbar, and then go to Computer.)

• Double-click the DVD-ROM icon, and then

double-click start.exe.

NOTE

For Windows Vista®, Windows®7 and

Windows®8, when the User Account Control

screen appears, click Allow or Yes.

NOTE

If the Windows Security screen appears, select

the check box and click Install to complete the

installation correctly.

Windows®

USB

Windows®Macintosh

USB

Connect the USB cable

aConnect the USB cable to the USB port

marked with a symbol on the back of your

machine. Connect the other end of the cable to

your computer.

bThe installation will continue automatically.

The installation screens appear one after

another.

cWhen the On-Line Registration screen is

displayed, make your selection and follow the

on-screen instructions.

Finish and restart

aClick Finish to restart your computer.

bThe following screens will appear:

• When the Software Update Setting screen

appears, choose the software update setting

you want and click OK.

• When the Brother Product Research and

Support Program screen appears, select

your preference and follow the on-screen

instructions.

To install optional applications:

Now go to

Page 16

NOTE

DO NOT cancel any of the screens during the

installation. It may take a few seconds for all

screens to appear.

NOTE

• If an error message appears during the

software installation, do one of the following:

- Windows®XP, Windows Vista®and

Windows®7 users: Run the Installation

Diagnostics located in (Start) >

All Programs > Brother > ADS-XXXXX

(where XXXXX is your model name).

- Windows®8 users: To run the Installation

Diagnostics, double-click (Brother

Utilities) on the desktop, and then click the

drop-down list and select your model name

(if not already selected). Click Tools in the

left navigation bar.

• Depending on your security settings, a

Windows®Security or antivirus software

window may appear when using the machine

or its software. Please allow or permit the

window to continue.

NOTE

Internet access is required for the software

update and the Brother Product Research and

Support Program.

Finish

The installation is now

complete and it is time to

do a test scan. See Test

Scan (scan to PDF) on

page 17.

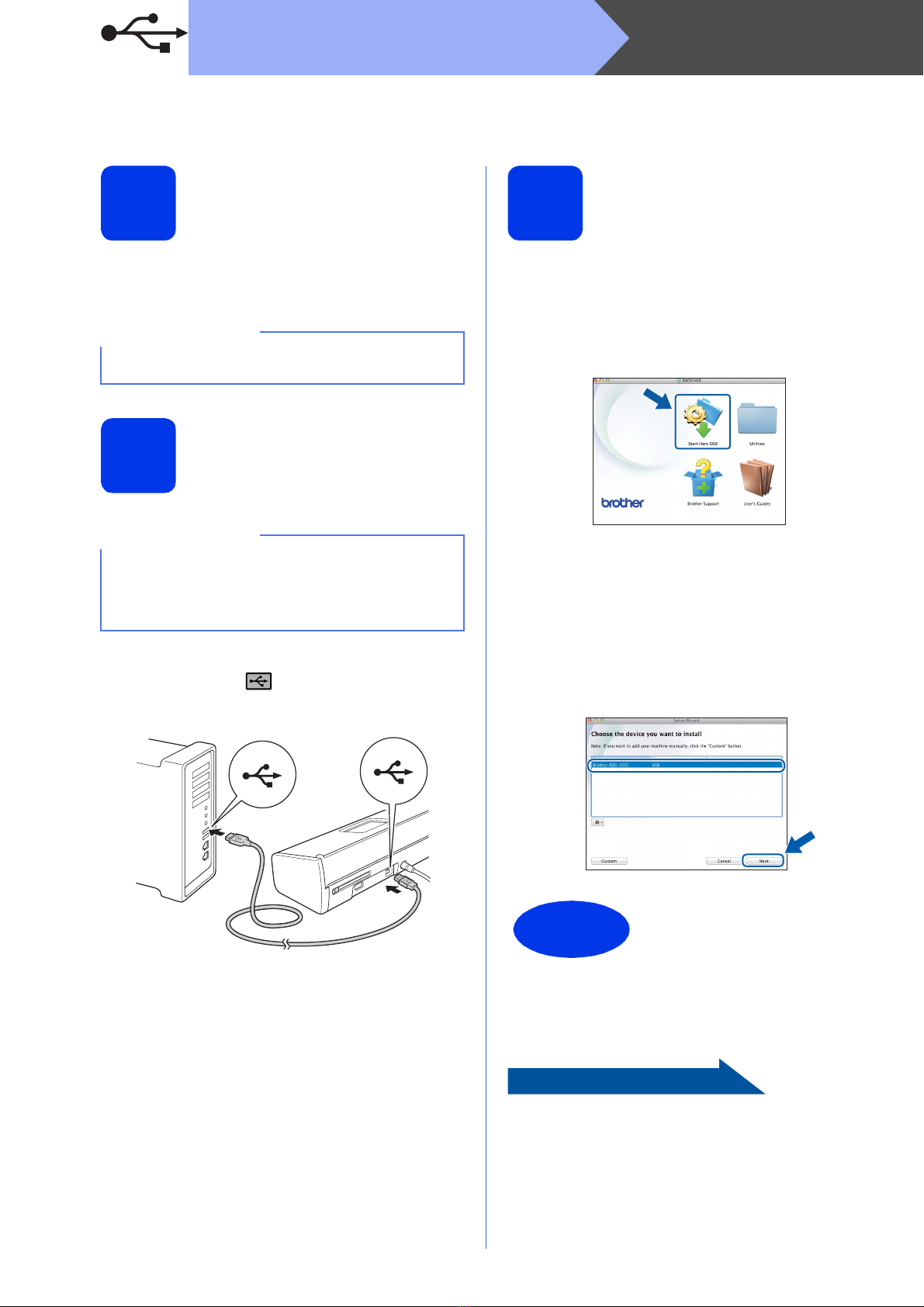

Macintosh

USB

For Macintosh USB interface users

(Mac OS X v10.6.8/10.7.x/10.8.x)

Before you install

Make sure your machine is connected to the power

and your Macintosh is ON.

Connect the USB cable

aConnect the USB cable to the USB port

marked with a symbol on the back of your

machine. Connect the other end of the cable to

your computer.

Install MFL-Pro Suite

aPut the installer DVD-ROM into your

DVD-ROM drive.

bDouble-click the Start Here OSX icon to install.

If the model name screen appears, choose

your machine.

cChoose Local Connection (USB), and then

click Next. Follow the on-screen instructions.

dAfter the installation, the Brother software will

search for the Brother device. This will take a

few moments to complete.

eChoose your machine from the list, and then

click Next.

To install optional applications:

Now go to

Page 16

NOTE

For Mac OS X v10.6.0 to 10.6.7 users, upgrade to

Mac OS X v10.6.8 - 10.8.x.

NOTE

• DO NOT connect the machine to a USB port on

a keyboard or a non-powered USB hub.

• Connect the machine directly to your

Macintosh.

Finish

The installation is now

complete and it is time to

do a test scan. See Test

Scan (scan to PDF) on

page 17.

For Wireless Network Users

Wireless Network

For wireless network interface users

Choose your wireless setup method

The following instructions will offer two methods for setting up your Brother machine on a wireless network. If you

want to scan using your mobile devices only and your wireless access point/router supports automatic wireless

(one-push) setup (WPS or AOSS™), select method b. Otherwise, select method a.

aSetup using the DVD-ROM and a USB cable (Windows®& Macintosh)

• We recommend using a computer wirelessly connected to your network for this method.

• You will need to use a USB cable temporarily during configuration.

Now go to

page 8

bOne-push setup using WPS or AOSS™ (mobile devices)

• Use this method if your wireless access point/router supports automatic wireless (one-push) setup

(WPS or AOSS™).

• If you want to scan using your computer, use method a.

Now go to

page 11

For Wireless Network Users

Setup using the

DVD-ROM and USB cable

(Windows

& Macintosh)

For Windows®Users:

aPut the DVD-ROM into your DVD-ROM drive. If

the model name screen appears, choose your

machine. If the language screen appears,

choose your language.

bClick Install MFL-Pro Suite and click Yes if

you accept the license agreements.

cChoose Wireless Network Connection, and

then click Next.

dWhen the Firewall/AntiVirus detected screen

appears, choose Change the Firewall port

settings to enable network connection and

continue with the installation.

(Recommended) and click Next.

eFollow the on-screen instructions to set up the

Brother machine.

fYour machine will now try to connect to your

wireless network. It may take a few minutes.

Wireless setup is now complete.

The Wi-Fi light on the Control Panel

lights up, indicating that the machine’s

Network I/F is set to WLAN.

To install MFL-Pro Suite

For Windows®users:

Now go to

Step gon page 9

For Macintosh users:

Now go to

Step gon page 10

For Macintosh Users:

For Macintosh installation, insert the

DVD-ROM into your DVD-ROM drive and

double-click Start Here OSX. Select Wireless

installation and follow the Wireless Device

Setup instructions on your computer screen.

NOTE

• If the Brother screen does not appear

automatically, go to Computer (My

Computer).

(For Windows®8: click the (File Explorer)

icon on the taskbar, and then go to Computer.)

• Double-click the DVD-ROM icon, and then

double-click start.exe.

NOTE

• For Windows Vista®, Windows®7 and

Windows®8, when the User Account Control

screen appears, click Allow or Yes.

•ClickYes if you accept the license agreements.

Windows®

Wireless Network

Windows®Macintosh

Wireless Network

gChoose your machine from the list, and then

click Next.

hThe installation of the Brother drivers will

automatically start. The installation screens

appear one after another.

iWhen the On-Line Registration screen is

displayed, make your selection and follow the

on-screen instructions.

Finish and restart

aClick Finish to restart your computer.

bThe following screens will appear:

• When the Software Update Setting screen

appears, choose the software update setting

you want and click OK.

• When the Brother Product Research and

Support Program starts up, follow the

on-screen instructions.

To install optional applications:

Now go to

Page 16

NOTE

• If your machine is not found over the network,

confirm your settings by following the

on-screen instructions.

• If you are using WEP and the WiFi light on

the Control Panel lights up (for ADS-1100W),

or the LCD displays Connected (for

ADS-1600W) but your machine is not found on

the network, make sure you entered the WEP

key correctly. The WEP key is case-sensitive.

NOTE

• DO NOT cancel any of the screens during the

installation. It may take a few seconds for all

screens to appear.

• If the Windows Security screen appears,

select the check box and click Install to

complete the installation correctly.

NOTE

If an error message appears during the software

installation, do one of the following:

-Windows

®XP, Windows Vista®and

Windows®7 users: Run the Installation

Diagnostics located in (Start) >

All Programs > Brother > ADS-XXXXX

(where XXXXX is your model name).

-Windows

®8 users: To run the Installation

Diagnostics, double-click (Brother

Utilities) on the desktop, and then click the

drop-down list and select your model name (if

not already selected). Click Tools in the left

navigation bar.

NOTE

• Internet access is required for the software

update and the Brother Product Research and

Support Program.

• When you install MFL-Pro Suite, Brother Help

will also be installed automatically. Launch

Brother Help by clicking

in the system tray. Click to

access the Brother Solutions Center.

Finish

The installation is now

complete and it is time to

do a test scan. See Test

Scan (scan to PDF) on

page 17.

Macintosh

Wireless Network

gChoose your machine from the list, and then

click Next.

hThe installation of the Brother drivers will

automatically start. Please wait for the software

to install.

To install optional applications:

Now go to

Page 16

NOTE

If your wireless settings fail, the Wireless Device

Setup Wizard screen appears. Follow the

on-screen instructions to complete the wireless

configuration.

NOTE

• (ADS-1100W)

You can find your machine’s MAC Address

(Ethernet Address) in Network Status from the

Network tab, and IP address in TCP/IP

(Wireless) in Wireless from the Network tab,

in Web Based Management. See the Network

User’s Guide.

(ADS-1600W)

You can display your machine’s MAC Address

(Ethernet Address) and IP Address using the

machine’s LCD. To find the MAC Address,

press (Settings) > Network > WLAN >

MAC Address. To find the IP Address, press

(Settings) > Network > WLAN >

TCP/IP > IP Address.

• If the Setup Network “Scan to” name screen

appears, type a name for your Macintosh (up to

15 characters), and then click Next.

The name you type will appear in the

Destination drop-down list in Scan to

Network Device from the Scan tab in Web

Based Management (ADS-1100W only)(see

the User’s Guide) or on the LCD of the machine

(ADS-1600W only) when you choose a scan

option. For more information, see the User’s

Guide.

Finish

The installation is now

complete and it is time to

do a test scan. See Test

Scan (scan to PDF) on

page 17.

Andere Handbücher für ADS-1100W

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Brother Scanner Handbücher

Brother

Brother ImageCenter ADS-2000 Betriebsanleitung

Brother

Brother DSmobile DS-640 Bedienungsanleitung

Brother

Brother ADS-2200 Bedienungsanleitung

Brother

Brother DS-820W Bedienungsanleitung

Brother

Brother PDS-5000 Bedienungsanleitung

Brother

Brother ImageCenter ADS2500W Bedienungsanleitung

Brother

Brother DSmobile 600/DS600 Bedienungsanleitung

Brother

Brother DSmobile 610 Portable Document Scanner Bedienungsanleitung

Brother

Brother ImageCenter ADS-2000 Bedienungsanleitung

Brother

Brother ImageCenter ADS-3600W Installationsanleitung

Brother

Brother DSmobile® 700D/DS700D Bedienungsanleitung

Brother

Brother DSmobile 820W Bedienungsanleitung

Brother

Brother ImageCenter ADS-3000N Bedienungsanleitung

Brother

Brother ImageCenter ADS-1000w Bedienungsanleitung

Brother

Brother ImageCenter ADS-2400N Bedienungsanleitung

Brother

Brother ImageCenter ADS-3600W Bedienungsanleitung

Brother

Brother DSmobile 620 Bedienungsanleitung

Brother

Brother ImageCenter ADS2500W Bedienungsanleitung

Brother

Brother ImageCenter ADS-2400N Bedienungsanleitung

Brother

Brother DS700D Bedienungsanleitung

Brother

Brother ImageCenter ADS-1000w Bedienungsanleitung

Brother

Brother ADS-1100W Bedienungsanleitung

Brother

Brother DSmobile 620 Bedienungsanleitung

Brother

Brother ADS-2600W Bedienungsanleitung

Beliebte Scanner Handbücher anderer Marken

Plustek

Plustek Scanner Bedienungsanleitung

Z/I Imaging

Z/I Imaging PhotoScan 2001 Bedienungsanleitung

Renkforce

Renkforce DS100-5M Bedienungsanleitung

Image Access

Image Access WideTEK A2 Bedienungsanleitung

Canon

Canon imageFORMULA CR-120N Bedienungsanleitung

Fujitsu

Fujitsu FI-4860C2 Bedienungsanleitung

GeoSlam

GeoSlam ZEB Horizon Montageanleitung

Kodak

Kodak i5800 Scanner Bedienungsanleitung

Kodak

Kodak i7300 Bedienungsanleitung

Revopoint

Revopoint POP Bedienungsanleitung

Fujitsu

Fujitsu fi-4860C Bedienungsanleitung

Eddyfi Technologies

Eddyfi Technologies Floormap X Bedienungsanleitung

Faselase

Faselase F6 Bedienungsanleitung

Fujitsu

Fujitsu CardMinder Bedienungsanleitung

Uniden

Uniden BC340CRS Bedienungsanleitung

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Bedienungsanleitung

Mustek

Mustek PageExpress 4800 Pro Bedienungsanleitung

Optex

Optex 750830 Bedienungsanleitung
