Buffalo AirStation Bedienungsanleitung

WLI-UC-GNM

Wireless Adapter User Manual

Americas: www.buffaloamericas.com

Europe: www.buffalo-technology.com

Asia Pacific: www.buffalo-asia.com

35020962-02

2017.01

Contents

Chapter 1 Installation.....................................................3

Installing Wireless Drivers...............................................................3

Installing the Utility .........................................................................6

Chapter 2 Connect to a Wireless Network ....................9

AOSS/WPS Connection ....................................................................9

WPS PIN Connection ..................................................................... 10

Connecting Manually (Using Client Manager V) ........................ 14

Setting Up Manually (Using Windows Utility) ............................ 16

Chapter 3 Client Manager V........................................ 19

Software Overview ....................................................................... 19

Using Client Manager V ................................................................ 19

Opening and Closing Client Manager V .................................................19

Main Screen..............................................................................................19

Automatic Secure Setup and Advanced Setup......................................20

SSID/WPS-PIN Selection..........................................................................20

Searching for Wireless Access Points......................................................21

Wireless Network Information................................................................22

WPS-PBC/AOSS Selection........................................................................23

Wireless Status .........................................................................................23

Wireless LAN Diagnoses ..........................................................................24

Profile List.................................................................................................25

Wireless Properties..................................................................................26

Network Properties .................................................................................27

Browser Properties ..................................................................................27

Printer Properties ....................................................................................28

Chapter 4 Troubleshooting......................................... 29

The PC Does Not Recognize the Wireless Adapter ..................... 29

Cannot Connect to the Network Wirelessly ................................ 29

Forgot the AP's SSID, Encryption Key, or Password.................... 29

Other Tips ...................................................................................... 29

Chapter 5 Appendix .................................................... 31

System Requirements................................................................... 31

Hardware Overview ...................................................................... 31

Package Contents.......................................................................... 31

Specifications ................................................................................ 32

Uninstalling the Software ............................................................ 32

Uninstalling the Drivers................................................................ 32

TCP/IP Settings .............................................................................. 33

Windows 10, Windows 8.1, Windows 8...................................................33

Windows 7 ................................................................................................33

Windows Vista ..........................................................................................34

Windows XP..............................................................................................34

Regulatory Compliance Information........................................... 35

Chapter 1 Installation

Installing Wireless Drivers

Follow the instruction below to install drivers. Do not connect the AirStation to your computer yet.

1 Boot your computer and insert the AirNavigator CD.

The setup menu will launch automatically. If not, open the CD and click "AirNavi.exe".

2 Click [Begin Installation].

3 Click [AirStation Wireless LAN Adapters].

4 Disable any firewalls and click [Next].

5 Click [Install].

Note: If you are using Windows 10, Windows 8.1, Windows 8, Windows 7, or Windows Vista, check "Client

Manager V" to install Client Manager V after installing the drivers.

6 Click [Next].

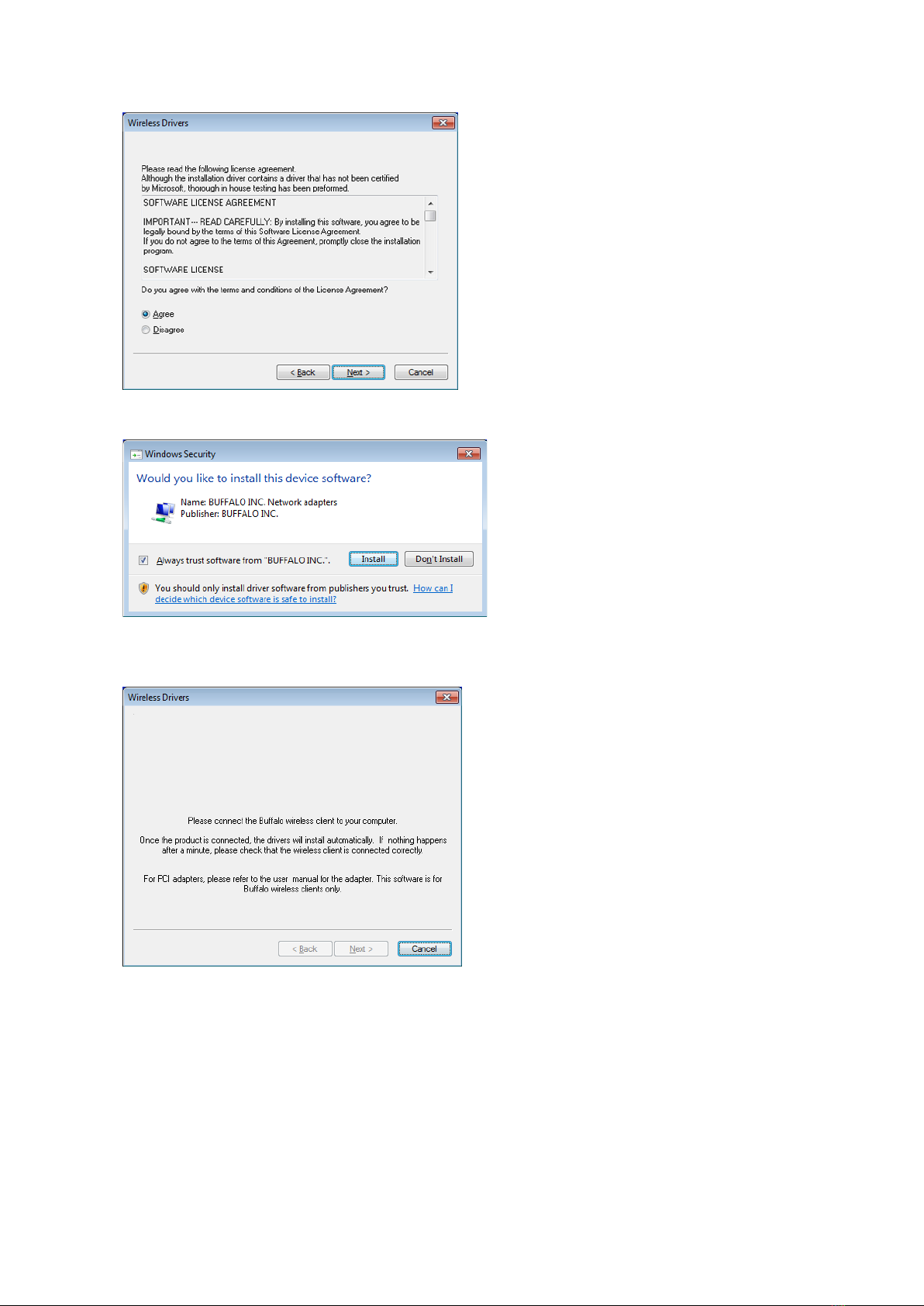

7 Read the license agreement, select [Agree], then click [Next].

8 Check "Always trust software from "BUFFALO INC.", and click [Install].

9 When the screen below is displayed, attach the AirStation to your computer.

Drivers will be installed automatically.

Note: If a message such as "Your wireless adapter is available 300Mbps Mode." is displayed, click [OK].

10 After the drivers are installed, the screen below will be displayed. Click [Finish].

Drivers are now installed.

Installing the Utility

Follow the procedure below to install Client Manager V.

Note: Client Manager V is not compatible with Windows XP.

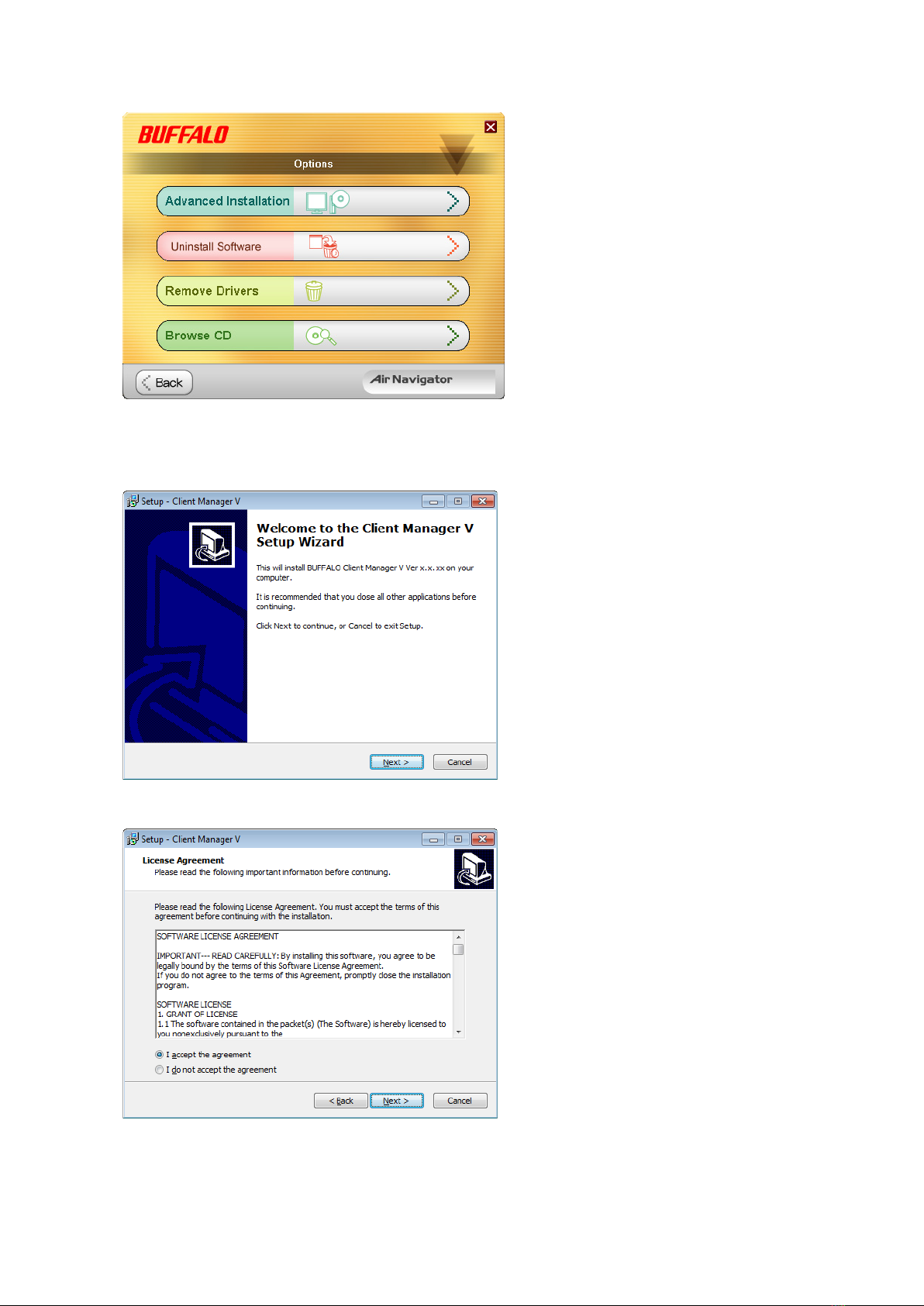

1 Click [Options].

2 Click [Advanced Installation].

3 Check the box for Client Manager V and click [Install].

4 Click [Next].

5 Read the license agreement, select [I accept the agreement], then click [Next].

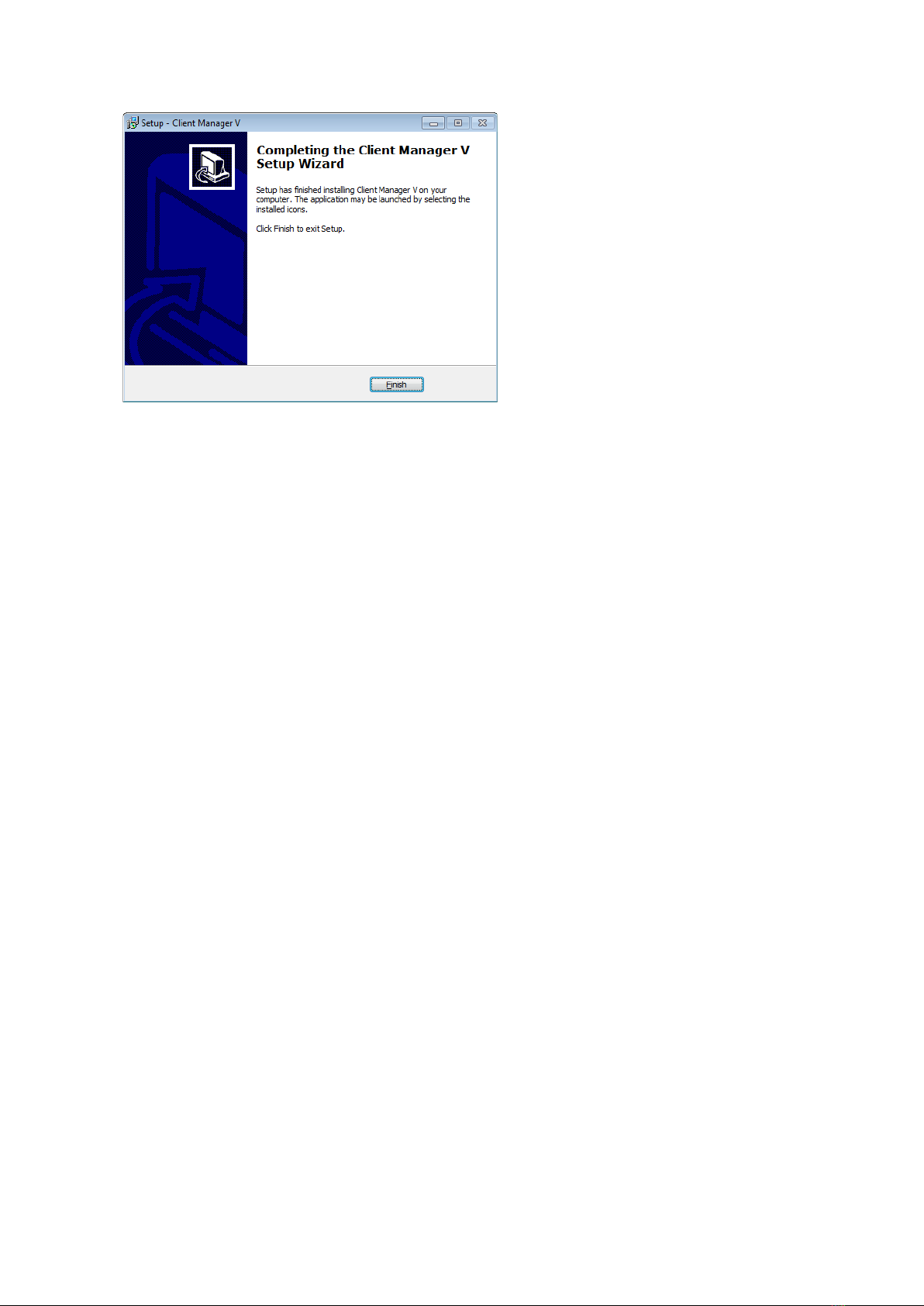

6 Click [Finish].

7 Click [Back].

8 Click "X" at the top right corner of the window to close it.

Client Manager V is now installed.

Chapter 2 Connect to a Wireless Network

AOSS/WPS Connection

AOSS and WPS are systems which enable you to automatically configure wireless LAN settings. Just pressing the

buttons will connect wireless devices and complete security settings. Utilize this system to connect to wireless

devices, computers, or game machines which support AOSS or WPS.

AOSS (AirStation One-touch Secure System) is technology developed by Buffalo Technology. WPS was created by

the Wi-Fi Alliance.

PUSH

Modem

Internet

AirStation PC or

Game console

(AOSS Devices)

If you are using Windows 10, Windows 8.1, Windows 8, Windows 7, or Windows Vista, use Client Manager V to

connect to an access point wirelessly using AOSS or WPS as detailed in the procedure below.

Client Manager V is available from the CD. For the procedure on how to install Client Manager V, refer to chapter 1.

1 Start Client Manager V.

2 Click [Create Profile].

Note: If the User Account Control screen is displayed, click [Yes] or [Continue].
