Buffalo WLI-U2-AG108HP Bedienungsanleitung

User Manual

Wireless 54 Mbps

USB Adapter

with Antenna Interface

WLI2-USB-G54

www.buffalotech.com v1.5

User Manual - AirStation WLI-U2-AG108HP

High Power Dual A+G Wireless USB 2.0 Adapter

Congratulations on your purchase! The AirStation WLI-U2-AG108HP High-Power Dual A+G

Wireless USB 2.0 Adapter connects to 2.4ghz 802.11g networks, 2.4ghz 802.11b networks,

and 5ghz 802.11a networks.

System Requirements

• A compatable A, B, or G band access point.

• A PC running Windows XP, 2000, ME, or 98se.

Package Contents

•WLI-U2-AG108HP USB Adapter

•Stand

•5 foot USB Cable

•Utility CD with Manual

•Quick Setup Guides

•Warranty Statement

Introduction

Antenna

The WLI-U2-AG108 includes a directional

antenna. For best performance, point the

antenna so that the word “BUFFALO” on the front

faces your access point.

The WLI-U2-AG108 may also be removed from

its stand and clipped to the top of your notebook

computer. Lift the tabs gently to open the clamp,

and slip the unit onto the edge of your computer

screen.

Getting Started

1. Installing Drivers:

Insert the AirNavigator CD into the CD-ROM drive of the PC.

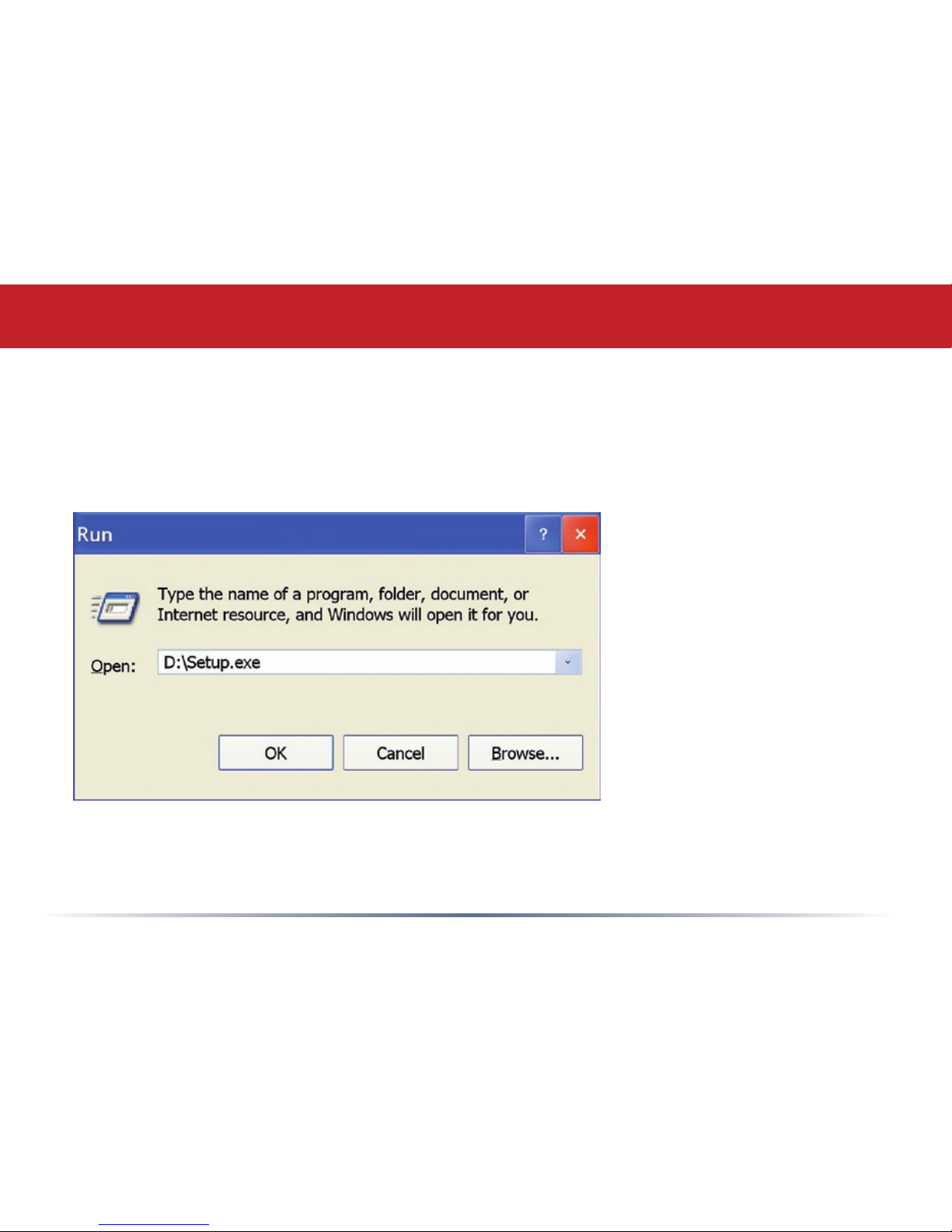

If setup.exe does not launch

automatically, click Start

and select Run. Enter

D:\Setup.exe in the Open

eld, where D: is the letter

assigned to your CD-ROM.

Click the OK button to

launch the wizard.

Select Install Wireless

Drivers. Click OK.

The wireless driver

installation program

will begin. Press NEXT

and follow the on screen

prompts.

AirNavigator

Installing Drivers

2. Installing the Wireless USB Adapter with Windows XP:

Once the driver les have been installed, your computer will prompt you to insert

your wireless adapters. At this point, please plug the Wireless USB Adapter into your

computer.

The setup should automatically complete. If it automatically nishes the install, then

skip to Page 8, otherwise, Select Install the software automatically. Click the Next button.

Installing Drivers

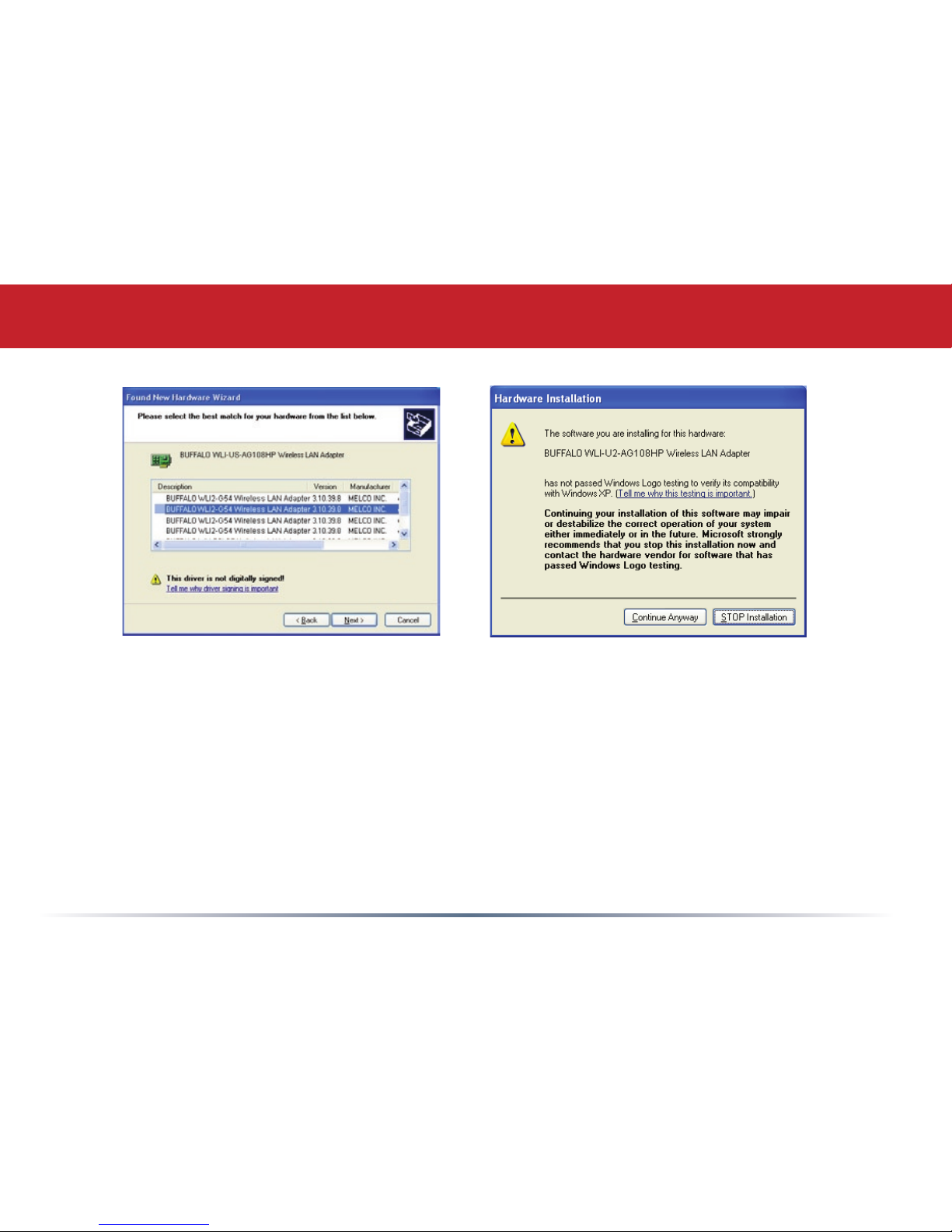

A list of drivers will appear. Choose WLI-U2-AG108HP from the list and click Next .

If Windows warns you that this driver does not pass Windows Logo testing, click Continue

Anyway. When installation is nished, click Finish. Restart your PC if prompted.

3. Using Wireless Zero Configuration:

Normally, Windows XP will scan for available wireless

access points once the Wireless Notebook Adapter

is installed. If Windows detects an access point, a

networking icon appears on the task bar. One or more

wireless networks are available appears as a caption

accompanying the icon.

Notes: If Wireless Zero Conguration is not running,

click Start>Control Panel>Administrative Tools>Services.

Select Automatic in the Startup Type eld of the Wireless

Zero Conguration Service to start it.

If you don’t want to use Wireless Zero Cong and

would rather use Buffalo’s client utility, or if you have a

Windows 98 or 2000 computer, turn to page 12.

Right click the networking icon in the taskbar and select

View Available Wireless Networks to display a list of

available wireless networks. Select a network and click

Connect.

If the network that you are connecting to is unsecured,

you may need to check the box allowing you to connect

to an unsecured network.

Wireless Zero Configuration

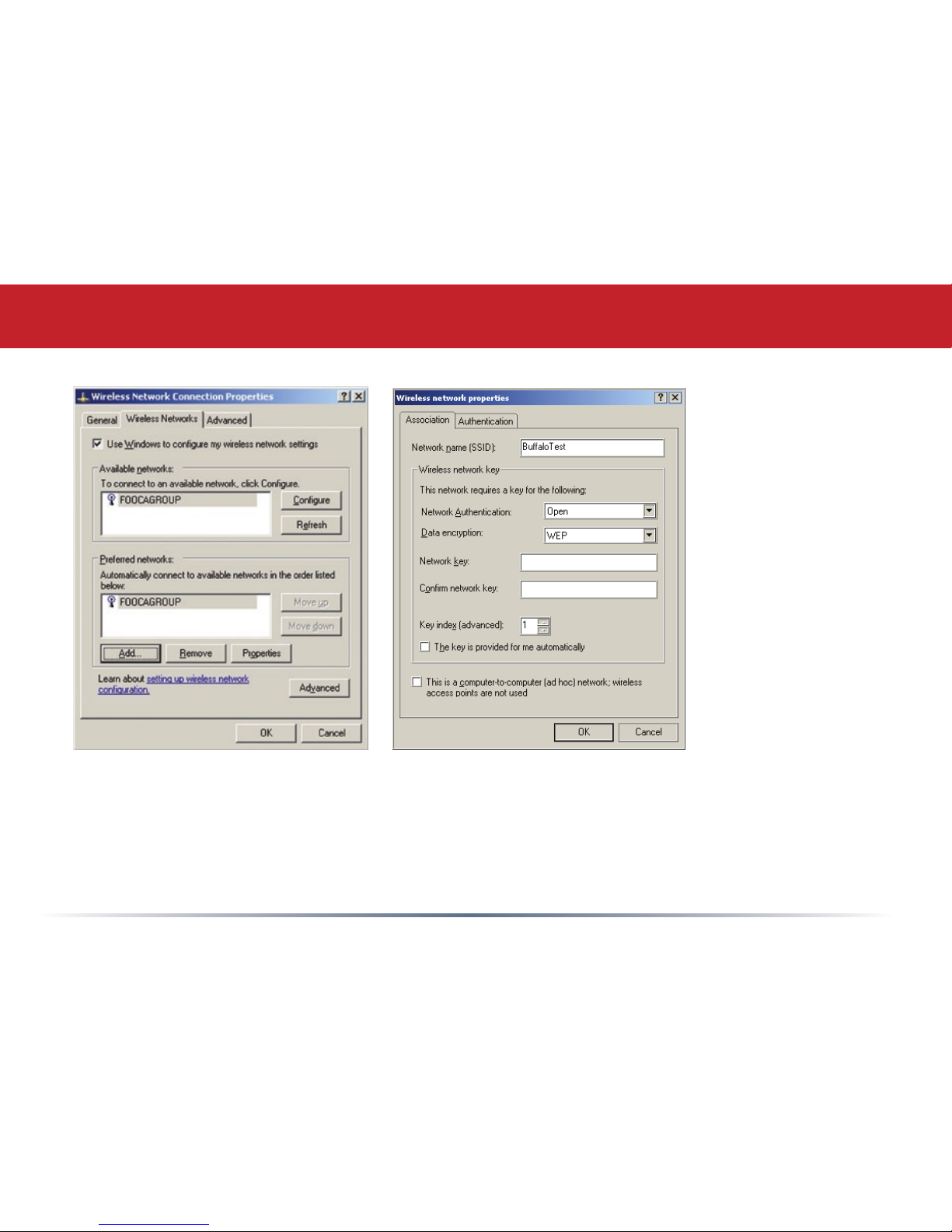

Click the Advanced button to enter an SSID network name or WEP/WPA encryption key

manually. To add an SSID network name that is not listed, click the Add button.

Connecting

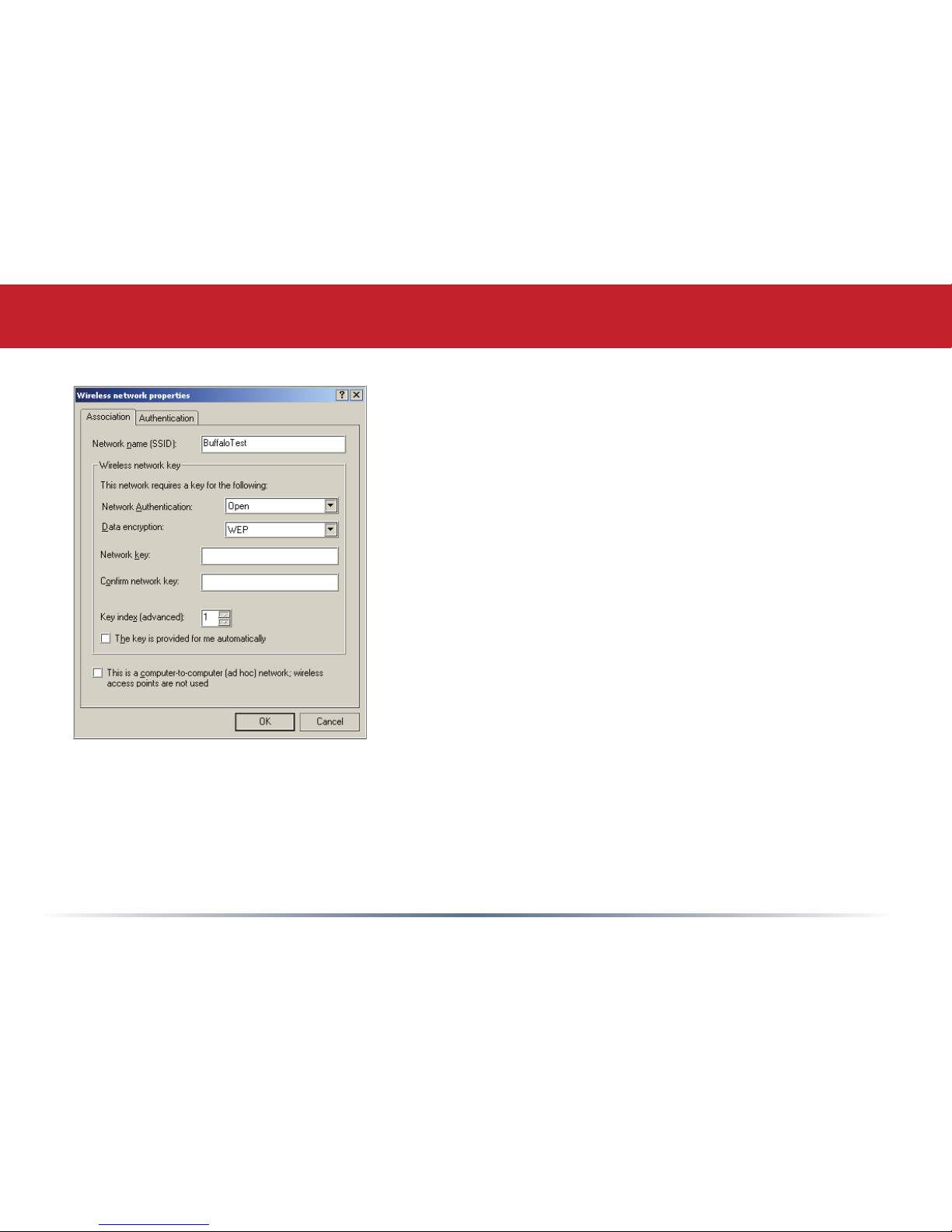

To enter an encryption key, select the appropriate

wireless network and click the Congure button.

From the pull down menu, select the appropriate type

of Data encryption for the wireless network. Enter

and conrm the Network Key (encryption key). Click

the OK button when nished.
