Buffalo LINKSTATION HD-HLAN Bedienungsanleitung

User Manual

LinkStation

HD-HLAN Series

www.buffalotech.com v5.4

Introduction

Welcome to the LinkStation User Manual! This manual will help you congure your LinkStation.

This user manual uses images representative of LinkStation user interfaces and software. Future

user interfaces and software may be available for download from: http://www.buffalotech.com

(Support Section - Downloads).

Due to the evolving state of the product, the images and text in this manual may vary slightly

from the images and text displayed by your LinkStation. These changes are minor and should

not affect the ease of setup.

Table of Contents

LinkStation Diagram...............................................4

LinkStation Quick Setup.........................................6

Link Navigator Setup ............................................12

Accessing LinkStation Data from a PC .................. 21

Accessing LinkStation Data from a Mac ................24

LinkStation Expansion.......................................... 27

Basic Settings.......................................................28

Network Settings................................................... 31

Security Settings................................................... 35

USB Settings ........................................................ 43

USB Printer Installation ....................................... 47

Maintenance Settings............................................51

Restoring LinkStation Backups ..................... ...... 57

PCast/LinkTheater Settings .......................... ...... 62

Troubleshooting....................................................65

Technical Specications........................................68

North American Technical Support ....................... 69

FCC and GPL .......................................................69

European Technical Support ............................... 70

1. Power Button – The Power Button is used to

power the LinkStation on or off. The power on

process will take approximately 30 seconds to

a full minute to complete. During this time, do

not unplug the LinkStation from the wall outlet.

To turn the LinkStation off, press and hold

the power button for several seconds until the

Power LED light begins blinking. At that time,

stop pressing the button and shutdown should

complete within 30 seconds.

2. Power LED – The Power LED light will blink

during startup or shutdown, but otherwise will

remain lit up while LinkStation is powered on.

3. LINK/ACT LED – The LINK/ACT LED light will

light up if an Ethernet Cable is plugged in that

is attached to another device such as a router,

hub, or PC. Periodically, the LED will blink.

This blinking signies network activity.

LinkStation Diagram

4. Disk Full LED – When LinkStation’s

internal drive approaches 95% of its

capacity, the Disk Full LED will light up

in red. For options to increase storage

capacity, see LinkStation Expansion section

on Page 27.

5. Diagnostic LED – The Diagnostic LED

ashes if the LinkStation encounters an

error. In this event, please contact our

technical support.

6. USB Port (Front & Rear) – LinkStation

offers two USB Ports for adding external

drives or USB printers. Please see the

LinkStation Expansion section on page 27

to learn more about how to take advantage

of the USB Ports on LinkStation.

LinkStation Diagram

Quick Setup

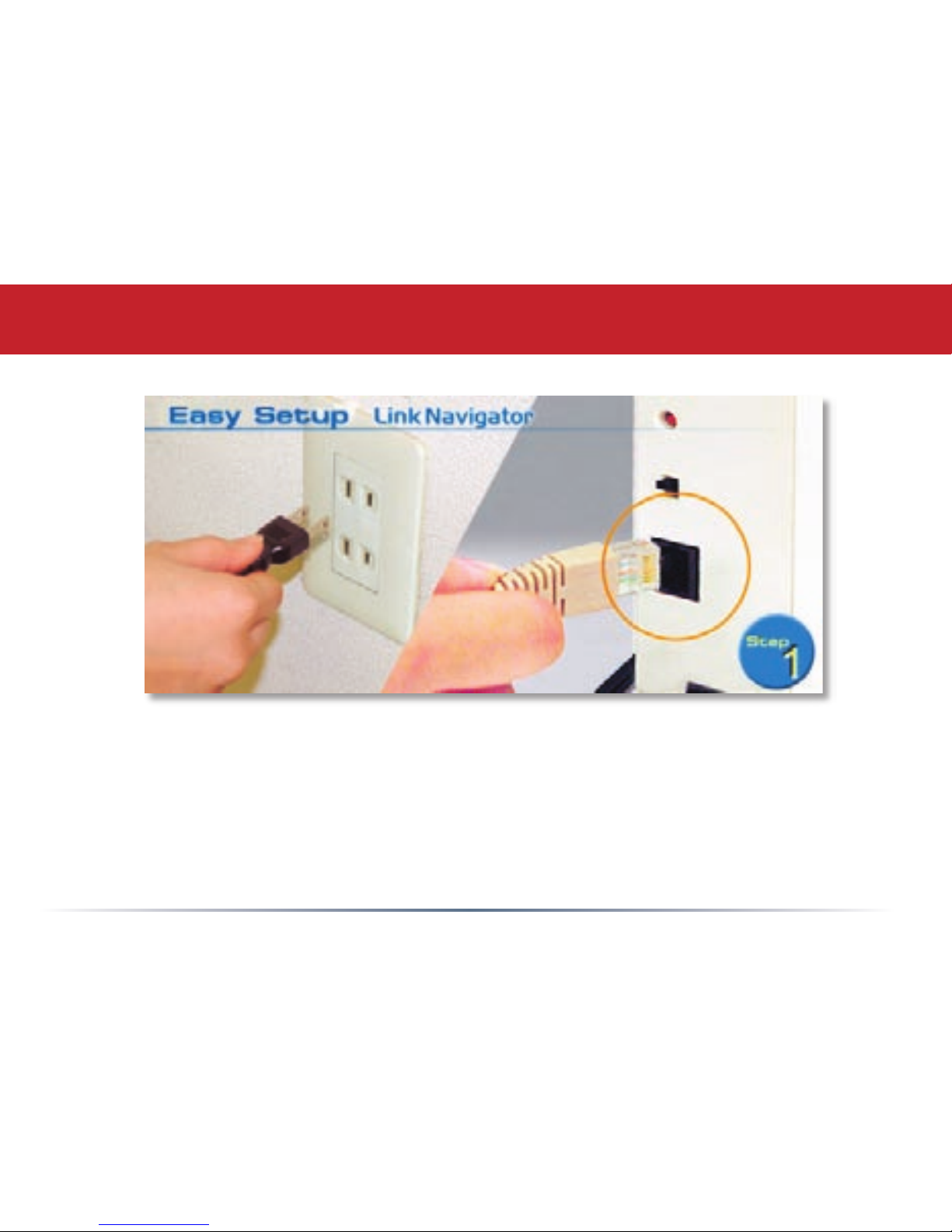

Plug the LinkStation’s power cord into the back of LinkStation. Then, plug the other end of the

power cord into a power outlet.

Also, plug the included Ethernet Cable into LinkStation’s Ethernet Port located on the back of

LinkStation.

Connect the other end of the included Ethernet Cable into a hub, switch, or router on the

network, or connect it directly to a nearby running PC.

NOTE: It is recommended that you connect LinkStation to a hub or switch on your network.

Connecting it directly to the back of a PC should only be used if absolutely necessary. Many

features, including DHCP IP Addressing, require LinkStation to be connected to a switch or hub.

Quick Setup

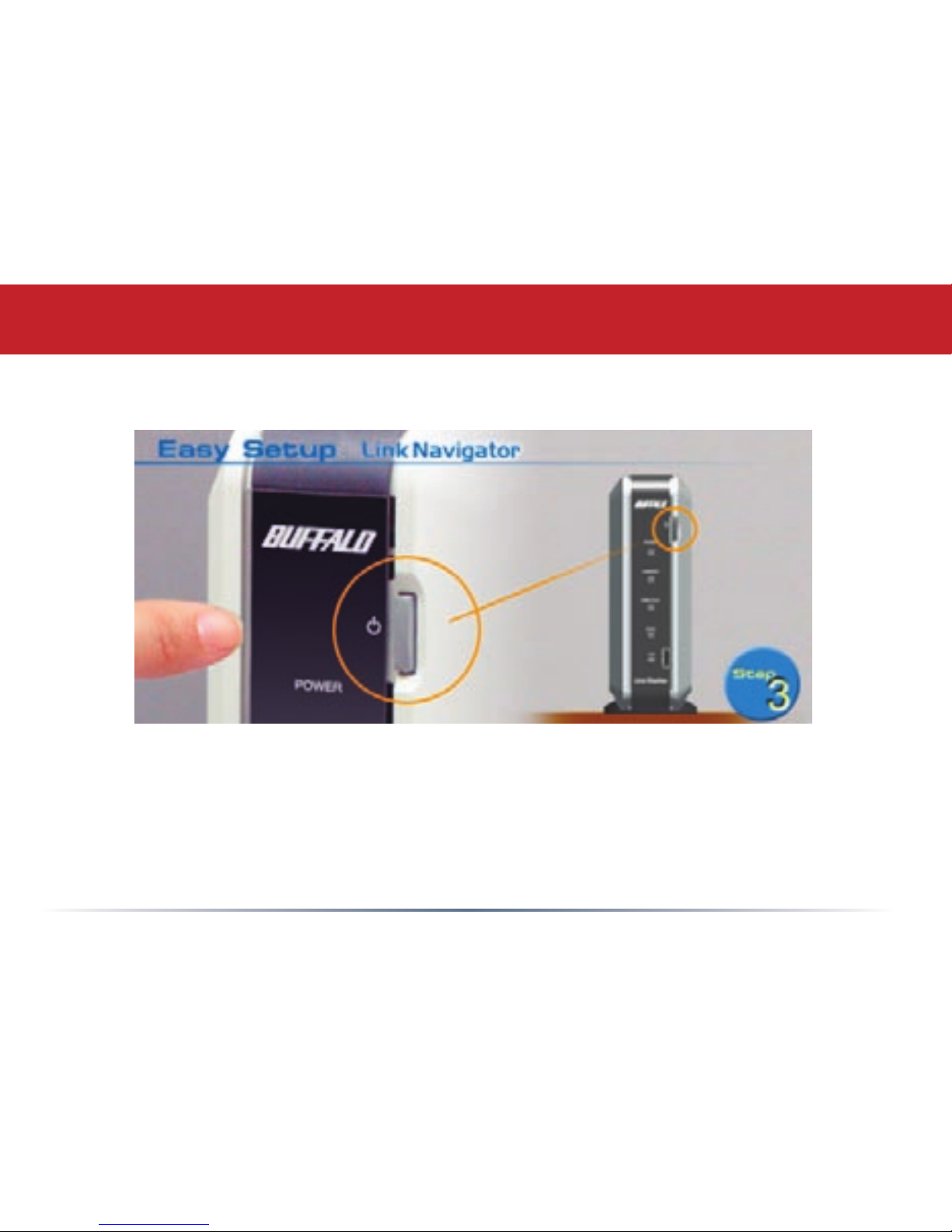

Turn the LinkStation on by pressing the power button until the green Power LED begins to ash.

Quick Setup

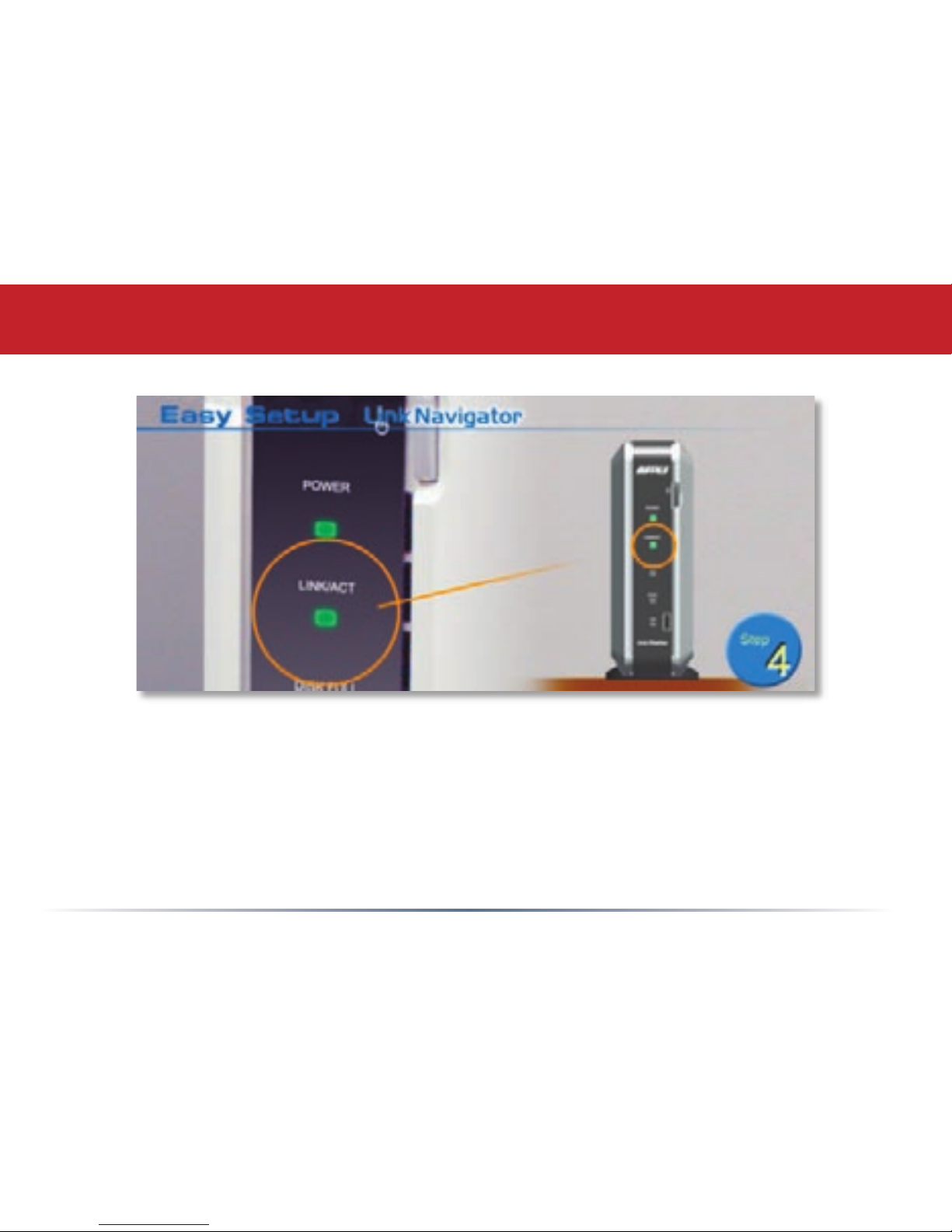

Check the LINK/ACT light on the front of the LinkStation. If it is lit, then your LinkStation is

connected properly; please turn to page 12 to continue setup. If it is not lit, continue to the next

page.

Quick Setup

On the rear of the LinkStation, ip the black Cable Selection switch. This switch tells LinkStation

whether to communicate over a Crossover or Patch cable. Verify that the LINK/ACT LED on the

front of LinkStation is lit (see page 9’s picture). If it is lit, continue to page 12 to continue setting

up LinkStation. If the LINK/ACT LED is still not lit, try moving the switch to the other position.

If that doesn’t help, turn to the next page to check for common problems.

Quick Setup
