Burkert 2100 series Bedienungsanleitung

Quickstart

English Deutsch Français

Type 2100

2/2-way Angle Seat Valve

2/2-Wege-Schrägsitzventil

Vanne à siège incliné 2/2 voies

We reserve the right to make technical changes without notice.

Technische Änderungen vorbehalten.

Sous réserve de modifications techniques.

Operating Instructions 1501/02_EU-ML_00810247 / Original DE

1 QUICKSTART ..................................................................................................3

2 SYMBOLS .........................................................................................................4

3 AUTHORIZED USE ......................................................................................4

4 BASIC SAFETY INSTRUCTIONS ..........................................................5

5 GENERAL INFORMATION ........................................................................6

6 TECHNICAL DATA ........................................................................................6

7 INSTALLATION ...............................................................................................9

8 START-UP ......................................................................................................14

9 MAINTENANCE WORK ...........................................................................15

10 REMOVAL ......................................................................................................15

11 PACKAGING, TRANSPORT, STORAGE ..........................................16

Table of content

Type 2100

1 QUICKSTART

The Quickstart describes the entire life cycle of the device. Keep these

instructions in a location which is easily accessible to every user, and

make these instructions available to every new owner of the device.

Important Safety Information!

Read Quickstart carefully and thoroughly. Study in particular the

chapters entitled “Basic safety instructions” and “Authorized use”.

▶Quickstart must be read and understood.

Quickstart explains, for example, how to install and start-up the device.

A detailed description of the device can be found in the operating

instructions for Type 2100.

The operating instructions can be found on the Internet at:

www.burkert.com

1.1 Definition of term / abbreviation

The term “device” used in these instructions always stands for the

angle seat valve Type 2100.

The abbreviation “Ex” used in these instructions always stands for

“explosion-protected”.

english

Symbols

2 SYMBOLS

DANGER!

Warns of an immediate danger.

▶Failure to observe the warning may result in a fatal or serious injury.

WARNING!

Warns of a potentially dangerous situation.

▶Failure to observe the warning may result in serious injuries or

death.

CAUTION!

Warns of a possible danger.

▶Failure to observe this warning may result in a moderate or minor

injury.

NOTE!

Warns of damage to property.

Important tips and recommendations.

Refers to information in these operating instructions or in

other documentation.

▶designates instructions for risk prevention.

→Designates a procedure which you must carry out.

3 AUTHORIZED USE

Non-authorized use of the angle seat valve Type 2100 may be

a hazard to people, nearby equipment and the environment.

▶The device is designed for the controlled flow of liquid and

gaseous media.

▶In the potentially explosion-risk area the angle seat valve Type

2100 may be used only according to the specification on the

separate Ex type label. For use observe the additional information

enclosed with the device together with safety instructions for the

explosion-risk area.

▶Devices without a separate Ex type label may not be used in a

potentially explosive area.

▶The admissible data, the operating conditions and conditions of

use specified in the contract documents, operating instructions

and on the type label are to be observed during use. These are

described in the chapter entitled “6 Technical data”.

▶The device may be used only in conjunction with third-party devices

and components recommended and authorized by Bürkert.

▶Correct transportation, correct storage and installation and

careful use and maintenance are essential for reliable and fault-

less operation.

▶Use the device only as intended.

3.1 Restrictions

If exporting the system or device, observe any existing restrictions.

english

Type 2100

Basic safety instructions

4 BASIC SAFETY INSTRUCTIONS

These safety instructions do not make allowance for any

• contingencies and events which may arise during the installation,

operation and maintenance of the devices.

• local safety regulations, whereby the operator is responsible for their

compliance, by the installation personnel too.

DANGER!

Risk of injury from high pressure in the equipment or device.

▶Before working on equipment or device, switch off the pressure

and deaerate or drain lines.

Risk of injury due to electrical shock.

▶Before reaching into the device, switch off the power supply and

secure to prevent reactivation!

▶Observe applicable accident prevention and safety regulations

for electrical equipment!

Risk of burns.

The surface of the device may become hot during long-term operation.

▶Do not touch the device with bare hands.

Risk of injury from moving parts in the device!

▶Do not reach into openings.

Risk of injury caused by the lines and device rupturing.

▶Due to the risk of water hammer, valves with a flow direction

above the seat must not be used for liquid media.

▶Consider the type of flow direction and the type of medium for

operation of the device.

Risk of injury caused by the spring jumping out when the actuator

is opened.

▶The actuator must not be opened.

General hazardous situations.

To prevent injury, ensure:

▶Secure system/equipment from unintentional activation.

▶Only trained technicians may perform installation and maintenance

work.

▶After an interruption in the power supply or pneumatic supply,

ensure that the process is restarted in a defined or controlled

manner.

▶The device may be operated only when in perfect condition and

in consideration of the operating instructions.

▶The general rules of technology apply to application planning and

operation of the device.

To prevent damage to property of the device, ensure:

• Supply the media connections only with those media which are

specified as flow media in the chapter entitled “6 Technical data”.

• Do not put any loads on the valve (e.g. by placing objects on it

or standing on it).

• Do not make any external modifications to the valves. Do not paint

the body parts or screws.

english

Type 2100

General information

5 GENERAL INFORMATION

5.1 Contact address

Germany

Bürkert Fluid Control Systems

Sales Center

Chr.-Bürkert-Str. 13-17

D-74653 Ingelfingen

Tel. : 07940 - 10 91 111

Fax: 07940 - 10 91 448

E-mail: [email protected]

International

Contact addresses are found on the final pages of the printed oper-

ating manual.

You can also find information on the Internet under:

www.burkert.com

5.2 Warranty

The warranty is only valid if the device is used as authorized in accor-

dance with the specified application conditions.

5.3 Information on the Internet

The operating instructions and data sheets for Type 2100 can be found

on the Internet at: www.burkert.com

6 TECHNICAL DATA

6.1 Conformity

Type 2100 conforms with the EC Directives according to the EC

Declaration of Conformity.

6.2 Standards

The applied standards, which verify conformity with the EC Direc-

tives, can be found on the EC Type Examination Certificate and / or

the EC Declaration of Conformity.

According to Pressure Equipment Directive the following operating

conditions must be observed:

Line connection

orifice

Maximum pressure for compressible fluids

of Group 1 (hazardous gases and vapors

according to Art. 3 No. 1.3 Letter a first

dash)

DN65 15 bar

6.3 Type label

WARNING!

Risk of injury from high pressure!

Important device-specific technical specifications are indicated on

the type label.

▶Observe permitted pressure range on the type label of the device.

english

Type 2100

Technical data

00175102

2100 A 25M PTFE VA

Tmed -10°C - +180°C

Flow 1 2

Pilot 4,8-10bar

Pmed 16,0bar

G1" Kv20 W3ZLT

CE identification

Permitted pilot pressure

Permitted medium pressure

Type

Control function (CF)

Orifice of the body /

actuator size

Sealing material Body material

ID number of

the device Flow direction

Permitted medium temperature

Date of

manufacture

Main dimensions port connection

Flow capacity in standard production conditions

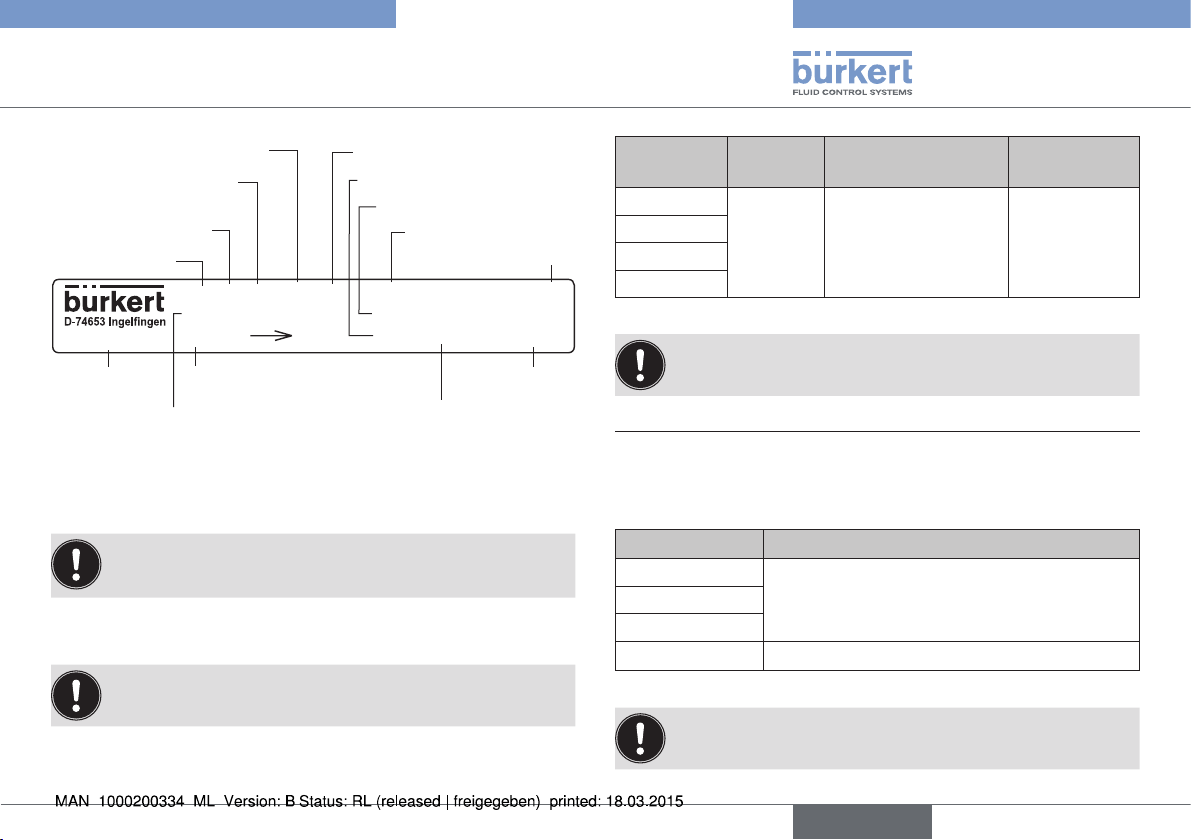

Fig. 1: Type label - example

6.4 Operating conditions

Observe permitted ranges on the type label of the device!

6.4.1 Temperature ranges

The angle seat valve is suitable for steam sterilization.

Actuator

size

Actuator

material

Medium

(for PTFE seal) Environment1)

ø 50 mm

PPS -10 – +185 °C 0 – +60 °C2)

0 – +100 °C3)

ø 70 mm

ø 90 mm

ø 130 mm

Tab. 1: Temperature ranges

1) If a pilot valve is used, the max. ambient temperature is +55 °C

2) Pilot air ports with push-in connector

3) Pilot air ports with threaded bushing

6.4.2 Pressure ranges

Actuator size Maximum pilot pressure4)

ø 50 mm

10 barø 70 mm

ø 90 mm

ø 130 mm 7 bar

Tab. 2: Pressure ranges

4) For the device version ø 70 / Orifice 50 / MC 13 the max.

permitted pilot pressure is limited to 7 bar.

english

Type 2100

Technical data

Minimum pilot pressure: flow direction below the seat

(medium flow against the closing direction of the valve)

Required minimum pilot pressure Pmin with control function A:

Actuator size

[mm]

50 70 90 130

≤ DN 50

130

DN 65

Pmin [bar] 5.2 4.8 5.0 5.0 5.6

Tab. 3: Required minimum pilot pressure - CF A

The required minimum pilot pressure Pmin with control function B and

I (flow direction below the seat) is dependent on the pressure of the

medium5).

Minimum pilot pressure: flow direction above the seat

(medium flow with the closing direction of the valve)

The required minimum pilot pressure Pmin with control function A

(flow direction above the seat) is dependent on the pressure of the

medium5).

5) The pressure diagrams are in the operating instructions on the

Internet: www.burkert.com

6.5 General technical data

Media

Control medium Neutral gases, air

Flow media Water, alcohol, fuel, hydraulic liquids,

saline solutions, lye, organic solvents

Materials and

connections see data sheet or operating instructions

Installation as required, preferably with actuator in

upright position.

Protection class IP67 in accordance with IEC 529 /

EN 60529

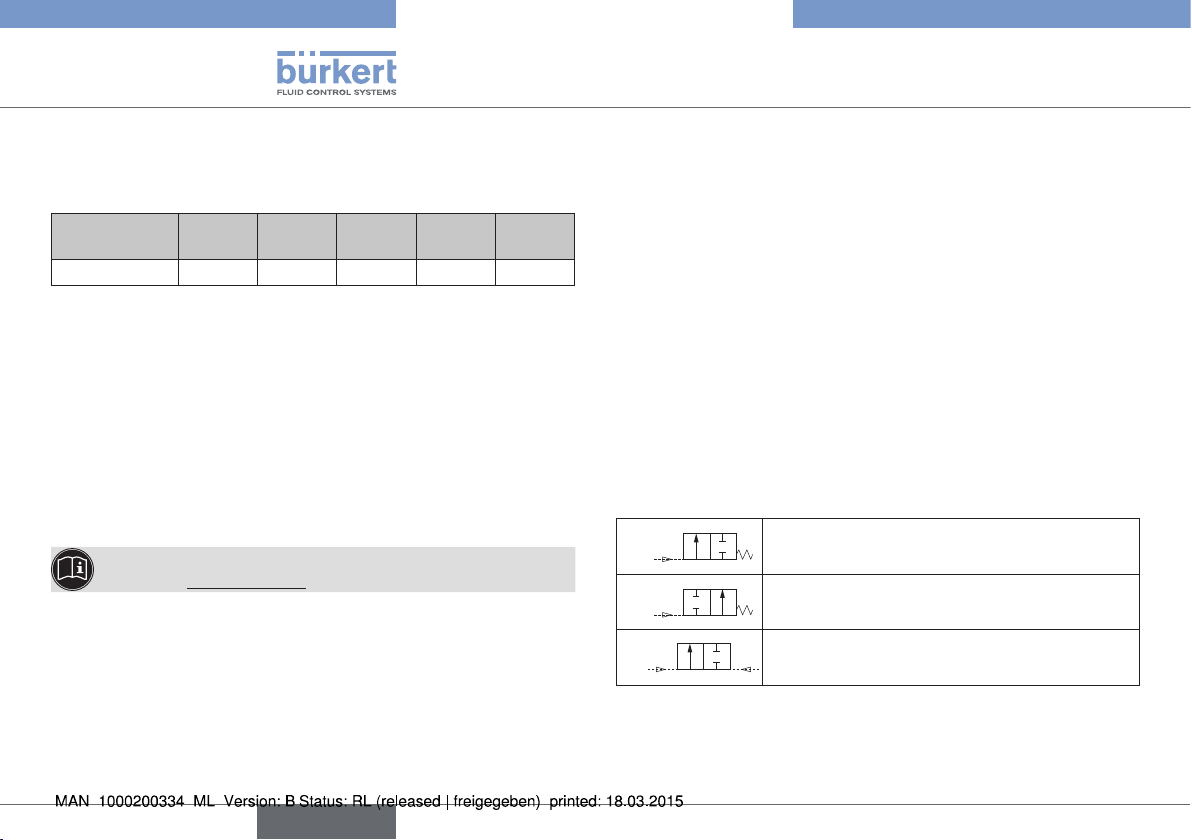

6.6 Control functions (CF)

1(P)

2(A)

Normally closed by spring action.

1(P)

2(B)

Normally open by spring action.

1(P)

2(A)

Actuating function via reciprocal pressurization.

Tab. 4: Control functions

english

Type 2100

Installation

7 INSTALLATION

7.1 Safety instructions

DANGER!

Risk of injury from high pressure!

▶Before loosening the lines and valves, turn off the pressure and

vent the lines.

WARNING!

Risk of injury from improper installation!

▶Installation may be carried out by authorized technicians only

and with the appropriate tools!

Risk of injury from unintentional activation of the system and

an uncontrolled restart!

▶Secure system from unintentional activation.

▶Following installation, ensure a controlled restart.

For control function I – Danger if pilot pressure fails!

For control function I control and resetting occur pneumatically. If

the pressure fails, no defined position is reached.

▶To ensure a controlled restart, first pressurize the device with

pilot pressure, then switch on the medium.

Risk of injury from moving parts in the device!

▶Do not reach into openings.

7.2 Before installation

• The angle seat valve can be installed in any installation position,

preferably with the actuator face up.

• Before connecting the valve, ensure the lines are flush.

• Observe direction of flow (see type label).

7.2.1 Preparatory work

→Clean pipelines (sealing material, swarf, etc.).

Devices with welded body

NOTE!

For valves with installed control:

When welding the valve body into the pipeline, the control must

not be installed.

▶Remove control from the actuator (see installation chapter in the

operating instructions for the corresponding control).

Remove the actuator from the valve body:

→Clamp the valve body in a holding device.

NOTE!

Damage to the seat seal or the seat contour!

▶When removing the actuator, ensure that the valve is in open

position.

→Control function A pressurize the pilot air port 1 with com-

pressed air (5 bar): valve opens.

english

Type 2100

Andere Handbücher für 2100 series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Burkert Steuereinheit Handbücher

Burkert

Burkert 2012 Bedienungsanleitung

Burkert

Burkert 2103 Series Bedienungsanleitung

Burkert

Burkert 0420 Bedienungsanleitung

Burkert

Burkert 2657 Bedienungsanleitung

Burkert

Burkert 2000 INOX Bedienungsanleitung

Burkert

Burkert 6228 Bedienungsanleitung

Burkert

Burkert 0641 Bedienungsanleitung

Burkert

Burkert 8650 Bedienungsanleitung

Burkert

Burkert 6012 Bedienungsanleitung

Burkert

Burkert 6020 Bedienungsanleitung

Burkert

Burkert 6407 Bedienungsanleitung

Burkert

Burkert 5404 Bedienungsanleitung

Burkert

Burkert 3281 Bedienungsanleitung

Burkert

Burkert 2080 Bedienungsanleitung

Burkert

Burkert PTB 07 ATEX 2063 X Bedienungsanleitung

Burkert

Burkert 6211 EV Bedienungsanleitung

Burkert

Burkert 2610 Bedienungsanleitung

Burkert

Burkert 8631 Bedienungsanleitung

Burkert

Burkert 2100 series Bedienungsanleitung

Burkert

Burkert 2702 Bedienungsanleitung

Burkert

Burkert 2030 Bedienungsanleitung

Burkert

Burkert 2060 Leitfaden

Burkert

Burkert 2000 INOX Bedienungsanleitung

Burkert

Burkert 2060 Bedienungsanleitung

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
