BG-UHD-88M

8X8 HDMI 2.0a 4K UHD Matrix Switcher with Audio De-Embedding

& ARC

User Manual

BZBGEAR BG-UHD-88M PRODUCT MANUAL

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 2

BZBGEAR BG-UHD-88M PRODUCT MANUAL

Table of Contents

Statement 4

Safety Precaution 4

Introduction 5

Features 5

Packing List 5

Speciﬁcations 6

Operation Controls and Functions 7

Application Diagram 8

Hardware Installation 8

Control Methods 8

EDID Learning 21

FAQ 22

Notice 23

Tech Support 24

Warranty 24

Mission Statement 24

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 3

BZBGEAR BG-UHD-88M PRODUCT MANUAL

Statement

Please read these instructions carefully before connecting, operating, or conﬁguring this

product. Please save this manual for future reference.

Safety Precaution

●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion

during transportation, storage, and installation.

●The housing of this product is made of organic materials. Do not expose to any liquid,

gas, or solids which may corrode the shell.

●Do not expose the product to rain or moisture.

●To prevent the risk of electric shock, do not open the case. Installation and maintenance

should only be carried out by qualiﬁed technicians.

●Do not use the product beyond the speciﬁed temperature, humidity or power supply

speciﬁcations.

●This product does not contain parts that can be maintained or repaired by users.

Damage caused by dismantling the product without authorization from BZBGEAR is not

covered under the warranty policy.

●Installation and use of this product must strictly comply with local electrical safety

standards.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 4

BZBGEAR BG-UHD-88M PRODUCT MANUAL

Introduction

The BG-UHD-88M is an 8x8 4K HDMI matrix switch with audio extraction and ARC support.

This versatile matrix can handle resolutions up to 4K2K@60Hz 4:4:4 as well as HDR

(4K2K@60 4:2:0 10 bits). This HDCP 2.2 compliant unit is equipped with 8 HDMI 2.0a inputs

and 8 HDMI 2.0a outputs. It quickly routes any of the eight inputs to any of the eight

outputs including one-to-one or one-to-many conﬁgurations.

The BG-UHD-88M oﬀers a wide array of control and compatibility options. The unit allows

control via front panel push buttons, IR remote control, RS-232, a Web Interface, or IP

control. 3rd party control system drivers for Crestron, Control 4, AMX, and RTI are also

available to encompass a wider array of system compatibility.

Features

●HDMI 2.0a compliant

●4K2K@60 4:4:4 8bits

●HDR (High Dynamic Range)

●HDCP 2.2 compliant

●Allows any source to be displayed on multiple displays at the same time

●Allows any HDMI display to view any HDMI source at any time

●Up to 7.1 channel audio

●ARC & Audio Extraction via RCA

●S/PDIF(RCA) audio formats: PCM2, Dolby 5.1, DTS 5.1

●Default HDMI EDID and learns the EDID of displays to the matrix switcher.

●The matrix switch can be controlled via Push button, IR remote control, RS-232,

Web Interface, Control 4, IP control, and cloud control.

●Easy installation with rack-mounting

●Fast response times - 3~4 seconds for channel switch

Packing List

●1x BG-UHD-88M

●1x IR receiver

●1x DC 12V 7.5A

●1x IR Remote control

●1x Rack-mounting ear set

●1x Installation software CD

●1x User Manual

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 5

BZBGEAR BG-UHD-88M PRODUCT MANUAL

Speciﬁcations

Technical

HDMI compliance

HDMI 2.0a

HDCP compliance

HDCP 1.4/HDCP 2.2

Video bandwidth

Single-link 594MHz [18Gbps]

Video support

HDR 4K2K@60 (4:2:0 10 bits) / 4K2K@60 (4:4:4 8 bits)

Audio support

Surround sound (up to 7.1ch) or stereo digital audio

ESD protection

Human body model - ±15kV [air-gap discharge] & ±8kV [contact discharge]

PCB stack-up

8-layer board [impedance control - diﬀerential 100Ω; single 50Ω]

Input

8x HDMI / 1x RS-232 / 1x Ethernet / 1x IR socket for IR receiver

Output

8x HDMI + 8x RCA

HDMI Input selection

Push button / IR remote control / RS-232 control / Web control / Control 4/

IP control / Cloud control

IR remote control

Electro-optical characteristics: p = 25° / Carrier frequency: 38kHz

HDMI connector

Type A [19-pin female]

RJ-45 connector

WE/SS 8P8C with 2 LED indicators

RS-232 connector

DE-9 [9-pin D-sub female]

3.5mm connector

[System IR] Receives IR commands from remote control

Mechanical

Enclosure

Metal case

Dimensions

(L x W x H)

Model

1'4" x 9.2" x 1.7" [440 x 234 x 44mm]

Package

1'7" x 12.5" x 6.1" [526 x 318 x 156mm]

Weight

Model

5.8 lbs [2645g]

Package

8.6 lbs [3899g]

Fixedness

1RU rack-mount with ears Wall hanging holes

Power supply

12V 7.5A DC

Power consumption

55 Watts [max]

Operation

temperature

32~104°F / 0~40°C

Storage temperature

-4~140°F / -20~60°C

Relative humidity

20~90% RH [no condensation]

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 6

BZBGEAR BG-UHD-88M PRODUCT MANUAL

Operation Controls and Functions

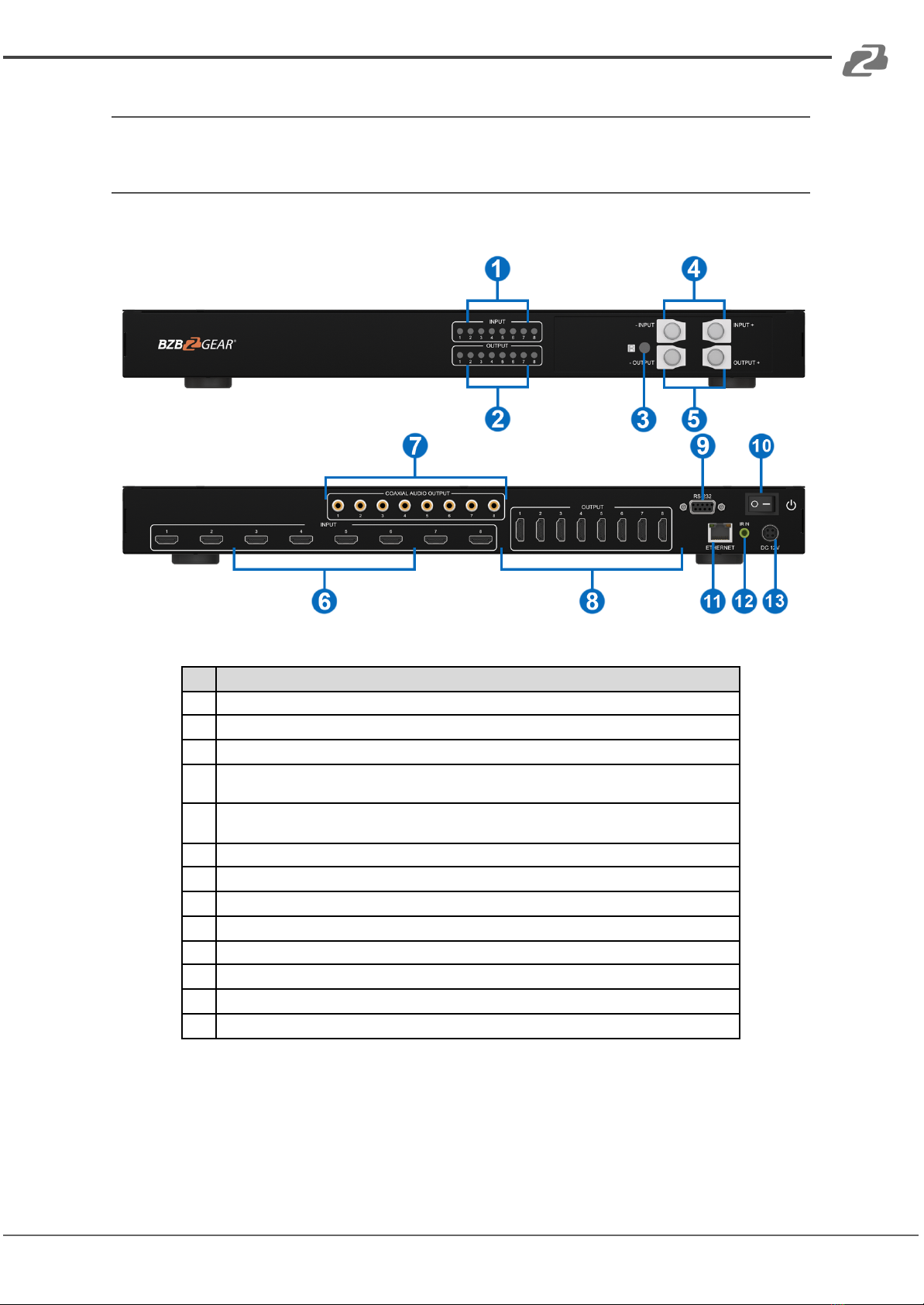

Panel Descriptions

No.

Name

Source Status: Input source detection LED

Display Status: Output display detection LED

IR SENSOR: IR sensor for receiving the IR commands from IR remote

Output Push Button & 7-segment LED: Front panel push buttons used to select the

number of display channel & LED display for output ports

Input Push Button & 7-segment LED: Front panel push buttons used to select the number

of input source & LED display for input channels

INPUT 1-8: HDMI inputs

Audio OUT: ARC & Audio Extraction

OUTPUT 1-8: HDMI outputs

RS-232: RS-232 control port

Power Switch: Power on/oﬀ the device

Ethernet: Ethernet control port

System IR Receiver: Ext. IR receiver

+12V DC: 12V DC power jack

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 7

BZBGEAR BG-UHD-88M PRODUCT MANUAL

Application Diagram

Hardware Installation

1. Connect all sources to HDMI Inputs on the 8x8 HDMI BG-UHD-88M.

2. Connect all displays to HDMI Outputs on the 8x8 HDMI Matrix BG-UHD-88M.

3. Connect the +12V 7.5A DC power supply to the 8x8 HDMI Matrix BG-UHD-88M

Control Methods

Method A: Push Buttons

IN/OUT MAP

(1) Use the “+”or “-“ output push buttons to select an output display port

(2) Use the “+”or “-“ input push buttons to select an input source port

“+”: changes selected input/output port in ascending order

“-” : changes selected input/output port in descending order

After you select the desired input/output port, the LED will blink twice and the conﬁguration

will be implemented.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 8

BZBGEAR BG-UHD-88M PRODUCT MANUAL

Method B: IR Remote Control

Button

Function

OFF

Standby mode

Power on the matrix switcher

MUTE

Turn oﬀ output’s video and audio

STATUS

Preset output status

SAVE

Save current mapping mode

PRESET

Preset mapping mode

DEFAULT EDID

Begin default EDID selection

LEARN EDID

Begin EDID learning from one output

CLEAR

Clear the previous IR operation procedure

TAKE

Trigger the previous setting

Reserved

IN/OUT Switch

Operation

Procedure

7-Segment LED

IN/OUT Switch

Output Number (1~8) + Input Number (1~8)

Ex: Input 2

To Output 3

1.Press output number key “3” to select Output 3

2.Press input number key “2” to select Input 2

3.Press “TAKE” button

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 9

BZBGEAR BG-UHD-88M PRODUCT MANUAL

Examples of Key Functions
