C.A. Technologies Panther 200Z Bedienungsanleitung

CONVENTIONAL AIR CAP AND FLUID NOZZLE CHART

MODEL

NO. AIR CAPS Press /

Siphon

*SUGGESTED

GUN INLET

PRESS.

FAN

CONTROL SCFM AIR CAP

RING

AVAI LABL E FLUI D

NOZZLES

NEEDLES /

marking on needle

32-2118 1.8mm (.070")

32-2118Z 1.8mm (.070")

32-2122 2.2mm (.086")

32-2122Z 2.2mm (.086")

32-0628 2.8mm (.110")**

32-2128Z 2.8mm (.110")

*Gun inlet pressures may vary as required by application

**Only listed fluid nozzle 32-0628 requires item number 3 (See page 3 for details)

pressure 40-1228 (228)

40-1218 (218)

40-1222 (222)

22-2062T

P200Z 60-1500 included

22-2064T pressure 80 22

1980

Panther 200ZPanther 200Z

Panther 200Z

ZINC RICH APPLICATION PRESSURE FEED SPRAY GUN

PRODUCT INFORMATION

Coating Atomization Technologies 337 South Arthur Avenue, Louisville CO 80027 Phone: 888.820.4498, Fax: 303.438.5708

www.spraycat.com

Operation and Maintenance Instructions for

P200Z200Z

200Z200Z

200Z

Spray Guns

Operation

1. Connect air supply hose at handle of gun.

2. Connect a pressurized fluid supply or paint siphon cup to the gun fluid inlet.

3. Fluid flow can be controlled using the fluid control knob, this restricts flow by limiting needle travel. It is best to control

fluid flow by proper selection of fluid orifice size and use the fluid control knob to “fine tune flow rate”.

4. Fan width can be adjusted using the fan control knob. Turning the knob clockwise narrows the fan.

Maintenance

IMPORTANT! Routine cleaning and maintenance is essential to insure proper gun operation.

Several states prohibit spraying solvent into the atmosphere and require the use of covered gun cleaner.

1. If a gun cleaner is being used, connect and clean the gun in the gun cleaner according to the manufactures

instructions.

2. If a gun cleaner is not being used:

Remove air cap and clean separately using clean solvent.

For pressure setups, connect a pressurized solvent supply to the fluid inlet, trigger the gun allowing solvent to flow

thru the gun until clean.

For siphon setups, first clean the siphon cup thoroughly then spray clean solvent thru the gun until clean.

NOTE: Gun head disassembly is not recommended for normal cleaning and maintenance.

Gun head disassembly and reassembly instructions:

Have repair kit # 10-108 available before gun disassembly.

Gun head disassembly

To remove the nozzle carrier (5) and air cap adapter (6):

1. Remove the air cap (1), fluid nozzle tip (2), fluid nozzle body (3), and needle (13).

2. Remove the needle seal cartridge (23).

3. Loosen the locknut (9) and remove fluid inlet (10) using a 5/8” open-end wrench.

4. The nozzle carrier (5) and air cap adapter (6) will now slide forward from the gun body (11).

Gun head reassembly

1. Install a new o-ring (7) on the air cap adapter (6).

2. Install o-ring (4) between fluid nozzle body (3) and fluid nozzle carrier (5).

3. Install the thread locknut (9) onto the fluid inlet (10) as far as possible.

4. Install a new fluid inlet seal (8) into the recess area on the nozzle carrier (5) inlet port.

5. Slide the nozzle carrier (5) into air cap adapter (6) and insert into the gun body (11) as far as possible. Be sure the

nozzle carrier (5) extends into the hole at the back of the gun head. Install the needle seal (23) but do not tighten.

6. Rotate the nozzle carrier (5) until the fluid inlet port in the nozzle carrier (5) is aligned with the threaded hole in the

body. While in this position, insert the fluid inlet (10) and tighten firmly.

7. Tighten the needle seal (23) to approx. 12 ft.-lb. torque.

8. Tighten the fluid inlet (10) to approx. 25 ft.-lb. torque.

9. Tighten the locknut (9) to approx. 33 ft.-lb. torque.

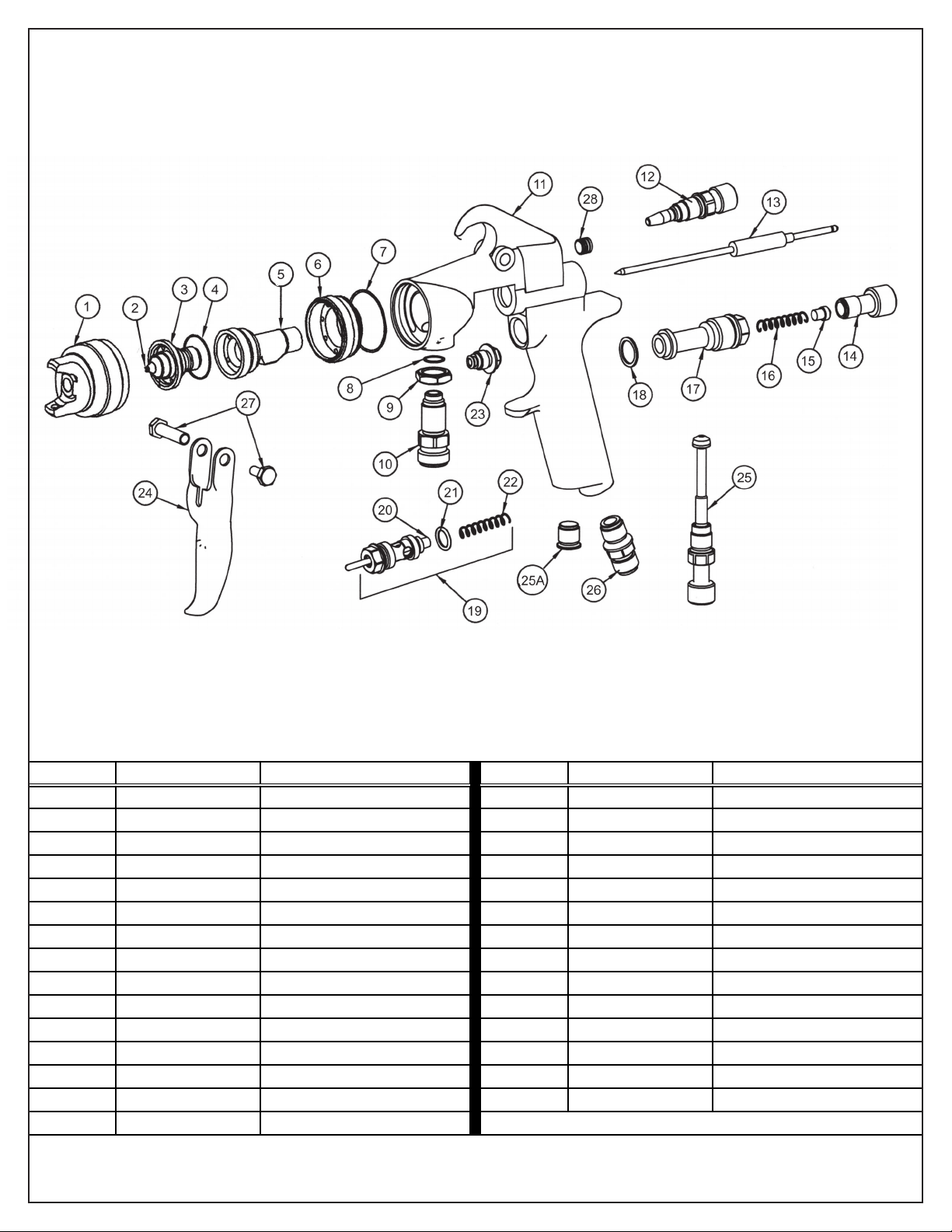

ITEM NO. PART NO. DESCRIPT ION ITEM NO. PART NO. DESCRIPT ION

1 See Air Cap Chart Air Cap** 16 60-206 Needle Return Spring (HD)*

2 See Air Cap Chart Fluid Nozzle Tip** 17 60-201 Rear Bushing

3 32-2201 Fluid Nozzle Body** 18 60-119 Seal*

4 98-8020 Gasket* 19 60-1520 Air Valve Assembly

5 60-L21C Nozzle Carrier 20 60-302 Air Valve Poppet

6 60-22 Air Cap Adapter 21 60-125 O-Ring*

7 60-131 O-Ring* 22 61-1003 Air Valve Spring*

8 60-124 Fluid Inlet Seal 23 60-1402 Needle Seal Cartridge*

9 60-128 Locknut 24 60-2101 Trigger

10 60-126 Fluid Inlet Fitting 25 60-1510 Air Control

11 60-1125 Panther Gun Body Conventional 25A 60-122 Plug (optional)

12 See Air Cap Chart Fan Control Assembly** 26 60-104 Air Inlet Fitting

13 See Air Cap Chart Fluid Needle** 27 60-1033 Trigger Pivot Set

14 60-202 Fluid Control Knob 28 98-0109 Allen Plug

15 60-209 Spring Seat*

**See air cap selection chart on page 1

*Indicates part included in repair kit # 10-108

Revised 3/18/14
