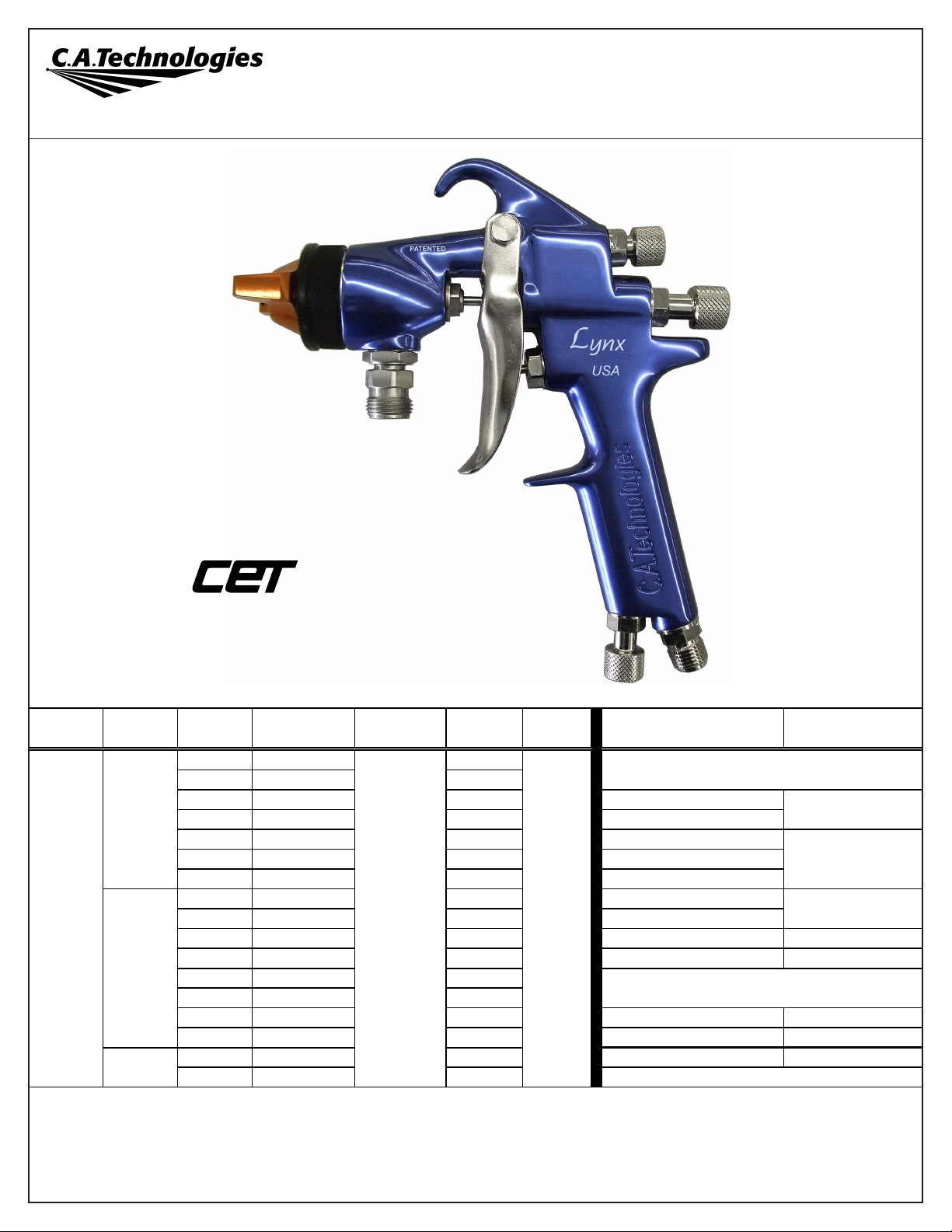

C.A. Technologies Lynx L100C Bedienungsanleitung
CONVENTIONAL AIR CAP AND FLUID NOZZLE CHART
MODEL
NO.
PRESS /
SIPHON AIR CAP FLUID TIP
RANGE
FAN
CONTROL SCFM AIR CAP
RING
AVAI LABLE F LUI D
NOZZLES
NEEDLES /
marking on needle
21-2166 0.6 - 1.8 5
21-2266 0.6 - 1.8 12 17-4PH STAINLESS 300 STAINLESS
21-2266T 0.6 - 1.8 12 31-0606 0.6mm (.022")
21-2366 0.6 - 1.8 12 31-0607 0.7mm (.028")
21-2466 0.6 - 1.8 15 31-0610 1.0mm (.040")
21-2467 2.2 15 31-0612 1.2mm (.046")
21-2268 2.8 15 31-0613 1.3mm (.052")
21-2163 0.6 - 1.8 8 31-0615 1.5mm (.059")
21-2263 0.6 - 1.8 14 31-0618 1.8mm (.070")
21-2266-3 0.6 - 1.8 16.2 31-0622 2.2mm (.086") 40-1122 (122)
21-2266-3T 0.6 - 1.8 16.2 31-0628 2.8mm (.110") 40-1128 (128)
21-2167 2.2 14.5
21-2267 2.2 15 CARBIDE CARBIDE
21-2168 2.8 14 31-0618V 1.8mm (.070") 40-6201
21-2766B 1.0 - 1.8 8 31-0622V 2.2mm (.086") 40-6201
21-200** 1.5 - 1.8 5.2 31-0628V 2.8mm (.110") 40-6201
21-2201** 2.2 5.2
Actual fluid nozzle and air cap combinations are determined by application (see application chart page 4)
*Gun inlet pressures may vary as required by application
**200 Air cap requires P/N 21-1583 base & 21-1584 ring
L100C 60-1500 included
Siphon
Pressure
Internal Mix
40-1107 (107)
40-1110 (110)
40-1115 (115)
PRESSURE/SIPHON FEED SPRAY GUN
PRODUCT INFORMATION
LL
LL
Lynx 1ynx 1
ynx 1ynx 1
ynx 100C00C
00C00C
00C
DISTRIBUTED BY COATING EQUIPMENT TECHNOLOGY, INC
PHONE: 586-210-0555
WEB: www.cetinc.com
Operation and Maintenance Instructions for
LL
LL
L
100C100C
100C100C
100C
Spray Guns
Operation
1. Connect air supply hose at handle of gun.
2. Connect a pressurized fluid supply or paint siphon cup to the gun fluid inlet.
3. Fluid flow can be controlled using the fluid control knob, this restricts flow by limiting needle travel. It is best to control
fluid flow by proper selection of fluid orifice size and use the fluid control knob to “fine tune flow rate”.
4. Fan width can be adjusted using the fan control knob. Turning the knob clockwise narrows the fan.
Maintenance
IMPORTANT! Routine cleaning and maintenance is essential to insure proper gun operation.
Several states prohibit spraying solvent into the atmosphere and require the use of covered gun cleaner.
1. If a gun cleaner is being used, connect and clean the gun in the gun cleaner according to the manufactures
instructions.
2. If a gun cleaner is not being used:
Remove air cap and clean separately using clean solvent.
For pressure setups, connect a pressurized solvent supply to the fluid inlet, trigger the gun allowing solvent to flow
thru the gun until clean.
For siphon setups, first clean the siphon cup thoroughly then spray clean solvent thru the gun until clean.
NOTE: Gun head disassembly is not recommended for normal cleaning and maintenance.
Gun head disassembly and reassembly instructions:
Have repair kit # 10-106 available before gun disassembly.
Gun head disassembly
To remove the nozzle carrier (4) and air cap adapter (6):
1. Remove the air cap (1), fluid nozzle tip (2), fluid nozzle body (3), and needle (13).
2. Remove the needle seal cartridge (27).
3. Loosen the locknut (25) and remove fluid inlet (24) using a 5/8” open-end wrench.
4. The nozzle carrier (4) and air cap adapter (6) will now slide forward from the gun body (8).
Gun head reassembly
1. Install a new o-ring (7) on the air cap adapter (6).
2. Install gasket (5) into the air cap adapter (6).
3. Install the thread locknut (25) onto the fluid inlet (24) as far as possible.
4. Install a new fluid inlet seal (26) into the recess area on the nozzle carrier (4) inlet port.
5. Slide the nozzle carrier (4) into air cap adapter (6) and insert into the gun body (8) as far as possible. Be sure the
nozzle carrier (4) extends into the hole at the back of the gun head. Install the needle seal (27) but do not tighten.
6. Rotate the nozzle carrier (4) until the fluid inlet port in the nozzle carrier (4) is aligned with the threaded hole in the
body. While in this position, insert the fluid inlet (24) and tighten firmly.
7. Tighten the needle seal (27) to approx. 12 ft.-lb. torque.
8. Tighten the fluid inlet (24) to approx. 25 ft.-lb. torque.
9. Tighten the locknut (25) to approx. 33 ft.-lb. torque.
ITEM NO. PART NO. DESCRIPT ION ITEM NO. PART NO. DESCRIPT ION
1 See Air Cap Chart Air Cap** 15 60-205 Spring Seat*
2 See Air Cap Chart Fluid Tip** 16 60-202 Fluid Control Knob
3 31-2201 Fluid Nozzle Body 17 60-104 Air Inlet Fitting
4 60-L11C Nozzle Body Carrier 18 60-1510 Inlet Air Control
5 61-1005 Seal* 19 60-1520 Air Valve Assembly
6 60-12C Air Cap Adapter 21 60-302 Air Valve Poppet
7 60-131 O-Ring* 22 60-125 Seal*
8 60-1124 Lynx Gun Body Conventional 23 61-1003 Air Valve Spring*
9 98-0109 Allen Plug 24 60-126 Fluid Inlet
10 See Air Cap Chart Fan Control Assembly** 25 60-128 Locknut
11 60-119 Seal* 26 60-124 Seal*
12 60-201 Rear Bushing 27 60-1400 Needle Seal*
13 See Air Cap Chart Fluid Needle** 28 60-2101 Trigger
14 60-204 Needle Return Spring* 29 60-1033 Trigger Pivot Set
**See air cap selection chart on page 1
*Indicates part included in repair kit # 10-106
*
*
*
*
*
**
*
*
L100C CONVENT IONAL SPRAY GUN
MATERIAL TYPE FLUID ORIFICE x
AI R C AP
MAXIMUM
PATTERN WIDTH PRESS. / SIPHON
Very Thin
less than 16 sec. Zahn #2
inks , dyes,
solvents, stains
Thin
16 to 20 sec. Zahn #2
lacquers, enamels,
primers, sealers
Medium
21 to 30 sec. Zahn #2
automotive base coat
enamels, primers
epoxies, urethanes
automotive clear coat
Heavy
over 30 sec. Zahn #2
heavy body primers
high solid enamels
high solid automotive coatings
adhesives
1.5, 1.8mm x 2466
2.2 mm x 2167
2.2 mm x 2267
2.8 mm x 2168
13
12
15
12
S
P
P
P
0.6, 0.7, 1.0 mm x 2163
0.6, 0.7, 1.0 mm x 2366
0.6, 0.7, 1.0 mm x 2466
8
14
13
P
S
S
1.2, 1.3, 1.5, 1.8 mm x 2263
1.2, 1.3, 1.5, 1.8 mm x 2266
1.2, 1.3, 1.5, 1.8 mm x 2266-3
1.2, 1.3, 1.5, 1.8 mm x 2466
14
10
15
13
P
S
S
S
FLUID NOZZLE / AIR CAP SELECTION CHARTS
LYNX Series 100C - Pressure / Siphon Feed Guns
0.6, 0.7 mm x 2163
0.6, 0.7 mm x 2166
0.6, 0.7 mm x 2266
8
9
12
P
S
S
Revised 3/18/14
