Cambridge Audio Azur 340R Bedienungsanleitung

Power Output:

80 Watts RMS per channel, 8 ohms, two channels driven. 50 Watts RMS

per channel 8ohms, all 5 channels driven

Tuner Section:

FM/AM with RDS, 30 presets

Analogue Connections:

Inputs: 6 Line Level + Tuner, 5.1 Direct Input

Outputs: 6 Amplified Speaker Outputs, RCA Subwoofer out, 1 Tape

record output

Digital Connections:

Inputs: 3 Co-Axial, 3 Optical

Outputs: 1 Co-Axial, 1 Optical

Video Connections

Inputs: 4 CVBS, 3 SVHS, 2 Component Video, 2 HDMI

Outputs: 1 CVBS, 1 SVHS,1 Component Video, 1 HDMI

Architecture:

CS42518 Multi-DAC, CS493263 DSP

Frequency Response:

20Hz –20kHz +/- 1dB

Crosstalk:

<-60dB

THD(unweighted):

<0.006% @ 1kHz, <0.012% @ 20Hz –20kHz

Max. Power Consumption:

650 Watts (Standby: 2 Watts)

Dimensions (W x D x H):

430 x 310 x 100mm

Weight:

8.7kg/19.1lbs

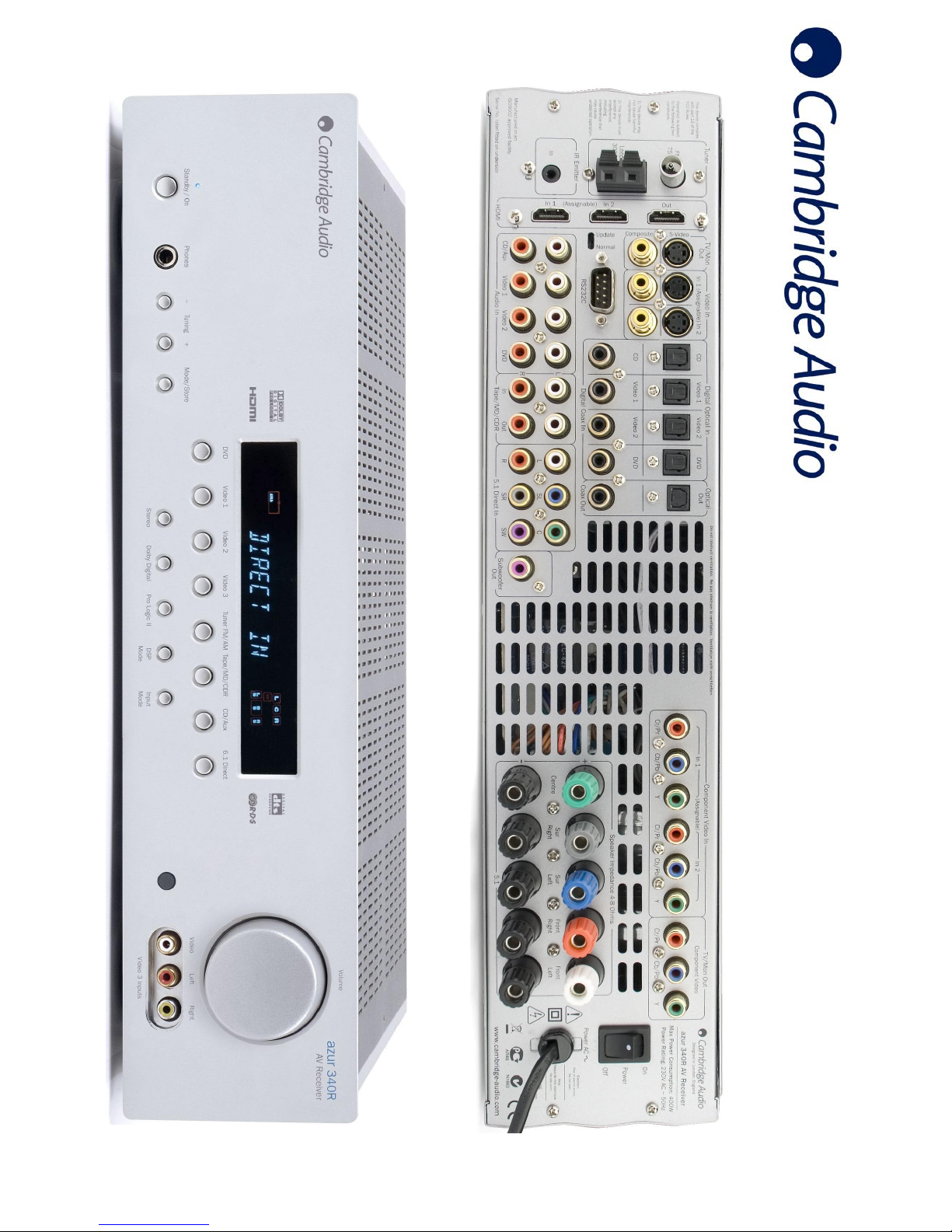

Azur 340R HDMI AV Receiver

Cambridge Audio is proud to announce the latest addition

to its receiver range. The entry level 340R boasts HDMI

connectivity, with 2 inputs and 1 output, which can switch

any signal up to and including HDMI 1.3 and 1080p video

All the 340R’s audio and video inputs are fully assignable

for ease of use. Added to this, the inclusion of an IR input

socket on the rear panel makes this unit ideally suited for

Custom Install situations.

As with all Cambridge Audio products, the 340R offers the

same high quality audio performance that users have come

to expect from Cambridge Audio, and is equally at home

playing music and movies.

For digital and surround modes, the 340R’s on-board

CS493263 multi-channel DAC processes Dolby Digital and

DTS 5.1, as well as Dolby Pro-Logic and Pro-Logic II.

Completing the package is an FM/MW tuner with 30 presets

and RDS functionality, along with an ergonomically designed

remote handset offering full control of the unit.

Azur 340R Features

Cambridge Audio, Gallery Court, Hankey Place, London SE1 4BB

©2007 Cambridge Audio Ltd. Issued June 2007

Cambridge Audio’s policy is one of improvement.

Designs and specifications are therefore subject to

change without notice

XXXXXXX Specifications

Azur 340R HDMI AV Receiver
