Minx S212 Speaker Bundle

Manual Generated: 20/11/2023 - 18:12

Table of Contents

Minx S212 Speaker Bundle 3 ......................................................................................................................................................................................

Introduction 4 ................................................................................................................................................................................................................

What's included with the Minx S212 bundle? 5 .......................................................................................................................................................

Minx MIN12 front and rear 6 .......................................................................................................................................................................................

Minx X201 front and rear 7 .........................................................................................................................................................................................

Minx MIN12 installation 9 ............................................................................................................................................................................................

Minx X201 unboxing and installation 10 ...................................................................................................................................................................

Technical speciﬁcations 12 ..........................................................................................................................................................................................

Frequently asked questions 13 ...................................................................................................................................................................................

Troubleshooting 14 .......................................................................................................................................................................................................

Minx S212 Speaker Bundle

Last updated: February 7, 2023 04:00. Revision #10819

Users Manual

Introduction

Last updated: February 2, 2023 04:44. Revision #10828

Thank you for purchasing this Cambridge Audio Minx Minx S212 loudspeaker bundle. We hope that you enjoy many years of listening pleasure from

it. Your loudspeakers can only be as good as the system it is connected to. Please do not compromise on your ampliﬁer. Naturally we particularly

recommend ampliﬁcation from the Cambridge Audio range, which has been designed to the same exacting standards as our loudspeakers.

Thank you for taking the time to read this manual; we do recommend you keep it for future reference.

For upcoming news on future products, software updates and exclusive oﬀers, make sure you register your product at

http://www.cambridgeaudio.com/register

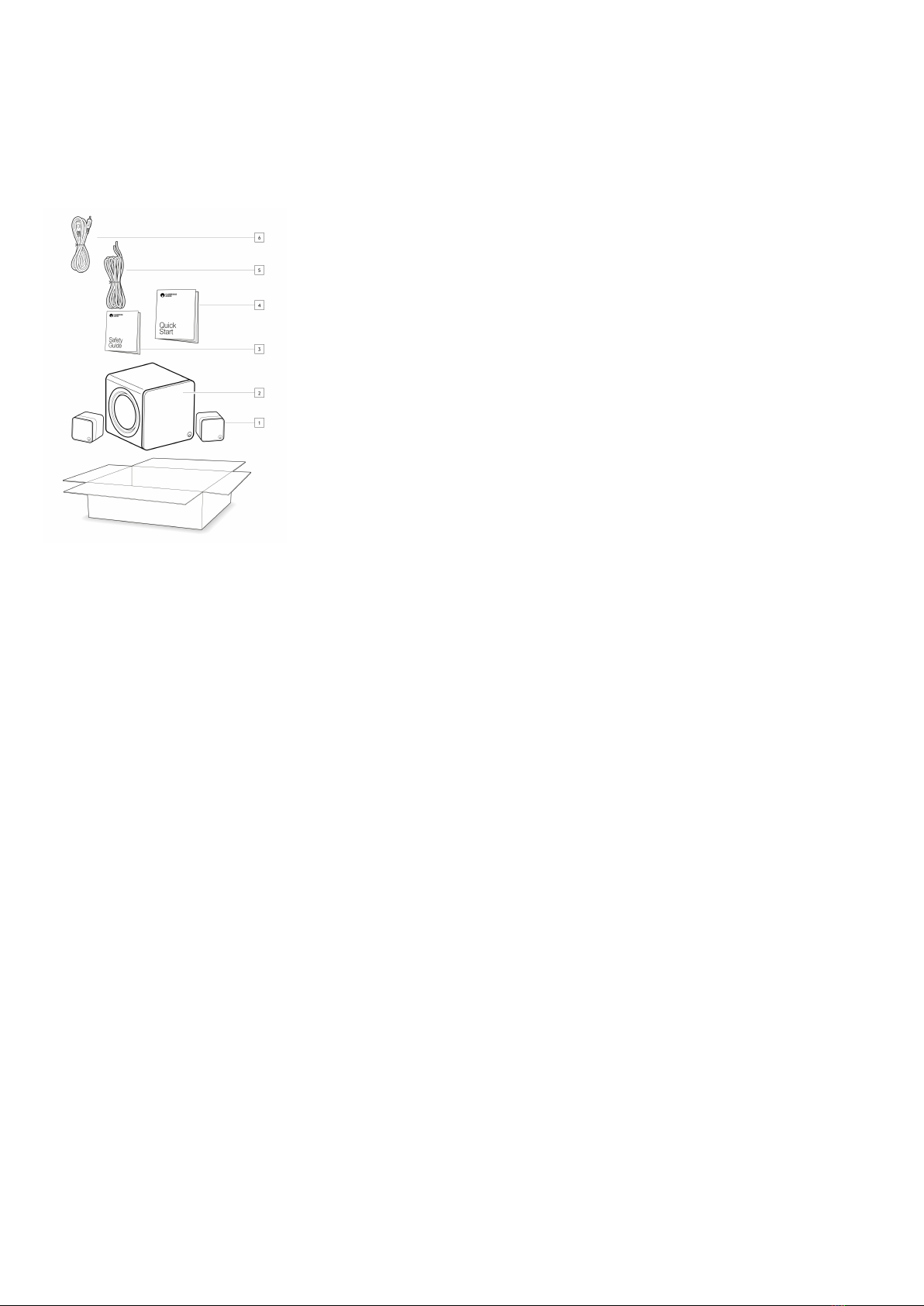

What's included with the Minx S212 bundle?

Last updated: February 9, 2023 08:34. Revision #10827

1. 2 x Minx MIN12 compact speaker.

2. Minx X201 subwoofer.

3. Safety guide.

4. Quick start guide.

5. 10m speaker wire.

6. 5m RCA subwoofer lead.

Minx MIN12 front and rear

Last updated: February 2, 2023 04:44. Revision #10826

Front.

1. 2.25" BMR Driver.

Rear panel.

1. Mounting Screw Thread.

2. +/- Speaker Connection Terminals.

Minx X201 front and rear

Last updated: February 2, 2023 04:44. Revision #10825

Front.

1. 6.5" Subwoofer.

Rear Panel.

1. AC power socket.

2. Mains power switch – Switch the subwoofer between on and oﬀ.

3. Standby switch - Switch between ‘Force On’ (no standby), and ‘Audio Detect’. In audio detect mode the X201 will switch on when it detects an

incoming signal.

4. Crossover frequency control - Adjust the crossover frequency of the subwoofer.

5. Phase control - Adjust the phase settings of the subwoofer.

6. Volume control - Adjust the volume of the subwoofer.

7. Audio in/out.

Minx MIN12 installation

Last updated: February 2, 2023 04:44. Revision #10823

1. Firstly, ensuring to match the polarity/colour coding, connect the supplied speaker terminals to the speaker outputs of your ampliﬁer by

unscrewing the ends, and securing the speaker cable in the available hole on each terminal. These terminals can then be installed into the rear of

the MIN12 with the cables connected.

2. If mounting the MIN12 speakers to a wall you will need to attach the included keyhole bracket using the mounting screw to the rear of the

speaker.

3. Alternatively, we oﬀer several other mounting solutions including a pivoting wall mount, desk stand, and ﬂoor stand.

Minx X201 unboxing and installation

Last updated: February 2, 2023 04:45. Revision #10822

Unboxing your Minx X201 subwoofer.

Follow the diagram and take care when unboxing your Minx X201 so not to damage the speaker cone.

Installation of your Minx X201.

Dependent on your desired setup, there are a few diﬀerent ways to connect your Minx X201 subwoofer.

1. If you are using an ampliﬁer with a L+R pre-out then use the left and right line input connections to connect your Minx X201.

2. If you are using a receiver, or ampliﬁer with a dedicated sub out then connect the Minx X201 using the left channel (LFE/Sub) input.
