Cambridge Audio SX-80 Bedienungsanleitung

SX-80 Floorstanding Speakers

Manual Generated: 03/03/2023 - 22:23

SX-80 Floorstanding Speakers 3 ...................................................................................................................................................................................................

Introduction 4 ...............................................................................................................................................................................................................................

What's included with the SX-80's? 5 .............................................................................................................................................................................................

Front panel 6 .................................................................................................................................................................................................................................

Rear panel 7 ..................................................................................................................................................................................................................................

Installation instructions 8 ............................................................................................................................................................................................................

Technical specifications 10 ...........................................................................................................................................................................................................

Frequently asked questions 11 ....................................................................................................................................................................................................

Troubleshooting 12 .......................................................................................................................................................................................................................

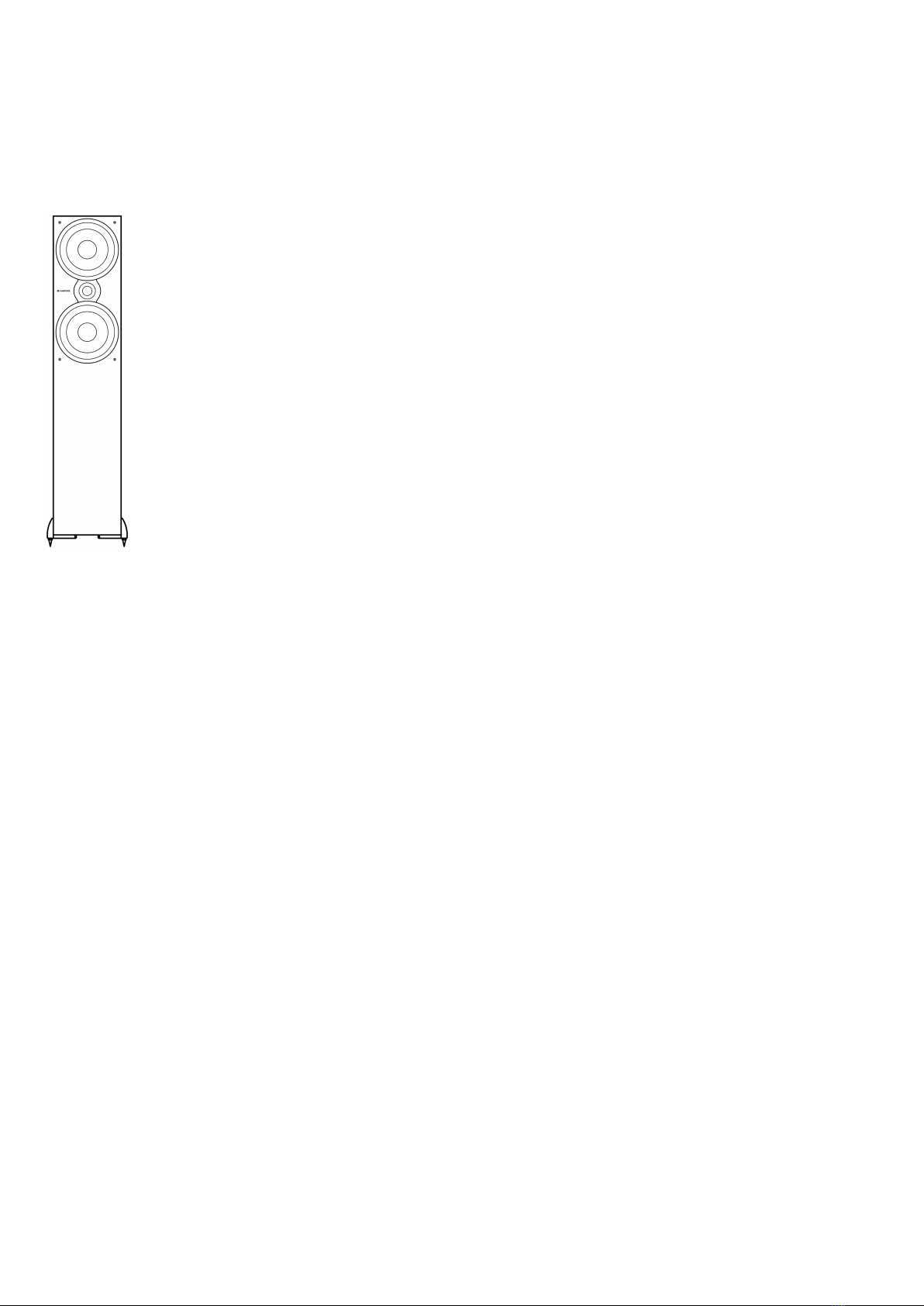

SX-80 Floorstanding Speakers

Last updated: 十二月 7, 2022 03:53. Revision #8174

Users Manual

Introduction

Last updated: 一月 19, 2023 01:58. Revision #8430

Thank you for purchasing these Cambridge Audio SX-80 floorstanding loudspeakers. We hope that you enjoy many years of listening pleasure from

them. Your loudspeakers can only be as good as the system it is connected to. Please do not compromise on your amplifier or cabling. Naturally we

particularly recommend amplification from the Cambridge Audio range, which has been designed to the same exacting standards as our

loudspeakers. Your dealer can also supply excellent quality speaker cable to ensure your system realises its full potential.

Thank you for taking the time to read this manual; we do recommend you keep it for future reference.

For upcoming news on future products, software updates and exclusive offers, make sure you register your product at

http://www.cambridgeaudio.com/register

What's included with the SX-80's?

Last updated: 一月 19, 2023 01:58. Revision #8431

1. 2 x SX-80 Floorstanding Speakers.

2. Installation guide.

3. 4 x plastic foot.

4. 4 x steel spike.

5. 4 x steel washer for spike.

6. Foam bung.

7. 4 x nuts for spike.

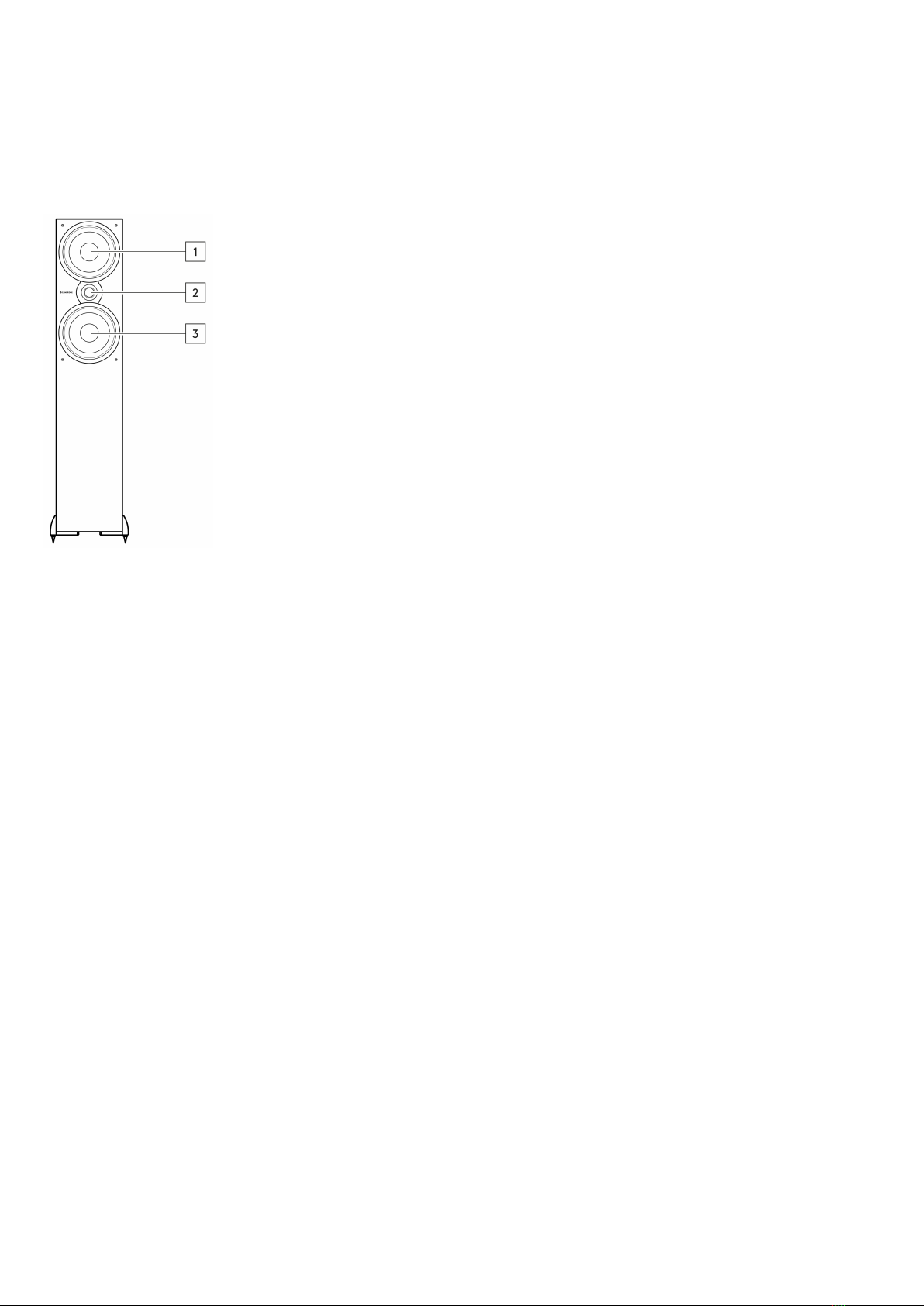

Front panel

Last updated: 一月 19, 2023 01:58. Revision #8432

1. 6.5" (165mm) woofer.

2. 1" (25mm) silk dome tweeter.

3. 6.5" (165mm) woofer.

Rear panel

Last updated: 一月 19, 2023 01:58. Revision #8433

1. Bass port.

2. +/- speaker connection terminals.

Installation instructions

Last updated: 一月 19, 2023 01:58. Revision #8434

1. Firstly, using high quality speaker cable connect the SX-80 floorstanding speakers to the speaker terminals on your amplifier. Ensure that you pay

close attention to match the polarity of each connection.

2. If placed close to a wall you may benefit from using the included foam bass tuning bungs. These can be placed into the rear port of each speaker to

reduce the low frequency output.

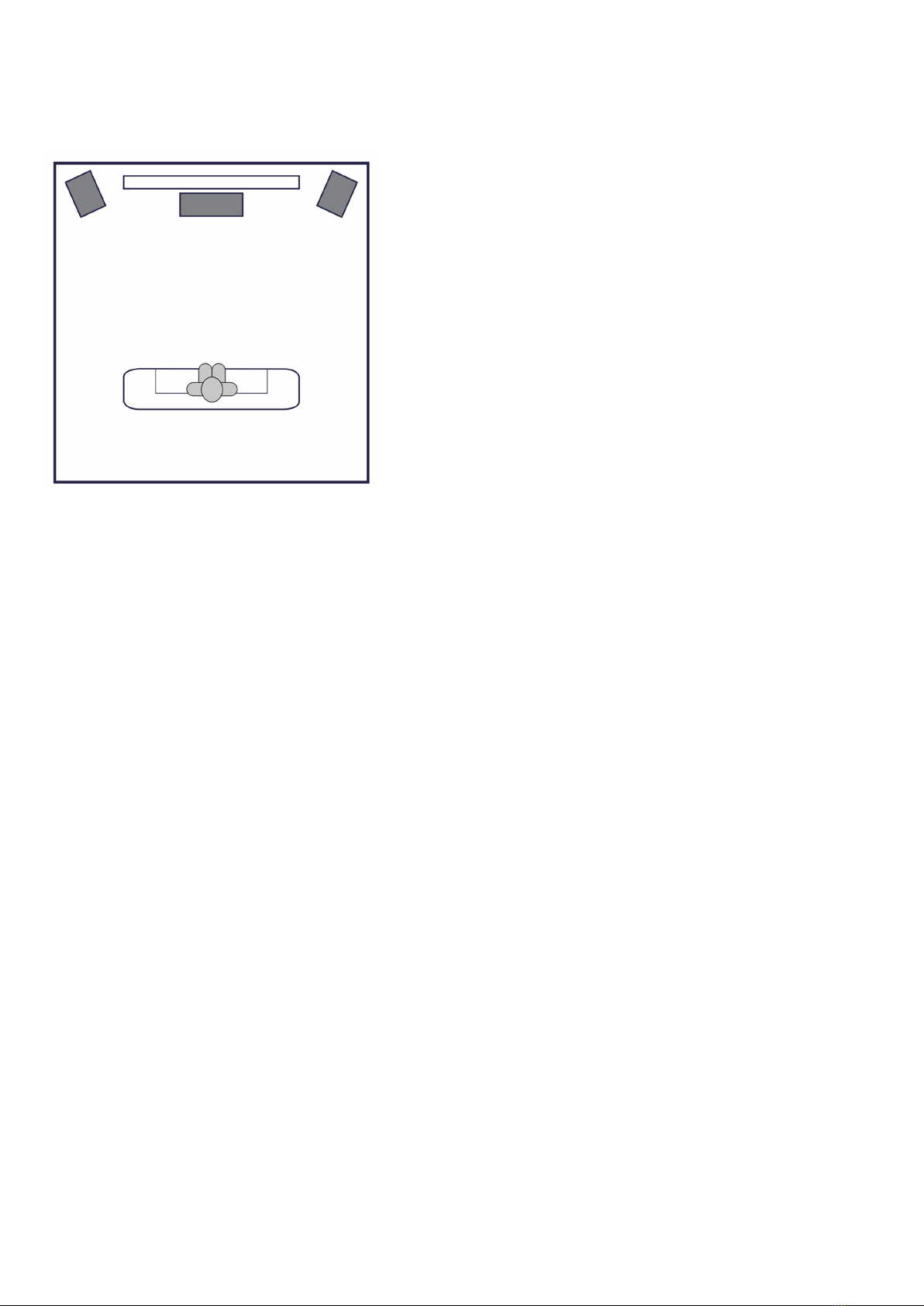

3. Finally, when positioning, we would suggest that the distance between speakers and the listening position is equal. However, we would encourage

experimentation until you find a solution that works for your space.

Technical specifications

Last updated: 一月 19, 2023 01:58. Revision #8435

Sensitivity (SPL)

87dB

Frequency Response

40Hz - 20kHz

Impedance

8 Ohms

Drivers

2 x 6.5” (165mm) woofers.

1 x 1” (25mm) silk dome tweeter.

Recommended Amplifier Power

10 - 100 Watts

Porting

1 Rear

Speaker Dimensions (H x W x D)

950 x 200 x 276mm.

Weight

13.1kg (28.8lbs)
