Cambridge Audio EVO S Bedienungsanleitung

EVO S Bookshelf Speakers

Manual Generated: 02/11/2023 - 13:00

Table of Contents

EVO S Bookshelf Speakers 3 .......................................................................................................................................................................................

Introduction 4 ................................................................................................................................................................................................................

What's included with the EVO S? 5 ............................................................................................................................................................................

Front panel 6 .................................................................................................................................................................................................................

Rear panel 7 ...................................................................................................................................................................................................................

Installation instructions 8 ...........................................................................................................................................................................................

Technical speciﬁcations 10 ..........................................................................................................................................................................................

Frequently asked questions 11 ...................................................................................................................................................................................

Troubleshooting 12 .......................................................................................................................................................................................................

EVO S Bookshelf Speakers

Last updated: January 9, 2023 08:27. Revision #10421

Users Manual

Introduction

Last updated: January 19, 2023 01:59. Revision #10422

Thank you for purchasing these Cambridge Audio EVO S bookshelf loudspeakers. We hope that you enjoy many years of listening pleasure from

them. Your loudspeakers can only be as good as the system it is connected to. Please do not compromise on your ampliﬁer or cabling. Naturally we

particularly recommend ampliﬁcation from the Cambridge Audio range, which has been designed to the same exacting standards as our

loudspeakers. Your dealer can also supply excellent quality speaker cable to ensure your system realises its full potential.

Thank you for taking the time to read this manual; we do recommend you keep it for future reference.

For upcoming news on future products, software updates and exclusive oﬀers, make sure you register your product at

http://www.cambridgeaudio.com/register

What's included with the EVO S?

Last updated: January 19, 2023 01:59. Revision #10423

1. 2 x EVO S bookshelf speakers.

2. 2 x magnetic speaker grille.

3. 2 x bass plug.

4. 2 x 3m speaker cable (terminated).

5. Quick start guide.

Front panel

Last updated: January 19, 2023 01:59. Revision #10424

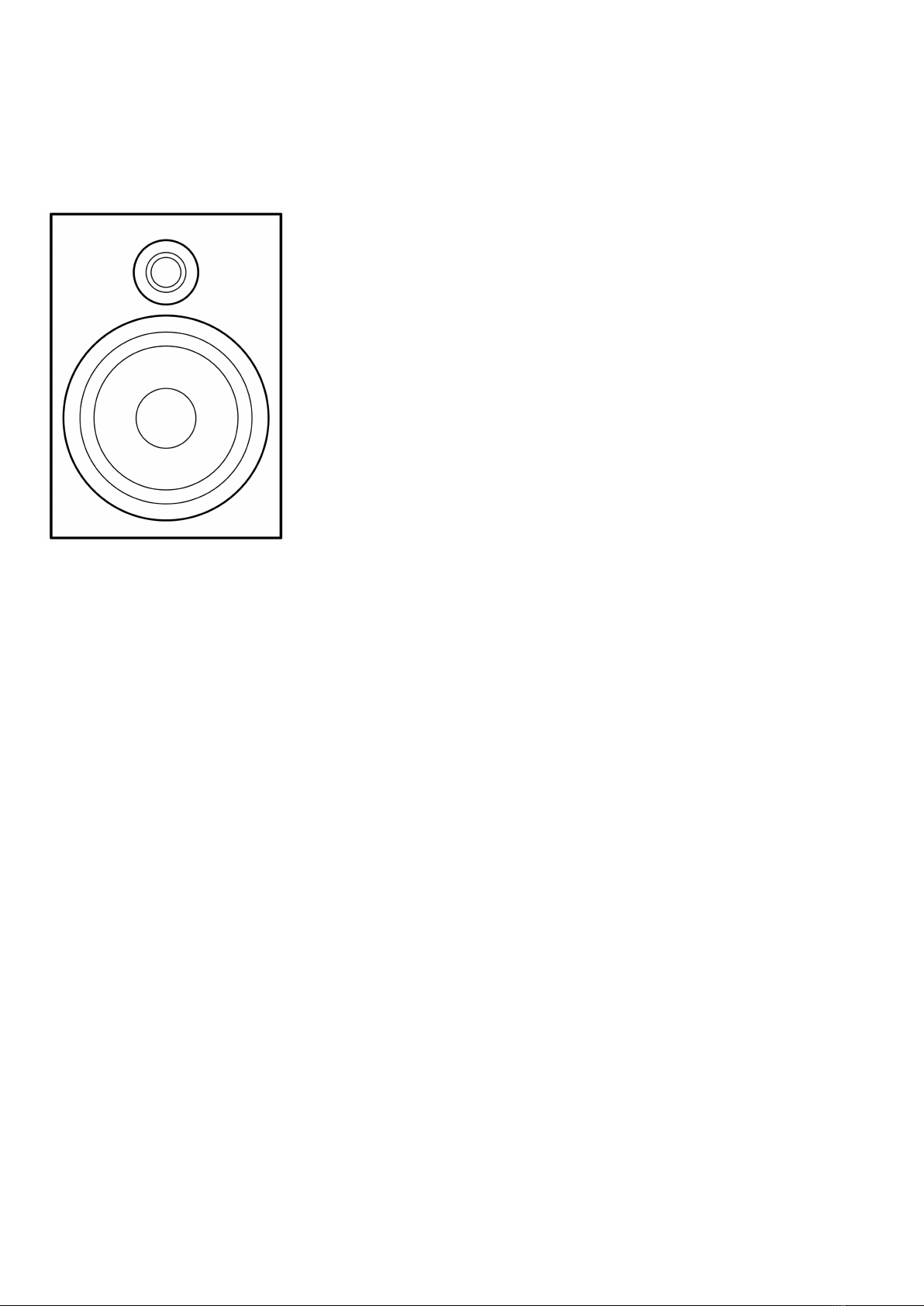

1. 1” (25mm) Silk Dome Tweeter.

2. 6.5”(165mm) Anodized Aluminium Mid/Bass Driver.

Rear panel

Last updated: January 19, 2023 01:59. Revision #10425

1. Rear bass port.

2. +/- Speaker connection terminals.

Installation instructions

Last updated: January 19, 2023 02:00. Revision #10426

1. Firstly, using high quality speaker cable connect the EVO S speakers to the speaker terminals on your ampliﬁer. Ensure that you pay close

attention to match the polarity of each connection.

2. If placed on a desk, or close to a wall you may beneﬁt from using the included foam bass tuning bungs. These can be placed into the rear port of

each speaker to reduce the low frequency output.

3. Finally, when positioning, we would suggest that the distance between speakers and the listening position is equal. However, we would

encourage experimentation until you ﬁnd a solution that works for your space.

Technical speciﬁcations

Last updated: January 19, 2023 02:00. Revision #10427

Sensitivity (SPL)

88dB

Frequency Response

50Hz - 40kHz

Impedance

8 Ohms

Drivers

1 x 6.5” (165mm) anodized aluminium cone mid/bass.

1 x 1” (25mm) silk dome tweeter.

Crossover

2 Way

Recommended Ampliﬁer Power

25 - 200 watts

Porting

1 Rear

Speaker Dimensions (H x W x D)

200 x 284 x 216mm.

Weight

7.1kg (16.9lbs)
