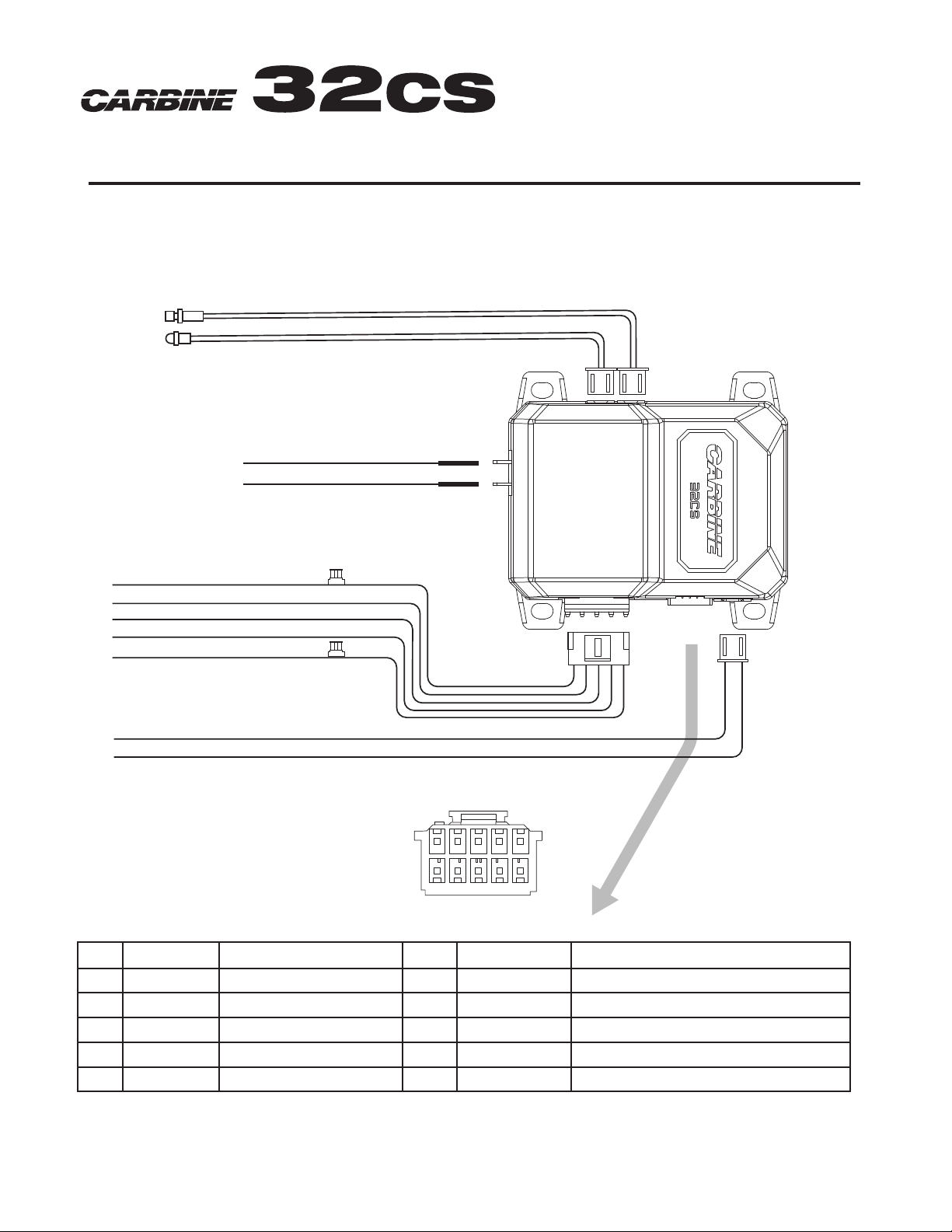

Programming System Features:
All CARBINE remote systems have a menu of features that can be
programmed to suit the installation requirements of any vehicle.
These features can be set by using the valet button as listed below.
Feature Programming by Valet Button
1. Open a protected entrance.
2. Turn the ignition key ON then OFF.
3. Within 5 seconds, press and release the Valet button the number of
times corresponding to the feature you want to adjust, then press
and hold the button once more to lock the feature. Chirps and LED
flashes will conform the feature chosen. Release the Valet button.
4. Use the buttons on the CARBINE remote to adjust the feature.
The button is for the 1-chirp setting and the button is for
the 2-chirp setting.
Note: Valet switch pushes are sequential. For example, if you start at
feature #1, then push and release the valet switch 2 more times, you
will be at feature #3 and so on. Always remember to push and hold
the valet switch one more time after each selection to lock the feature
before using the transmitter to change the setting.
*Bold settings are default
Item Feature 1 Chirp* 2 Chirp 3 Chirp
1Arm/Disarm Chirps
On/Off On Off
2Active/Passive
Arming Active Passive
3Active/Passive Door
Lock Active Passive
4 Ignition Lock/Unlock Off On
5Lock/Unlock Pulse
Duration 0.8 sec 3.5 sec
6 Double Pulse Lock Off On
7 Double Pulse Unlock Off On
8Door Trigger Error
Chirp On Off
9 Comfort Close Off On
10 Tilt Sensor Adjust 3º 1.5º Off
Mounting the LED Status Indicator:
1. Locate a spot on the dashboard or the center console
that has high visibility when looking into the vehicle.
2. Drill a ¼” hole in the mounting surface.
3. Route the LED harness into the hole and then push the LED into
place. The use of a ¼” socket will help the LED to seat flat on the
mounting surface.
Mounting the Valet Switch:
1. Locate a spot under the dashboard that is hidden but accessible.
2. Drill a ¼” hole in the mounting surface.
3. Route the valet switch harness into the hole and then push the Valet
Switch into place. The use of a ¼” socket will help the valet switch
to seat flat on the mounting surface.
Programming the Digital Shock Sensor:
Follow the enclosed procedure to set the sensitivity of the
digital shock sensor.
Note: The pre-warning sensitivity adjusts in proportion to
the shock sensitivity.
1. Set the system in disarmed mode.
2. Turn the ignition key ON/OFF 3 times (ending in off).
3. Within 5 seconds, press buttons together for
2 seconds. The horn/siren will emit (1) long chirp to indicate
you are in Shock Sensor Sensitivity Adjustment Mode.
4. To increase sensitivity, press the button. Each time you press
the button you will hear (1) chirp. When you reach the MAX level
adjustment, you will hear 1 short + 1 long chirp.
5. To decrease sensitivity, press the button. Each time you press
the button you will hear (2) chirps. When you reach the MAX level
adjustment, you will hear 1 short + 1 long chirp.
6. The shock sensor has 20 steps available for adjustment.
The default setting is 10.
7. To return the shock sensor back to it’s default setting, press and
release the button, you will hear 3 short chirps.
8. During the process you can test by knocking: 1short chirp - prewarn;
1 Long chirp - TRIGGER
To exit the Shock Sensor Sensitivity Adjustment Mode, turn the ignition
key on or open a protected entrance. You will hear 3 long chirps.
