Cardio Zone CZ-SG65 Bedienungsanleitung
Owner’s Manual
SG65 Treadmill
Customer Service
(888) 340-0482
Keys Fitness Products
4009 Distribution Drive
Suite 250
Garland, TX 75041
www.keysfitness.com
Model Name : CZ-SG65
Serial Number :
Write down for future reference
Serial Number Decal Location
415-00052
07/06 Rev A
CAUTION! Read all precautions
and instructions in this manual
before using this equipment.
New and Improved for 2007!
Table of Contents
2
Important Safety Information 3
Before You Start 4
Assembly 5-9
Moving Instructions 10
Power Requirements 11
Console Panel Functions 12
Program Operation 13-16
Monitoring Your Heart Rate 17-18
Warm Up Exercises 19
Changing to MPH or KM 20
Calibration Sequence 21
Belt Adjustment 22
Maintenance Instructions 23
Error Messages 24
Troubleshooting 25
Parts List 26-27
Exploded View 28-29
Warranty Information 30
Important Safety Information
3
WARNING! Before using this treadmill or starting any exercise program, consult your physi-
cian. This is especially important for persons over the age of 35 and/or persons with pre-existing
health problems. The manufacturer or distributor assumes no responsibility for personal injury
or property damage sustained by or through the use of this product.
WARNING! To reduce the risk of electrical shock, burns, fire, or other possible injuries to the
user, it is important to review this manual and the following precautions before operation.
SAVE THESE INSTRUCTIONS
SAFETY PRECAUTIONS AND TIPS
1. Always secure Safety Key firmly to waistband.
2. It is the owner’s responsibility to ensure that all users of this treadmill have read the
Owner’s Manual and are familiar with warnings and safety precautions.
3. This treadmill has a user maximum capacity of 350 pounds.
4. The treadmill should only be used on a level surface and is intended for indoor use only.
The treadmill should not be placed in a garage, patio, or near water and should never be used
while you are wet. Keys recommends a treadmill mat be placed under the treadmill to protect
floor or carpet and for easier cleaning.
5. Follow safety information in regard to plugging in your treadmill. Keep the power cord away
from the incline wheels and do not run the power cord underneath your treadmill. Do not
operate the treadmill with a damaged or frayed power cord.
6. Wear comfortable, good-quality walking or running shoes and appropriate clothing. Do not
use the treadmill with bare feet, sandals, socks or stockings.
7. Always straddle the belt and allow it to start moving before stepping onto the belt.
8. Hold on to handrail when adjusting speed or other controls.
9. Always examine your treadmill before using to ensure all parts are in working order.
10. Allow the belt to fully stop before dismounting.
11. Pets should never be allowed near or on the treadmill.
12. Close supervision is necessary when this appliance is used by or near children, invalids or
disabled persons.
13. Never operate the treadmill where oxygen is being administered, or where aerosol products
are being used.
14. Never insert any object or body parts into any opening.
15. For safety and to prevent damage to your treadmill, no more than one person should use
the treadmill at a time.
16. Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill
should only be performed by an authorized service representative, unless authorized and/or
instructed by the manufacturer
17. Failure to follow these instructions will void the treadmill warranty.
18. Never leave the treadmill unattended when plugged in. Unplug from outlet when not in
use and before service or maintenance.
19. Always unplug this appliance immediately after using and before cleaning. To disconnect,
turn all controls to the off position, then remove plug from outlet.
Before You Start
4
Thank you for purchasing the Cardio Zone SG65 Treadmill! This quality product you have
chosen was designed to meet your needs for cardiovascular exercise. Before you start, please
read the Owner's Manual and become familiar with the operation of your new treadmill.
Remember to take the time to perform the stretching exercises provided to avoid
injury.
Do not stand on the walking belt while pressing the Power button or Start/Stop button.
Always adjust the speed of the treadmill in small increments as this treadmill is capable of
high speeds.
If you are taking medication, consult your physician to see if the medication will affect your
exercise heart rate.
If you have heart problems, you are not active, and/or are over the age of 35 years, do not
use the pre-set treadmill programs or start an exercise program without first contacting and
receiving approval from your physician.
To avoid the risk of electrical shock, always keep the console dry. Do not spill liquids on the
console. Keys Fitness recommends a sealed water bottle for beverages consumed while using
the treadmill.

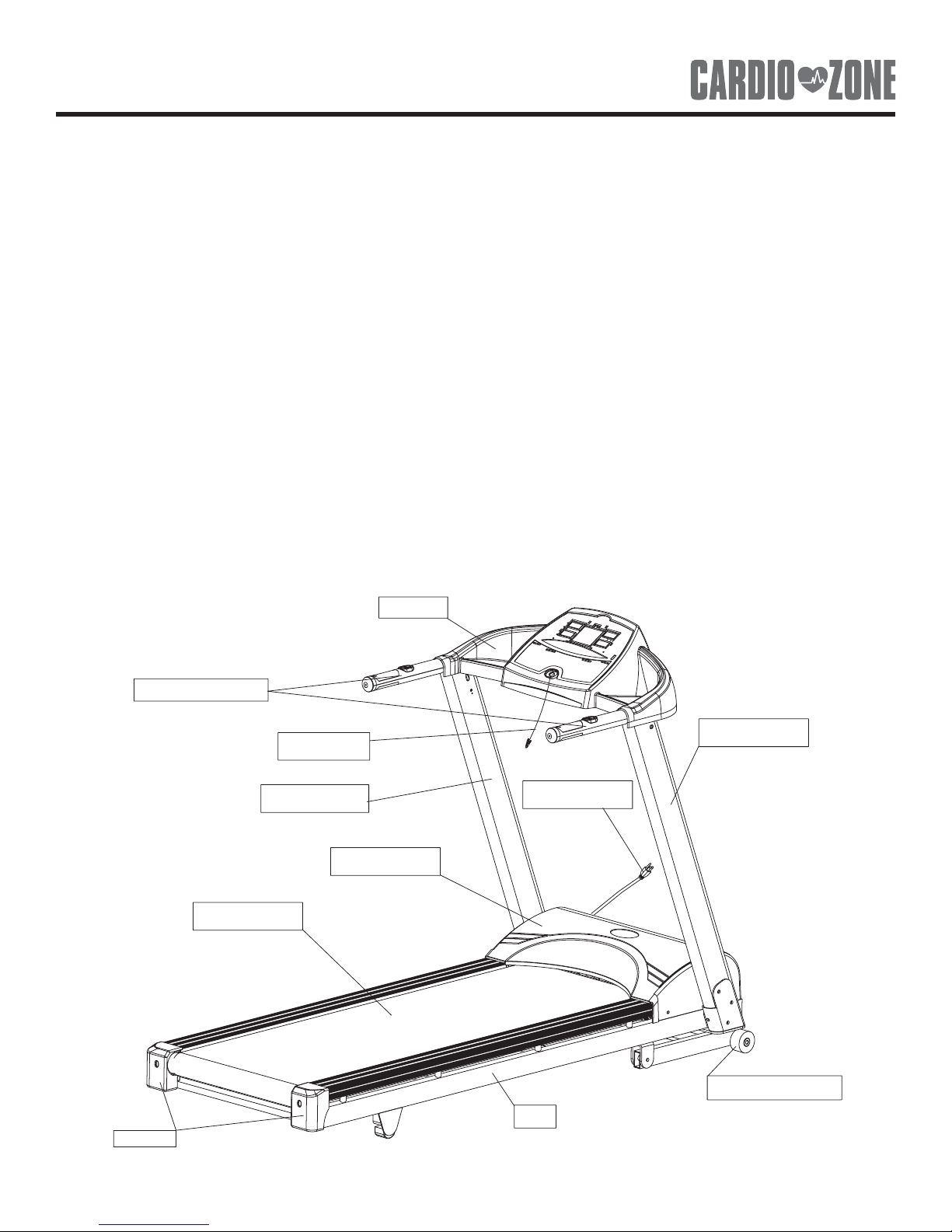

Please review the following drawing below to familiarize yourself with the listed
parts. This manual covers several treadmills, so the one pictured below may not be
identical to your particular model.
CONSOLE
PULSE HANDGRIPS
SAFETY KEY
LEFT UPRIGHT
RIGHT UPRIGHT
POWER CABLE
MOTOR COVER
RUNNING BELT
END CAP
BASE
TRANSPORT WHEEL
Assembly
5
The Cardio Zone SG65 Treadmill will require assembly before operating. After opening the
box, remove any packing material from the treadmill.
Do not throw away any packing materials until the unit is working properly.
Place the base on a clean, level surface. Make sure the electrical cord will easily reach an elec-
trical outlet.

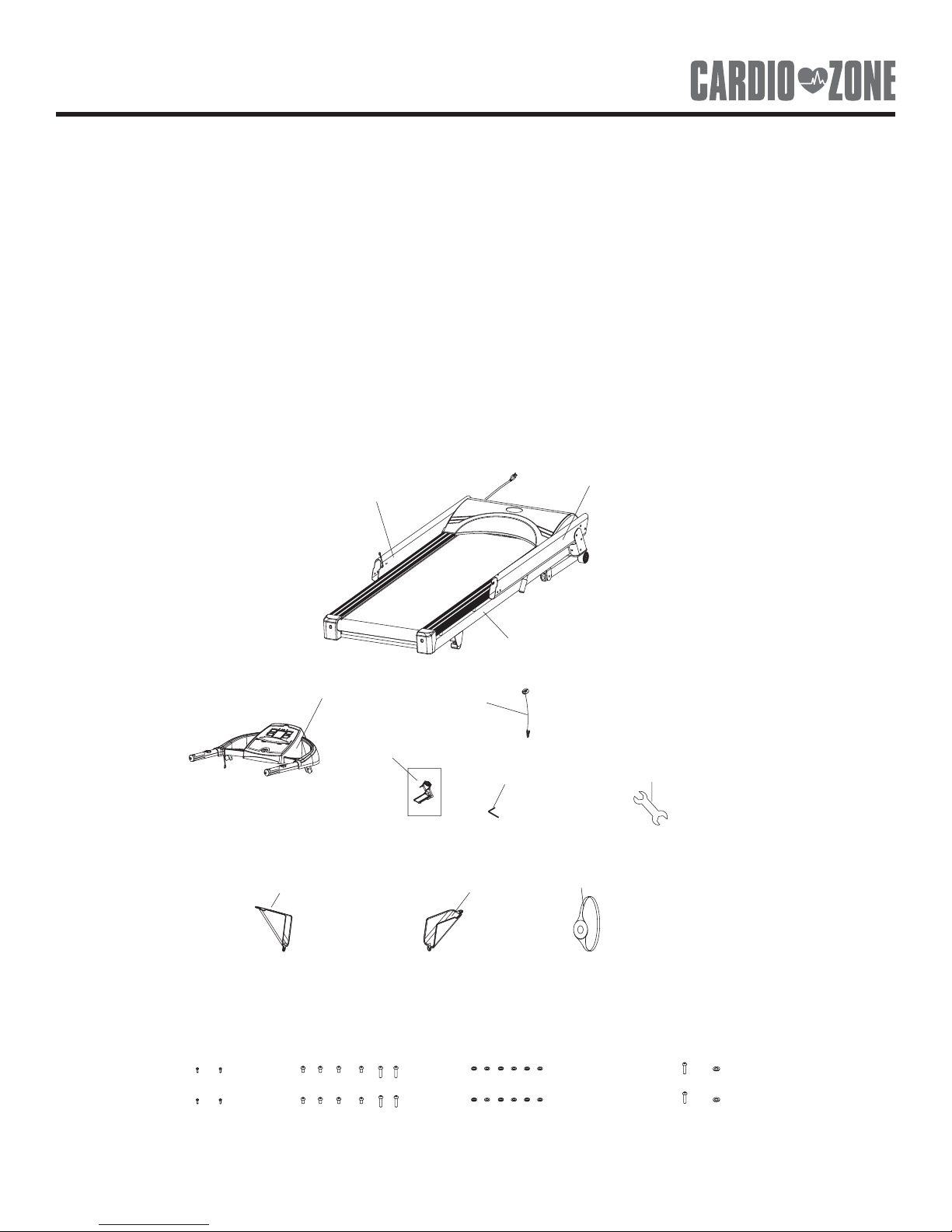

Locate the hardware pack and identify the following parts required for assembly.
Parts List:
Console
Safe Key
Manual
Allen Wrench
Allen Bolt
M8*15 8PCS
M8*55 4 PCS
Internal Lock Washer
D=8 12PCS
Phillips Screw
M4*12 4PCS
Chest Strap
Left Junction Box Right Junction Box
Washer 11*23*2 2PCS
Base
Left Upright
Right Upright
Hex Bolt M10*20 2PCS
Wrench
1. Owner’s Manual
2. Base Assembly
3. Console Assembly
4. Left and Right Upright
5. Left and Right Fender
6. Safety Key (Reed Switch)
7. Console Assembly
8. Left and Right Junction Box
9. Phillips Screw M4x12 (Qty 2)
10. Allen Bolt M8x15 (Qty 12)
11. Washer 9x22x2 (Qty 12)
12. Allen Bolt M8x55 (Qty 4)
13. Allen Wrench
14. Chest Strap
Assembly
6
Base
Left Upright
Right Upri
g
Internal Lock Washer
D=8
Allen Bolt
M8*55
Allen Bolt
M8*15

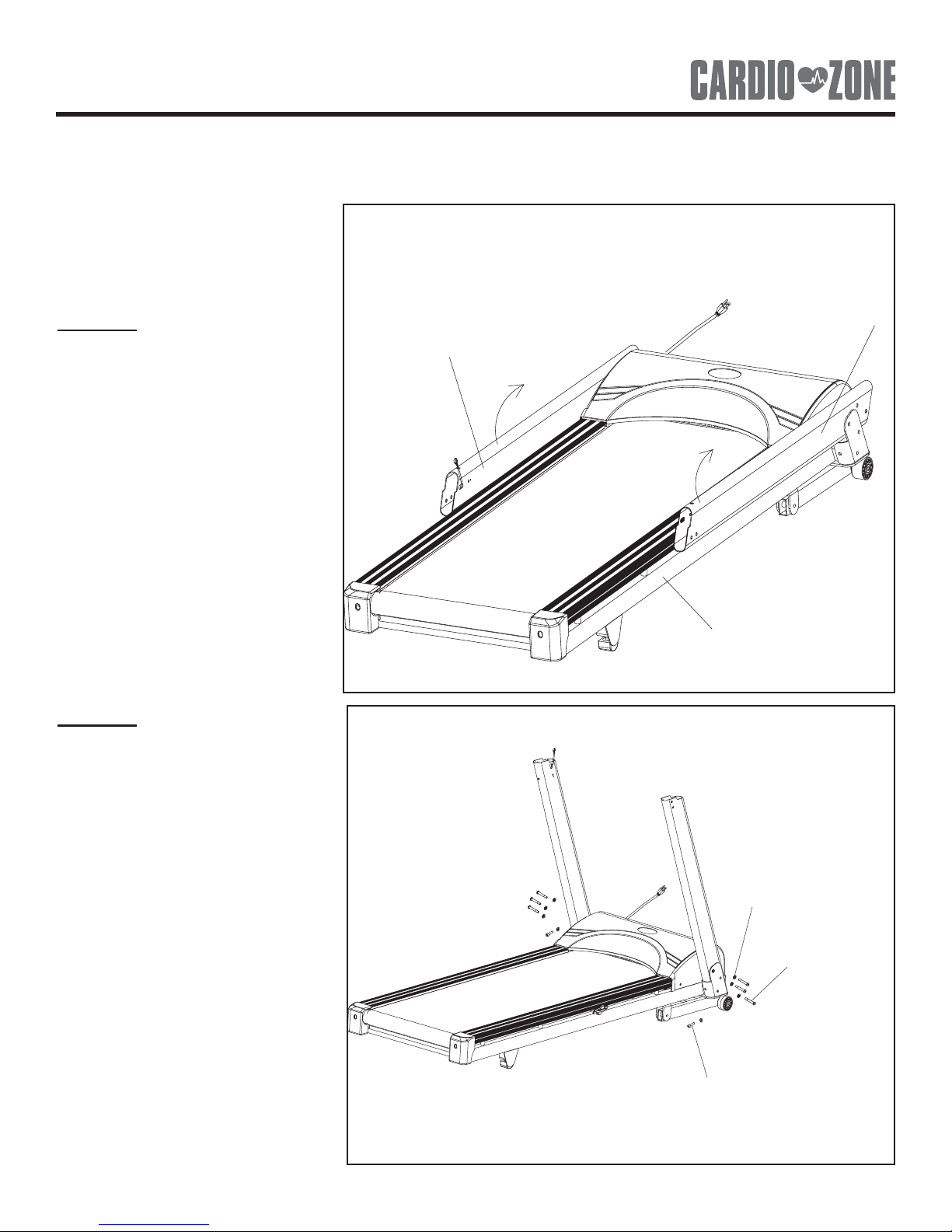

Figure 1
Step 1
Place treadmill on a level
surface. Lift the right and
left uprights into a vertical
position.
Figure 1
Figure 2
Figure 2
Step 1
Secure Uprights using Allen
Bolts M8*55 (Qty. 6), Allen
Bolt M8*15 (Qty. 2), and Lock
Washers D=8 (Qty. 8).
Assembly requires the included Allen wrench.
Do not plug in the power cord until all assembly steps are completed.
Assembly
7
Internal Lock Washer
D=8
Allen Bolt
M8*15
Console
Left Upright
Right Upright
Left Upright
Right Upright
Console
Left Junction Box
Left Junction Box
Console Harness

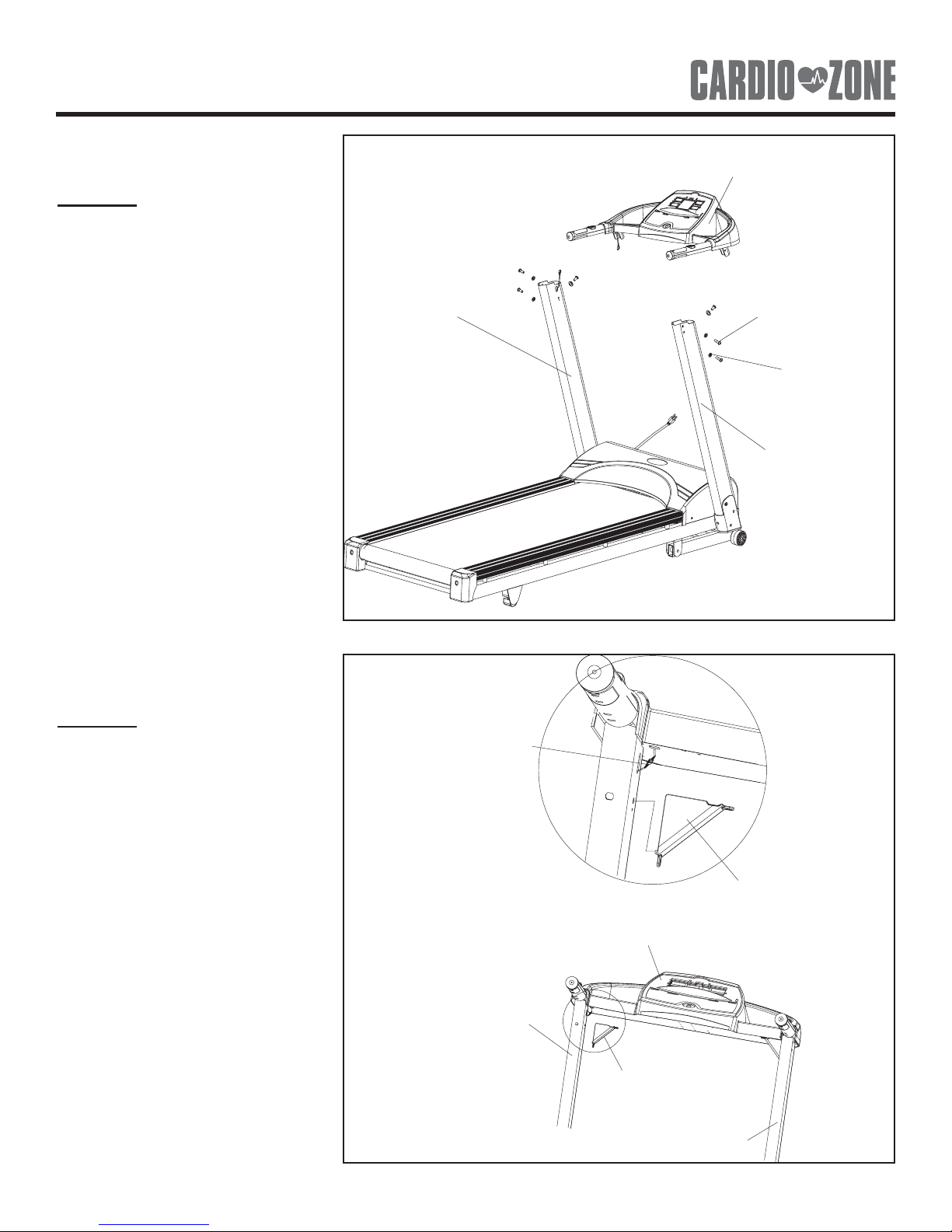

Figure 3
Figure 4
Figure 4
Step 1
Carefully attach Console to
Left and Right Uprights using
Lock Washers D=8 (Qty. 6),
Allen Bolts M8*15 (Qty. 6), and
Allen Bolts M6*12 (Qty. 4).
Note: Be careful not to pinch
any wires during this step.
Figure 5
Step 1
Connect the Console Harness
(left side), Incline Harness (left
side), EKG Harness (left and
right side), and Speed Harness
(right side) to Harness coming
from Console.
Step 2
Attach the Left Junction Box
as shown.
Step 3
Repeat for Right Junction
Box.
Assembly
8

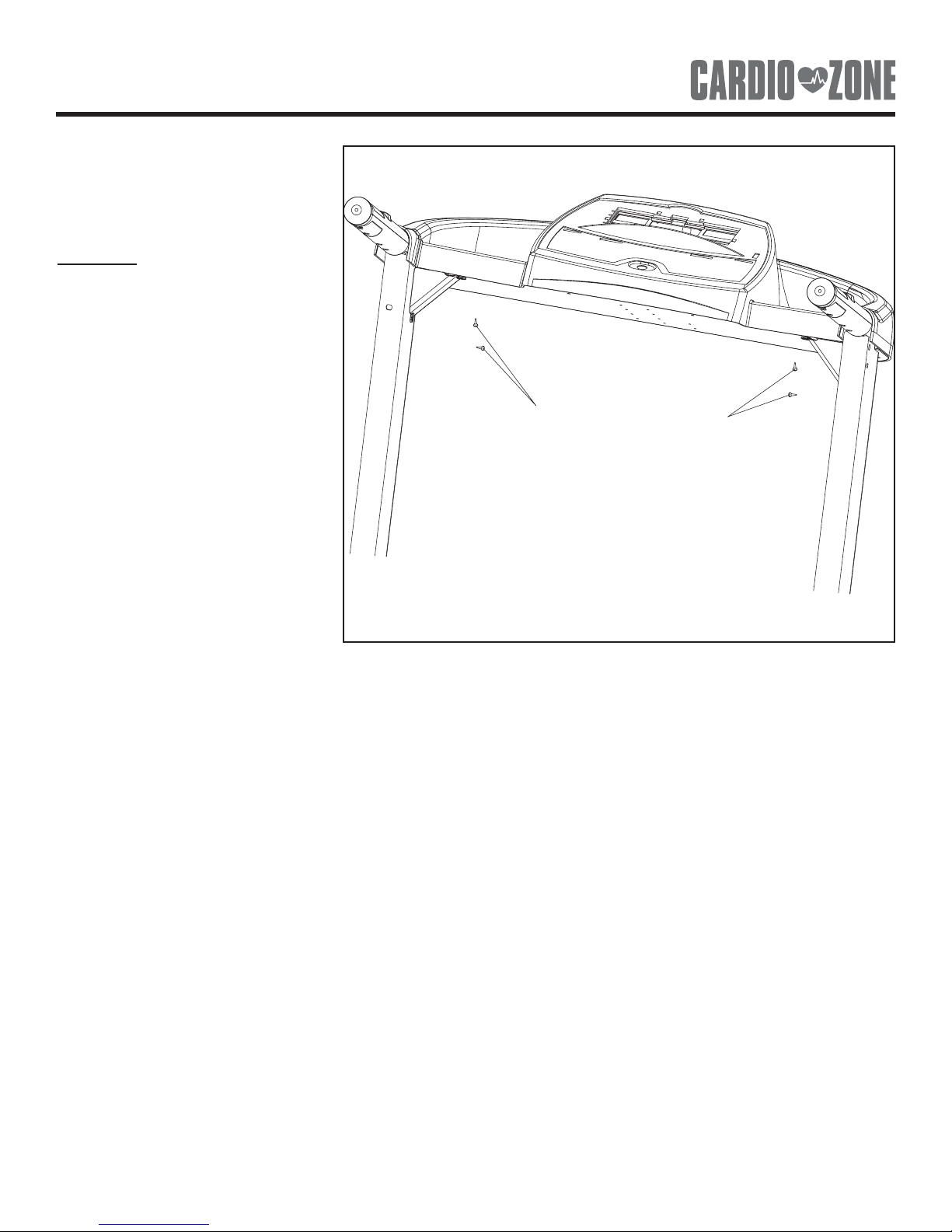

Philip Screw M4*12
Figure 5
Figure 6
Step 1
Secure Console and Junction
Boxes to Uprights using Phillips
Screws M4*12 (Qty. 4).
Assembly
9
Congratulations!!
You have completed the assembly of your new Cardio Zone
SG65 Treadmill.
Moving Instructions
10
Caution! To avoid the risk of injury, never attempt to move the treadmill while it is in
the unfolded operating position. To reduce the possibility of injury while lifting, bend
your legs and keep your back straight. As you raise the treadmill, lift using your legs,
not your back. In order to raise or lower the treadmill safely, you must be able to lift
45 pounds (20kg). It is suggested you always use the aid of a second person when
moving the treadmill.
Grasp the back end of the treadmill with a firm grasp carefully tilt the treadmill forward until it
rolls freely on the wheels. Using extreme caution, move the treadmill to the desired location.
To set the treadmill down, place one foot on the center of the base crossbar and carefully lower
treadmill onto base in resting position. Do not attempt to move the treadmill over an uneven or
rough surface.
