BAE Hawk MK 66

Instruction Manual

F.W. 23/6/2015

Vers.1.0

Liability Exclusion and Damages

You have acquired a kit, which can be assembled into a fully working R/C model

when fitted out with suitable accessories, as described in the instruction manual

with the kit.

However, as manufacturers, we at CARF-Models are not in a position to influence

the way you build and operate your model, and we have no control over the

methods you use to install, operate and maintain the radio control system

components. For this reason we are obliged to deny all liability for loss, damage or

costs which are incurred due to the incompetent or incorrect application and

operation of our products, or which are connected with such operation in any way.

Unless otherwise prescribed by binding law, the obligation of the CARF-Models

company to pay compensation is excluded, regardless of the legal argument

employed.

This applies to personal injury, death, damage to buildings, loss of turnover and

business, interruption of business or other direct and indirect consequent damages.

In all circumstances our total liability is limited to the amount which you actually

paid for this model.

BY OPERATING THIS MODEL YOU ASSUME FULL RESPONSIBILITY FOR YOUR

ACTIONS.

It is important to understand that CARF-Models Ltd, is unable to monitor whether

you follow the instructions contained in this instruction manual regarding the

construction, operation and maintenance of the aircraft, nor whether you install

and use the radio control system correctly. For this reason we at CARF are unable to

guarantee, or provide, a contractual agreement with any individual or company that

the model you have made will function correctly and safely. You, as operator of the

model, must rely upon your own expertise and judgement in acquiring and

operating this model.

Thank you very much for purchasing the CARF Models Bae Hawk Mk 66. Before you get

started building and setting-up your new aircraft, please

make sure you have read this instruction manual, and understood it. If you have

any questions, please don’t hesitate to contact your Rep, or CARF-Models directly.

Below are the contact details:

Email: [email protected]

Or call your CARF Rep by phone!!! He will be there for you. Please write down

his phone number somewhere on this manual, you’ll find it, after you’re

logged in on our website, on the top right corner of every page.

Servo Choice:

We strongly advise that you use the recommended high-torque digital metalgeared

servos on all the main flight controls, and the milled plywood mounts are

specifically designed for these.

There are plenty of alternative servos available from many manufacturers.

However, it is important that you measure the “height” of the servo from the

mounting flanges to the control arm. This dimension is important to know BEFORE

you glue any mounting frames in the stab or wing.

Servo Screws:

Fix the all the servos into the milled plywood servo mounts using the 2.9 Ø

x13mm or 16mm sheet metal screws provided in the kit, not the standard screws

normally supplied with servos by the servo manufacturer. This is because all the

holes in our milled servo mounts are 2mm diameter, due to our CNC

manufacturing process, and this is too big for the normal screws.

Building Sequence:

The actual building sequence is your choice, but it is definitely most efficient to

follow the sequence of this manual.

Take Care:

Composite sandwich parts are extremely strong, but fragile at the same time.

Always keep in mind that these composite airplanes are designed for minimum

weight and maximum strength in flight. Please take care of it, especially during

transport, to make sure that none of the critical parts and linkages are damaged.

Always handle your airplane with great care, especially on the ground and during

transport, so you will have many hours of pleasure with it.

To protect the finished surface on the outside of the model from scratches and

dents during building, cover your work table with a piece of soft carpet, cloth or

bubble-plastic. The best way to stop small spots of glue getting stuck to the

outside painted surfaces is to give the whole model 2 good coats of clear car wax

first, but of course you must be sure to remove this 100% properly before adding

any additional paint, markings or trim.

Adhesives and Solvents:

Not all types of glues are suited to working with composite parts. Here is a

selection of what we normally use, and what we can truly recommend. Please don’t

use inferior quality glues - you will end up with an inferior quality plane, that is not

so strong or safe.

Composite models require good gluing techniques, due to the higher flying speeds,

and hence higher loads on many of the joints.

1. CA glue ‘Thin’ and ‘Thick’ types. We recommend ZAP, as this is very high

quality.

2. ZAP-O or Plasti-ZAP, or ZAP canopy glue 560 (for clear canopy)

3. 30 minute epoxy (stressed joints must be glued with at least 30 min & NOT 5

min epoxy).

4. Loctite Hysol 9462 or equivalent (optional, but highly recommended)

5. Epoxy laminating resin (12 - 24 hr cure) with hardener.

6. Milled glass fibre, for adding to slow epoxy for stronger joints.

7. Micro-balloons, for adding to slow epoxy for lightweight filling.

8. Thread-locking compound (Loctite 243, ZAP Z-42, or equivalent)

We take great care during production at the factory to ensure that all joints are

properly glued, but of course it is wise to check these yourself and re-glue any that

might just have been missed.

When sanding areas on the inside of the composite sandwich parts to prepare the

surface for gluing something onto it, do NOT sand through the layer of

lightweight glass cloth on the inside foam sandwich. It is only necessary to rough

up the surface, with 80/120 grit, and wipe off any dust with acetone or denatured

alcohol (or similar) before gluing to make a perfect joint. Of course, you

should always prepare both parts to be joined before gluing for the highest

quality joints. Don’t use Acetone for cleaning external, painted, surfaces as you

will damage the paint.

Tip: For cleaning small (uncured) glue spots or marks off the painted surfaces you

can use old-fashioned liquid cigarette-lighter fuel, like ‘Ronsonol’ or equivalent.

This does not damage the paint, as Acetone and many other solvents will, and

this is what we use at the factory.

At CARF-Models we try our best to offer you a high quality kit, with outstanding

value-for-money, and as complete as possible. However, if you feel that some

additional or different hardware should be included, please feel free to let us

know. Email us: feedback@carf-models.com. We know that even good things can

be made better !

Did you read the hints and warnings above and the instructions

carefully?

Did you understand everything in this manual completely? Then, and

only

then, let’s start assembling your CARF-Models Bae Hawk Mk 66 If not,

please read it

again before you continue.

Accessories

This list will help you chose the main additional items needed to finish your BAE Hawk Mk 66

1. Servos: 8 high quality Servos all the main control surfaces require a minimum of 20 kg

torque such as JR8711

2. Aluminum servo arms

3. A receiver power supply such as a Powerbox Evolution or Cockpit

4. Turbine with a thrust of 180 –200 N

5. Scale retract Landing Gear

6. Gear door pneumatic set

7. Speed break pneumatic set

8. Tank Set

9. Trust Tube

10. Scale Cockpit

11. Speed brake kit

Item No. 130500

Item No. 130600

Item No. 130650

Item No. 130108

Item No. 130700

Item NO. 130400

Item NO. 131650

Hardware List

Material Name Piece For What

Fin -Ruder Bag

ALL THREAD M3 x 100 mm 1 Ruder

Plastic ball link M3 1 Ruder

Plastic ball link M3 Smal 1 Ruder

Button head screw M3 x 15mm 1 Ruder

SHEET METAL SCREW 2.9*13 4 Ruder

ALLEN SCREW M3 x15 3 Ruder

Stop nut M 3 2 Ruder

Rubber Grommet 6 mm 1 Ruder

Elvator Bag

SHEET METAL SCREW 2.9*13 8 Elevator

ALL THREAD M3 x 65 mm 2 Elevator

Stop Nut M 3 3 Elevator

WASHER M3 4 Elevator

Plastic ball link M3 4 Elevator

ALLEN SCREW M 3 x 10 4 Elevator

ALLEN SCREW M 3 x 15 2 Elevator

ALLEN SCREW M 3 x 25 1 Elevator

ALLEN SCREW M 4 x 35mm 4 Elevator

WASHER M4 4 Elevator

Brass tube inside 3mm x 100 2 Elevator

Aileron - Flap Bag

Sheet metal screws 2.9 x 13 mm 16 Servo Aileron and Flap

Sheet metal screws 2.9 x 9 mm 8 Servo Hatch

Aluminium Ball link M3 2 Servo - Flap

Screw M2 x 10mm 2 Flap

Nut M 2 2 Flap

Clevise Alu M 3 2 Servo - Aileron

Plastic Ball link M3 4 2 x Ail / 2x Flap

All thread M3 x 95 mm 2 Aileron

All thread M3 x 150 mm 2 Flap

Brass tube inside 3mm x 150 2 Flap Linkage

Brass tube inside 3mm x 95 2 Aileron linkage

Nut M 3 4 Counter Flap and Aileron Clevis

Allen screws M3 x 16 mm 4 Ballink - Horn

Stop nut M3 4 Ballink - Horn

Washer M6 2 Wing fuselge conection

Allen screws M6 x 40 mm 2 Wing fuselge conection

Trusttube and Turbine Mounting

Lock Nut M 3 4 trust tube -ducting mount

Swasher M 3 8 trust tube -ducting mount

ALLEN SCREW M 3 x 10mm 4 trust tube -ducting mount

ALLEN SCREW M 4 x 20mm 4 Turbine Mount

Swasher M 4 4 Turbine Mount

T Nut M 4 4 Turbine Mount

ALLEN SCREW M 4 x 25mm 4 Ducting mount to bearers

Swasher M 4 8 Ducting mount to bearers

Lock Nut M 4 4 Ducting mount to bearers

Sheet metal screws 2.9 x 10 mm 2 Trust tube down holder mounting

Hardware List

Retract Mount Bag

Sheet metal screw 3.4 x 21 12 Landinggear mount

Nose wheel stering

Plastic ball link M3 1 Nose wheel stering

Clevis Steel M 3 1 Nose wheel stering

Allen Screw M3 x 16 mm 2 Nose wheel stering

ALL THREAD M3 x 30 mm 1 Nose wheel stering

Nut M 3 1 Nose wheel stering

Stop nut M 3 2 Nose wheel stering

Fuselage Joining

ALLEN SCREW M 4 x 30mm 4 Fuselage front rear Joining

ALLEN SCREW M 4 x 40mm 2 Fuselage front rear Joining

Intake

Sheet metal screws 2.9 x 13 mm 2 Joining Intake-Fuselage

Main Gear Door and Zylinder mounting

Allen Screw M4 x 20 mm 2 Main Door

T Nut M 4 2 Main Door

Aluminum Ball link M3 2 Main Door

Bottom head screw M2 x 10 2 Main Door

Nut M2 2 Main Door

wheel collar 4mm 2 Main door

Aluminium Tube 4 mm x 20 incl silikon tube 4(8) Main door hinge

Ball link M2 Plastic 4 Small main door

Screw M2 x 20mm 2 Small main door

Allen screw M2 x 10 4 Small main door

Nut M2 4 Small main door

Phenolic horns 2 Small main door

Front Gear Door and Zylinder mounting

Allen Screw M3 x 25 mm 2 Zylinder mounting

Swasher M 3 2 Zylinder mounting

Stop nut M 3 2 Zylinder mounting

Aluminium Ball link M3 2 Zylinder - Door linkage

Bottom head screw M2 x 10 2 Zylinder - Door linkage

Nut M2 2 Zylinder - Door linkage

Wood parts

Distance holder stabmounting 1 Fiberglass

Batterie Support 1 3 mm Plywood

Elektronic support 1 3 mm Plywood

Turbine Electronic support 1 3 mm Plywood

Hoppertank support 1 3 mm Plywood

Battery Support 1 3 mm Plywood

Turbine spacer wood 2 3 mm Plywood 16 x 300 mm

Powerbox swich support 1 3 mm Plywood

CG Jig 2 3mm Plywood

Hardware List

Canopy Latch Fin Ruder

Front Gear Door Nose retract/Steering

Retract

Wing

Fuselage joining

Elevator

Turbine mount Intake Main Gear Door Main Gear Door

Milled and Scale parts included in the kit

Milled parts for elevator servo and trust tube support

Turbine –ducting spacer

Milled part for Powerbox switch

Milled part for Battery support

Milled parts for turbine equipment

Milled parts for Rc equipment

Milled parts for Turbine - Ducting mounting

Milled parts for hopper mounting

Milled parts for Aileron Servo mounting

CG Jig 2 Pc.

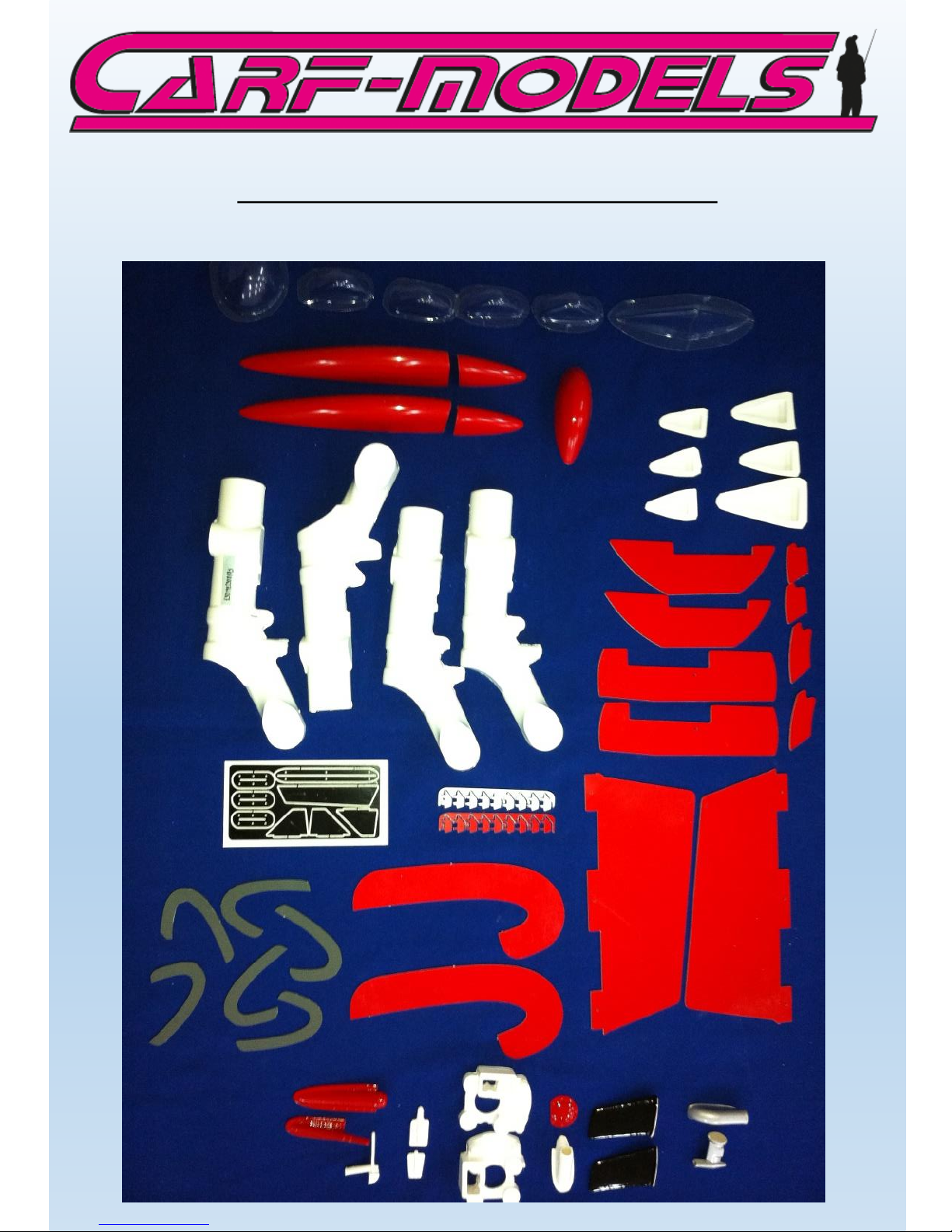

Milled and Scale parts included in the kit

Andere Handbücher für BAE Hawk Mk 66

Inhaltsverzeichnis

Andere Carf-Models Spielzeug Handbücher

Carf-Models

Carf-Models Sukhoi SU-27 Bedienungsanleitung

Carf-Models

Carf-Models AT-6 Texan Bedienungsanleitung

Carf-Models

Carf-Models ViperJet Mk II Bedienungsanleitung

Carf-Models

Carf-Models Extra 330sc Bedienungsanleitung

Carf-Models

Carf-Models Composite-ARF Extra 330L Bedienungsanleitung

Carf-Models

Carf-Models SIAI Marchetti SF-260 Gebrauchsanweisung

Carf-Models

Carf-Models Rebel MAX Anleitung zur Verwendung

Carf-Models

Carf-Models ViperJet Mk II Bedienungsanleitung

Carf-Models

Carf-Models CT-114 Tutor Bedienungsanleitung

Carf-Models

Carf-Models Ultra Flash Evo Bedienungsanleitung

Carf-Models

Carf-Models KOBUZ-3 Bedienungsanleitung

Carf-Models

Carf-Models SuperXtra 330L Bedienungsanleitung

Carf-Models

Carf-Models CL-41 Tutor Bedienungsanleitung

Carf-Models

Carf-Models Rebel HOT Bedienungsanleitung

Carf-Models

Carf-Models Composite-ARF Yak-55 SP Bedienungsanleitung

Carf-Models

Carf-Models Extra 330sc Bedienungsanleitung

Carf-Models

Carf-Models Ultra Lightning Bedienungsanleitung

Carf-Models

Carf-Models Sukhoi SU 31 Bedienungsanleitung

Carf-Models

Carf-Models Ultra Flash Bedienungsanleitung

Carf-Models

Carf-Models P-47 Thunderbolt Bedienungsanleitung

Carf-Models

Carf-Models MiG-15 Gebrauchsanweisung

Carf-Models

Carf-Models BOLD Bedienungsanleitung

Carf-Models

Carf-Models F4U-1D Corsair Bedienungsanleitung

Carf-Models

Carf-Models BAE Hawk Mk 66 Bedienungsanleitung

Beliebte Spielzeug Handbücher anderer Marken

marklin

marklin 37321 Bedienungsanleitung

Canon

Canon PAPER CRAFT Bedienungsanleitung

GREAT PLANES

GREAT PLANES Pitts M-12S Bedienungsanleitung

NOCH

NOCH 14261 Bedienungsanleitung

Hausler

Hausler 450 SE V2 Bedienungsanleitung

Dynaflite

Dynaflite Daydream Bedienungsanleitung

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Handbuch

Kenner

Kenner Batman 63651 Bedienungsanleitung

LEGO

LEGO 8527 Bedienungsanleitung

iKarus

iKarus ECO 8 Bedienungsanleitung

Multiplex

Multiplex EasyStar II Bedienungsanleitung

Walkera

Walkera 38 Bedienungsanleitung

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Bedienungsanleitung

MD MXION SWD Bedienungsanleitung

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Bedienungsanleitung

marklin

marklin 39671 Bedienungsanleitung

Meccano

Meccano 15103 Bedienungsanleitung

LEGO

LEGO TECHNIC 8735 Bedienungsanleitung
