Carmanah MX Series Bedienungsanleitung

MX Series

RADAR DETECTION KIT INSTALL GUIDE

LEVEL 4

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com

The MUTCD states that an RRFB shall only be installed to function as a pedestrian-actuated

conspicuity enhancement. The MX Radar Detection Kit is meant to trigger MX systems to flash

when a vehicle is detected.

90712REVA

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com 2

RADAR DETECTION KIT INSTALL GUIDE

LEVEL 4

1.0 MX Radar Detection Kit Components

The MX Radar Detection Kit is used to activate Carmanah MX systems when a moving vehicle is detected.

Applications include wrong-way driver systems, LED stop signs, railroad crossing beacons and intersection

conflict warning beacons.

When ordered with the Advanced Statistics option, the radar module collects and saves vehicle traffic data that

can be downloaded and analyzed. For instructions on the use of this option, see the associated user manual

included with the system.

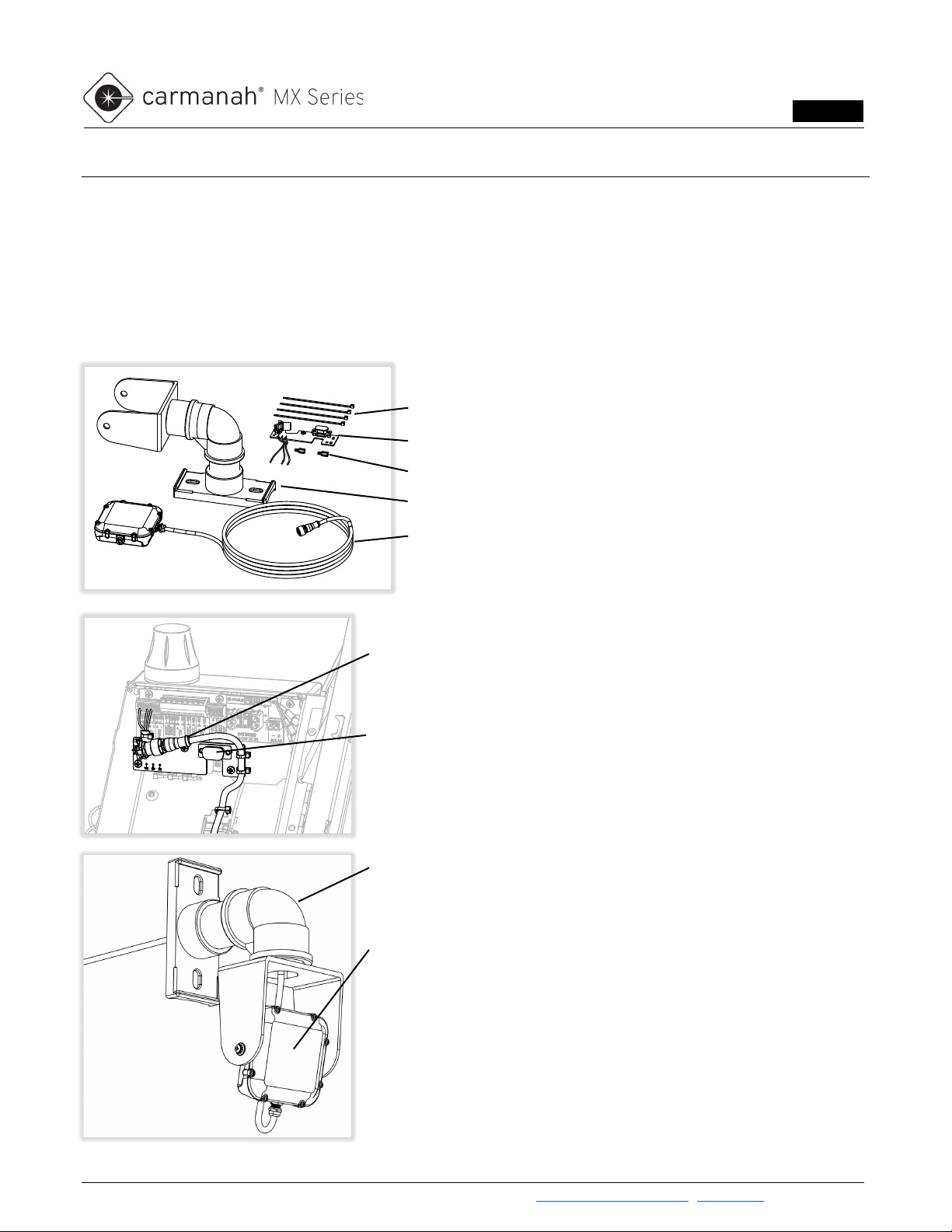

The MX Radar Detection Kit components are shown and described below.

Cable ties (4)

MX radar interface PCB assembly

Interface PCB mount standoffs (2)

Radar mount assembly

Radar module & cable assembly (includes hardware to fasten

to mount)

Radar module to interface PCB connection: provides power to radar

module and passes activation and programming signals.

Programming interface:connects to supplied Programming Kit to

allow adjustment of radar module settings if required. Also used with

Advanced Statistics option to download traffic data.

Radar mount: side of pole mount for radar module. Can be through-

bolted or banded to pole.

Radar module: detects oncoming vehicles and activates Carmanah

MX system(s).

Programming Kit (not shown): allows adjustment of radar module

settings. With the Advanced Statistics option, allows for downloading of

traffic data. Includes a communications adapter and PC USB interface

cable. One kit can service any number of systems equipped with the

Radar Detection Kit.

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com 3

RADAR DETECTION KIT INSTALL GUIDE

LEVEL 4

2.0 Operation

When used with a single Carmanah MX system1, the Radar Detection Kit triggers that system’s flasher module(s)

(MX RRFB Module, MX Beacon Module, and/or MX LED Sign Module). When installed with multiple linked2

Carmanah MX systems, one or more Radar Detection Kits will activate all linked systems’ flasher modules.

The radar module used in the Radar Detection Kit is the Houston Radar DR600. The radar operates in the 24 -

24.25 GHz band and is configured using PC-based software.

Whenever the radar module detects the motion of a vehicle, it shorts the connected MX power module's input

terminals to ground, activating the flasher modules of that system and those of any linked systems. The radar

module is configured by default to trigger an activation of the MX system(s) whenever it detects a vehicle

approaching at 5 – 206 mph. These and other radar settings can be changed using the Programming Kit, see

Section 4 for details.

When the radar module stops detecting a vehicle’s motion, either because the vehicle has stopped or has moved

out of the detection zone, it stops shorting the trigger input terminals. The connected MX system and any linked

systems will then continue to flash according to each system's Duration setting, which is set separately for each

MX system.

1An MX system is defined as a power module wired to at least one flasher module or trigger kit. The elements of one system

are typically mounted on a single pole.

2Linking two or more MX systems allows any trigger activation to activate the flasher modules of all linked systems and

synchronizes their flashing. See the MX Level 1 Planner and MX Field App Guide for details.

Beacons and LED sign modules will flash continuously by default using the Always On operating

mode. To flash only when triggered by the radar, set the operating mode to Trigger using the MX

Field App. (RRFB modules operate only in Trigger mode.)

To make all linked MX systems flash for the same length of time, set the systems' Duration

setting to be the same. The default Duration setting is 20 seconds; it can be set to a variety of

preset values between 5 and 3600 seconds.

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com 4

RADAR DETECTION KIT INSTALL GUIDE

LEVEL 4

3.0 Installation

The following is a summary of the installation sequence of the Radar Detection Kit:

1. Determine installation location on pole for Radar Detection Kit.

2. Install Carmanah MX system on pole per supplied instructions.

3. Install MX radar interface PCBA into MX power module.

4. Drill holes for radar cable and bolts, if required.

5. Fish radar cable, install radar and mount to pole.

6. Aim radar module.

7. Connect and configure radar module, if required.

8. Test system.

3.1 Determine Installation Location on Pole

The radar module should be mounted on the pole so that its front surface directly faces and has an unobstructed

view of oncoming traffic. The radar module cable is 9.8 ft long; to allow sufficient cable slack, the vertical distance

between the radar mount and the MX system should be at most 7 ft.

For optimal radar performance:

•Mount radar at least 6 ft above the ground (for maximum range).

•Minimize the angle between target traffic and the radar module.

3.2 Install Carmanah MX system on Pole

Use the instructions supplied with your system to install the Carmanah MX system onto the pole.

If the radar module can’t be located near the side of the road, it may need to be pointed further

up the road to detect vehicles effectively.

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com 5

RADAR DETECTION KIT INSTALL GUIDE

LEVEL 4

3.3 Install Radar Detection PCBA into MX Power Module

1. Open the MX power module lid or door and remove and set aside the two screws indicated from the

Power Module PCBA. Thread the two provided standoffs into the holes and tighten firmly.

2. For MX 100, 200 and 300, use one of the provided cable ties to fasten the wires to the interface PCB

feature shown. For MX 400, route the three wires away from the interface PCB as shown.

3. Use the two screws removed earlier to fasten

the interface PCB assembly to the standoffs.

If the standoffs are difficult to thread in, temporarily loosen the other four power module screws

to improve fastener alignment and prevent cross-threading.

For MX 400, avoid pinching the

existing trigger and module wires

when tightening the interface PCB

screws.

MX 100, MX 200, MX 300

MX 400

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com 6

RADAR DETECTION KIT INSTALL GUIDE

LEVEL 4

4. Remove the insulation on the ends of the three wires.

5. For MX 100, MX 200 and MX 300: depress the terminal buttons with a small tool and insert the stripped

wires into the terminal positions shown. Take care to avoid any stray wire strands.

6. For MX 400:

•Remove the left-most cable tie shown.

•Loosen the three terminal screws shown.

•Match the white, red and black wire colors with the

codes on the label under the terminal block as

shown.

•Insert the stripped wires under the terminal plates.

•Re-tighten the terminal screws firmly.

•Replace the removed cable tie with one of those

provided.

White

Red

Black

Remove

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com 7

RADAR DETECTION KIT INSTALL GUIDE

LEVEL 4

3.4 Drill Holes for Radar Cable and Mount Through Bolts

If routing the radar cable inside the pole, drill a 5/8" hole in the center of where the radar mount will attach to the

pole. If through-bolting the radar mount, drill two 7/16" holes above and below as shown, through both sides of the

pole.

3.5 Fish Radar Cable, Install Radar & Mount to Pole

Install the radar module into the mount saddle with the cable facing down and fasten with the supplied spacers,

washers and screws as shown. Fish the radar cable through the mount, into the pole and up or down to the

Carmanah MX system. Bolt or band the radar mount to the pole.

Install the radar module with its cable facing down to optimize both detection range and

resistance to water ingress.

Pole mount to pole hardware not supplied.

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com 8

RADAR DETECTION KIT INSTALL GUIDE

LEVEL 4

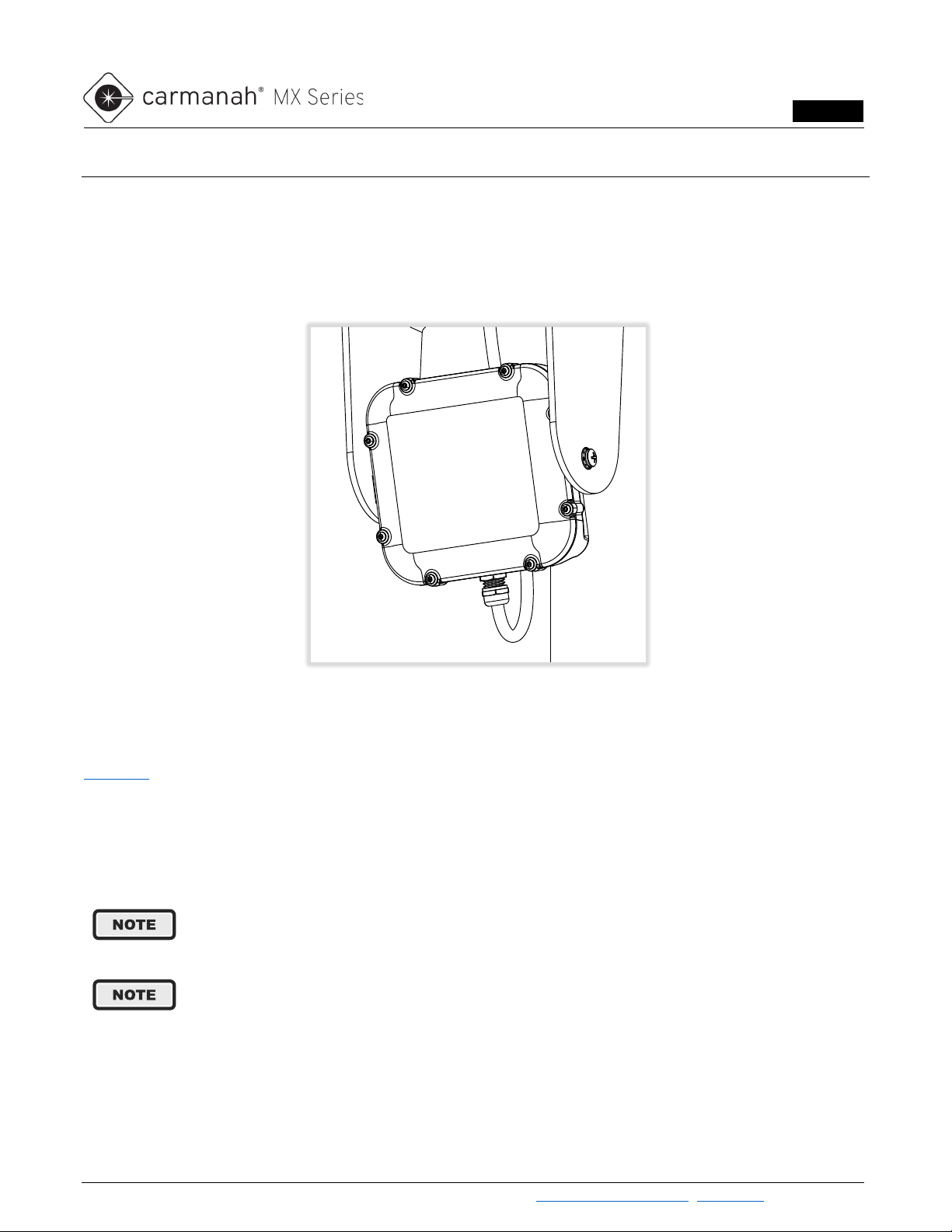

3.6 Aim Radar Module

Adjust the radar tilt and pan so its front face points directly at oncoming traffic. Tighten the hardware firmly to lock

it in place.

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com 9

RADAR DETECTION KIT INSTALL GUIDE

LEVEL 4

3.7 Connect and Configure Radar Module

Plug the radar cable connector onto its mate on the interface PCB within the MX power module. Turn the barrel

firmly clockwise to lock the connectors together.

For MX 300, fasten the radar cable to one of the features on the power module chassis with a cable tie.

MX 300

Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com 10

RADAR DETECTION KIT INSTALL GUIDE

LEVEL 4

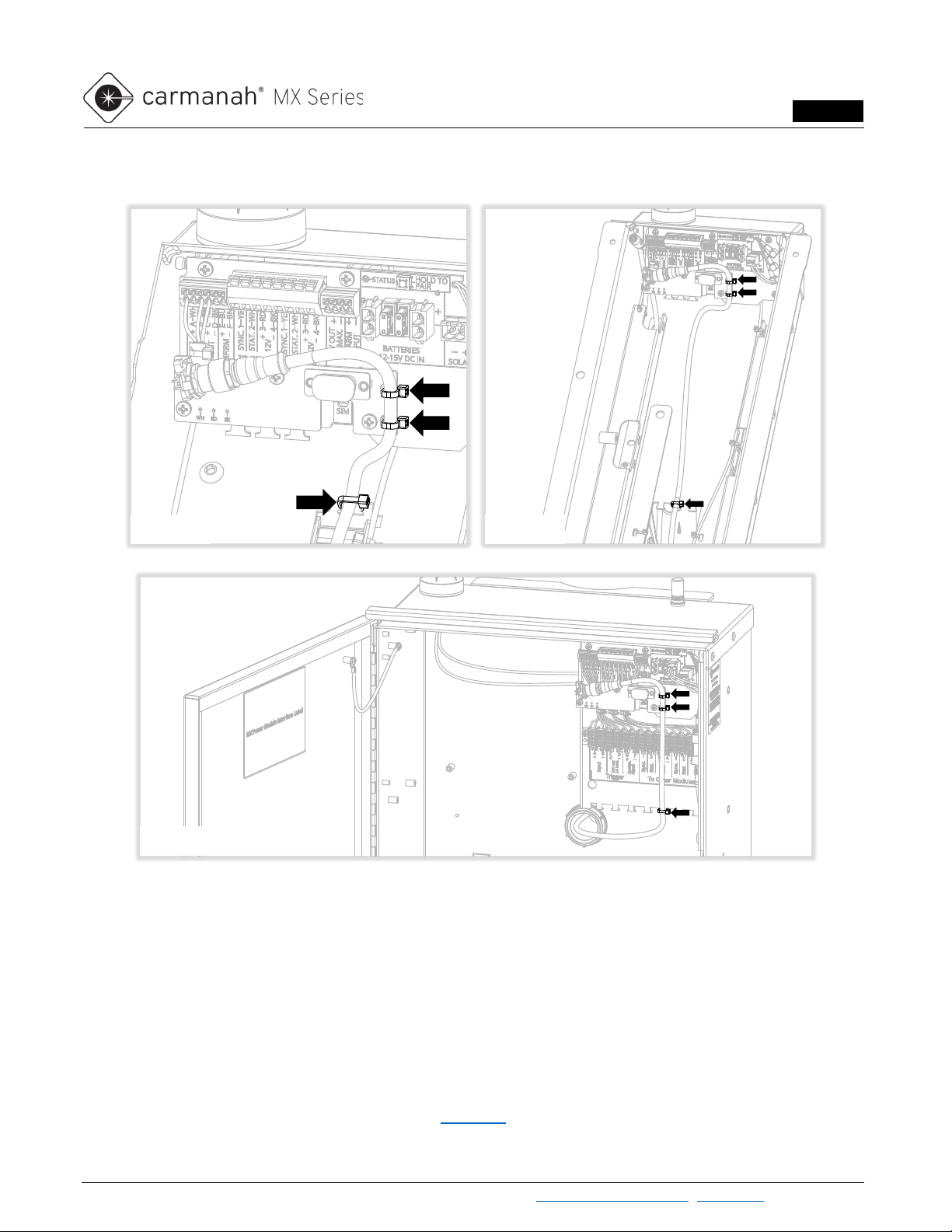

For MX 100, MX 200 and MX 400, fasten the radar cable to the two slots on the interface PCB and again to a

strain relief feature on the enclosure as shown.

The radar module is configured from the factory to trigger an activation whenever an oncoming vehicle is detected

approaching at a speed of at least 5 mph. Changes from the default settings are often unnecessary. Reasons for

changing the radar’s configuration include:

•To change the detection speed limits (the minimum and maximum speeds that will trigger an activation)

•To increase or decrease the sensitivity of the radar module

•You’ve ordered the Advanced Statistics option and wish to configure data logging options or read traffic

statistics from the radar module

•To configure the radar module for a less common application (e.g., a radar-activated minimum speed

sign)

If it is necessary to configure the radar module, see Section 4.

MX 100

MX 200

MX 400
