SPEEDCHECK-15/18
APPLIED INFORMATION (AI) INTEGRATION INSTALL GUIDE
Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com
SpeedCheck
Solar Cabinet
SpeedCheck
AC Cabinet
88764_InstallGuide_TRA_SpeedCheck-AI-Integration-Kit_RevB
Page 2
SPEEDCHECK-15/18
APPLIED INFORMATION (AI) INTEGRATION INSTALL GUIDE
Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com
1.0 Warnings and Precautions
The following symbols indicate important safety warnings and precautions throughout this manual:
1.1 Warranty Disclaimer
This manual will familiarize you with the features, operation standards, and installation of Carmanah’s SpeedCheck-15/18 Applied Information
(AI) system. Failure to comply with the use, storage, maintenance, installation or placement instructions detailed in this manual could void the
warranty.
1.2 Standards
Perform all installation, wiring, grounding and maintenance in conformance with local building and electrical codes. Adherence to the National
Electrical Code (NEC) is mandatory to comply with any certification markings. Non-adherence to code may void the warranty.
WARNING indicates that serious bodily harm or death may result from failure to adhere to the precautions.
CAUTION indicates that damage to equipment may result if the instructions are not followed.
NOTE suggests optimal conditions and provides additional information.
Page 3
SPEEDCHECK-15/18
APPLIED INFORMATION (AI) INTEGRATION INSTALL GUIDE
Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com
1.3 Safety and Usage Precautions
Batteries are shipped fully charged. Use extreme caution when handling the batteries as they can generate
hazardous short-circuit currents. Remove all jewelry (bracelets, metal-strap watches, etc.) before handling
the batteries.
Solar panels produce DC electricity when exposed to light and can therefore produce an electrical shock or
burn. To render solar panels inoperative, remove them from sunlight or fully cover their front surface with an
opaque material.
Before lifting any heavy or bulky equipment, ensure the load is secured so moving parts do not shift, and that
it can be lifted as far as needed without back strain or loss of grip. Installation may require more than one
person.
Ensure the equipment is not powered during installation and wiring of the system.
Recheck all completed wiring for proper polarity prior to energizing the system.
Changes or modifications to Carmanah equipment not expressly approved by Carmanah could void both the
user's authority to operate the equipment and the warranty.
Page 4
SPEEDCHECK-15/18
APPLIED INFORMATION (AI) INTEGRATION INSTALL GUIDE
Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com
1.4 System Components
The SpeedCheck AI Integration Kit consists of the following items:
Carmanah Part # Description Quantity
86061 Harness, Serial, 16 Ft., SpeedCheck Sign to AI in G Cabinet 1
86059 Harness, Ground, 16 Ft., #8 Ring Terminals, 14AWG, Green 1
33376 Washer, Flat, #8, SS 1
83093 Harness, AI 16-Pin Connector to TB 1
86132 Harness, AI 4-Pin Connector to TB 1
86057 Harness, DC Input Power to TB, SpeedCheck with AI in G Cabinet 1
86066 Label, Input/Output, SpeedCheck with AI in G Cabinet 1
87917 Adapter, 90°, SMA Plug Male Pin to SMA Jack Female Socket 2
50548 Screw, Machine, #8-32 x 3/8" Phillips Pan, SS 4
70730 Tie Mount, Push Barb 3
49686 Cable Tie Mounting Base, ¾ x ¾” 1
54246 Cable Tie, 4 In. 14
83066 Cable Tie, 7", #8 Screw Mount 1
75110 Rivet, 1/8”, Aluminum Blind with Aluminum Mandrel 2
75107 Barrier Block, 8 Position 1
88764 Install Guide, AI Integration Kit, SpeedCheck 1
Page 5
SPEEDCHECK-15/18
APPLIED INFORMATION (AI) INTEGRATION INSTALL GUIDE
Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com
System Components, cont’d
The optional Cabinet Door Switch Kit consists of the following items:
Carmanah Part # Description Quantity
86385 Door Switch & Harness, G-Series Cabinet 1
86380 Standoff, #10-32 X 5/8", Female, Aluminum 2
71863 Cap Screw, Security, Pin In Hex, #10-32 X 0.5”, SS 2
10749 Screw -Machine, #10-32 X 3/8“, Phillips Pan, SS 2
30673 Washer, Flat, #10, SS 4
30774 Washer, Lock, #10 SS 2
54246 Cable Tie, 4 Inch 4
49686 Cable Tie Mounting Base, ¾ x ¾” 2
Page 6
SPEEDCHECK-15/18
APPLIED INFORMATION (AI) INTEGRATION INSTALL GUIDE
Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com
2.0 Tools and Materials Required
The following tools and materials may be required to install the AI Integration Kit into your SpeedCheck system:
•Drill and ½” drill bit
• Deburring tool or similar
•Crescent wrench
•Side cutters
•Rivet installation tool with nosepiece for 1/8” diameter rivet
•Multi-bit screwdriver
•Electrical multimeter
Optional Door Switch:
•Loctite 220 threadlocker or similar
•ANSI #9 drill bit (0.196” diameter)
•5/32" tamper-resistant hex screwdriver bit
Page 7
SPEEDCHECK-15/18
APPLIED INFORMATION (AI) INTEGRATION INSTALL GUIDE
Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com

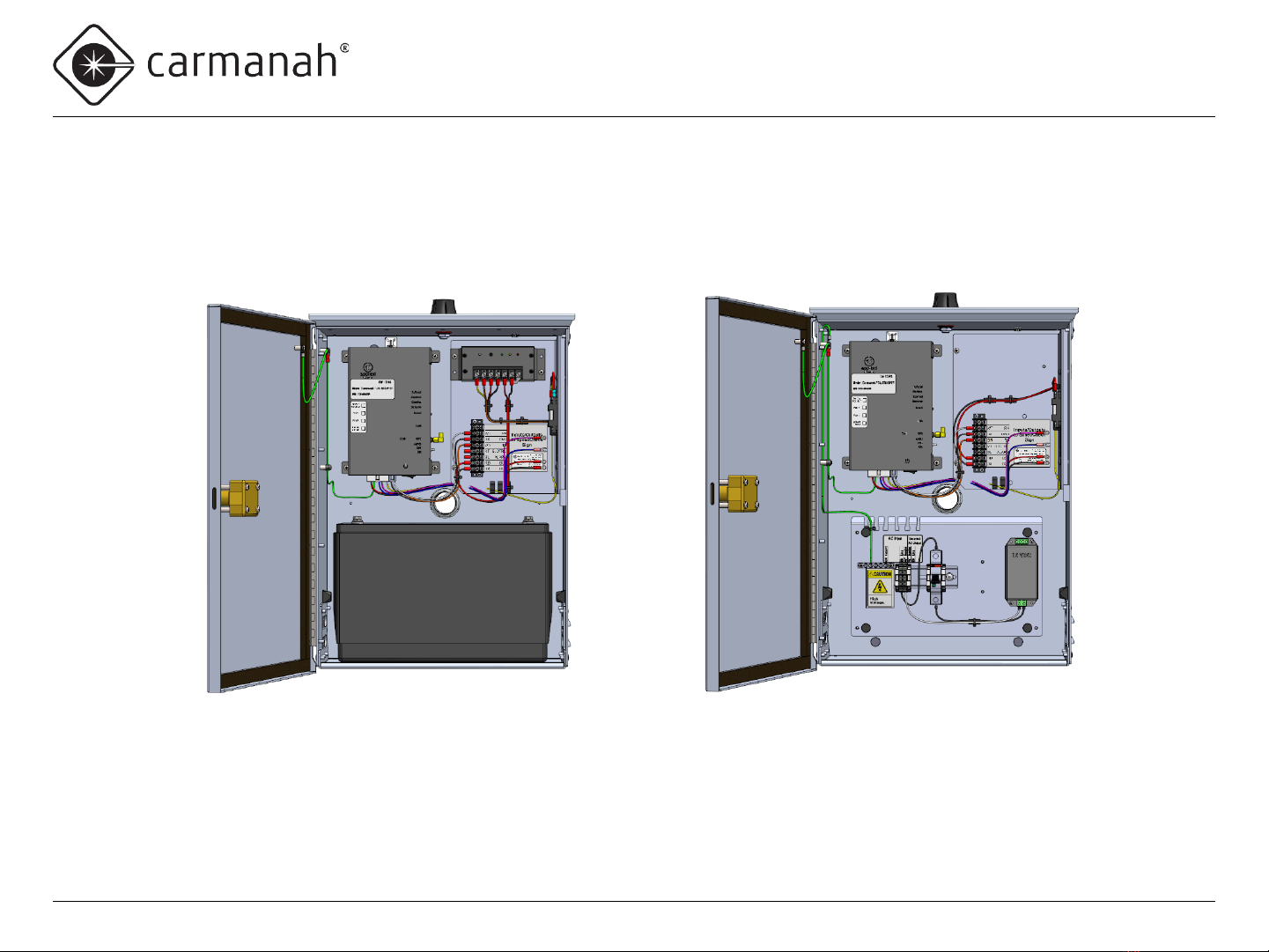

2.1 SpeedCheck-15/18 Cabinet -Main Instructions
SpeedCheck
Solar Cabinet
SpeedCheck
AC Cabinet
Page 8
SPEEDCHECK-15/18
APPLIED INFORMATION (AI) INTEGRATION INSTALL GUIDE
Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com

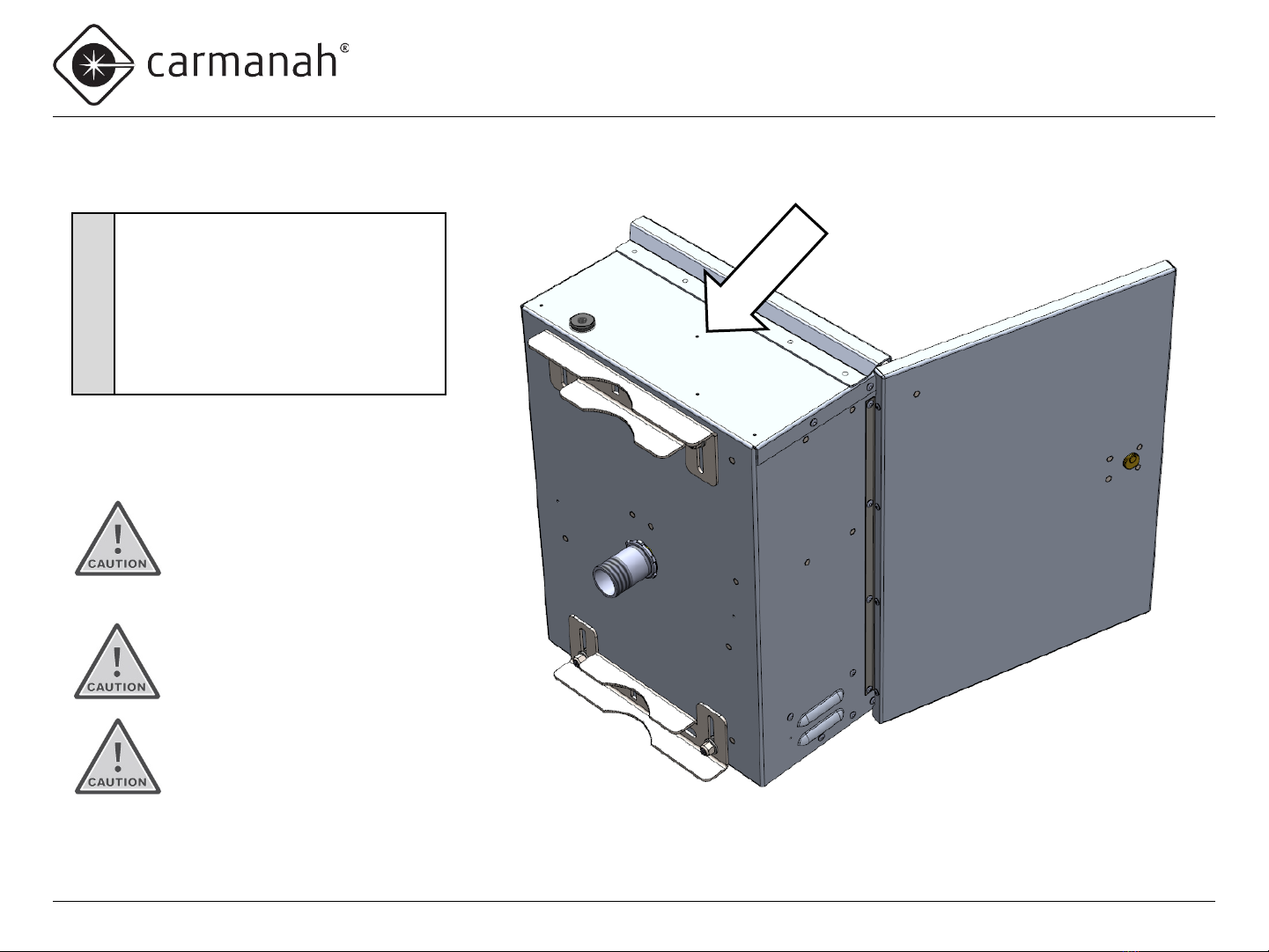

Drill AI Antenna Hole
Ensure the equipment is not
powered during installation.
Recheck all wiring prior to
energizing the system.
1
•Use the indentation in the center of
the cabinet to locate the tip of the
drill bit.
•Drill a ½” hole on top of the
enclosure.
•Deburr hole and remove all
aluminum chips.
Ensure all metal chips are removed
to prevent system damage caused
by short circuits.
Ensure that no burrs are present
that would prevent the antenna
from making a good seal with the
top of the cabinet.
Page 9
SPEEDCHECK-15/18
APPLIED INFORMATION (AI) INTEGRATION INSTALL GUIDE
Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com
Install Antenna
2
•Route antenna coax connector cables into
enclosure hole and through plastic washer, lock
washer and nut.
4•Install 1 cable tie base.
5
•Route coax cables from antenna to cable tie mount and loop 1.5 times
in a counter-clockwise direction.
•Fasten coax to cable tie mount with 1 cable tie. Twist the cable so the
connector ends exit to the right-hand side.
To connectors
Twist
3•Tighten nut securely using crescent wrench.
Page 10
SPEEDCHECK-15/18
APPLIED INFORMATION (AI) INTEGRATION INSTALL GUIDE
Carmanah Technologies Corp. | 250 Bay St, Victoria, BC V9A 3K5, Canada | 1.250.380.0052 | customersupport@carmanah.com | carmanah.com
6
•Drill two 0.196” diameter holes in locations shown below on
right side of cabinet using a #9 ANSI drill bit.
•Use indentation marks to locate the drill bit for the holes.
•Deburr hole on outside and inside and remove all
aluminum chips.
Ensure all metal chips are removed
to prevent system damage caused
by short circuits.
Install Door Switch Kit (optional)
