Case IH BC1813E Bedienungsanleitung

operation manual

BC1813E

electric

pressure washer

93780-LL

3 Introduction

4 Product Information

5 Safety Rules

6 Safety Information

8 Contents

9 Unpacking & Assembly

11 Operation

13 Storage

15 Troubleshooting Chart

16 Parts list & Specs

17 Warranty

table of contents

Using the Operator’s manual

The operating manual is an important part of your Pressure Washer. It

should be read thoroughly before initial use and referred to often to make

sure adequate safety and service concerns are being addressed.

Reading the owner’s manual thoroughly will help avoid any personal injury

or damage to your pump. By knowing how best to operate this machine

you will be better positioned to show others who may also operate the

unit.

You can refer back to the manual at any time to help troubleshoot any

specic operating functions, so store it with the machine at all times.

Attention: Read through the complete

manual prior to the initial use of your

Pressure washer

introduction

product identification

Record Identification Numbers

Pressure washer

If you need to contact an Authorized Dealer or Customer Service line

(1-855-850-6668) for information on servicing, always provide the

product model and identication numbers.

You will need to locate the model and serial number for the pump and

record the information in the places provided below.

Date of Purchase:

Dealer Name:

Dealer Phone:

Product Identification Numbers

Model Number:

Serial Number:

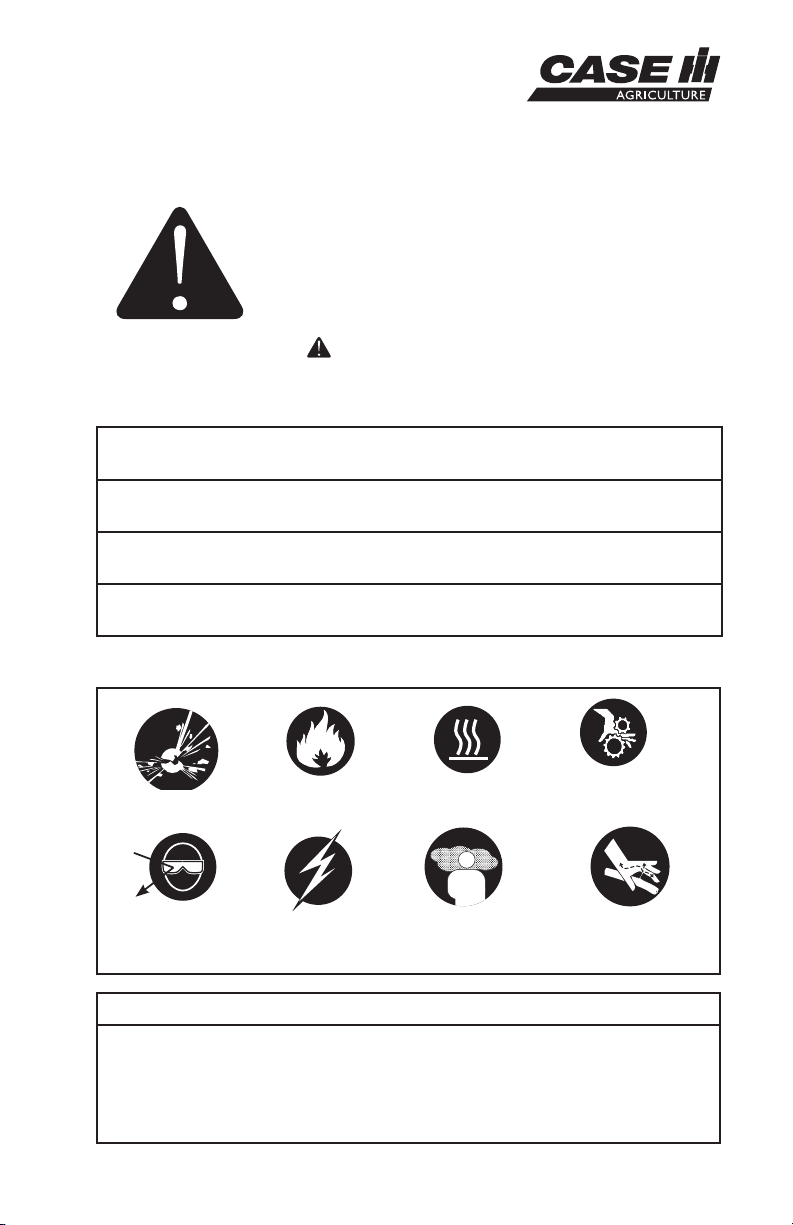

safety

The safety alert symbol ( ) is used with a signal word (DANGER,

CAUTION, WARNING), a pictorial and/or a safety message to alert you

to hazards.

DANGER indicates a hazard which, if not avoided, will result in death or

serious injury.

WARNING indicates a hazard which, if not avoided, could result in

death or serious injury.

CAUTION indicates a hazard which, if not avoided, might result in

minor or moderate injury.

NOTICE indicates a situation that could result in equipment damage.

Follow safety messages to avoid or reduce the risk of injury or death.

Hazard Symbols and Meanings

Save these Instructions

SAFETY RULES

This is the safety alert symbol. It is used

to alert you to potential personal injury

hazards. Obey all safety messages that

follow this symbol to avoid possible injury

or death.

explosion fire

toxic fumes

hot surface

flying objects injection

moving parts

electric

shock

NOTICE

• This pressure washer is equipped with a microswitch sensitive to

water ow. This Total Stop System (TSS) senses water ow in the

pump. When the trigger is released, water stops owing through the

pump. The TSS then automatically turns the motor o to protect the

pump from overheating.

safety

1. WARNING—When using this product basic precautions should always be followed,

including the following:

2. Read all the instructions before using the product.

3. Know how to stop the product and bleed pressures quickly. Be thoroughly familiar

with the controls.

4. Keep operating area clear of all persons.

5. Do not overreach or stand on unstable support. Keep good footing and balance at all

times.

6. Follow the maintenance instructions specied in the manual.

7. To avoid personal injury and/or damage to property and to maximize your power

washing experience, carefully follow all of the safety tips, instructions, warnings and

safeguards and become familiar with all of the controls. Be sure you know how to

quickly bleed o the pressure from all parts of your power washer, and how to turn o

the power washer.

8. This power washer conforms to CSA and other safety and consumer standards. Do

not modify or rebuild any part of your power washer.

9. Do not use your power washer when you are under the inuence of alcohol or drugs.

Use this power tool carefully and only when you are alert .

10. Watch your balance and footing while using your power washer. Surfaces become

slippery when wet and are extra slippery when using a detergent or cleaner.

11. Never operate the power washer in bare feet, sandals, or open-toed shoes.

12. When using the power washer near children make sure they are closely supervised by

an adult to avoid injury. Never let a child use the power washer.

13. Keep ngers, hands, feet and any part of your body clear of the stream of high

pressure water. The powerful spray can cause blindness or blast holes in the skin. It

can break a window if you are too close when you pull the trigger on the spray gun.

14. Always wear eye protection to prevent injury to eyes when operating the power

washer.

15. To avoid mishaps or injury, always use the trigger safety lock when not using the

power washer even if the spraying stops for a moment.

16. The power washer is equipped with a Ground Fault Circuit Interrupter (GFCI) which

greatly reduces the chance of electric shock while the unit is in use. If Replacement

Of The Plug Or Cord Is Needed, Use Only Identical Replacement Parts.

17. Point the spray gun in a safe direction when beginning a power washing session.

18. Warning - Never spray directly at a person, animal, electrical device, or the unit itself.

19. When rst using the spray gun, hold the spray gun and lance with two hands when

pulling the trigger until you get used to the“kick back” from the spray gun (one hand

to pull the trigger and the other to stabilize the gun assembly).

20. When you press the power switch to turn o the power washer, water pressure

may remain in the system. To discharge the pressure, point the spray gun in a safe

direction and pull the trigger.

21. Never spray ammable liquids.

22. Never use the pressure washer in areas that contain combustible dust, liquids, or

vapors.

23. Avoid contact of the pressure hose with sharp objects and examine the hose regularly.

Replace if damaged. Due to the high pressure involved, it cannot be repaired if cut of

damaged.

safety

24. Only use detergent specically formulated for power washers and follow instructions

on the detergent’s label. We have a selection of power washer detergents to choose

from. Go to our website for more information and to order the detergents. Power washer

detergents are also available at your local hardware store.

25. Protect eyes, lungs, and skin from exposure to detergent. Dish or laundry soap is too thick

and will clog the nozzle of your detergent bottle.

26. Warning - If connection is made to a potable water source, the system should be

protected against back ow.

27. IMPORTANT: Store the power washer indoors to prevent the water in the unit from

expanding under freezing conditions. When the water freezes and expands, your

power washer will be damaged and become inoperable. Or, if storing outdoors, it is

recommended you use Pump Saver. Pump Saver can be purchased on our website. See

details in the Pump Saver section of this manual Never use hot water with your power

washer. It will overheat and damage the high pressure pump.

28. Never use hot water with your pressure washer. It will cause it to overheat and damage the

high pressure pump.

29. Never leave the power washer unattended while it is powered“on”.

30. Always turn the water supply“on ” before turning the power washer power to“on”.

Running the pump dry will cause damage to the internal components.

31. Never use a water supply to your power washer that exceeds 150 psi maximum.

32. Never disconnect the high pressure hose from the power washer while the system is

pressurized.

33. Never permanently engage the trigger mechanisms on the spray gun.

34. Never operate the power washer unless all components are properly and securely

connected.

35. Never allow the power washer pump to run for more than one minute, after you have

turned o the water supply. This can cause the motor and pump to overheat and fail.

36. Never use lances or other parts that have not been supplied with your power washer.

37. Never use an extension power cord since it defeats the eectiveness of the GFCI and

increases the chance of electrocuting the operator.

38. Never spray any electrical outlet with your power washer.

39. Inspect the power cord before using. Do not use it if it is damaged.

Servicing of a Double-Insulated Appliance

GROUND FAULT CIRCUIT INTERRUPTER PROTECTION

This pressure washer is provided with a ground-fault circuit-interrupter (GFCI) built into the

plugs of the power-supply cord. This device provides additional protection from the risk of

electric shock. Should replacement of the plug or cord become necessary, use only identical

replacement parts that include GFCI protection.

In a double-insulated product, two systems of insulation are provided instead of grounding.

Grounding means are not provided for a double-insulated product, nor should grounding means

be added to the product.

Servicing a double-insulated product requires extreme care and knowledge of the system, and

should only be done by quailed service personnel. Replacement parts for a double-insulated

product must be identical to the origi-nal parts. A double-insulated product is marked with the

words“Double Insula-tion”or “Double Insulated”. Product may also be marked with symbol

shown here.

contents

1. Pressure Washer Unit

2. Manual

3. Adjustable Spray Nozzle

4. Turbo Lance

5. Spray Gun (5A = Trigger Lock)

6. Detergent Bottle

7. Nozzle Cleaning Tool

8. Soft PVC High-Pressure Hose

9. Garden Hose Adapter

10. Accessory Holder

Contents

for storage use only

unpacking and assembly

• After unpacking the pressure washer, lay

out the parts and accessories. Familiarize

yourself with the parts in the package by

comparing them to those listed on the

“PACKAGE CONTENTS” page.

• The washer requires some minor assembly.

You’ll need a Phillips screwdriver to install the

accessory holders .

• Install the accessory holder on the back of

your washer (Fig. 1). You’ll notice where the

accessory holder meets the back of the unit.

You will see posts and holes enable easy

placement of the accessory holder and easy

tightening of the screws. Place the screws in

the holes provided on the accessory holder

and screw them in. Do not use power tools,

hand tighten instead.

• After installation, you will notice a square area

for easy storage and retrieval of the detergent

bottle (Fig.2).

• Using one of the supplied screws, install the

small electric power cord holder below the

accessory holder so that the “L” - shaped

holder faces downward. The electric

power cord can now be wrapped around

the accessory holder and the bottom “L” -

shaped holder while your power washer is

not in use (Fig. 1).

• Please refer to (Fig. 3) for accessory storage

locations on the accessory holder.

Soft PVC High Pressure Hose

• Screw the Soft PVC high pressure hose (clockwise) on the back of the unit at the bottom (Fig.

4). The end of the hose must be inserted into the water outlet far enough so the collar can

thread onto the outlet threads until hand tight. Do not use pliers or vice grips to tighten. If it

takes fewer than six or so turns you have not properly tightened the Soft PVC high pressure

hose tting. It is easier to position the power washer in front of you so to ensure that the

threads are started correctly. Failure to properly tighten the Soft PVC high pressure hose will

result in the hose slipping or popping o immediately upon turning the unit on. Do not worry

about damage if this occurs -just reinstall and take extra care at screwing on the Soft PVC

high pressure hose tting.

• Connect the other end of the Soft PVC high pressure hose to the spray gun by inserting the

brass metal tip of the Soft PVC high pressure hose into the tting just ahead of the trigger

guard. It will lock into the spray gun with a “click” (Fig. 5). Comrm the hose is locked into the

spray gun by pulling slightly on the hose. The hose is now securely attached to the spray gun.

unpacking and assembly

• To release the hose from the spray gun, press the blue

button on the underside of the gun toward the trigger

guard. The hose will slide out from the connection.

• To lock the trigger of the spray gun aim the gun away

from you and push the lock button from right to left,

(Fig. 6), after doing so, squeeze or pull the trigger to

make sure it is locked and will not move. Get in the

habit of leaving the lock button in the “locked” position

when the power washer is not in use. This ensures the

gun is in “safe” mode until it is ready for use.

• While the spray gun is in the locked position, insert

the turbo lance, the adjustable spray lance, or the

detergent bottle directly into the end of the spray

gun by inserting and pushing together and turning

clockwise simultaneously. To remove push together

and turn counter clockwise (Fig. 7). Push the safety

lock button to lock the trigger when changing lances or

detergent tank, to ensure that they do not accidentally

eject with force during removal.

• When using the turbo lance, make sure the turbo nozzle is screwed on tight at the end of the

lance, each time you use it. The Turbo lance is designed for high impact cleaning. Only use on

hard surfaces such as driveways, cement surfaces, patio bricks, etc. A test strip should be done

prior to avoid chance of damaging the surface.

• When using the adjustable spray lance, the spray pattern and intensity can be controlled

according to power of water needed for each task by twisting the spray nozzle at the far end

of the lance (Fig. 8). These can be used for sweeping leaves or debris from at surfaces or

curbing. This lance has the widest variety of applications as the fan degree allows for good

impact pressure and cleaning coverage. When using the detergent bottle, ll it with a properly

formulated detergent or cleaner with water ratio according to instructions on the container (Fig.

9). The detergent bottle comes with a straw which is tted into the screw-on top. If you do not

see the straw, looking inside the bottle and attach it to the screw-on top (Fig. 10).

• NOTE: the ratio of water to detergent is 10:1 or 10 parts water to 1 part detergent.

Spray Gun

Lance and Detergent Bottle

Andere Case IH Hochdruckreiniger Handbücher

Case IH

Case IH BC2314EN Bedienungsanleitung

Beliebte Hochdruckreiniger Handbücher anderer Marken

Shark

Shark RG-232637 Bedienungsanleitung

Shakti Technology

Shakti Technology S3 Bedienungsanleitung

Kärcher

Kärcher K 4 Pure Bedienungsanleitung

Porter-Cable

Porter-Cable D25806-025-2 Bedienungsanleitung

REM POWER

REM POWER HDEm 662 Bedienungsanleitung

Landa

Landa HS-3000 Bedienungsanleitung

Craftsman

Craftsman 580.752270 Bedienungsanleitung

HIKOKI

HIKOKI AW 100 Bedienungsanleitung

Delco

Delco DC 1302 Bedienungsanleitung

Kärcher

Kärcher K 3 Full Control Bedienungsanleitung

BIEMMEDUE

BIEMMEDUE 120/10 - 170/13 Bedienungsanleitung

ARKSEN

ARKSEN 014-HG-14141-HR Bedienungsanleitung

Black & Decker

Black & Decker PW1700SPX Bedienungsanleitung

Kärcher

Kärcher 595 - SPARE Leitfaden

Kranzle

Kranzle B 10 200 Bedienungsanleitung

Stihl

Stihl RE 90 Bedienungsanleitung

Husky

Husky HU80911 Bedienungsanleitung

PowR-Quip

PowR-Quip PQ-2600 Bedienungsanleitung
