Cateye CC-AT200W Bedienungsanleitung

CATEYE ADVENTURE

CC-AT200W

Quick Start

Click the button and follow the in-

structions.

START

Thank you for purchasing our cyclocomputer CATEYE ADVENTURE.

This Quick Start Manual explains how to set up the computer and how to install the

unit on your bicycle.

Please set up the unit according to the speciﬁed procedure, then it will be ready for use

as a cyclocomputer.

Before use, read the instruction manual that comes with the product

thoroughly to the end to understand the functions of this unit, and to use it

safely in a correct manner.

This PDF contains a movie ﬁle.

When you click on the movie screen, a message regarding security appears. Click the

“Trust in the text” or “Play” button to close the message.

Click the screen again to play the movie.

CATEYE ADVENTURE

Quick Start Manual Contents

Click the item you wish to view.

Return to a Cover

Setting up the computer

How to install the speed sensor (Movie)

Sea level altitude correction

How to install the bracket (Movie)

Operation of buttons

Set up the computer by operating the buttons as follows.

Check the button position before you start setting up.

Press the MODE button on the back of

the computer.

Press the SSE button on the face of the

computer and the MODE button on the

back simultaneously.

Click

MODE SSE +MODE

CATEYE ADVENTURE

Quick Start Manual Setting up the computer

Setting the speed unit

Entering the tire circumference

Searching the sensor ID

Setting the clock display

Measuring screen

(Setup completed)

Setting the temperature unit

Setting the hour

Setting the minute

Formatting operation Formatting operation

Press the MENU button on the back of the computer

and the AC button simultaneously.

Press and hold the* MENU button until you release

the AC button.

After full lighting of the screen, the computer switch-

es to the speed unit setting screen to start setup.

ACAC

Full lighting Setting the speed unit

Return to Contents

Return

CATEYE ADVENTURE

Quick Start Manual Setting up the computer

Entering the tire circumference

Searching the sensor ID

Setting the clock display

Measuring screen

(Setup completed)

Setting the temperature unit

Setting the hour

Setting the minute

Setting the speed unit

Formatting operation

Setting the speed unit

When the MODE button is pressed, either “km/h” or “mph”

is selected for the speed unit display. Select the display of

your choice.

After selecting, press the SSE button and the MODE but-

ton simultaneously to proceed to the next step “Setting

the temperature unit”.

MODE

SSE

MODE

km/h ↔mph To the next step

(Press SSE / MODE simultaneously)

Return to Contents

Return

CATEYE ADVENTURE

Quick Start Manual Setting up the computer

Entering the tire circumference

Searching the sensor ID

Setting the clock display

Measuring screen

(Setup completed)

Setting the hour

Setting the minute

Setting the temperature unit

Setting the speed unit

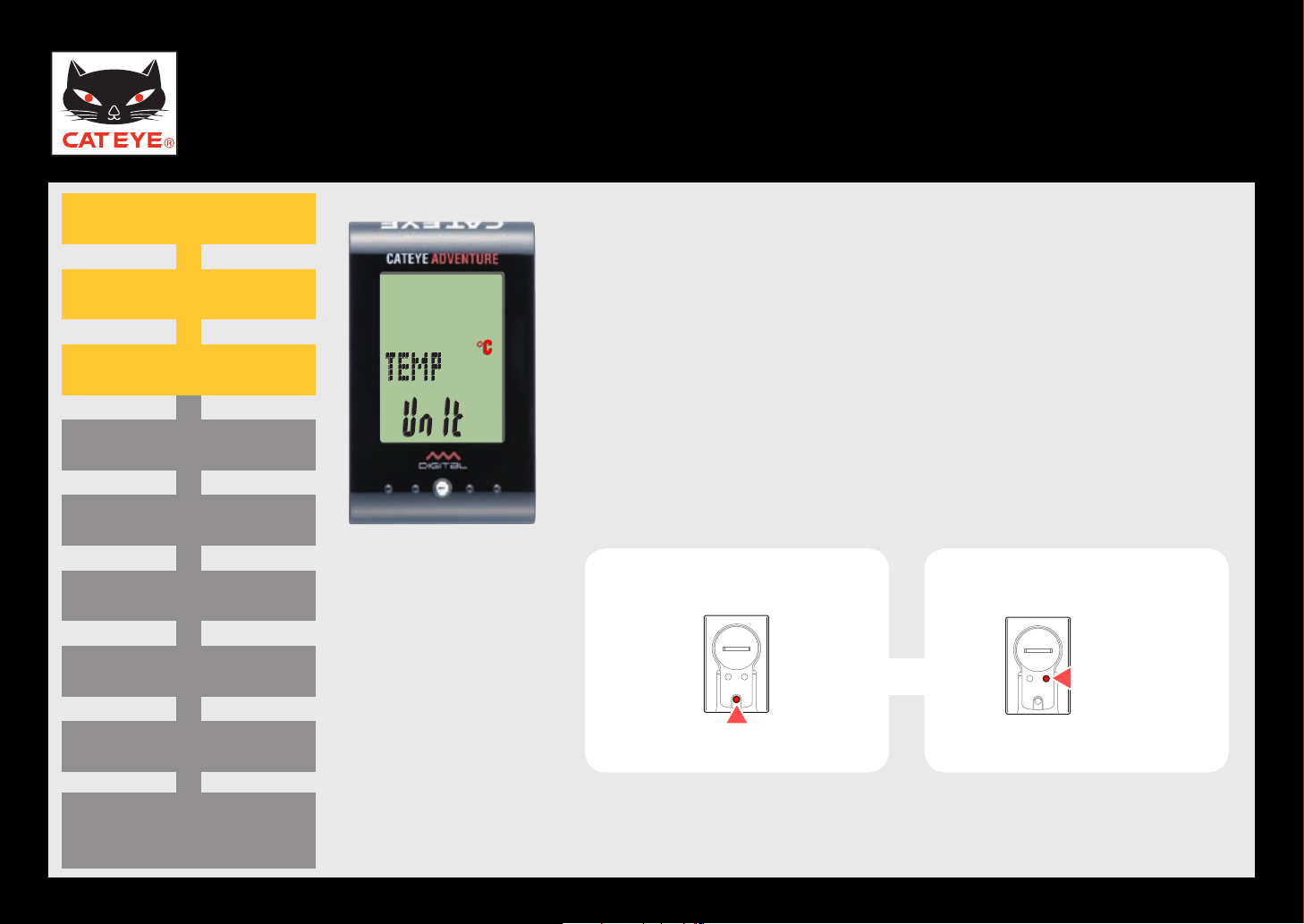

Formatting operation Setting the temperature unit

When the MODE button is pressed, either “°C” (Celsius)

or “°F” (Fahrenheit) is selected for the temperature unit

display. Select the display of your choice.

After selecting, press the MENU button to proceed to the

next step “Entering the tire circumference”.

Setting the tempera-

ture unit

To the next step

MODE

˚C ↔˚F

Return to Contents

Return

CATEYE ADVENTURE

Quick Start Manual Setting up the computer

Searching the sensor ID

Setting the clock display

Measuring screen

(Setup completed)

Setting the hour

Setting the minute

Entering the tire circumference

Setting the temperature unit

Setting the speed unit

Formatting operation Entering the tire circumference

Enter the tire circumference (mm) of your bicycle with 4

digits using the tire circumference reference table.

Pressing the MODE button increases the value ﬂashing,

and pressing the SSE button and the MODE button simul-

taneously moves to the next digit.

After entering, press the MENU button to proceed to the

next step “Searching the sensor ID”.

Entering the tire

circumference

MODE

SSE

MODE

Increase the value Move digit

(Press SSE / MODE

simultaneously)

To the next step

Return to Contents

Return

Tire circum-

ference refer-

ence table

CATEYE ADVENTURE

Quick Start Manual Setting up the computer

Setting the clock display

Measuring screen

(Setup completed)

Setting the hour

Setting the minute

Searching the sensor ID

(1/2)

Entering the tire circumference

Setting the temperature unit

Setting the speed unit

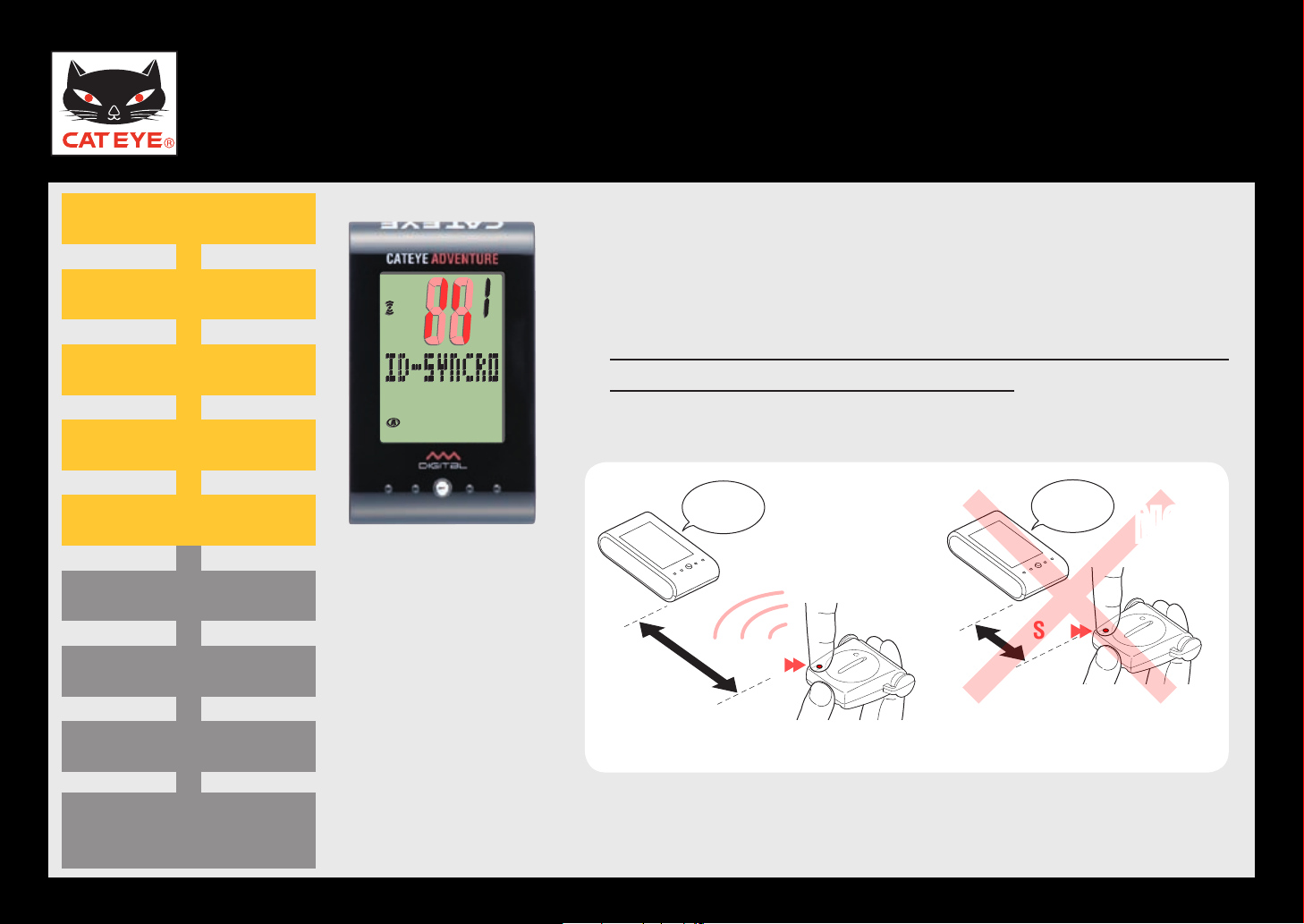

Formatting operation Searching the sensor ID

Keep the computer 30 cm (12”) away from the sensor,

and press and hold the RESET button of the sensor.

A sensor ID signal is sent when you release the* RESET

button after pressing and holding it.

RESETRESET

...

RESETRESET

NO!

Under going search

of the sensor ID

Keep about 30 cm (12”) away. Distance is too close or too far.

Return to Contents

Return

Searching the

sensor ID

(Movie)
