SAFETY PRECAUTIONS

The installation should be made by qualified service personnel or system installers and should

conform to all local codes.

1. Power supply

(1) Use only with a 24V AC power supply marked class 2 or +12V DC regulated power supply

marked class 2.

(2) To prevent fire or electrical shock, UL listed class 2 wiring should be used for the 12VDC or

24VAC input terminal.

(3) Be sure to connect each lead to the appropriate terminal. Wrong connection may cause

malfunction and/or damage to the video camera.

2. Operating and storage locations

(1) Do not attempt to aim the camera at the sun or other extremely bright objects that cause

smear to appear irrespective of whether the camera is operating or not. This can damage

the CCD(Charge Coupled Device).

(2) Do not place the camera in the following locations.

a) Locations subjected to extremely high or low temperatures.

(operating temperature range : -10°C to +50°C {14°F to 122°F})

(storage temperature range : -20°C to +60°C {-4°F to 140°F})

b) Locations subjected to high levels of humidity and dust.

(operating humidity range:max 85% {no condensation})

(storage humidity range : max 85% {no condensation})

c) Locations where there are large amounts of water vapour and steam

d) Ensure the location selected is sufficiently strong enough to support the weight of the camera

and is free from vibration.

(3) When this camera is installed near equipment, like a wireless communication device, that

emits a strong electromagnetic field, some irregularity such as noise on the monitor screen

may happen.

(4) Be sure to use screws suitable for the type of material to which the camera is being mounted.

3. Handling of the unit

Do not allow the camera to be subjected to strong impacts or shocks. The camera could be

damaged by improper handling or storage.

- Never attempt to disassemble or modify the camera.

- If an abnormality should occur, immediately turn off the power and consult your dealer.

The CE Marking is a Directive Conformity mark of the European Union (EU).

EG-3

CANCEL

AWB

INT

PHASE

MENUENTER

S-VIDEO

DOWN

VIDEO

AC 24V

DC 12V

- + REMOTE/RS232C

Menu button: Displays and erases Menu Screen.

Up button: Move the cursor up.

Down button: Move the cursor down.

Enter button: Select the mode.

Cancel button: Exit to Main Menu.

BNC connector:

Composite Video output

S-Video: Y/C output

Power: 12VDC or 24VAC

AF button: One-push AF

Int./L.L.:

Internal Sync mode/Line Lock

mode switchable.

Remote Control:

D-sub 9 pin controls RS-232C and

Lens Direct Control from standard lens

controller.

Phase Adjustment:

Line Lock phase adjustment.

AWB:

One-push White balance

EG-4

D-sub 9 pin:Pin No.1: not used.

No.2: RD (RS-232C)

No.3: SD (RS-232C)

No.4: not used

No.5: Ground (RS-232C)

No.6: Ground for Lens Control

No.7: Iris (+Close)

No.8: Focus (+Near)

No.9: Zoom (+Tele)

a) Lens Control: Pin No.6/7/8/9

Min. 2V / Max. 12V

Absolute Max. Regulated Voltage: 16V DC

543

REAR PANEL

REMOTE CONTROL

±±

b) RS-232C Interface: Pin No.2/3/5

Communication Method: Full Duplex

Communication Rate: 9600bps

Transmission Method: bit serial

(binary data)

8 bit fixed

start bit=1, stop bit=1

No parity bit

OSD (On Screen Display) Operation

1) Menu button:

Push Menu button, and following screen will apear.

EG-5

Blinking title is your choice at

present. The blinking item

goes up and down by pushing

"UP"/"DOWN" buttons. After

selecting the title, push "Enter"

to set.

After you finish your settings,

push "Menu" button to exit.

Push "Cancel" button to go

back to Main Menu while

adjusting.

2) PRESET:

You can set 64 different Zoom/Focus positions.

How to preset:

a) First, obtain the desired picture by using "ZOOM" and/or "FOCUS".

b) Then, go back to "Main Menu", and select "PRESET".

c) Push "Enter" twice and select "Position" 1 through 64, and push "Enter".

d) Move the cursor down to "SET" and push "Enter".

e) Repeat a) to d) to set Max. 64 positions.

f) to operate the Preset position:

f-1) Select "PRESET", and push "Enter" twice.

f-2) Select Position (1 through 64) by "UP" or "DOWN" button, and push "Enter".

f-3) Move the cursor down to "RECALL" and push "Enter".

f-4) Repeat f-1) to f-3) to choose other positions.

Communication protocol: start/stop system,

original process

Error Recovery: No error detection,

Re-transmission

by PC

Flow Control: No

3) ZOOM:

a) Select "ZOOM" in Main Menu by pushing "Enter" button.

b) Select "Tele/Wide" by pushing "Enter" button.

c) Move the cursor down to "TELE", and push "Enter" twice to zoom in.

Push "Enter" again to stop zooming in.

d) When you would like to zoom out, push "Enter" once, and then push "UP" button.

Then, you switch to "WIDE". Push "Enter" to zoom out and push "Enter" again to stop

zooming out.

Electronic Zoom: a) Select "ZOOM" in Main Menu, and push "Enter".

b) Push "Enter" again. Then, "E. ZOOM" is blinking.

c) Push "Enter", and then select "off, 4X, or 8X" by pushing "UP" or

"DOWN" button. Then, push "Enter" to set.

Zoom Speed: a) Select "ZOOM" in Main Menu, and push "Enter".

b) Push "Enter", and move the cursor down to "SPEED".

c) Push "Enter", and select Speed between "0" (slowest) to "7" (fastest)

by pushing "UP" or "DOWN" button.

d) Push "Enter" to set.

EG-6

POSITION : 1 through 64

RECALL: move to preset postion.

SET: record the position.

RESET: back to factory setting.

RESET ALL:put all positions back to factory settings.

g) to Reset the particular Preset position back to factory setting.

g-1)Select "PRESET", and push "Enter" twice.

g-2)Select particular Preset Position (1 through 64) by "UP" or "DOWN" button, and

push "Enter".

g-3)Move the cursor down to "RESET" and push "Enter".

g-4)Repeat g-1) to g-3) to reset other positions.

h) to Reset all the positions (64 positions) back to factory settings.

h-1)Select "PRESET", and push "Enter" once.

h-2)Move the cursor down to "RESET ALL", and push "Enter".

EG-7



TELE/WIDE: setting by TELE/WIDE

DIRECT: setting by input the number

E.ZOOM: Digital Zoom ON (x 4, x 8) / OFF setup

SPEED: speed of TELE/WIDE setup

TELE/WIDE: TELE/WIDE setup

POSITION: input a hexadecimal number (on DIRECT)

4) FOCUS:

a) Select "FOCUS" in Main Menu by pushing "Enter" button.

b) Select "AF, FAR/NEAR, DIRECT, ONE-PUSH, INFINITY".

AF mode: a)Push "Enter", and select "SENSE(AF Sensitivity)" to High or Low by "UP"

(Auto Focus) or "DOWN" button, and push "Enter" to set.

FAR/NEAR: a)Select "FAR/NEAR" by pushing "Enter" button.

b)Push "Enter" again and move the cursor down to "FAR".

c)Push "Enter" again. Then, "FAR" is blinking, and select "FAR" or "NEAR"

by pushing "UP" or "DOWN" button.

d)Push "Enter" to start Focus movement, and push "Enter" again to stop.

Focus Speed: a)Select "FAR/NEAR" by pushing "Enter" button, and "SPEED" is blinking.

b)Push "Enter", and select Speed between "0" (slowest) to "7"(fastest) by

pushing "UP" or "DOWN" button.

c)Push "Enter" to set.

DIRECT: a)Select "DIRECT".

b)You can set the focus position by Hexadecimal number.

ONE-PUSH: One-Push AF button.

INFINITY: Set to "Infinity" focus."

SENSE: Select Sensitivity between HIGH/LOW. This can be controlled only during

AF mode.

AF: Auto Focus

FAR/NEAR: setting by FAR/NEAR

DIRECT: setting by input a numerical number

ONE-PUSH: one-push Auto Focus

INFINITY: forced infinity

SPEED: speed of FAR/NEAR

SENSE: sensitivity of Auto Focus

FAR/NEAR: FAR/NEAR setting

POSITION: input a hexadecimal number (on DIRECT)

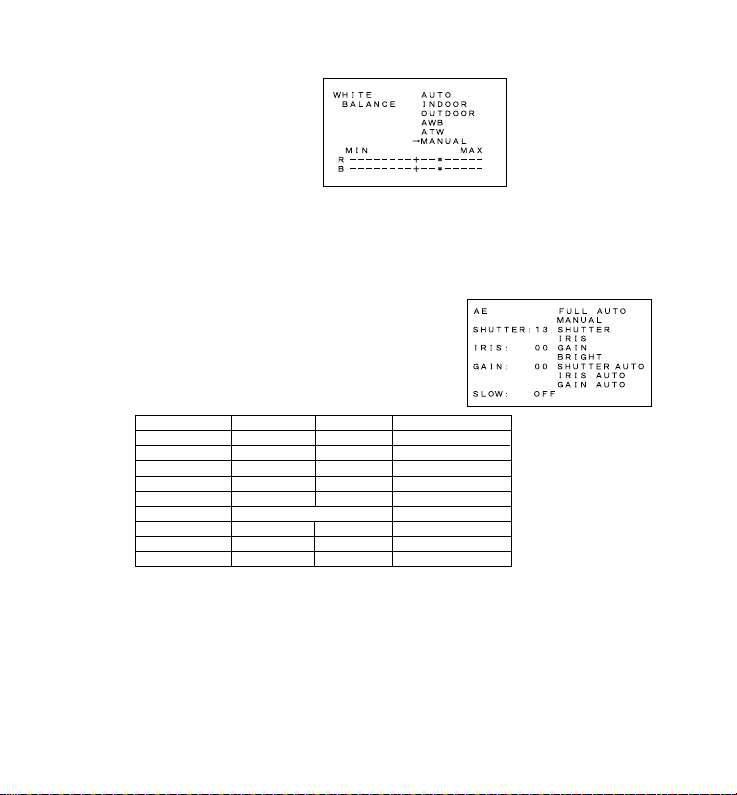

5) WHITE BALANCE:

Select from:AUTO: 3200-6000K

INDOOR: 3200K

OUTDOOR: 5800K

AWB: one-push AWB

ATW: 2000-10000K

MANUAL: R/B setting

and push "Enter" to set.

MANUAL: a) Push "Enter" button.

b) Adjust "R" & "B" by "UP" or "DOWN" button.

6) AE:

Select from:FULL AUTO

MANUAL

SHUTTER:Shutter Priority

IRIS: Iris Priority

GAIN: Gain Priority

Slow Shutter Mode: This is frame integration mode, which is suitable for getting bright picture in

darkness. But this is not suitable for fast moving object.

a) Select "FULL AUTO" mode, and push "Enter".

b) Select "Slow : off" or "Slow : on" by "UP" or "DOWN" button.

c) Push "Enter" to set.

When you select the mode other than AE, please select desirable level for SHUTTER/ IRIS/GAIN

by pushing "UP" or "DOWN" button.



Choose which white

balance is used.

R/B gain setting

(on MANUAL)

Mode Iris Gain Shutter

FULL AUTO Auto Auto fixed (1/50 or 1/60)

MANUAL 18 steps 8 steps 20 steps

SHUTTER Auto Auto 20 steps

IRIS 18 steps Auto Auto

GAIN Auto 8 steps fixed (1/50 or 1/60)

BRIGHT 24 combinations of Iris/Gain. fixed

SHUTTER AUTO 18 steps 8 steps Auto

IRIS AUTO Auto 8 steps 20 steps

GAIN AUTO 18 steps Auto 20 steps

Please refer as follows how each mode operates:

EG-8

BRIGHT

SHUTTER AUTO

IRIS AUTO

GAIN AUTO

Bright combination of IRIS

and GAIN

Step IRIS Gain

1CLOSE 0dB

2F22

3F19

4F16

5F14

6F11

7F9.6

8F8

9F6.8

10 F5.6

11 F4.8

12 F4

13 F3.4

14 F2.8

15 F2.4

16 F2

17 F1.6

18 OPEN 0dB

19 3dB

20 6dB

21 9dB

22 12dB

23 15dB

24 OPEN 18dB

EG-9

Please refer to the following table regarding the 2 digit data for

IRIS/SHUTTER/GAIN/BRIGHT/EXP.COMP.

IRIS

Step Data IRIS

100 CLOSE

201 F22

302 F19

403 F16

504 F14

605 F11

706 F9.6

807 F8

908 F6.8

10 09 F5.6

11 0A F4.8

12 0B F4

13 0C F3.4

14 0D F2.8

15 0E F2.4

16 0F F2

17 10 F1.6

18 11 OPEN

Shutter

Step Data Shutter

100 1/4

201 1/8

302 1/15

403 1/30

504 1/60

605 1/90

706 1/100

807 1/125

908 1/180

10 09 1/250

11 0A 1/350

12 0B 1/500

13 0C 1/725

14 0D 1/1000

15 0E 1/1500

16 0F 1/2000

17 10 1/3000

18 11 1/4000

19 12 1/5000

20 13 1/10000

Gain

Step Data Gain

100 -3dB

201 0dB

302 3dB

403 6dB

504 9dB

605 12dB

706 15dB

807 18dB

Exp.Comp.

Step Gain

1-10.5dB

2-9dB

3-7.5dB

4-6dB

5-4.5dB

6-3dB

7-1.5dB

80dB

91.5dB

10 3dB

11 4.5dB

12 6dB

13 7.5dB

14 9dB

15 10.5dB

EG-10



→ＯＮ



7) EXP.COMP.:

To set up AGC level.

a) Select "EXPCOMP" and push "Enter".

b) Select "ON".

c) Adjust the level by "UP" or "DOWN"

button.

d) Push "Enter" to set.

8) BACK LIGHT:

To select "Back Light Compensation" On or OFF.

a) Select "BACK LIGHT" and push "Enter".

b) Select "ON" or "OFF" by "UP" or "DOWN"

button.

c) Push "Enter" to set.

9) ENHANCER:

To select the level of Edge Enhancement

(soft or sharp).

a) Select "ENHANCER" and push "Enter".

b) Adjust to Soft or Sharp by "UP" or

"DOWN" button.

c) Push "Enter" to set.

10) CHROMA:

To select "Chroma gain" level.

a) Select "CHROMA" and push "Enter".

b) Adjust "Chroma gain" by "UP" or

"DOWN" button.

c) Push "Enter" to set.

Gain setup (on Manual)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere CBC Sicherheitskamera Handbücher

CBC

CBC Megapixel Camera Bedienungsanleitung

CBC

CBC ZN-D MTP Series Gebrauchsanweisung

CBC

CBC CX Series Bedienungsanleitung

CBC

CBC GANZ Z8-VD2V-2 Bedienungsanleitung

CBC

CBC C-IR0409-40 Series Bedienungsanleitung

CBC

CBC ZN-MDI2 M-IR Series Gebrauchsanweisung

CBC

CBC Ganz ZC-NH406P Bedienungsanleitung

CBC

CBC CL-301 Bedienungsanleitung

CBC

CBC ZC-F11C4 Bedienungsanleitung

CBC

CBC ZN-BxMTP Series Gebrauchsanweisung

CBC

CBC PT127N-XT Bedienungsanleitung

CBC

CBC PT127N Bedienungsanleitung

CBC

CBC PT127N Bedienungsanleitung

CBC

CBC PT110-IP Bedienungsanleitung

CBC

CBC PT127N-XT Bedienungsanleitung

CBC

CBC PT110N Bedienungsanleitung

CBC

CBC ZC-PT212 Bedienungsanleitung

CBC

CBC ZC-D4000 Series Bedienungsanleitung

CBC

CBC ZN-MB2 Series Gebrauchsanweisung

CBC

CBC PT118XT-HD Bedienungsanleitung

CBC

CBC ZN-DT Series Gebrauchsanweisung

CBC

CBC ZC-D3024PHA Bedienungsanleitung

CBC

CBC ZC-F10C1 Bedienungsanleitung

CBC

CBC ZN-C Series Gebrauchsanweisung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
