Speed Dome Camera Instruction Manual

All manuals and user guides at all-guides.com

Speed Dome Camera Instruction Manual 3/47

Important Safeguard

1. Read Instructions

Read all of the safety and operating instructions before using the product.

2. Retain Instructions

Save these instructions for future reference.

3. Attachments / Accessories

Do not use attachments or accessories unless recommended by the appliance manufacturer as they may

cause hazards, damage product and void warranty.

4. Water and Moisture

Do not use this product near water or moisture.

Installation

Do not place or moun

installed product may f y

with a mounting devic oper

mounting, follow the manufacturer's instructions and use only mounting accessories recommended by

manufacturer.

Power source

This product should be

t this product in or on an unstable or improperly supported location. Improperly

all, causing serious injury to a child or adult, and damage to the product. Use onl

e recommended by the manufacturer, or sold with the product. To insure pr

operated only from the type of power source indicated on the marking label.

Precautions

Operating

zBefore using, make sure power supply and others are properly connected.

zWhile operating, if any abnormal condition or malfunction is observed, stop using the camera

immediately and then contact your local dealer.

Handling

zDo not disassemble or tamper with parts in he camera.

zDo not drop or subject the camera to shock and vibration as this can damage camera.

zCare must be taken when you clean the clear dome cover. Especially, scratch and dust will ruin your

quality of camera.

Installation and Storage

zDo not install the camera in areas of extreme temperature, which exceed the allowable range.

zAvoid installing in humid or dusty places.

zAvoid installing in places where radiation is present.

zAvoid installing in places where there are strong magnetic fields and electric signals.

zAvoid installing in places where the camera would be subject to strong vibrations.

zNever expose the camera to rain and water.

NOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICENOTICE

side t

All manuals and user guides at all-guides.com

Speed Dome Camera Instruction Manual 4/47

○

1Introduction

Features

Product & Accessories

Parts Name & Functions

○

2Installation

assembling / AssemblingTerminal Cover Dis

DIP Switch Setup

Direct Installation on the Ceiling

Installation using In-Ceiling Mount Bracket

Installation using Ceiling Mount Bracket

sing Wall Mount BracketInstallation u

Cabling

○

3Operation

Checking Before Operation

Preset and Pattern Function Pre-Check

Start OSD Menu

Reserved Preset

Preset

Swing

Pattern

Group

Other Motion Functions

OSD Display of Main Screen

○

4How to use OSD Menu

General Rules of Menu Operation

Main Menu

Display Menu for Main Screen

Privacy Zone Mask Setup

Camera Module Setup

Motion Setup

Preset Setup

Swing Setup

Pattern Setup

Group Setup

System Initialize

○

5Specifications

Dimension

CONTENTS

All manuals and user guides at all-guides.com

Speed Dome Camera Instruction Manual 5/47

Feat ure s

Camera Specifications

zCCD Sensor : 1/4" Super HAD color

zZoom Magnification : ×27 Optical Zoom, ×12 Di

zDay & Night Functi

zVarious Focus Mode : Auto-Focus / Manual Focus /

zIndependent & Simul

Powerful Pan/Tilt Functions

zMax. 360°/sec high speed Pan/Tilt Motion

zUsing Vector Drive Technology, Pan/Tilt motions d in a shortest path. As a result,

time to target view is reduced drama

zFor jog operation using a

to locate camera to desired target view. Addition

with zoom-proportional pan/tilt movement.

Preset, Pattern, Swing, Group, Privacy Mask and More…

zMAX. 127 Presets are assignable and characteristics of e ,

such as White Balance, Auto Exposure, La

zMax. 8 set of Swing action can be sto o

preset positions with designated sp

zMax. 4 of Patterns can be rec

trajectory operated by joystick as closely as possible

zMax. 8 set of Group action can be h

combination of Preset or Pattern or Swing

Preset/Pattern/Swings.

zPrivacy Masks are assignable, not to intrude on othe

INTR 1

ODUCTION

CCD

gital Zoom (Max ×324 Zoom)

Semi-Auto Focus.

taneous Camera Characteristic Setup in Preset operation

are accomplishe

tically and the video on the monitor is very natural to watch.

controller, since ultra slow speed 0.05°/sec can be reached, it is very easy

ally it is easy to move camera to a desired position

ach preset can be set up independently

bel, Digital Outputs and so on.

red. This enables to move camera repetitively between tw

eed.

orded and played back. This enables to move camera to follow any

stored. This enables to move camera repetitively wit

. A Group is composed of max. 20 entities of

r’s privacy. (8 Privacy Zones)

All manuals and user guides at all-guides.com

INTRODUCTION

/Zoom) Control

zWith RS-485 communication, max. 255 of cameras can be controlled at the same time.

o-P protocol can be selected as a control protocol in the current version of firmware.

to display the status of camera and to configure the functions interactively.

d Preset can be displayed on

elays are available.

n be set to move to the corresponding Preset position.

Meanwhile, the output relay can be matched to some specific Preset positions to do counteractions

such as turning on the light or sound the alarm.

zMost camera characteristics can be set up easily and directly with reserved preset, not entering

PTZ(Pan/Tilt

zPelco-D or Pelc

OSD(On Screen Display) Menu

zOSD menu is provided

zThe information such as Camera ID, Pan/Tilt Angle, Alarm I/O an

screen.

Alarm I/O Functions

z4 alarm sensor Inputs and 2 alarm Output r

zTo reject external electric noise and shock perfectly, alarm sensor Input is decoupled with photo

coupler and the relay is used for alarm output.

zThe signal range of sensor input is from DC 5.0 to 12.0 volts to adopt various applications.

Meanwhile, the maximum load of relay contact is AC 250V, 3A or DC 28V, 3A.

zIf an external sensor is activated, camera ca

Reserved Presets for Special Purpose

into OSD menu. For more information, refer to “Reserved Preset” in this manual.

6/47

Speed Dome Camera Instruction Manual

All manuals and user guides at all-guides.com

all-guides.com

INTRODUCTION

Product & Accessories

Product & Accessories

zScrews

Options

zMain Body / Terminal Cover zDome Cover

zFflush Mount Model(FMK4) zPendant Mount Model(PMK4) zWall mount Model(WMK4)

7/47

Speed Dome Camera Instruction Manual

All manuals and user guides at all-guides.com

INTRODUCTION 1

Parts Name & Functions

Dome Cover

Lockup Scre

Drop Prevention

Spring

Terminal Cover

Drop Prevention

Hook

Fuse

Cabling

Terminal Bloc

Main Body

Connector

Mounting Hole

zMain Body / Terminal Cover zTerminal Cover

zDome Cover Do not detach protection vinyl from dome cover before finishing all

installation process to protect dome cover from scratches or dust.

zTerminal Cover This is used to install the camera directly on the ceiling or attach to the

other brackets such as in-ceiling, ceiling and wall mount. After

separating this cover first and then attach this directly to ceiling o to

the other bracket. Camera m st be assembled at the last stage.

Drop Prevention Hook

his ro

maintenance. After install the Terminal Cover, please, hang the spring

to the drop prevention hook of main body as shown in picture for

further tasks.

zLockup Screw After assembling Terminal Cover to main body, screw Terminal Cover

to main body to protect them from separation by vibration and so on.

zFuse If the fuse is burnt to protect your came from over-current damage, the

fuse have to be replace with new one. The fuse specification is 250V 2A.

However, we recommend consulting with supplier to remove the cause

of over-current.

zCabling Terminal Block During installation, Power, Video, Communication, Alarm I/O cables are

connected on to this cabling terminal block.

Drop Prevention Spring T part keeps the camera from d pping during installation and

8/47

Speed Dome Camera Instruction Manual

All manuals and user guides at all-guides.com

INSTALLATION

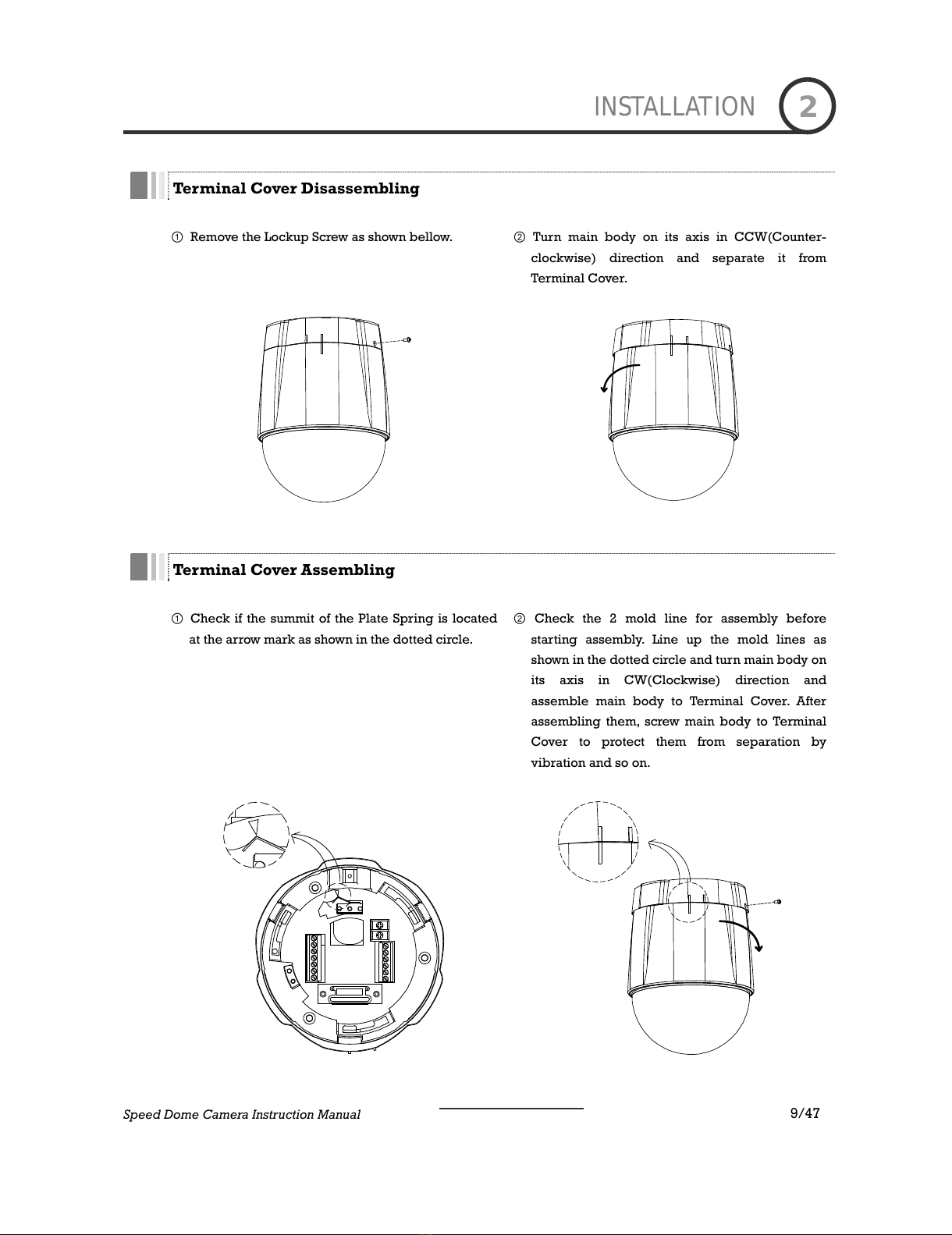

Terminal Cover Disassembling

①Remove the Lockup Screw as shown bellow. ②Turn main body on its axis in CCW(Counter-

clockwise) direction and separate it from

Terminal Cover.

Terminal Cover Assembling

①Check if the su ated

at the arrow mark as shown in the dotted circle.

②Check the 2 m bly before

starting assembly. Line up the mold lines as

and

assemble main body to Terminal Cover. After

mmit of the Plate Spring is loc old line for assem

shown in the dotted circle and turn main body on

its axis in CW(Clockwise) direction

assembling them, screw main body to Terminal

Cover to protect them from separation by

vibration and so on.

9/47

Speed Dome Camera Instruction Manual

All manuals and user guides at all-guides.com

INSTALLATION

DIP Switch Setup

Be e DIP s

protocol. Do not use the ISP connector. (Authorized person

fore you install the camera, you should set th witches to configure the camera ID, communication

only !)

Communication

Protocol Camera ID

ON ON

ADDRESS (ID)

OPTIONS

1 2 4 8 16 32 64 128

00000000

Refer to

the Manual

N.C

N.O

ISP connector

(for System Upgrade)

(Normal Close)

(Normal Open)

Terminal

Resistor

Camera ID Setup

Speed Dome Camera Instruction Manual 10/47

123456

zID number of camera is set using binary number. The example is

zThe range of ID is

shown bellow.

1~255. Do not use 0 as camera ID. Factory

D is 1.

ol a certain camera, you must match the camera

ing of DVR or Controller.

default of Camera I

zIf you want to contr

ID with Cam ID sett

1 2 3 4Pin 1 2 3 4 5 6 7 8 Pin

5 6 7 8

ID 1 2 4 8 16 32 64

128

ID 1 2 4 8 16 32 64 128

1 on off off off off off off off 11 on

off

on off off off off

2 off on off off off off off

off 12 off

off

on off off off off

3 on on off off off off off off 13 on

off

on off off off off

4 off off on off off off off

off 14 off

on off off off off

5 on off on off off off off off 15 on

on off off off Off

6 off on on off off off off

off 16 off

off

off on off off off

7 on on on off off off off off 17 on

off

off on off off off

8 off off off on off off off

off 18 off

off

off on off off off

9 on off off on off off off off 19 on

off

Off

on off off off

off

20 off10 off on off on off off off on off on off off off

off

All manuals and user guides at all-guides.com

Andere Handbücher für PT127N

Inhaltsverzeichnis

Andere CBC Sicherheitskamera Handbücher

CBC

CBC ZN-C Series Gebrauchsanweisung

CBC

CBC ZN-DT Series Gebrauchsanweisung

CBC

CBC ZN-M2AF Gebrauchsanweisung

CBC

CBC CL-301 Bedienungsanleitung

CBC

CBC ZN-MDI243M-IR Gebrauchsanweisung

CBC

CBC PT118XT-HD Bedienungsanleitung

CBC

CBC ZC-F10C1 Bedienungsanleitung

CBC

CBC ZC-F11C4 Bedienungsanleitung

CBC

CBC ZN-MDI2 M-IR Series Gebrauchsanweisung

CBC

CBC ZN-B2MTP Gebrauchsanweisung

CBC

CBC AFZC-22X Bedienungsanleitung

CBC

CBC ZN-MB2 Series Gebrauchsanweisung

CBC

CBC GANZ ZC-NH406PE Bedienungsanleitung

CBC

CBC ZC-D3024PHA Bedienungsanleitung

CBC

CBC PT110-IP Bedienungsanleitung

CBC

CBC Megapixel Camera Bedienungsanleitung

CBC

CBC CX Series Bedienungsanleitung

CBC

CBC ZC-D4000 Series Bedienungsanleitung

CBC

CBC PT112N Bedienungsanleitung

CBC

CBC C-IR0409-40 Series Bedienungsanleitung

CBC

CBC PT127N-XT Bedienungsanleitung

CBC

CBC ZN-D MTP Series Gebrauchsanweisung

CBC

CBC Ganz ZC-NH406P Bedienungsanleitung

CBC

CBC LC703 Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
