HVG620 & HVG720 Gas Hob
Manual for Installation, Use and Maintenance
2
Important
The manufacturer cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product.
Please note that we reserve the right to invalidate the guarantee
supplied with this product following incorrect installation or misuse of
the appliance.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have had
supervision or instructions on how to use the appliance by someone
who is responsible for their safety.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified
personnel.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
CE Declarations of Conformity:
This appliance has been manufactured to the strictest standards and
complies with all applicable legislation, including Gas safety, Electrical
3
safety (LVD) and Electromagnetic interference compatibility (EMC).
Parts intended to come into contact with food conform to EEC/89/109.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must be taken to a special
local authority waste collection centre or to a dealer providing
appliance recycling services.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both energy
and resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out
wheeled dustbin.
Please note:
• Gas hobs become hot and remain hot during and immediately after
use. Do not touch the pan stands, burners or hob spill tray until the
appliance has been allowed to cool.
• Keep children away from the appliance when in use.
• After use, please ensure that the gas taps are in the ‘O” position.
• Ensure that the appliance is correctly adjusted for the type of gas
available before installation.
• The use of a gas appliance produces heat and humidity in the room
in which it is installed. Ensure that the room is well ventilated, either
by the use of natural ventilation outlets (e.g. windows) or a ducted
extractor.
4
• This hob (Class 3) has been designed for use only as a cooking
appliance. Any other use (e.g. heating rooms) should be considered
incorrect and potentially dangerous.
• These instructions are valid only for the countries of destination, the
symbols of which appear on the cover and on the appliance .
Using your hob

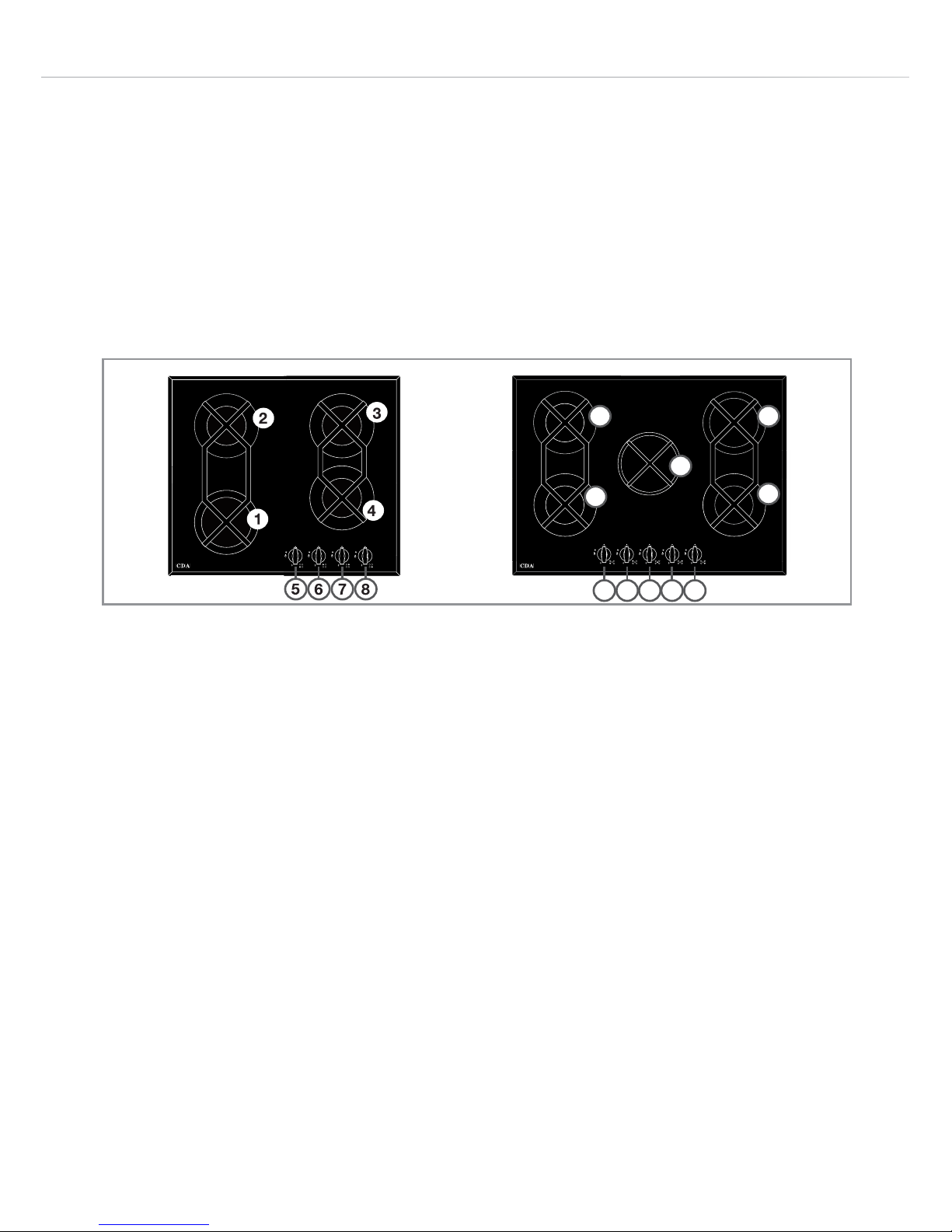

fig. 1
Gas burners:
1. Rapid burner 3.0kW
2.Left Semi-Rapid burner 1.75kW
3.Right Semi-Rapid burner 1.75kW
4.Auxiliary burner 1.0kW
Control panel:
5.Rapid burner control knob
6.Left Semi-Rapid burner control
knob
7. Right Semi-Rapid burner control
knob
8.Auxiliary burner control knob
Gas burners:
9. Auxiliary burner 1.0kW
10.Rapid burner 3.0kW
11.Rear semi-rapid burner 1.75kW
12.Front semi-rapid burner 1.75kW
13.Triple Ring / Wok burner 3.8kW
Control panel:
14.Auxiliary burner control knob
15.Rapid burner control knob
16.Triple Ring / Wok control knob
17.Rear semi-rapid burner control
knob
18.Front semi-rapid burner control
knob
10
9
11
12
13
14 15 16 17 18
5
Gas burners:
Gas flow to the burners is controlled by the control knobs (5, 6, 7 and
8 or 14, 15, 16, 17 and 18 on the diagram above). There are 3 positions
shown on the
control panel. Turning the control knob to the positions shown below
achieves the following:
Closed (OFF position)
Maximum position: Provides fast boiling function
Minimum position: Provides simmer function
The hob can be set to the desired position by turning the control knob
through the adjustment range in an anti-clockwise direction.
This appliance is class 3
Control knob graphics
6
Igniting the Burners
The hob is fitted with a flame failure device. Flame failure devices
operate by shutting o the supply of gas to the burner in the event
that the flame is extinguished accidentally.
To ignite the burners, follow these
instructions:
1. Lightly press the control knob down
and turn the knob anticlockwise to the
maximum position. Firmly press and
hold down the control knob to begin
the ignition process (a clicking sound
will be heard). Hold down the control knob for a few seconds after
ignition to allow the safety device to detect that the burner is lit.
2.Once the burner is lit, adjust the burner power to the required
position.
The hob is fitted with a flame failure device. Hold down the control
knob for a few seconds after ignition to allow the safety device
to detect that the burner is lit. Flame failure devices operate by
shutting o the supply of gas to the burner in the event that the
flame is extinguished accidentally.
Please note:
• The ignition device should not be operated for more than 15
seconds.
fig. 2
7
• If a burner does not ignite, or turns o accidentally, turn the control
knob to the ‘o’ position, and wait for one minute before attempting
to reignite the burner.
• If the burner does not ignite, repeat the ignition process with the
burner at the minimum position.
Ecient use of your Hob
The hob is equipped with burners
of dierent sizes, designed to
accommodate most shapes and sizes
of pan. For best results, only use
pans with flat bottoms and choose an
appropriate burner depending on the
size of the pan. The most ecient use
of the hob is shown below, where the
pan and burner are correctly chosen.
Ensure that the pans do not overlap the
edge of the pan stand, or cover the
control panel.
The table below shows the sizes of pan
that should be used with each burner:
Burner Size Minimum Pan Diameter (cm) Maximum Pan Diameter (cm)
Auxiliary 12 14
Semi-Rapid 14 20
Rapid 18 24
Triple ring / Wok 24 26
fig. 3
8
Care and Maintenence
As the hob has a glass surface, you should use a nonabrasive cleaner.
Any abrasive cleaner (including Cif) will scratch the surface and could
erase the control panel markings. Glass can be eectively cleaned by
simply using a dilute solution of water and mild detergent and drying
to a shine with a clean cloth.
The enamelled parts of hobs are not suitable for cleaning in
dishwashers; these should be washed by hand
IMPORTANT:
• Steam cleaners must not be used when cleaning this appliance.
• Ensure that all parts are correctly replaced after cleaning before
attempting to use the hob.
• After removing the pan stands, ensure the rubber pads are in place
on the base of the pan stand before repositioning the pan stands
straight and level on the hob.
What to do if you smell gas:
1. Open doors and windows
2. Turn the gas supply o
3. Call TRANSCO on : 0800 111 999
9
Burner Size Nominal Rating
(kW)
Simmer Rating
(kW)
LPG Flow Rate (lh-1)
G30 G31
Auxiliary 1.0 0.6 72.8 71.5
Semi-Rapid 1.75 0.8 134.6 132.2
Rapid 3.0 1.2 218.8 214.8
Triple ring/wok 3.8 2.6 277 272
Total rated gas input : 7.5kW (HVG620), 11.3kW (HVG720)
Mains electrical voltage: 230 – 240Vac, 50Hz
Total rated electrical consumption: 1.1W
If your Hob is not working
1. Check that the mains supply has not been switched o.
2. Check that the fuse in the spur has not blown.
3. Ensure that the burner components are not excessively soiled as
this can lead to ignition problems.
10
Mains Electricity Connection
THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY
BY A COMPETENT PERSON, USING FIXED WIRING VIA A
DOUBLE POLE SWITCHED FUSE SPUR OUTLET AND PROTECTED
BY A 3A FUSE.
We recommend that the appliance is
connected by a qualified electrician,
who is a member of the N.I.C.E.I.C. and
who will comply
with the I.E.E. and local regulations.
The wires in the mains lead of this
appliance are coloured in accordance
with the following code:
Green & Yellow = Earth, Blue = Neutral, Brown = Live.
As the colours of the wires in the mains lead for the appliance may
not correspond with the coloured markings identifying the terminals
connecting to the fuse spur, proceed as follows:
• The wire which is coloured green and yellow must be connected to
the terminal marked E (Earth) or coloured green.
• The wire which is coloured blue must be connected to the terminal
marked N (Neutral), or coloured black.
• The wire which is coloured brown must be connected to the
terminal marked L (Live), or coloured red.
Note: Use a 3A Fuse
DOUBLE POLE SWITCHED
FUSE SPUR OUTLET
USE A 3 AMP FUSE
