CDA HVG980 Kurzanleitung

www.cda.eu

HVG980

Five Burner Gas Hob

Installation, use and maintenance

Contents:

3 Important

5 Important Notes

6 Using Your Hob

7 Switching the appliance on (and operating the lock)

8 Igniting the burners

8 Ecient use of your hob

9 Care and maintenance

11 Troubleshooting

12 What to do if you smell gas

15 Mains Electricity Connection

16 Technical Information

17 Gas Supply Requirements

18 Ventilation

18 Natural Gas to LPG Conversion

19 LPG to Natural Gas Conversion

20 Fitting the hob

21 How to install the hob

22 Installation diagrams

23 Energy Eciency Information

Important

The CDA Group Ltd cannot be held responsible for injuries or

losses caused by incorrect use or installation of this product.

Please note that CDA reserve the right to invalidate the guarantee

supplied with this product following incorrect installation or misuse

of the appliance or use in a commercial environment.

This appliance is not designed to be used by people (including

children) with reduced physical, sensorial or mental capacity, or

who lack experience or knowledge about it, unless they have

had supervision or instructions on how to use the appliance by

someone who is responsible for their safety.

Under no circumstances should any external covers be removed

for servicing or maintenance except by suitably qualiﬁed

personnel.

Appliance information:

Please enter the details on the appliance rating plate below for

reference, to assist CDA Customer Care in the event of a fault

with your appliance and to register your appliance for guarantee

purposes.

Appliance Model

Serial Number

EU Declarations of Conformity

This appliance has been manufactured to the strictest standards

and complies with all applicable legislation, including Electrical

safety (LVD) 2014/35/EU and Electromagnetic interference

compatibility (EMC) 2014/30/EU. Parts intended to come into

contact with food conform to 1935/2004/EC.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE

PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU.

At the end of its working life, the product must be taken to a

special local authority waste collection centre or to a dealer

providing appliance recycling services.

Disposing of a household appliance separately avoids possible

negative consequences for the environment and health. It also

enables the constituent materials to be recovered, saving both

energy and resources. As a reminder of the need to dispose of

household appliances separately, the product is marked with a

crossed-out wheeled dustbin.

Important Notes

Please note:

• Gas hobs become hot and remain hot during and immediately after

use. We strongly advise that you do not touch the hob, nor any of

its components, until it has been allowed to cool. If wiping away a

spillage, please take every care not to burn yourself.

• Keep children away from the appliance when in use.

• After use, ensure the control knobs are in the o position.

• Never use the hob top for storage.

• Pan handles should never stand out beyond the edge of the

worktop. This will help to ensure children cannot reach them.

• Ensure that the appliance is correctly adjusted for the type of gas

available before installation.

• The use of a gas appliance produces heat and humidity in the

room in which it is installed. Ensure that the room is well ventilated,

either by the use of natural ventilation outlets (e.g. windows) or an

externally ducted extractor.

• Do not lean over the hob when it is in use.

• Follow the cleaning instructions carefully.

• Ensure the base of any saucepan is clean and dry before placing it

on the hob.

• This hob (Class 3) has been designed for use only as a cooking

appliance. Any other use (e.g. heating rooms) should be

considered incorrect and therefore dangerous.

• The appliance is not intended to be operated by any means of an

external timer or separate remote-control system.

This appliance is class GB II2H3+

Using your hob

Burners

1. Medium burner 2.0kW

2. Large burner 3.0kW

3. Medium burner 2.0kW

4. Auxiliary burner 1.0kW

5. Ultra large burner 4.0kW

Control knobs

6. Front left

7. Back left

8. Central

9. Back right

10. Front right

Fig.1 6789

Fig.2

Gas burners

Gas ﬂow to the burners is controlled by the control knobs (6, 7, 8, 9

and 10 in Fig. 1). There are 3 positions shown on the control panel

(Fig. 2). Turning the control knob to the positions shown below

achieves the following:

Closed (switches gas valve and burner o)

Maximum position (highest heat level) & ignition

position

Minimum position (lowest heat level)

When switching a burner on, the knobs should always be turned in

an anticlockwise (left) direction from the closed/o position.

Switching the appliance on

Upon ﬁrst connection to the power supply, or after a power cut or

other interruption in the mains supply, the safety key lock function is

activated. Touching either sensor when the lock is active will cause

the display to ﬂash.

Using the lock and switching the appliance on

•Touch and hold the key sensor on the control panel (C in Fig.

1) for approximately 6 seconds until the indicator next to the on/

o sensor illuminates. The burners are now ready to use.

•Touch and hold the on/o sensor on the control panel for

approximately 2 seconds to switch the hob on and o.

•Touch and hold the key sensor for approximately 6 seconds

to activate the lock when no burners are in use.

Igniting the gas burners

This hob’s burners are ﬁtted with automatic reignition. In the event of

a burner being extinguished whilst running, the hob will relight said

burner.

To ignite the burners

Simply twist the desired burner’s control knob anticlockwise (left) to

the desired heat level position (anywhere between large and small

ﬂame symbols). The automatic ignition should light the burner.

Please note:

•The ignition should not operate (clicking constantly) for more

than 15 seconds at a time. If it does, please switch the hob o

and try again. However, wait for one minute before attempting

to reignite the burner. If the burner does not ignite, repeat the

ignition process with the control knob at the minimum position.

•If a burner continues to not ignite, please follow the trouble-

shooting section on page 11.

Control panel indicators

The control panel has a cluster of indicators that serve as an

indication of which zones are active and also act as residual heat

indicators. After a burner has been used for a certain time, the red

indicator for that zone will stay lit for some time after use to alert the

user that the zone is still hot to the touch.

Ecient use of your hob

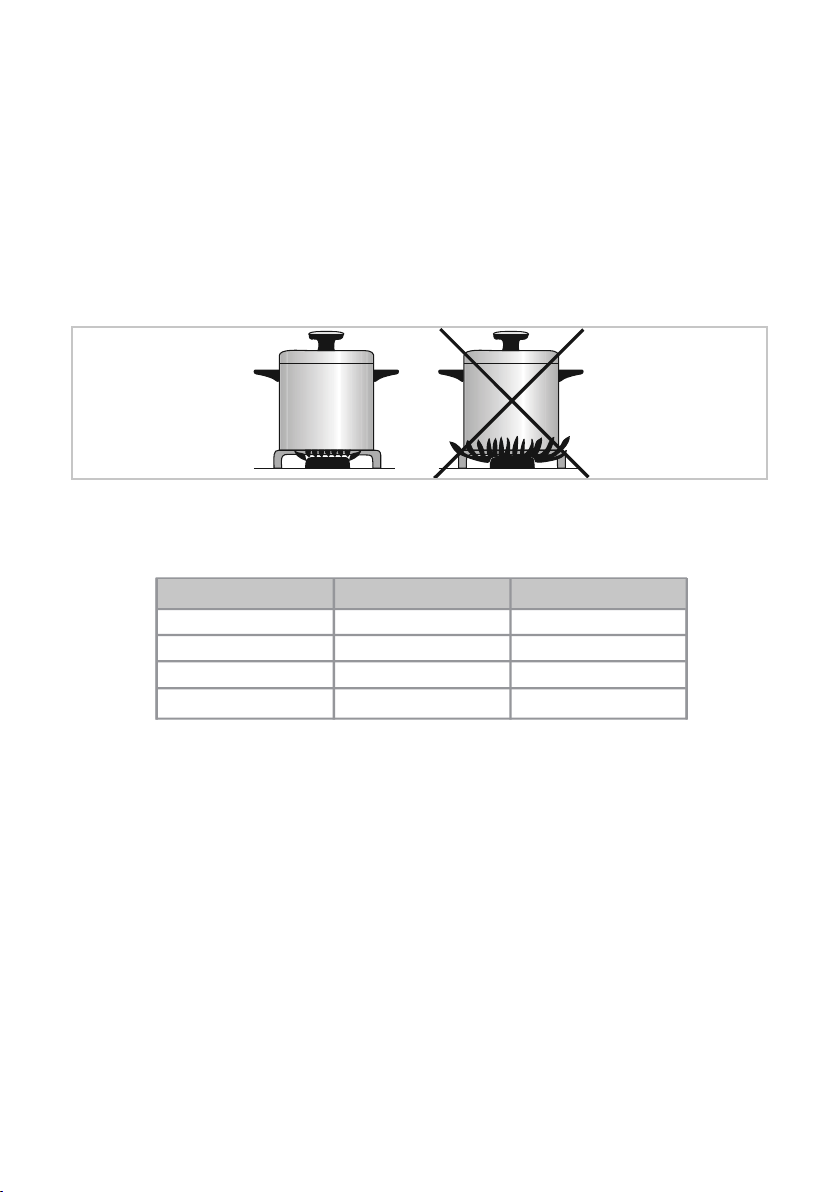

The hob is equipped with burners of dierent sizes, designed to

accommodate most sizes of pan. For best results, only use pans

with ﬂat bottoms and choose an appropriate burner depending

on the size of the pan. The most ecient use of the hob is shown

below, where the pan and burner are correctly chosen.

•Use pan lids where possible to minimize the energy usage of

your appliance.

•Ensure that the pans do not overlap the edges of the pan

stands, nor cover the control panel.

The table below shows the sizes of pan that should be used with

each burner:

Care and maintenance

The hob has a glass and a stainless steel surface. Due to this you

should use a non-abrasive cleaner. Any abrasive cleaner (including

Cif) will scratch the surfaces and could erase the control panel

markings. Stainless steel can be eectively cleaned by simply using

a dilute solution of water and washing up liquid, and drying to a shine

with a clean cloth.

•Over time with use, the stainless steel surface may discolour;

this is normal and does not constitute a fault with this appliance.

Proprietary stainless steel cleaners are available.

Fig. 3

Auxiliary

Medium

Large

Ultra large

Burner Minimum Maximum

90mm

160mm

220mm

240mm

150mm

220mm

260mm

280mm

• The cast iron parts of hobs (pan stands and burner caps on this

model) are not suitable for cleaning in dishwashers. They should

be washed by hand and dried thoroughly with a clean, dry cloth.

•A glass cleaning guide is below:

Type of residue Clean with Cleaning advice

Light Cleaning sponge

and soft cloth

Wipe over the zone to be cleaned

with a sponge and hot water, and

then wipe o with a soft dry cloth.

Accumulated

baked-on stains/

dirt, sugar spills or

melted plastics

Cleaning sponge

or glass scraper

and soft cloth

Wipe over the zone to be cleaned

with a sponge and hot water, using a

ceramic scraper to remove any large

marks or stains and then wipe o

with a soft dry cloth.

Rings and hard

water residues

White vinegar and

soft cloth

Pour a small amount of warm white

vinegar onto the stain, leave it to

stand, and then wipe o with a soft

dry cloth.

Shiny metallic

streaks

Cleaning agent for

tempered glass

Use specialist tempered glass clean-

er (preferably one with silicone for its

protective properties)

9 fast frying steaks

IMPORTANT:

•Steam cleaners must not be used when cleaning this appliance.

•Ensure that all parts are correctly replaced after cleaning and

before attempting to use the hob.

•After removing the pan stands, ensure the rubber feet on the

undersides are in place and not contaminated with dirt/grit before

replacing the pan stands.

•If water enters the ignition candle area, this can cause them to

click constantly. This is not necessarily a fault. Switch the mains

power supply o and wait for the water to dry up.
