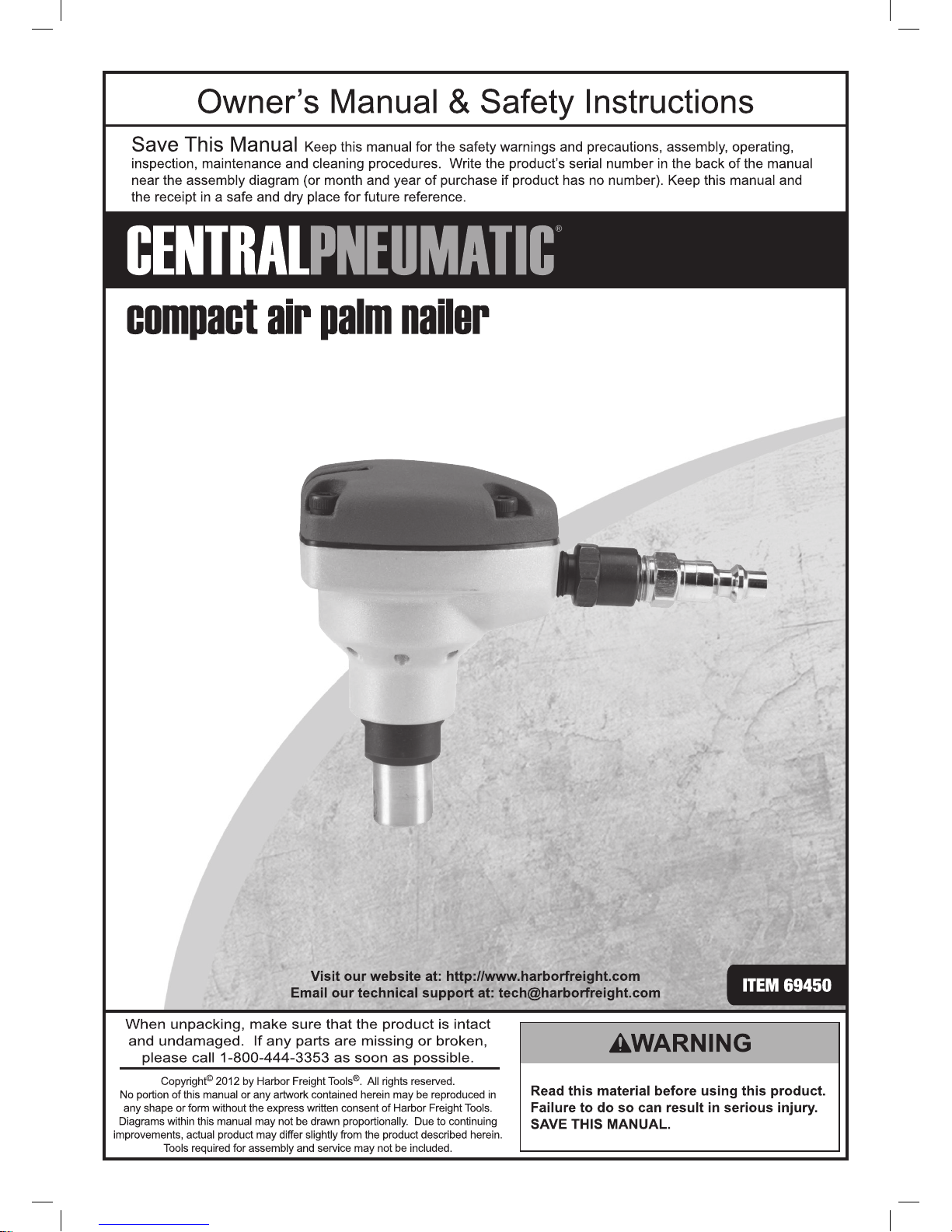

Central Pneumatic 69450 Bedienungsanleitung

Page 2 For technical questions, please call 1-800-444-3353. Item 69450

Table of Contents

Safety ......................................................... 2

Specifications ............................................. 6

Setup .......................................................... 7

Operation................................................... 10

Maintenance.............................................. 11

Parts List and Diagram.............................. 14

Warranty .................................................... 15

WARNING SYMBOLS AND DEFINITIONS

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol to avoid possible injury or death.

Indicates a hazardous situation which, if not avoided,

will result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in death or serious injury.

Indicates a hazardous situation which, if not avoided,

could result in minor or moderate injury.

Addresses practices not related to personal injury.

Symbol Property or statement

PSI Pounds per square inch of pressure

CFM Cubic Feet per Minute flow

SCFM Cubic Feet per Minute flow

at standard conditions

NPT National pipe thread, tapered

NPS National pipe thread, straight

WARNING marking concerning

Risk of Eye Injury. Wear ANSI-approved

safety goggles with side shields.

Symbol Property or statement

Warning marking concerning

Risk of Puncture Injury.

Wear heavy-duty work gloves.

Read the manual before

set-up and/or use.

WARNING marking concerning

Risk of Hearing Loss.

Wear hearing protection.

WARNING marking concerning

Risk of Respiratory Injury. Wear

NIOSH-approved dust mask/respirator.

WARNING marking concerning

Risk of Explosion.

Table A: Symbol Definitions

SAFETY OPERATION MAINTENANCESETUP

Page 3For technical questions, please call 1-800-444-3353.Item 69450

IMPORTANT SAFETY INSTRUCTIONS

INSTRUCTIONS PERTAINING TO A RISK OF FIRE,

ELECTRIC SHOCK, OR INJURY TO PERSONS

WARNING – When using tools, basic precautions should always be followed, including the following:

General

a. To reduce the risks of electric shock,

fire, and injury to persons, read all the

instructions before using the tool.

Work area

a. Keep the work area clean and well lighted.

Cluttered benches and dark areas increase the

risks of electric shock, fire, and injury to persons.

b. Do not operate the tool in explosive atmospheres,

such as in the presence of flammable liquids,

gases, or dust. The tool is able to create sparks

resulting in the ignition of the dust or fumes.

c. Keep bystanders, children, and visitors away

while operating the tool. Distractions are able

to result in the loss of control of the tool.

Personal safety

a. Stay alert. Watch what you are doing and

use common sense when operating the tool.

Do not use the tool while tired or under the

influence of drugs, alcohol, or medication.

A moment of inattention while operating the

tool increases the risk of injury to persons.

b. Dress properly. Do not wear loose clothing or

jewelry. Contain long hair. Keep hair, clothing, and

gloves away from moving parts. Loose clothes,

jewelry, or long hair increases the risk of injury to

persons as a result of being caught in moving parts.

c. Do not overreach. Keep proper

footing and balance at all times.

Proper footing and balance enables better

control of the tool in unexpected situations.

d. Use safety equipment.

A dust mask, non-skid safety shoes and

a hard hat must be used for the

applicable conditions. Wear heavy-duty

work gloves during use.

e. Always wear eye protection.

Wear ANSI-approved safety goggles

with side shields.

f. Do not attach the hose or tool to your body.

Attach the hose to the structure to reduce the

risk of loss of balance if the hose shifts.

g. WARNING – Do not fire fastener on top of another

fastener. This is able to cause the fastener to be

deflected and hit someone, or cause the tool to

react and result in a risk of injury to persons.

SAFETYOPERATIONMAINTENANCE SETUP

Page 4 For technical questions, please call 1-800-444-3353. Item 69450

Tool use and care

a. Use clamps or another practical way to secure

and support the workpiece to a stable platform.

Holding the work by hand or against the body

is unstable and can lead to loss of control.

b. Do not force the tool. Use the correct tool for the

application. The correct tool will do the job better

and safer at the rate for which the tool is designed.

c. Disconnect the tool from the air source before

making adjustments, doing tool maintenance,

or leaving work area. Such precautionary

measures reduce the risk of injury to persons.

d. Store the tool when it is idle out of reach

of children and other untrained persons.

A tool is dangerous in the hands of untrained users.

e. Maintain the tool with care.

A properly maintained tool reduces the risk

of binding and is easier to control.

f. Check for misalignment or binding of moving

parts, breakage of parts, and any other condition

that affects the tool’s operation. If damaged, have

the tool serviced before using. Many accidents

are caused by poorly maintained tools.

There is a risk of bursting if the tool is damaged.

g. Use only those fasteners listed in the

Specifications chart of this manual.

Fasteners not identified for use with this tool by the

tool manufacturer are able to result in a risk of injury

to persons or tool damage when used in this tool.

Service

a. Tool service must be performed only

by qualified repair personnel.

b. When servicing a tool, use only identical

replacement parts. Use only authorized parts.

c. Use only the lubricants supplied with the

tool or specified by the manufacturer.

Air source

a. Never connect to an air source that is

capable of exceeding 200 PSI.

Over pressurizing the tool may cause

bursting, abnormal operation, breakage

of the tool or serious injury to persons.

Use only clean, dry, regulated compressed air at the

rated pressure or within the rated pressure range as

marked on the tool. Always verify prior to using the

tool that the air source has been adjusted to the rated

air pressure or within the rated air-pressure range.

b. Never use oxygen, carbon dioxide, combustible

gases or any bottled gas as an air source

for the tool. Such gases are capable of

explosion and serious injury to persons.

Specific Safety Instructions

1. Operators and others in work area MUST

wear ANSI-approved safety goggles with

side shields during use. The employer is

responsible to enforce the use of eye protection

by the operator and others in the work area.

2. Do not point the tool toward yourself or anyone

whether it contains fasteners or not.

3. Do not actuate the tool unless the tool is

placed firmly against the workpiece.

4. Respect the tool as a working implement.

5. No horseplay. This tool is not a toy

and can be deadly if misused.

6. Do not remove, tamper with, or otherwise cause

the tool operating controls to become inoperable.

7. Do not operate the tool if any portion of

the tool operating controls is inoperable,

disconnected, altered, or not working properly.

8. Disconnect the tool from the air supply when:

a. Unattended.

b. Performing any maintenance or repair.

c. Moving the tool to a new location.

9. Do not make any modifications to this tool.

10. Refer to the tool maintenance instructions for detailed

information on the proper maintenance of the tool.

11. Fire fasteners into an appropriate work surface only.

Do not attempt to fire fasteners into surfaces too

hard to penetrate. Do not drive fasteners on top

of other fasteners, or at too steep of an angle.

SAFETY OPERATION MAINTENANCESETUP

Page 5For technical questions, please call 1-800-444-3353.Item 69450

Fasteners can ricochet causing personal injury.

12. Do not fire fasteners too close to the edge of

a workpiece. They may split the workpiece

and fly free, causing personal injury.

13. Keep clear of the workpiece near the area being

fastened. Fasteners may bend sideways during

firing, causing them to exit the workpiece at an

unexpected point, causing personal injury.

14. Transport tool safely. Always disconnect

air supply when moving the tool.

15. Hold tool away from head and body. During operation

the tool may kick back causing injury.

16. Do not fire fasteners into a workpiece that has people,

utility lines, or other objects behind or inside it.

17. Keep balance while using this tool.

Keep area below clear if working in an elevated

location, and secure air hose to prevent falls

from bystanders accidentally pulling on it.

18. Obey the manual for the air compressor

used to power this tool.

19. Install an in-line shutoff valve to allow

immediate control over the air supply in an

emergency, even if a hose is ruptured.

20. Do not engrave or stamp anything into

the housing to avoid weakening it.

21. WARNING: Some dust created by power

sanding, sawing, grinding, drilling, and other

construction activities, contains chemicals

known [to the State of California] to cause

cancer, birth defects or other reproductive harm.

Some examples of these chemicals are:

• Lead from lead-based paints

• Crystalline silica from bricks and cement or

other masonry products

• Arsenic and chromium from

chemically treated lumber

Your risk from these exposures varies,

depending on how often you do this type of work.

To reduce your exposure to these chemicals: work in

a well ventilated area, and work with approved

safety equipment, such as those dust masks that are

specially designed to filter out microscopic particles.

(California Health & Safety Code § 25249.5, et seq.)

WARNING: The brass components of

this product contain lead, a chemical

known to the State of California to cause

birth defects (or other reproductive harm).

(California Health & Safety code § 25249.5, et seq.)

22. The warnings and precautions discussed in this

manual cannot cover all possible conditions and

situations that may occur. It must be understood

by the operator that common sense and caution

are factors which cannot be built into this

product, but must be supplied by the operator.

Vibration Precautions

This tool vibrates during use.

Repeated or long-term exposure to vibration may

cause temporary or permanent physical injury,

particularly to the hands, arms and shoulders.

To reduce the risk of vibration-related injury:

1. Anyone using vibrating tools regularly or for an

extended period should first be examined by a

doctor and then have regular medical check-ups to

ensure medical problems are not being caused or

worsened from use. Pregnant women or people who

have impaired blood circulation to the hand, past

hand injuries, nervous system disorders, diabetes,

or Raynaud’s Disease should not use this tool.

If you feel any symptoms related to vibration (such

as tingling, numbness, and white or blue fingers),

seek medical advice as soon as possible.

2. Do not smoke during use. Nicotine reduces

the blood supply to the hands and fingers,

increasing the risk of vibration-related injury.

3. Wear suitable gloves to reduce the

vibration effects on the user.

4. Use tools with the lowest vibration when there

is a choice between different processes.

5. Include vibration-free periods each day of work.

6. Grip tool as lightly as possible (while still keeping

safe control of it). Let the tool do the work.

7. To reduce vibration, maintain tool as explained

in this manual. If abnormal vibration occurs,

stop immediately.

SAVE THESE INSTRUCTIONS.

SAFETYOPERATIONMAINTENANCE SETUP

Page 6 For technical questions, please call 1-800-444-3353. Item 69450

Functional Description

Specifications

Maximum Air Pressure 100 PSI

Air Inlet 1/4″ -18 NPT

Fastener Capacity Up to 3-1/2″ Long, 16d

Air Consumption 1 CFM @ 90 PSI

Components and Controls

Air Inlet

Guide Bushing

Nail Guide

Figure A

SAFETY OPERATION MAINTENANCESETUP

Page 7For technical questions, please call 1-800-444-3353.Item 69450

Initial Tool Set Up/Assembly

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this

manual including all text under subheadings therein before set up or use of this product.

Note: For additional information regarding the parts listed in the following pages,

refer to the Assembly Diagram near the end of this manual.

Air Supply

TO PREVENT EXPLOSION:

Use only clean, dry, regulated, compressed air to power this tool. Do not use oxygen,

carbon dioxide, combustible gases, or any other bottled gas as a power source for this tool.

1. Incorporate a filter, regulator with pressure gauge,

oiler, in-line shutoff valve, and quick coupler for

best service, as shown on Figure B on page 8

and Figure C on page 9. An in-line shutoff

ball valve is an important safety device because

it controls the air supply even if the air hose

is ruptured. The shutoff valve should be a

ball valve because it can be closed quickly.

Note: If an automatic oiler system is not used,

add a few drops of Pneumatic Tool Oil into

the airline connection before operation.

Add a few more drops after each hour of continual use.

Note: This air tool may be shipped with a protective plug

covering the air inlet. Remove this plug before set up.

2. Attach an air hose to the compressor’s air outlet.

Connect the air hose to the air inlet of the tool.

Other components, such as a coupler plug

and quick coupler, will make operation

more efficient, but are not required.

WARNING! TO PREVENT SERIOUS INJURY

FROM ACCIDENTAL OPERATION:

Do not install a female quick coupler on the tool.

Such a coupler contains an air valve that will

allow the air tool to retain pressure and operate

accidentally after the air supply is disconnected.

Note: Air flow, and therefore tool performance,

can be hindered by undersized air supply components.

3. The air hose must be long enough to reach

the work area with enough extra length to

allow free movement while working.

4. Close the in-line safety valve between

the compressor and the tool.

5. Turn on the air compressor according to

the manufacturer’s directions and allow it

to build up pressure until it cycles off.

6. Adjust the air compressor’s output regulator

so that the air output is enough to properly

power the tool, but the output will not exceed

the tool’s maximum air pressure at any time.

Adjust the pressure gradually, while checking the

air output gauge to set the right pressure range.

7. The air pressure setting must not exceed job site

regulations/restrictions. The air pressure setting

must not exceed 90 PSI when being used with

workpieces that have a thickness of less than 1-3/4″.

8. Inspect the air connections for leaks.

Repair any leaks found.

9. If the tool will not be used at this time, turn off and

detach the air supply and safely discharge any

residual air to prevent accidental operation.

Note: Residual air pressure should not be present

after the tool is disconnected from the air supply.

However, it is a good safety measure to attempt to

discharge the tool in a safe fashion after disconnecting

to ensure that the tool is disconnected and unpowered.

SAFETYOPERATIONMAINTENANCE SETUP

Page 8 For technical questions, please call 1-800-444-3353. Item 69450

Figure B: Portable Air Supply Setup

E H

Non-lubricated

Tools

Lubricated

Tools

Description Function

A Air Hose Connects air to tool

B Filter Prevents dirt and condensation from damaging tool or workpiece

C Regulator Adjusts air pressure to tool

D Lubricator (optional) For air tool lubrication

E Coupler and Plug Provides quick connection and release

F Leader Hose (optional) Increases coupler life

G Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece

H Air Adjusting Valve (optional) For fine tuning airflow at tool

SAFETY OPERATION MAINTENANCESETUP

Page 9For technical questions, please call 1-800-444-3353.Item 69450

Figure C: Stationary Air Supply Setup

L O

Non-lubricated Tools

Lubricated

Tools

JKH

Slope

B B

A A

Description Function

A Vibration Pads For noise and vibration reduction

B Anchor Bolts Secures air compressor in place

C Ball Valve Isolates sections of system for maintenance

D Isolation Hose For vibration reduction

EMain Air Line - 3/4″ minimum recommended Distributes air to branch lines

F Ball Valve To drain moisture from system

GBranch Air Line -1/2″ minimum recommended Brings air to point of use

H Air Hose Connects air to tool

I Filter Prevents dirt and condensation from damaging tool or workpiece

J Regulator Adjusts air pressure to tool

K Lubricator (optional) For air tool lubrication

L Coupler and Plug Provides quick connection and release

M Leader Hose (optional) Increases coupler life

N Air Cleaner / Dryer (optional) Prevents water vapor from damaging workpiece

O Air Adjusting Valve (optional) For fine tuning airflow at tool

SAFETYOPERATIONMAINTENANCE SETUP

Page 10 For technical questions, please call 1-800-444-3353. Item 69450

Operating Instructions

Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this

manual including all text under subheadings therein before set up or use of this product.

Inspect tool before use, looking for damaged, loose, and missing parts.

If any problems are found, do not use tool until repaired.

Workpiece and Work Area Set Up

1. Designate a work area that is clean and well-lit.

The work area must not allow access by children

or pets to prevent distraction and injury.

2. Route the air hose along a safe route to reach

the work area without creating a tripping hazard

or exposing the air hose to possible damage.

The air hose must be long enough to reach

the work area with enough extra length to

allow free movement while working.

3. Secure loose workpieces using a vise or clamps

(not included) to prevent movement while working.

4. There must not be hazardous objects

(such as utility lines or foreign objects) nearby

that will present a hazard while working.

General Operating Instructions

1. Before each use, test the tool as

directed in the prior section.

2. If an automatic oiler is not used, add a few

drops of Pneumatic Tool Oil to the airline

connection before use. Add a few drops

more after each hour of continual use.

3. Grip the base of the tool in one hand.

4. When ready to work, hold a nail by the shaft,

and place the flat head into the Nail Guide.

The nail will be held in place by the magnet.

5. Place the pointed end of the nail on the workpiece.

Keep your free hand away from the tool and the nail.

6. Press the tool straight down. This will trigger the

tool and cause it to hammer the nail. Continue

pressing down until the nail is driven all the way in.

7. You can adjust the force of the tool’s impact

by adjusting the air pressure. However, do

not operate the tool at more than 100 PSI.

8. Depth setting can be adjusted by

turning the Guide Bushing.

9. When the nail is hammered all the way down, the

tool will stop operating. To stop the tool sooner,

release the downward pressure on the Nail Guide.

10. After use, to prevent accidents:

a. Detach the air supply.

b. Attempt to fire the Tool into a piece of scrap

wood to ensure that it is disconnected

and is incapable of firing any fasteners.

c. Clean external surfaces with clean, dry cloth.

d. Store indoors out of children’s reach.

SAFETY OPERATION MAINTENANCESETUP

Inhaltsverzeichnis

Andere Central Pneumatic Nagelpistole Handbücher

Central Pneumatic

Central Pneumatic 91044 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 42528 Stücklistenhandbuch

Central Pneumatic

Central Pneumatic Contractor 97526 Stücklistenhandbuch

Central Pneumatic

Central Pneumatic 66995 Installationshandbuch

Central Pneumatic

Central Pneumatic 46309 Bedienungsanleitung

Central Pneumatic

Central Pneumatic Contractor 98464 Installationshandbuch

Central Pneumatic

Central Pneumatic 67100 Installationshandbuch

Central Pneumatic

Central Pneumatic Contractor 97526 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 92359 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 66902 Installationshandbuch

Central Pneumatic

Central Pneumatic Professional 97512 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 97586 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 96364 Stücklistenhandbuch

Central Pneumatic

Central Pneumatic 93909 Installationshandbuch

Central Pneumatic

Central Pneumatic 68019 Installationshandbuch

Central Pneumatic

Central Pneumatic 93496 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 68024 Installationshandbuch

Central Pneumatic

Central Pneumatic 40115 Bedienungsanleitung

Central Pneumatic

Central Pneumatic Central Pneumatic Air Nailer/Stapler 2-in-1 Kit... Bedienungsanleitung

Central Pneumatic

Central Pneumatic 98917 Installationshandbuch

Central Pneumatic

Central Pneumatic Contractor 97524 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 92917 Bedienungsanleitung

Central Pneumatic

Central Pneumatic 68021 Installationshandbuch

Central Pneumatic

Central Pneumatic 93496 Bedienungsanleitung

Beliebte Nagelpistole Handbücher anderer Marken

Performance Tool

Performance Tool M643 Bedienungsanleitung

Hitachi

Hitachi VH650 - Fencing Nailer, Full Head Bedienungsanleitung

Parkside

Parkside PET 25 B1 Bedienungsanleitung

Senco

Senco Fusion Technology F-35XP Bedienungsanleitung

Grizzly

Grizzly G1847 Bedienungsanleitung

Ryobi

Ryobi R18N18G Bedienungsanleitung

Black & Decker

Black & Decker 492848-00 Bedienungsanleitung

HOLZMANN MASCHINEN

HOLZMANN MASCHINEN TN90 Bedienungsanleitung

Metabo HPT

Metabo HPT NR 3690DC Bedienungsanleitung

Surtek

Surtek CN650 Abmessungen und Installationsanleitung

Makita

Makita GF600 Bedienungsanleitung

Parkside

Parkside PET 25 B1 Bedienungsanleitung

Senco

Senco AirFree 25 Bedienungsanleitung

Freeman

Freeman P50LSLW Bedienungsanleitung

Aicon PRO

Aicon PRO DAC4507 Bedienungsanleitung

DAJ

DAJ XR150A Bedienungsanleitung

Makita

Makita AN923 Bedienungsanleitung

Grizzly

Grizzly T20644 Bedienungsanleitung
