PRESSURIZED ABRASIVE

BLASTER

Model

95014

ASSEMBLY AND OPERATING INSTRUCTIONS

Visit our website at: http://www.harborfreight.com

Read this material before using this product.

Failure to do so can result in serious injury.

SAVE THIS MANUAL.

contained herein may be reproduced in any shape or form without the express written consent of Harbor

Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improve-

ments, actual product may differ slightly from the product described herein. Tools required for assembly

and service may not be included.

For technical questions or replacement parts, please call 1-800-444-3353.

Revised Manual 10d

PRODUCT SPECIFICATIONS

SKU 95014 For technical questions, please call 1-800-444-3353 PAGE 2

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures, parts list and assembly diagram. Keep

your invoice with this manual. Write the invoice number on the inside of the front cover.

Keep this manual and invoice in a safe and dry place for future reference.

UNPACKING

When unpacking, check to make sure that all the parts and accessories listed on pages

15 and 16 are included, and the product is intact and undamaged. If any parts are miss-

ing or broken, please call Harbor Freight Tools at the number shown on the cover of this

manual as soon as possible.

SAFETY WARNINGS AND PRECAUTIONS

1. Do not operate the Pressurized Abrasive Blaster if the Air Supply Valve

(18) does not turn the tool on or off. Any tool that cannot be controlled with its

Air Supply Valve is dangerous and must be replaced.

2. Keep work area clean. Cluttered areas invite accidents.

3. WARNING! Do not operate pneumatic equipment in explosive

atmospheres, such as in the presence of ammable liquids, gases, or

dust. Pneumatic equipment can create sparks which may ignite

ammables.

Item Description

Media Tank Capacity 110 Pounds or 20 Gallons

Working PSI 60 to 125 PSI

Air Consumption 6 CFM @ 60 PSI / 25 CFM @ 125 PSI (with 3/8” Hose)

Air Inlet Size 1/4”-18 NPT

Water Trap Type Push Button to Drain

Hose Dimensions 1/2” I.D. x 1” O.D. x 8’ - 6” Long

Pressure Gauge Indicator 0 <-> 150 PSI (White Face / Red Numbers)

Recommended Media

Type

Glass Bead / Silicon Carbide

Alumina / Walnut Shell / Brass Bead

Accessories Safety Hood / Blast Gun / Funnel

Ceramic Nozzles (2.0mm, 2.5mm, 3mm)

Overal Dimensions 35-1/2” High x 15” Diameter

REV 10d

SKU 95014 For technical questions, please call 1-800-444-3353 PAGE 3

4. WARNING! Always wear ANSI approved safety impact eye glasses under a full

face shield, a respirator, and heavy duty work gloves when operating the

Pressurized Abrasive Blaster. Also, wear heavy duty work boots, long trousers,

and long sleeve shirt.

5. Stay within air pressure capacity (60 to 125 PSI). Never operate the

Pressurized Abrasive Blaster above 125 PSI.

6. Keep children away. Children must never be allowed in the work area. Do not

let them handle equipment, tools, extension cords, or air hoses.

7. Store idle equipment. When not in use, the Pressurized Abrasive Blaster must

be stored in a dry location to inhibit rust. Always lock up the machine and keep

out of reach of children.

8. Use the right tool for the job. Do not attempt to force small equipent or

attachments to do the work of a larger industrial equipment and attachments.

There are certain applications for which this product was designed. It will do the

job better and more safely at the rate for which it was intended. Do not modify

this product, and do not use this product for a purpose for which it was not

intended.

9. Dress properly. Do not wear loose clothing or jewelry as they can be caught in

moving parts. Protective, electrically non-conductive clothes and non-skid foot-

wear are recommended when working. Wear restrictive hair covering to contain

long hair.

10. Do not overreach. Keep proper footing and balance at all times. Do not reach

over or across running tools or air hoses.

11. Disconnect air hose and release any built-up air pressure. Never service the

Pressurized Abrasive Blaster or disassemble with the air hose attached. Always

release any built-up air even after disconnecting hose. Disconnect the

Pressurized Abrasive Blaster when not in use.

12. Remove adjusting wrenches. Check that adjusting wrenches are removed

from the tool and work surface before attaching to an air source.

13. Stay alert. Watch what you are doing. Use common sense. Do not operate any

tool or equipment when you are tired.

14. Check for damaged parts. Before using any tool, any part that appears

damaged should be carefully checked to determine that it will operate properly

and perform its intended function. Check for alignment and binding of moving

parts, any broken parts, and any other condition that may affect proper operation.

Any part that is damaged should be properly repaired or replaced by a qualied

technician.

SKU 95014 For technical questions, please call 1-800-444-3353 PAGE 4

15. Replacement parts and accessories. This product is to be repaired and

serviced only by a qualied technician. When this product is serviced, only

identical replacement parts should be used. Use of any other parts will void the

warranty. Only use accessories intended for use with this tool. Approved

accessories are available from Harbor Freight Tools.

16. Do not operate this product if under the inuence of alcohol or drugs.

Read warning labels if taking prescription medicine to determine if your

judgement or reexes are impaired while taking drugs. If there is any doubt, do

not operate the tool.

17. Maintenance. The maintenance outlined in the “Maintenance” section should be

performed regularly. For your safety, this product should be serviced or repaired

regularly only by a qualied technician.

18. Compressed air only. Use clean, dry, regulated, compressed air at 65 to 125

PSI. Never use oxygen, carbon dioxide, combustible gases, or any other bottled

gas as a power source for this product.

19. Transport the Pressurized Abrasive Blaster safely. Always disconnect air

supply when moving the tool. Pull the tool by the handle to avoid tipping.

20. Avoid working alone. If an accident happens, an assistant can bring help.

21. Maintain labels and nameplates on the Pressurized Abrasive Blaster.

These carry important information. If unreadable or missing, contact Harbor

Freight Tools for a replacement.

22. Maintain a rm grip on the Blast Gun when in use.

23. Never point the Blast Gun toward yourself, other people, or animals. Keep

all people and animals safely away from the work area.

24. Maintain a safe distance away from the object being sandblasted.

Whenever possible, sandblast the object at a 45 degree angle to minimize the

possibility of grit, dirt, and debris ricocheting directly backward toward your face

and body.

25. Industrial applications must follow OSHA requirements.

26. Whenever possible, perform a sandblasting test on a small area of the

object to be sandblasted. If necessary, adjust the distance to the object and/or

change the Nozzle of the Blast Gun for more effective results.

27. Make sure to read and understand all safety warnings and precautions as

outlined in the manufacturer’s manual for the object you intend to

sandblast.

28. Avoid unintentional starting. Make sure the Control Lever (42C) on the Blast

Gun is in its “OFF” or “CLOSED” position when the tool is not being used.

29. WARNING! Some dust created by power sanding, sawing, grinding, drilling,

and other construction activities contain chemicals known (to the State of

California) to cause cancer, birth defects, or other reproductive harm.

Some examples of these chemicals are:

* Lead from lead-based paints,

* Crystalline silica from bricks, cement, and other masonry products,

* Arsenic and chromium from chemically treated lumber.

(California Health & Safety Code 25249.5, et seq.)

30. WARNING! Abrasive blasting with media containing crystalline silica

can cause serious or fatal respiratory disease. Exposure to crystalline silica

may cause silicosis (a serious lung disease), cancer, and death. Exposure to

aluminum oxide (a dust generated from material removing processes) can result

in eye, skin, and breathing irritation. Always use an ANSI approved respirator,

safety impact eye glasses, and a full face shield. Avoid skin exposure. Proper

ventilation in the work area is required. Read and understand the ten

recommended measures below to reduce crystalline silica exposure in the

workplace and prevent silicosis and silicosis related injuries and deaths.

The following ten measures are recommended to reduce crystalline silica

exposures in the workplace and prevent silicosis and silicosis related

injuries and deaths:

1. Prohibit silica sand (or other substances containing more than 1%

crystalline silica) as an abrasive blasting material and substitute less

hazardous materials.

2. Conduct air monitoring to measure worker exposures.

3. Use containment methods such as blast-cleaning machines and cabinets

to control the hazard and protect adjacent workers from exposure.

4. Practice good personal hygiene to avoid unecessary exposure to silica

dust.

5. Wear washable or disposable protective clothes at the worksite. Shower,

and change into clean clothes before leaving the worksite to prevent

contamination of cars, homes, and other work areas.

SKU 95014 For technical questions, please call 1-800-444-3353 PAGE 5

6. Use respiratory protection when source controls cannot keep silica

exposures below the recommended levels.

7. Provide periodic medical examinations for all workers who may be

exposed to crystalline silica.

8. Post signs to warn workers about the hazard and to inform them about

required protective equipment.

9. Provide workers with training that includes information about health

effects, work practices, and protective equipment for crystalline silica.

10. Report all cases of silicosis to State health departments and to OSHA or

the Mine Safety and Health Administration (MSHA).

31. WARNING! The brass components of this product contain lead, a chemical

known to the State of California to cause birth defects (or other reproductive

harm). (California Health & Safety code 25249.5 , et seq.)

32. WARNING! The warnings, cautions, and instructions discussed in this

instruction manual cannot cover all possible conditions and situations that may

occur. It must be understood by the operator that common sense and caution

are factors which cannot be built into this product, but must be supplied by the

operator.

SAVE THESE INSTRUCTIONS

SKU 95014 For technical questions, please call 1-800-444-3353 PAGE 6

SKU 95014 For technical questions, please call 1-800-444-3353 PAGE 7

ASSEMBLY INSTRUCTIONS

To Attach The Handle Bars:

1. To attach the two Handle Bars (6) to the Tank (1), lay the Tank on a at, level

surface with its Handle Bar mounting brackets facing up. (See Figure B.)

2. The Handle Bars (6) are labeled “Left” and “Right”. Align the holes in the left

Handle Bar with the Handle Bar mounting brackets on the left side of the Tank

(1). (See Figure B.)

3. Place a Washer (50) onto each of the four Handle Bar mounting Screws (8).

Insert a Screw through each of the holes in the Handle Bar and Handle Bar

mounting brackets. Then, screw a Hex Nut (9) onto each of the Screws and

rmly tighten. (See Figure B.)

4. Repeat Steps #2 and #3 for the right Handle Bar (6) to the Tank (1).

(See Figure B.)

FIGURE B

To Attach The Wheels And Front Foot:

1. Locate the two Wheels (2), three Cotter Pins (3), Wheel Axle (5), four Wheel

Washers (51), and Front Foot (4).

2. Slide the Wheel Axle (5) through the axle holes located at the bottom of the two

Handle Bars (6). (See Figure B.)

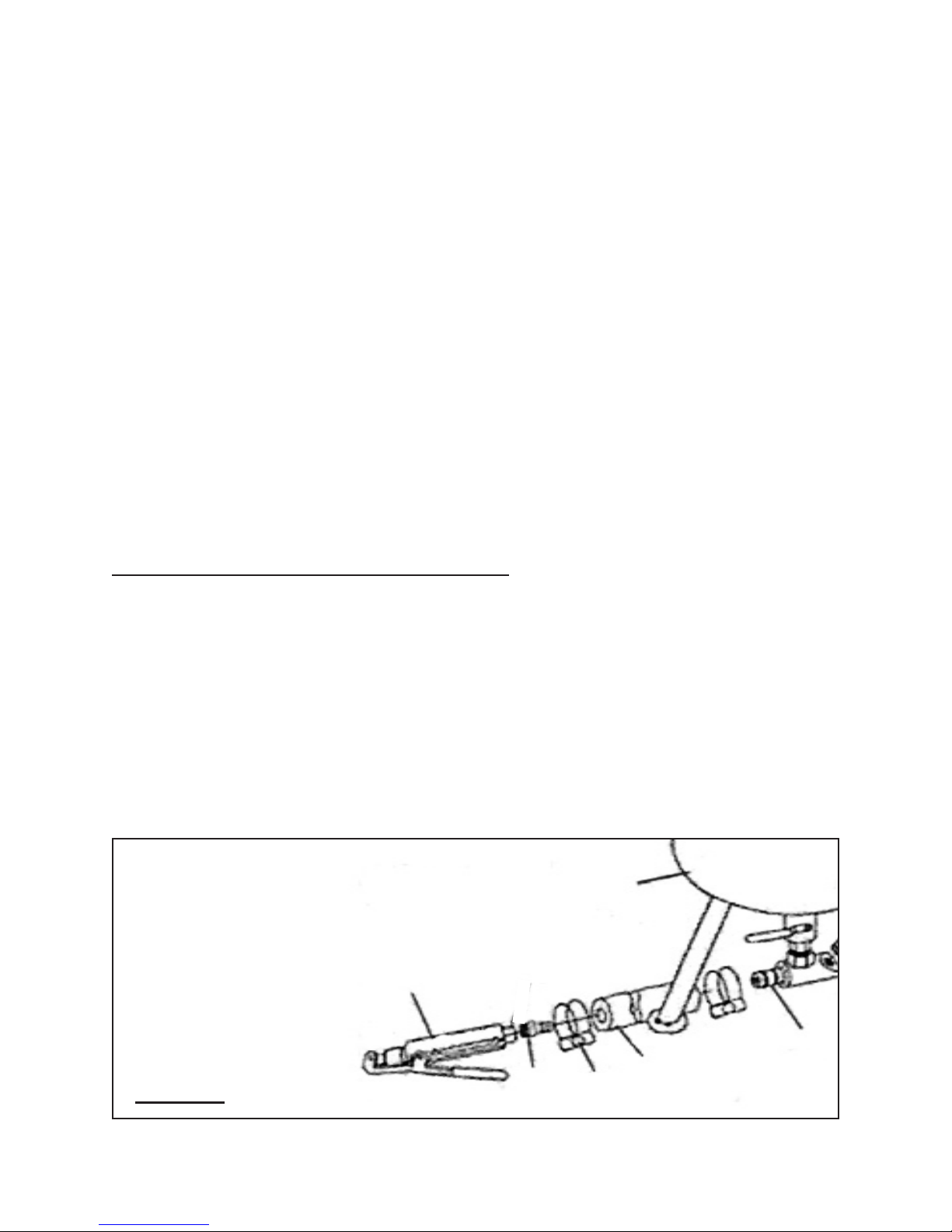

SKU 95014 For technical questions, please call 1-800-444-3353 PAGE 8

3. Slide a Wheel Washer (51) onto each end of the Wheel Axle (5).

(See Figure B.)

4. Place a Wheel (2) onto each end of the Wheel Axle (5). Then, slide a Wheel

Washer (51) onto each end of the Wheel Axle. (See Figure B.)

5. Insert a Cotter Pin (3) through the holes in each end of the Wheel Axle (5).

Then, bend the Cotter Pins to secure the Wheels (2) to the Wheel Axle.

(See Figure B.)

6. Roll the Pressurized Abrasive Blaster over so that the Handle Bars (6) are facing

down.

7. Align the holes of the Front Foot (4) with the holes in the foot mount on the front

side of the Tank (1). (See Figure B.)

8. Insert a Cotter Pin (3) through the holes and bend it to secure the Front Foot (4)

in place. (See Figure B.)

To Attach The Abrasive Hose And Blast Gun:

1. IMPORTANT: Make sure to use pipe thread sealer tape (not included) on all

threaded joints and ensure all joints are securely tightened.

2. Locate the Abrasive Hose (24), Blast Gun, and two Hose Clamps (23).

3. Slide one Hose Clamp (23) onto each end of the Abrasive Hose (24). Do not

tighten yet. (See Figure C.)

4. Slide one end of the Abrasive Hose (24) onto the Hose Adapter (49C) of the Blast

Gun. Then, rmly tighten the Hose Clamp (23). (See Figure C.)

BLAST GUN

49C 23

FIGURE C

5. Slide the other end of the Abrasive Hose (24) onto the Abrasive Outlet Manifold

(22). Then rmly tighten the Hose Clamp (23). (See Figure C.)

OPERATING INSTRUCTIONS

Abrasive Selection:

1. The type of media chosen will greatly inuence the amount of time needed to

clean a particular surface area.

2. Sandblasting media include silicon carbide, glass bead, walnut shell, brass bead,

and alumina.

3. If you decide to reuse media, remember, it does wear out. The sharp edges

become rounder and are less effective. At that point you should replace the tank

of media you are using.

To Load Media Into The Tank:

1. WARNING! Never service the Pressurized Abrasive Blaster or disassemble

with the air hose attached. Always release any built-up air even after

disconnecting the hose.

2. WARNING! Always wear ANSI approved safety impact eye glasses under a

full face shield, a respirator, and heavy duty work gloves when operating the

Pressurized Abrasive Blaster. Also, wear heavy duty work boots, long trousers,

and long sleeve shirt.

3. Make sure the media used is dry to avoid clogging the Abrasive Control Valve

(18B), Abrasive Outlet Manifold (22), or Abrasive Hose (24).

4. Turn the Air Supply Valve (18) to the “OFF” position.

(See Figure D, next page.)

5. Check the Pressure Gauge (15) to make sure it reads “0” pressure.

(See Figure D.)

6. Unscrew and remove the Tank Filler Cap (12). Insert the accessory Funnel (29)

into the Tank (1) opening. Then pour the media into the Tank, making sure to

pour enough into the Tank to do the job at hand. Then, replace the Tank Filler

Cap. NOTE: If this is a large job, ll the Tank only 3/4 full and reload as needed

to nish the job. (See Figure D.)

SKU 95014 For technical questions, please call 1-800-444-3353 PAGE 9

7. IMPORTANT TIP: If the humidity is 90 to 100%, the Water Trap (17) will not be

able to trap all of the moisture in a 3/4 full Tank (1). It is recommended to reduce

the amount of media, load more frequently, and empty the Water Trap more

often. This will reduce the possibility of clogging the bottom of the Tank or the

line. (See Figure D.)

SKU 95014 For technical questions, please call 1-800-444-3353 PAGE 10

8. Depending on the size (diameter) of the media, install the proper size Ceramic

Nozzle (37C) onto the Blast Gun. To do so, unscrew and remove the Nozzle Cap

Nut (39C). Position the Nozzle Gasket (36C) against the Adapter (35C).

Position the proper Ceramic Nozzle (2.0mm, 2.5mm, or 3.0mm) against the

Nozzle Gasket. Then screw the Nozzle Cap Nut back onto the Adapter to secure

the Nozzle Gasket and Ceramic Nozzle in place. (See Figure E.)

WATER TRAP

(17)

FUNNEL

(29)

PRESSURE GAUGE

(15)

TANK

FILLER CAP

(12)

TANK

(1)

AIR SUPPLY VALVE

(18)

FIGURE D

FIGURE E

CERAMIC NOZZLE

(37C)

NOZZLE GASKET

(36C)

NOZZLE CAP NUT

(39C)

ADAPTER

(35C)

CONTROL LEVER (42C)

Inhaltsverzeichnis

Andere Central Pneumatic Hochdruckreiniger Handbücher

Central Pneumatic

Central Pneumatic 93889 Bedienungsanleitung

Beliebte Hochdruckreiniger Handbücher anderer Marken

Shark

Shark RG-232637 Bedienungsanleitung

Shakti Technology

Shakti Technology S3 Bedienungsanleitung

Kärcher

Kärcher K 4 Pure Bedienungsanleitung

Porter-Cable

Porter-Cable D25806-025-2 Bedienungsanleitung

REM POWER

REM POWER HDEm 662 Bedienungsanleitung

Landa

Landa HS-3000 Bedienungsanleitung

Craftsman

Craftsman 580.752270 Bedienungsanleitung

HIKOKI

HIKOKI AW 100 Bedienungsanleitung

Delco

Delco DC 1302 Bedienungsanleitung

Kärcher

Kärcher K 3 Full Control Bedienungsanleitung

BIEMMEDUE

BIEMMEDUE 120/10 - 170/13 Bedienungsanleitung

ARKSEN

ARKSEN 014-HG-14141-HR Bedienungsanleitung

Black & Decker

Black & Decker PW1700SPX Bedienungsanleitung

Kärcher

Kärcher 595 - SPARE Leitfaden

Kranzle

Kranzle B 10 200 Bedienungsanleitung

Stihl

Stihl RE 90 Bedienungsanleitung

Husky

Husky HU80911 Bedienungsanleitung

PowR-Quip

PowR-Quip PQ-2600 Bedienungsanleitung
