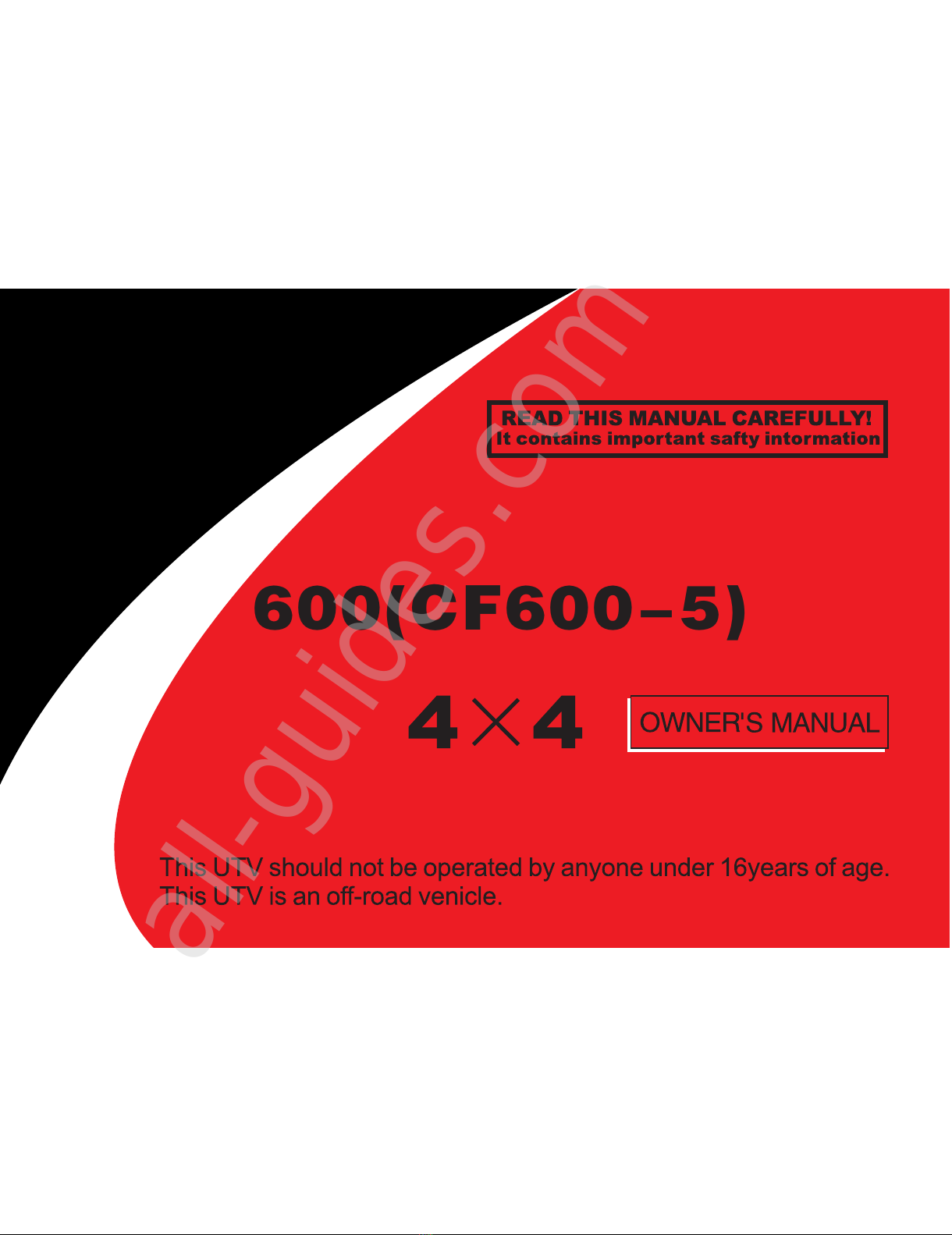

CF MOTO 600 Bedienungsanleitung

600(CF600-5)

All manuals and user guides at all-guides.com

all-guides.com

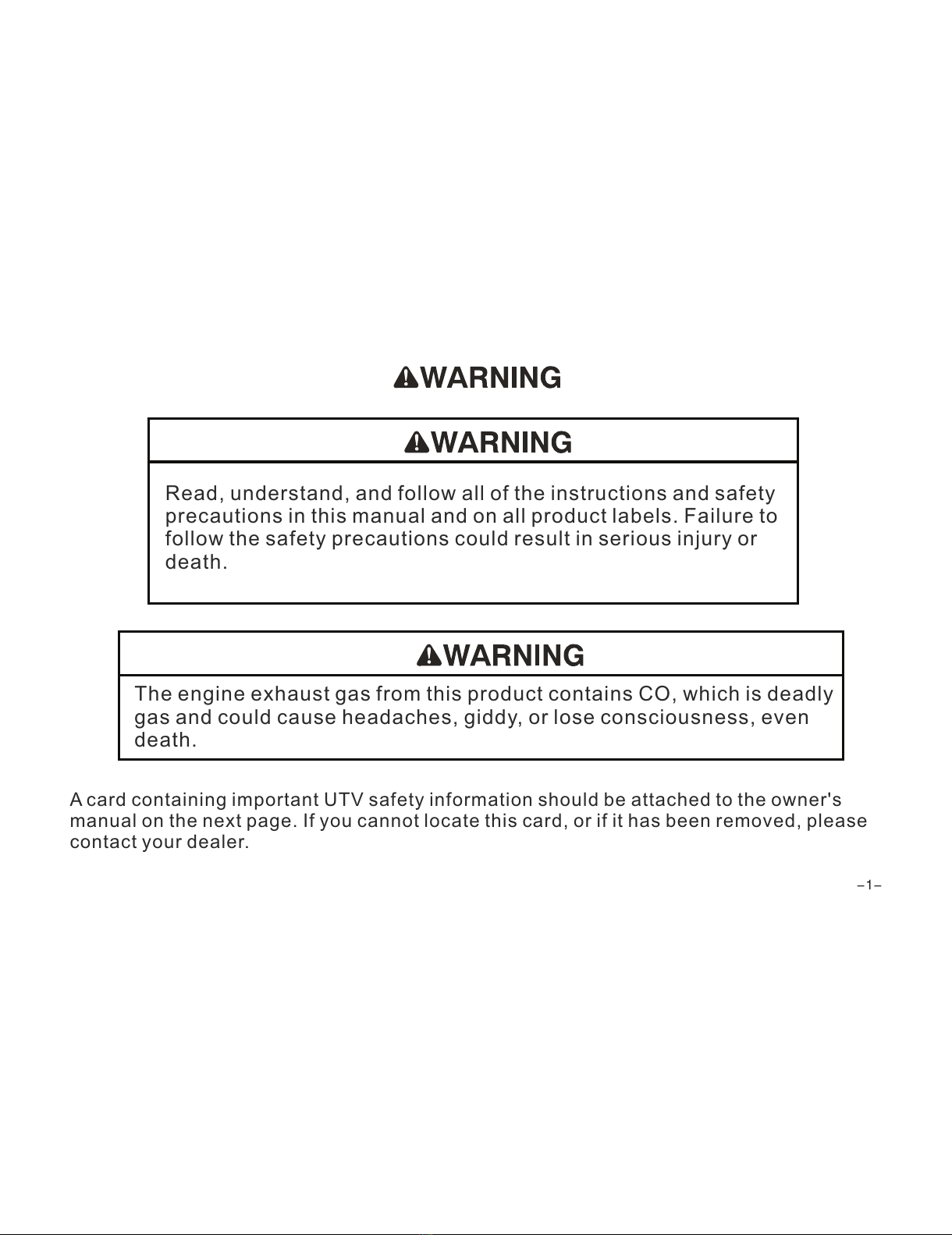

Read, understand, and follow all of the instructions and safety

precautions in this manual and on all product labels. Failure to

follow the safety precautions could result in serious injury or

death.

The engine exhaust gas from this product contains CO, which is deadly

gas and could cause headaches, giddy, or lose consciousness, even

death.

A card containing important UTV safety information should be attached to the owner's

manual on the next page. If you cannot locate this card, or if it has been removed, please

contact your dealer.

-1-

All manuals and user guides at all-guides.com

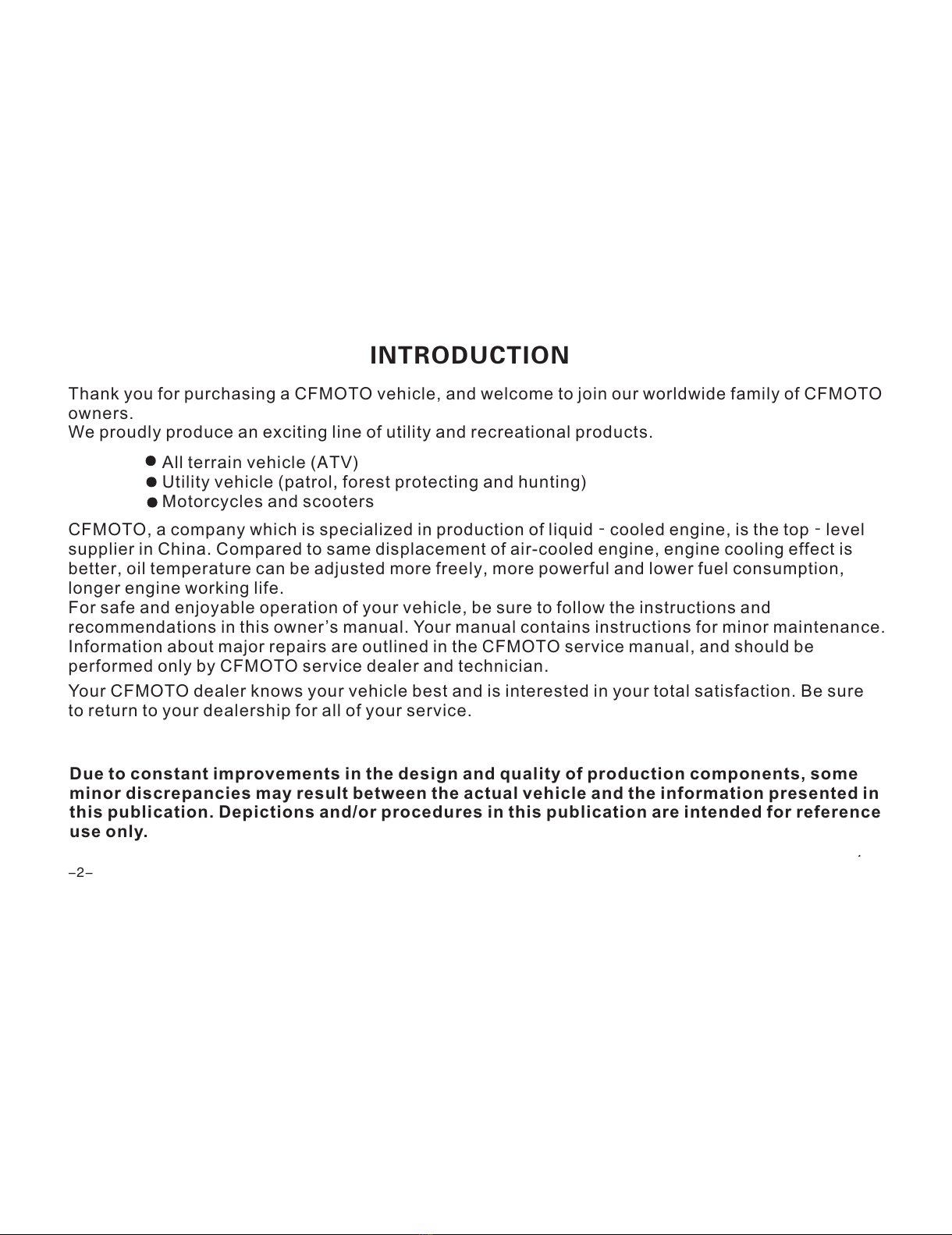

INTRODUCTION

Thank you for purchasing a CFMOTO vehicle, and welcome to join our worldwide family of CFMOTO

owners.

We proudly produce an exciting line of utility and recreational products.

All terrain vehicle (ATV)

Utility vehicle (patrol, forest protecting and hunting)

Motorcycles and scooters

CFMOTO, a company which is specialized in production of liquid‐cooled engine, is the top‐level

supplier in China. Compared to same displacement of air-cooled engine, engine cooling effect is

better, oil temperature can be adjusted more freely, more powerful and lower fuel consumption,

longer engine working life.

For safe and enjoyable operation of your vehicle, be sure to follow the instructions and

recommendations in this owner’s manual. Your manual contains instructions for minor maintenance.

Information about major repairs are outlined in the CFMOTO service manual, and should be

performed only by CFMOTO service dealer and technician.

Your CFMOTO dealer knows your vehicle best and is interested in your total satisfaction. Be sure

to return to your dealership for all of your service.

Due to constant improvements in the design and quality of production components, some

minor discrepancies may result between the actual vehicle and the information presented in

this publication. Depictions and/or procedures in this publication are intended for reference

use only.

-2-

All manuals and user guides at all-guides.com

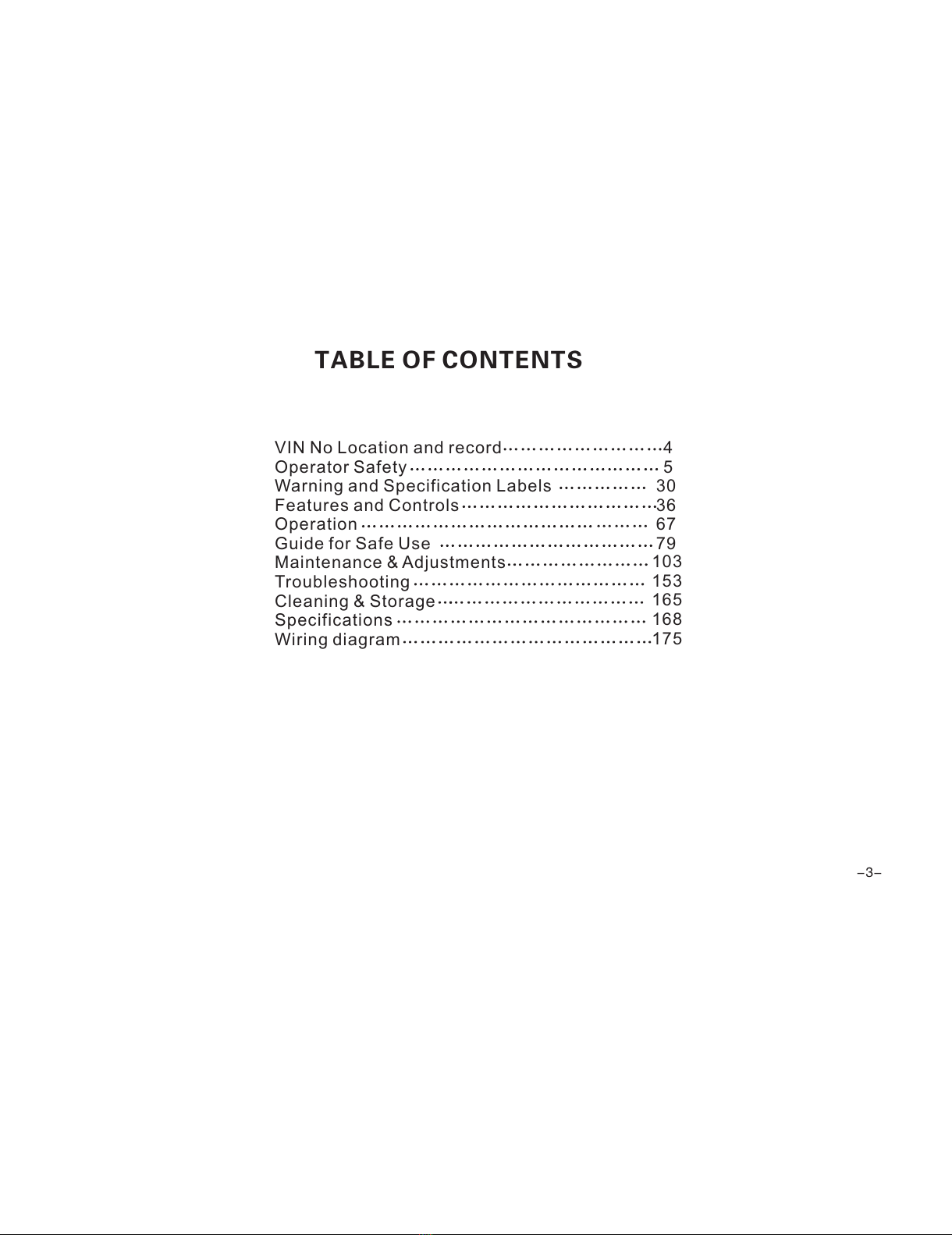

TABLE OF CONTENTS

VIN No Location and record 4

Operator Safety 5

Warning and Specification Labels 30

Features and Controls 36

Operation 67

Guide for Safe Use 79

Maintenance & Adjustments 103

Troubleshooting 153

Cleaning & Storage 165

Specifications 168

Wiring diagram 175

-3-

All manuals and user guides at all-guides.com

VEHICLE IDENTIFICATION NUMBER

Record your vehicle's identification number and engine serial number in the spaces provided,

remove the extra "ignition” key and store it in a safe place for duplicating spare key if keys are

lost, otherwise ignition key can only be replaced.

1. Vehicle identification number:

Vehicle model number:

2. Engine serial number:

-4-

All manuals and user guides at all-guides.com

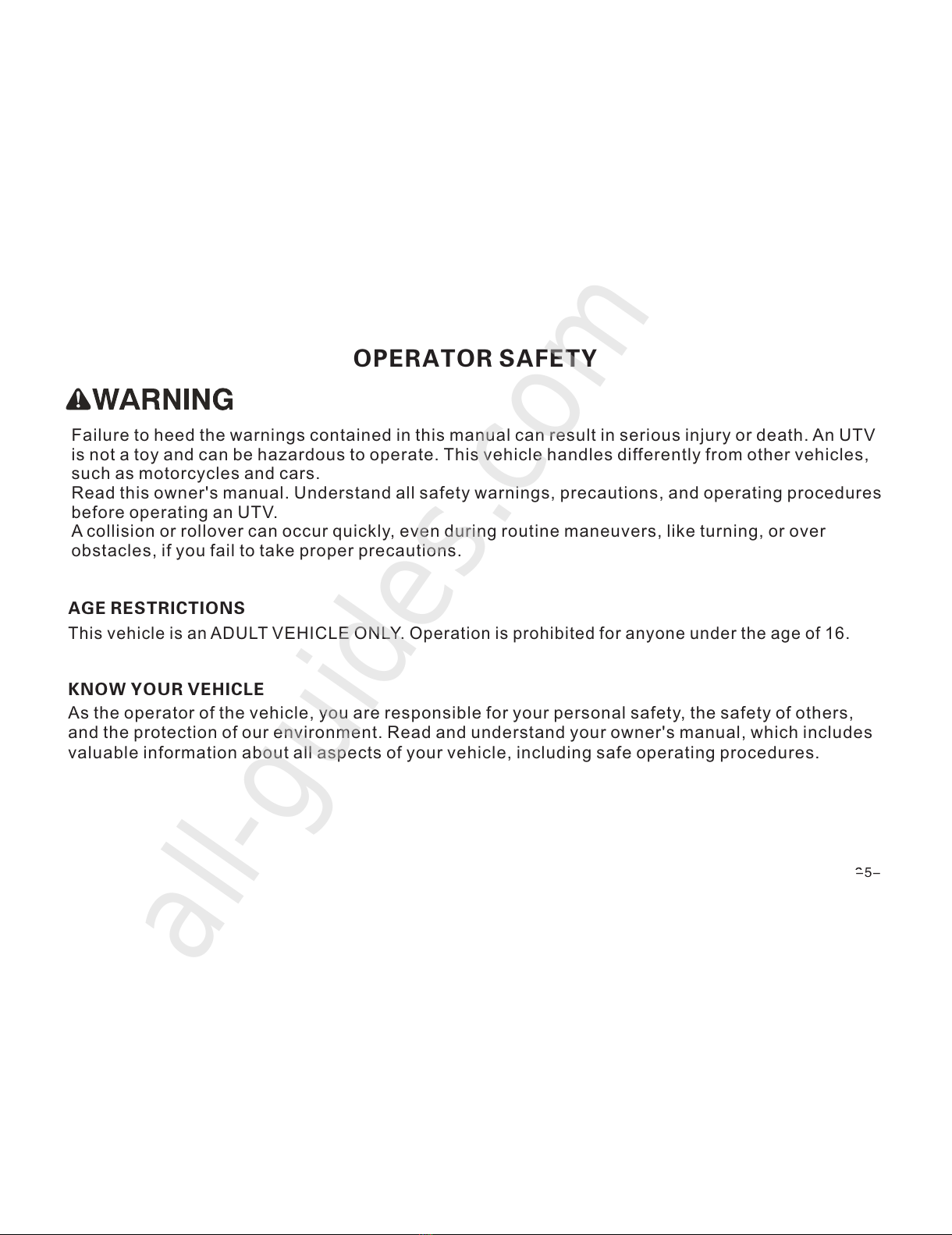

OPERATOR SAFETY

Failure to heed the warnings contained in this manual can result in serious injury or death. An UTV

is not a toy and can be hazardous to operate. This vehicle handles differently from other vehicles,

such as motorcycles and cars.

Read this owner's manual. Understand all safety warnings, precautions, and operating procedures

before operating an UTV.

A collision or rollover can occur quickly, even during routine maneuvers, like turning, or over

obstacles, if you fail to take proper precautions.

AGE RESTRICTIONS

This vehicle is an ADULT VEHICLE ONLY. Operation is prohibited for anyone under the age of 16.

KNOW YOUR VEHICLE

As the operator of the vehicle, you are responsible for your personal safety, the safety of others,

and the protection of our environment. Read and understand your owner's manual, which includes

valuable information about all aspects of your vehicle, including safe operating procedures.

-5-

All manuals and user guides at all-guides.com

all-guides.com

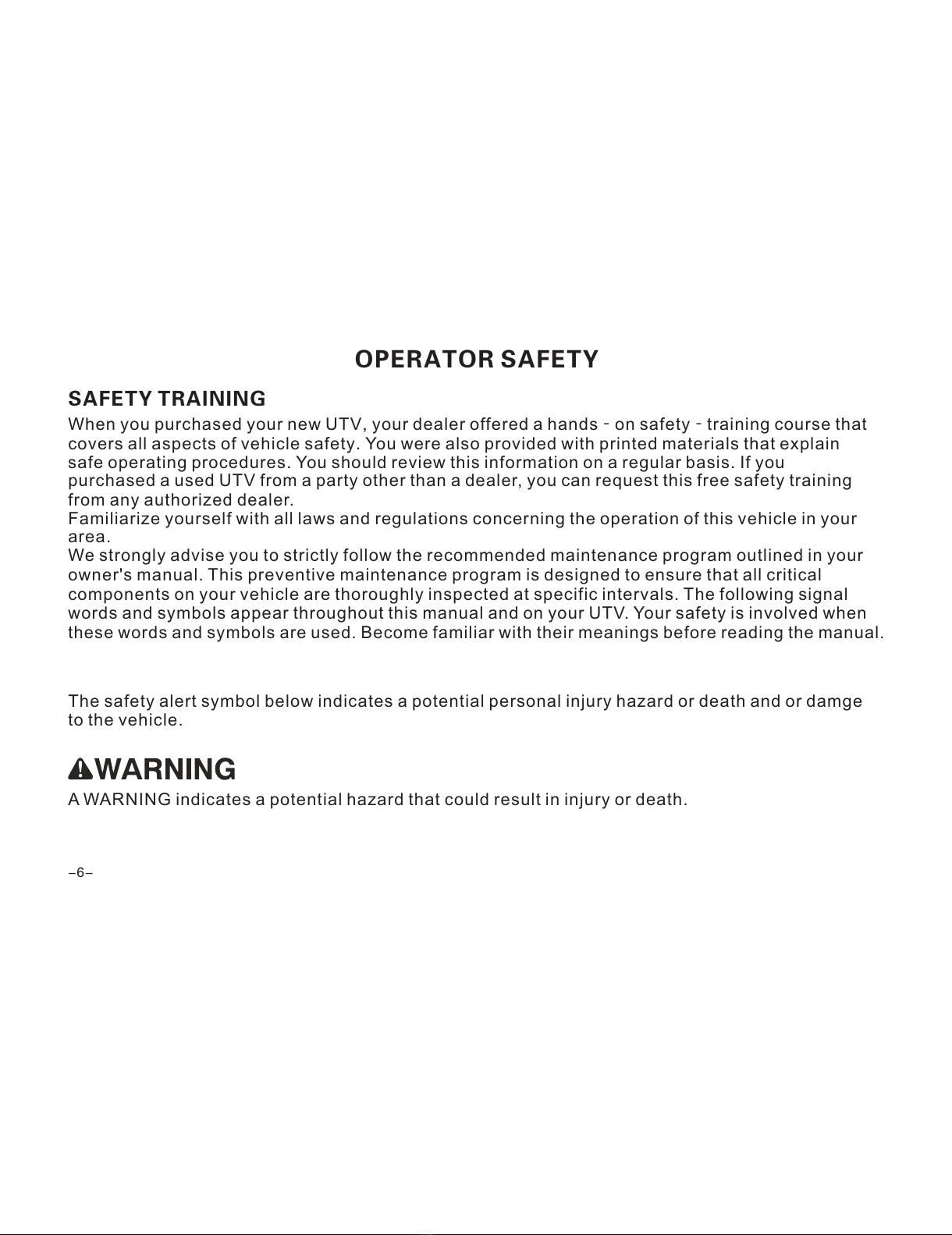

OPERATOR SAFETY

SAFETY TRAINING

When you purchased your new UTV, your dealer offered a hands‐on safety‐training course that

covers all aspects of vehicle safety. You were also provided with printed materials that explain

safe operating procedures. You should review this information on a regular basis. If you

purchased a used UTV from a party other than a dealer, you can request this free safety training

from any authorized dealer.

Familiarize yourself with all laws and regulations concerning the operation of this vehicle in your

area.

We strongly advise you to strictly follow the recommended maintenance program outlined in your

owner's manual. This preventive maintenance program is designed to ensure that all critical

components on your vehicle are thoroughly inspected at specific intervals. The following signal

words and symbols appear throughout this manual and on your UTV. Your safety is involved when

these words and symbols are used. Become familiar with their meanings before reading the manual.

The safety alert symbol below indicates a potential personal injury hazard or death and or damge

to the vehicle.

-6-

A WARNING indicates a potential hazard that could result in injury or death.

All manuals and user guides at all-guides.com

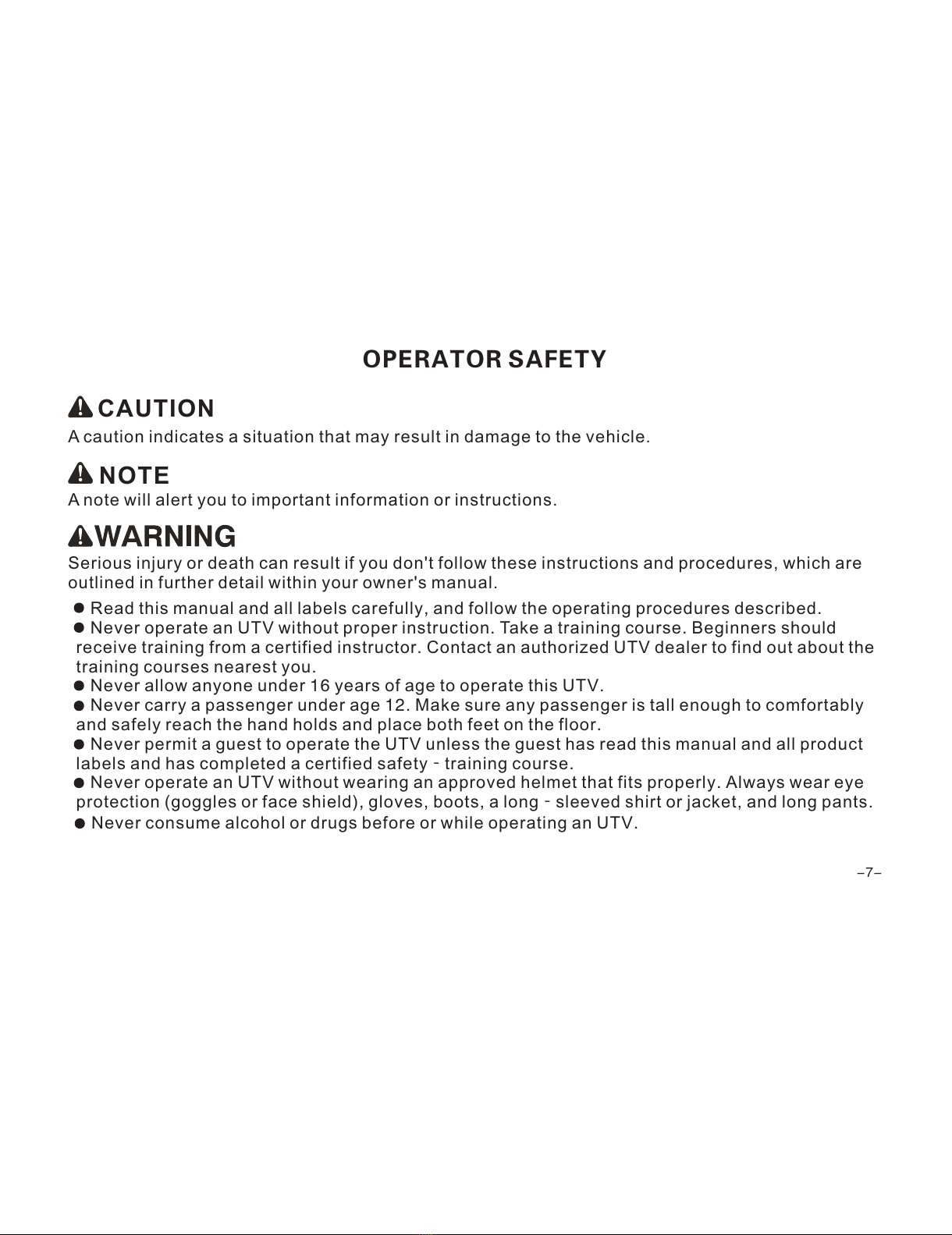

OPERATOR SAFETY

CAUTION

A caution indicates a situation that may result in damage to the vehicle.

A note will alert you to important information or instructions.

NOTE

Serious injury or death can result if you don't follow these instructions and procedures, which are

outlined in further detail within your owner's manual.

Read this manual and all labels carefully, and follow the operating procedures described.

Never operate an UTV without proper instruction. Take a training course. Beginners should

receive training from a certified instructor. Contact an authorized UTV dealer to find out about the

training courses nearest you.

Never allow anyone under 16 years of age to operate this UTV.

Never carry a passenger under age 12. Make sure any passenger is tall enough to comfortably

and safely reach the hand holds and place both feet on the floor.

Never permit a guest to operate the UTV unless the guest has read this manual and all product

labels and has completed a certified safety‐training course.

Never operate an UTV without wearing an approved helmet that fits properly. Always wear eye

protection (goggles or face shield), gloves, boots, a long‐sleeved shirt or jacket, and long pants.

Never consume alcohol or drugs before or while operating an UTV.

-7-

All manuals and user guides at all-guides.com

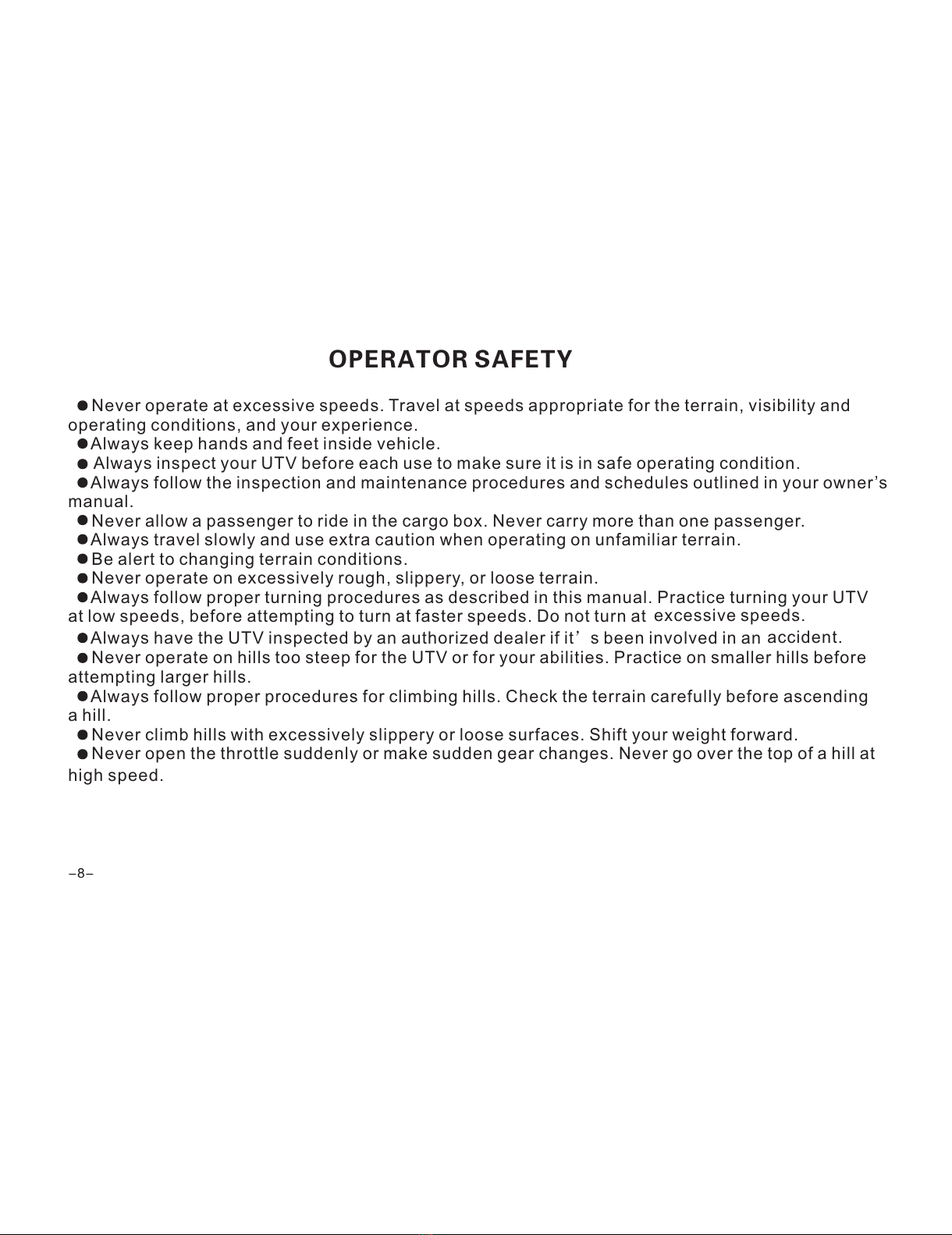

OPERATOR SAFETY

Never operate at excessive speeds. Travel at speeds appropriate for the terrain, visibility and

operating conditions, and your experience.

Always keep hands and feet inside vehicle.

Always inspect your UTV before each use to make sure it is in safe operating condition.

Always follow the inspection and maintenance procedures and schedules outlined in your owner’s

manual.

Never allow a passenger to ride in the cargo box. Never carry more than one passenger.

Always travel slowly and use extra caution when operating on unfamiliar terrain.

Be alert to changing terrain conditions.

Never operate on excessively rough, slippery, or loose terrain.

Always follow proper turning procedures as described in this manual. Practice turning your UTV

at low speeds, before attempting to turn at faster speeds. Do not turn at excessive speeds.

Always have the UTV inspected by an authorized dealer if it’s been involved in an accident.

Never operate on hills too steep for the UTV or for your abilities. Practice on smaller hills before

attempting larger hills.

Always follow proper procedures for climbing hills. Check the terrain carefully before ascending

a hill.

Never climb hills with excessively slippery or loose surfaces. Shift your weight forward.

Never open the throttle suddenly or make sudden gear changes. Never go over the top of a hill at

high speed.

-8-

All manuals and user guides at all-guides.com

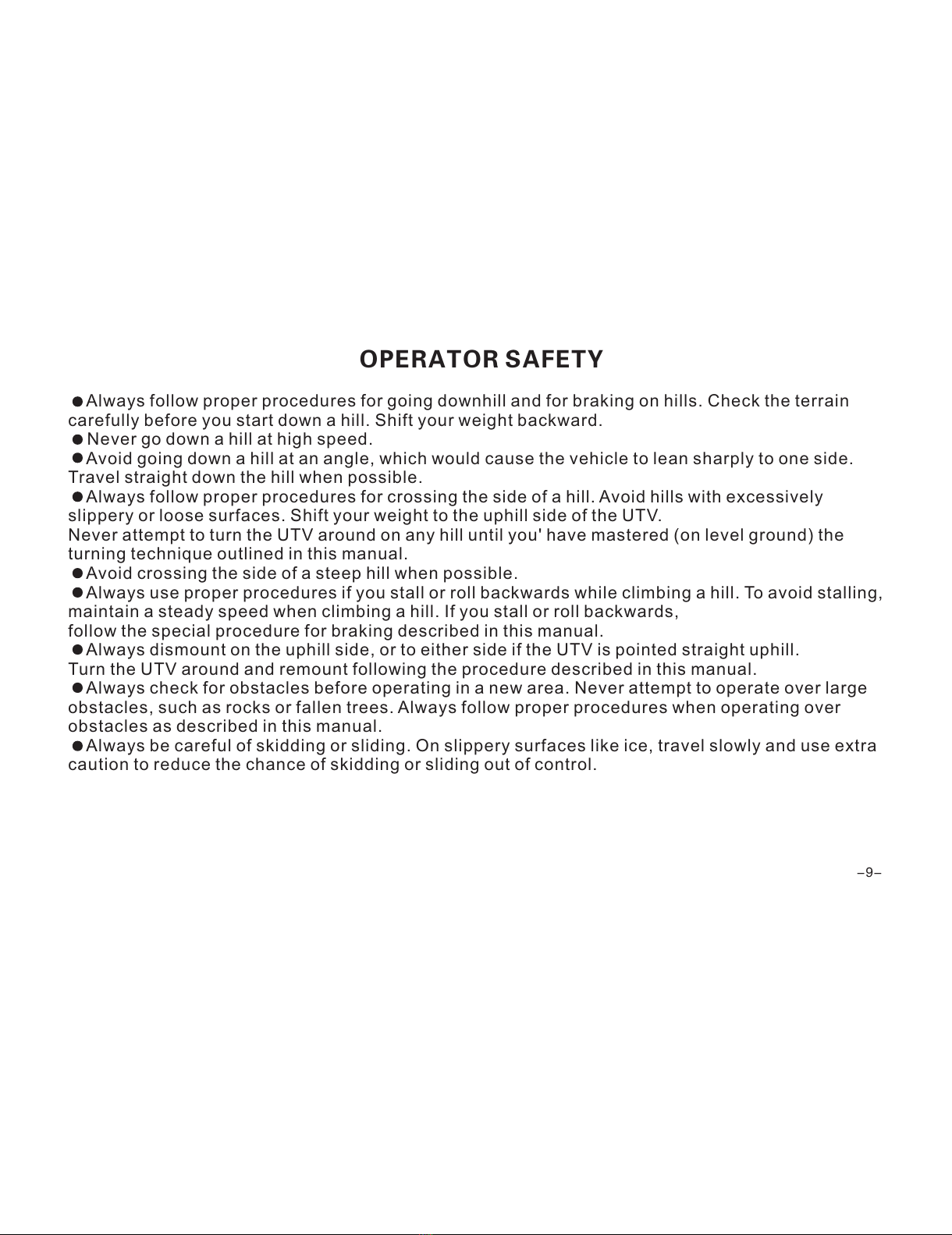

OPERATOR SAFETY

Always follow proper procedures for going downhill and for braking on hills. Check the terrain

carefully before you start down a hill. Shift your weight backward.

Never go down a hill at high speed.

Avoid going down a hill at an angle, which would cause the vehicle to lean sharply to one side.

Travel straight down the hill when possible.

Always follow proper procedures for crossing the side of a hill. Avoid hills with excessively

slippery or loose surfaces. Shift your weight to the uphill side of the UTV.

Never attempt to turn the UTV around on any hill until you' have mastered (on level ground) the

turning technique outlined in this manual.

Avoid crossing the side of a steep hill when possible.

Always use proper procedures if you stall or roll backwards while climbing a hill. To avoid stalling,

maintain a steady speed when climbing a hill. If you stall or roll backwards,

follow the special procedure for braking described in this manual.

Always dismount on the uphill side, or to either side if the UTV is pointed straight uphill.

Turn the UTV around and remount following the procedure described in this manual.

Always check for obstacles before operating in a new area. Never attempt to operate over large

obstacles, such as rocks or fallen trees. Always follow proper procedures when operating over

obstacles as described in this manual.

Always be careful of skidding or sliding. On slippery surfaces like ice, travel slowly and use extra

caution to reduce the chance of skidding or sliding out of control.

-9-
