Char-Griller 5050 Bedienungsanleitung

OM5050E.2 ™ & © Char-Griller / A&J Mfg. 10

Step 1

Attach the LEFT LEGS & RIGHT LEGS to the BASE using four (4) ½” BOLTS and four

(4) ¼” LOCK WASHERS as shown. When you install the LEFT LEG & RIGHT LEG,

please make sure that the holes at the top of the LEGS are facing out. Please note

that the wheel legs have inside and outside sides. The axel will not fit through the

legs if the outside of the leg is not facing out

Step 2

Attach the LEG CROSSBAR to the frame as shown making sure that the holes on the

CROSSBAR are facing inward. See below.

OM5050E.2 ™ & © Char-Griller / A&J Mfg. 11

Step 4

Install the LEG BRACES to the LEGS using eight (8) LOCK WASHERS and eight (8)

½” BOLTS as shown. Remember to NOT tighten the bolts until completing

step 6.

Step 3

Attach BOTTOM SHELF to the LEGS (as shown below).

OM5050E.2 ™ & © Char-Griller / A&J Mfg. 12

Step 6

Attach the GAS GRILL BODY and CHARCOAL GRILL BODY to the LEG CROSSBAR us-

ing eight (8) ½” BOLTS, eight (8) LOCK WASHERS and eight (8) FLAT WASHERS in

order shown. Make sure to insert the bolt first through the lock washer then the flat

washer then through the grill body as shown.

4334

Turn grill assembly up on end as shown and tighten

ALL nuts and bolts.

Step 5

Install one WASHER, COTTER PIN and HUB CAP onto the AXLE then slide the AXLE

through WHEELS and legs as shown. Finish by attaching 2nd WASHER, COTTER PIN

and HUB CAP.

Axle

Wheel

Washer

Cotter Pin

Hub Cap

OM5050E.2 ™ & © Char-Griller / A&J Mfg. 13

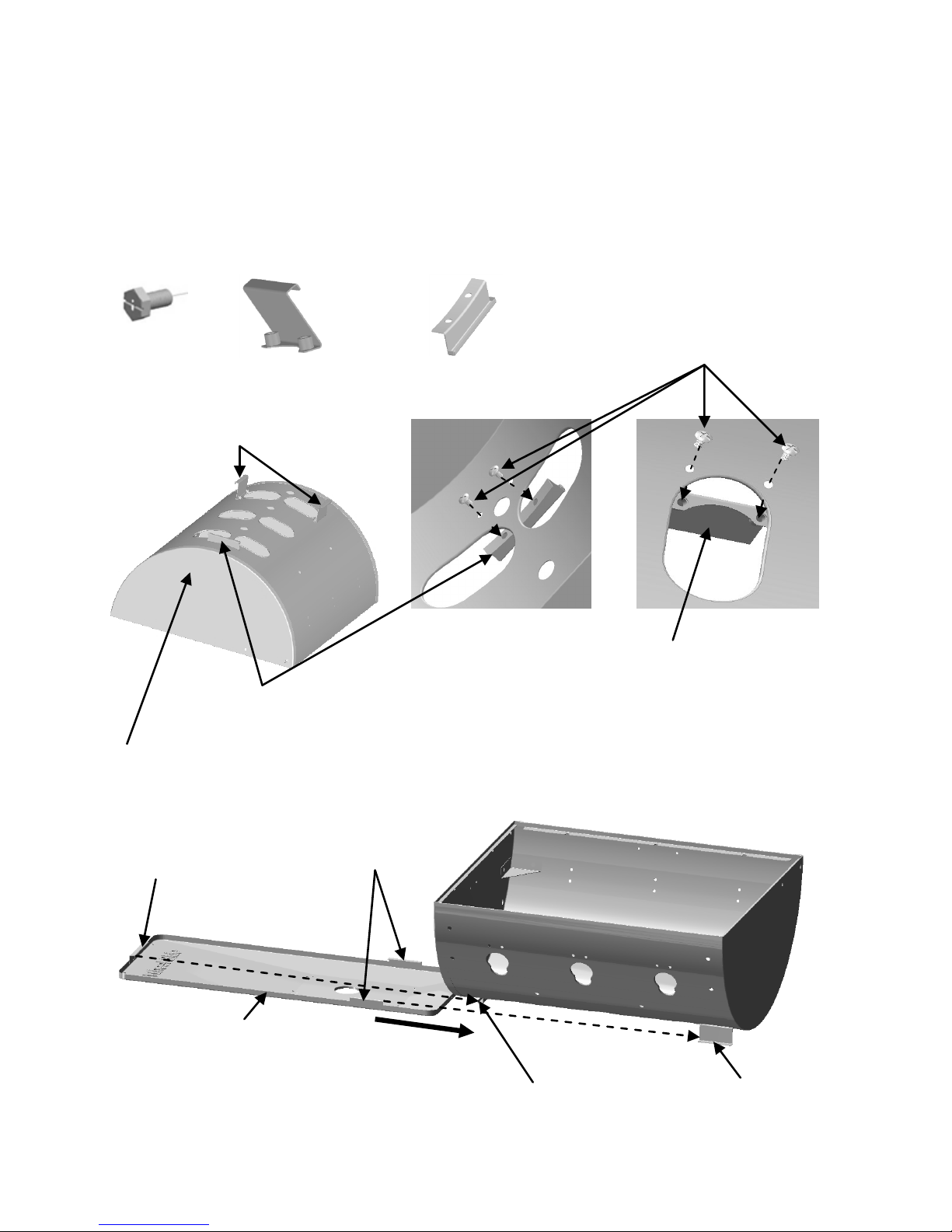

Step 7

Attach (2)SLIDER BRACKETS and (1)STOPPER BRACKET to Bottom of GRILL BODY as

shown on Figure 2 and Figure 3 using (6) #10-24 x 0.40” bolts. NOTE: Oriented

Brackets as shown in Figure 1. Install CATCH PAN by placing CATCH PAN support

brackets on top of SLIDER BRACKETS underneath GRILL BODY, see Figure 4, and

then slide it forward until you can hang the CATCH PAN side bracket onto the STOP-

PER BRACKET. From the rear of the grill, slide the GREASE TRAY into the guides/

rails under the CATCH PAN.

CATCH PAN

Support Bracket

CATCH PAN

Side Bracket

Stopper Bracket

Figure 4

(6)#10-24 x

0.40” Bolt (2) Slider Bracket (1) Stopper Bracket

Slider Bracket

Stopper Bracket

Figure 1

#10-24 x 0.40” Bolt

Slider Bracket

Figure 2 Figure 3

GRILL BODY

Slider Bracket

OM5050E.2 ™ & © Char-Griller / A&J Mfg. 14

Note: the hose should

be on the outside of

the leg brace.

Side Burner

Venturi Tube

Step 8

Install the SIDE BURNER and the CONTROL PANEL to the GRILL BODY with eight (8)

½” BOLTS and eight (8) LOCK WASHERS. Make sure the SIDE BURNER VALVE tip is

completely inside of the SIDE BURNER VENTURI TUBE see figure below. (NOTE: Hose

should be on the outside of the leg brace). Then tighten all the bolts. Slide GREASE

TRAY onto the rail underneath CATCH PAN. Slide the other GREASE TRAY onto the rail

underneath the SIDE BURNER PAN.

Side Burner Valve

Leg Brace

Hose

GREASE

TRAY

GREASE

TRAY

Note: the hose should

be on the outside of

the leg brace.

Side Burner

Venturi Tube

Step 8

Install the SIDE BURNER and the CONTROL PANEL to the GRILL BODY with eight (8)

½” BOLTS and eight (8) LOCK WASHERS. Make sure the SIDE BURNER VALVE tip is

completely inside of the SIDE BURNER VENTURI TUBE see figure below. (NOTE: Hose

should be on the outside of the leg brace). Then tighten all the bolts. Slide GREASE

TRAY onto the rail underneath CATCH PAN. Slide the other GREASE TRAY onto the rail

underneath the SIDE BURNER PAN.

Side Burner Valve

Leg Brace

Hose

GREASE

TRAY

GREASE

TRAY

Note: the hose should

be on the outside of

the leg brace.

Side Burner

Venturi Tube

Step 8

Install the SIDE BURNER and the CONTROL PANEL to the GRILL BODY with eight (8)

½” BOLTS and eight (8) LOCK WASHERS. Make sure the SIDE BURNER VALVE tip is

completely inside of the SIDE BURNER VENTURI TUBE see figure below. (NOTE: Hose

should be on the outside of the leg brace). Then tighten all the bolts. Slide GREASE

TRAY onto the rail underneath CATCH PAN. Slide the other GREASE TRAY onto the rail

underneath the SIDE BURNER PAN.

Side Burner Valve

Leg Brace

Hose

GREASE

TRAY

GREASE

TRAY

OM5050E.2 ™ & © Char-Griller / A&J Mfg. 15

Step 10

Insert the IGNITER WIRES, which are attached to the underside of each BURNER,

through the same hole in the GRILL BODY that the BURNER goes through and then

attach the WIRE to the backside of the ELECTRONIC IGNITER, which is attached to

the back side of the CONTROL PANEL. Any wire can go into any of the three sockets

on the Electronic Igniter.

Burner

Igniter Wire

Electronic Igniter

Step 9

Install the MAIN BURNERS into the GRILL BODY by first inserting the open end of

the BURNERS through the holes in the front of the grill body. Making sure the VALVE

tips are inside the burner tubes. The BURNER with the longest wire is installed on

the right side of the GAS GRILL BODY. Secure the BURNER to the GAS GRILL BODY

with the SCREWS provided.

Valve

Burner

OM5050E.2 ™ & © Char-Griller / A&J Mfg. 16

Step 11

Install the CONDIMENT BASKET to the CHARCOAL GRILL BODY using four (4) LOCK

WASHERS and four (4) ½” BOLTS. From inside the GRILL BODY the BOLTS go

through a LOCK WASHER and then through the GRILL BODY and then screw into the

CONDIMENT BASKET.

Condiment Basket

Bolts and Lock Washers

Step 12

Install the SIDE DAMPER to the CHARCOAL GRILL BODY using one (1) ½” BOLT. The

BOLT should first go through a FLAT WASHER then the DAMPER then the GRILL

BODY then another FLAT WASHER then a LOCK WASHER and then secured with a

HEX NUT. See below.

OM5050E.2 ™ & © Char-Griller / A&J Mfg. 17

Step 13

Attach the SIDE HANDLE to the right side of the CHARCOAL GRILL BODY using two

(2) ½” BOLTS and two (2) LOCK WASHERS as shown. From inside the GRILL BODY

insert each BOLT through a LOCK WASHER and then through the GRILL BODY and

then screw into the SIDE HANDLE. See below.

Lock Washer

Step 14

Attach the HOOD HANDLES to the GRILL HOODS with four (4) LOCK WASHERS and

four (4) WING NUTS as shown below.

Lock Washer

OM5050E.2 ™ & © Char-Griller / A&J Mfg. 18

Step 15

Install the GAS CHIMNEY to the GAS GRILL HOOD and the CHARCOAL CHIMNEY to

the CHARCOAL GRILL HOOD. Insert the CHIMNEYS through each hole from inside

the HOOD and secure with two (2) HEX NUTS and two (2) ½” BOLTS for each CHIM-

NEY, see below.

Step 16

Insert the THERMOMETERS through BEZEL into the GRILL HOODS and secure with

two (2) WING NUTS as shown.

OM5050E.2 ™ & © Char-Griller / A&J Mfg. 19

Step 17

Attach HOODS to the GRILL BODIES using HINGE PINS as shown. Have your helper

stand behind the grill to hold the HOODS in place and keep them from falling. First

place the GAS HOOD onto the GRILL BODY in the closed position then screw the left

HINGE PIN into place. Then place the Charcoal HOOD in place and screw in the right

HINGE PIN. Carefully and slightly open the Charcoal HOOD and insert the center

HINGE PIN from inside the charcoal grill through the HOOD then through the Gas

HOOD and Body as shown. Then insert COTTER PINS through the holes in the three

HINGE PINS.

Hinge Pin
