User Manual

Ovation E-2 FC User Manual Rev. 1

Edition Notes

The Ovation E-2 FC User Manual includes a description, safety precautions, installation, programming,

operation and maintenance instructions for the Ovation E-2 FC as of the release date of this edition.

Trademarks

Chauvet, Chauvet Professional, the Chauvet logo, Rogue, Outcast, and Rogue Outcast are registered

trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United

States and other countries. Other company and product names and logos referred to herein may be

trademarks of their respective companies.

The works of authorship contained in this manual, including, but not limited to, all design, text and images

are owned by Chauvet.

Electronically published by Chauvet in the United States of America.

Manual Use

Chauvet authorizes its customers to download and print this manual for professional information purposes

only. Chauvet expressly prohibits the usage, copy, storage, distribution, modification, or printing of this

manual or its content for any other purpose without written consent from Chauvet.

Document Printing

For best results, print this document in color, on letter size paper (8.5 x 11 in), double-sided. If using A4

paper (210 x 297 mm), configure the printer to scale the content accordingly.

Intended Audience

Any person installing, operating, and/or maintaining this product should completely read through the guide

that shipped with the product, as well as this manual, before installing, operating, or maintaining this

product.

Disclaimer

Chauvet believes that the information contained in this manual is accurate in all respects. However,

Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss,

damage or disruption caused by any errors or omissions in this document, whether such errors or

omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the

content of this document without any obligation to notify any person or company of such revision, however,

Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest

version from www.chauvetprofessional.com.

Document Revision

This Ovation E-2 FC User Manual is the 1st edition of this document. Go to www.chauvetprofessional.com

for the latest version.

Ovation E-2 FC User Manual Rev. 1

Table of Contents

TABLE OF CONTENTS

1. Before You Begin ....................................................................... 1

What Is Included ........................................................................................... 1

Claims ........................................................................................................... 1

Text Conventions .......................................................................................... 1

Symbols ........................................................................................................ 1

FCC Compliance........................................................................................... 1

Safety Notes.................................................................................................. 2

Expected LED Lifespan................................................................................. 2

2. Introduction ................................................................................ 3

Description .................................................................................................... 3

Features........................................................................................................ 3

Product Overview.......................................................................................... 3

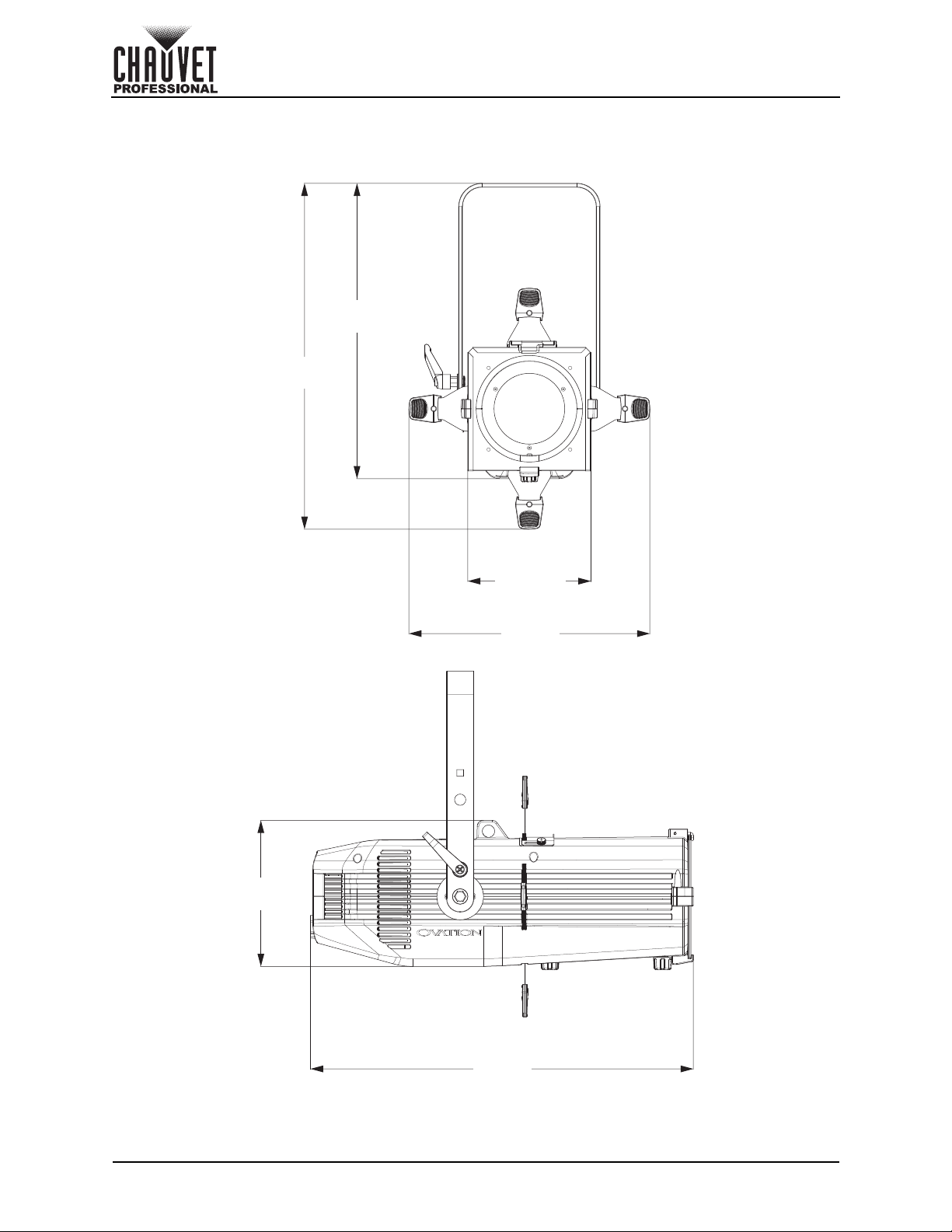

Product Dimensions ...................................................................................... 4

3. Setup ........................................................................................... 5

AC Power...................................................................................................... 5

AC Plug .............................................................................................................. 5

Fuse Replacement ............................................................................................. 5

Power Linking..................................................................................................... 5

DMX Linking.................................................................................................. 5

DMX Personalities.............................................................................................. 5

Remote Device Management (RDM) ................................................................. 5

Master/Slave Connectivity............................................................................. 6

USB Software Update ................................................................................... 6

Soft Focus Filter............................................................................................ 6

Manual Zoom Control.................................................................................... 6

Mounting ....................................................................................................... 7

Orientation.......................................................................................................... 7

Rigging ............................................................................................................... 7

Procedure........................................................................................................... 7

Adjustable Yoke ................................................................................................. 7

Accessory Slot .............................................................................................. 8

Gobo Dimensions............................................................................................... 8

4. Operation .................................................................................... 9

Control Panel Description ............................................................................. 9

Menu Map ..................................................................................................... 9

Configuration (DMX) ..................................................................................... 12

Control Personalities .......................................................................................... 12

Starting Address................................................................................................. 12

Virtual Color Wheel ....................................................................................... 13

Virtual Color Wheel Chart .................................................................................. 13

Color Temperature Chart ................................................................................... 14

DMX Channel Assignments and Values ....................................................... 15

17 Ch / 13 Ch2 / 13 Ch1 / 11 Ch / 7 Ch / 5 Ch / 4 Ch ........................................ 15

HSV.................................................................................................................... 16

1 Ch.................................................................................................................... 16

Table of Contents

Ovation E-2 FC User Manual Rev. 1

Configuration (Standalone) ........................................................................... 17

Static Mode ........................................................................................................ 17

Virtual Color Wheel ......................................................................................................... 17

Color Temperature.......................................................................................................... 17

Manual Color Mixer......................................................................................................... 17

Auto Show.......................................................................................................... 17

Configuration (Settings) ................................................................................ 17

Red Shift ............................................................................................................ 17

Master/Slave ...................................................................................................... 17

Dimmer Curve .................................................................................................... 17

Dimmer Profile ................................................................................................... 18

Color Calibration ................................................................................................ 18

Pulse Width Modulation ..................................................................................... 18

Fan Mode ........................................................................................................... 18

Display Backlight Timer...................................................................................... 18

Information ......................................................................................................... 18

Factory Reset..................................................................................................... 18

5. Maintenance................................................................................ 19

Product Maintenance .................................................................................... 19

6. Technical Specifications ........................................................... 20

Warranty & Returns....................................................................................... 21

Ovation E-2 FC User Manual Rev. 1

Before You Begin

1. Before You Begin

What Is Included

Claims

Carefully unpack the product immediately and check the container to make sure all the parts are in the

package and are in good condition.

If the box or the contents (the product and included accessories) appear damaged from shipping, or show

signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier

immediately may invalidate a claim. In addition, keep the box and contents for inspection.

For other issues, such as missing components or parts, damage not related to shipping, or concealed

damage, file a claim with Chauvet within 7 days of delivery.

Text Conventions

Symbols

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause

undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void

the user's authority to operate the equipment.

• Ovation E-2 FC

• Seetronic Powerkon power cable

• Ovation metal gobo holder (“M” size)

• Soft focus filter

• Quick Reference Guide

Convention Meaning

1–512 A range of values

50/60 A set of values of which only one can be chosen

Settings A menu option not to be modified

<ENTER> A key to be pressed on the product’s control panel

Symbol Meaning

Critical installation, configuration, or operation information. Not following these

instructions may make the product not work, cause damage to the product, or cause

harm to the operator.

Important installation or configuration information. The product may not function correctly

if this information is not used.

Useful information.

The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data

transmission protocol.

Before You Begin

Ovation E-2 FC User Manual Rev. 1

Safety Notes

Read all the following safety notes before working with this product. These notes contain important

information about the installation, usage, and maintenance of this product.

• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer

than 18.4 ft (5.6 m) is not expected.

• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special

cord or cord exclusively available from the manufacturer or its service agent.

• The light source contained in this luminaire shall only be replaced by the manufacturer or its service

agent or a similar qualified person.

• The luminaire is intended for professional use only.

• CAUTION:

• This product’s housing may be hot when operating. Mount this product in a location with

adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

• When transferring the product from extreme temperature environments, (e.g., cold truck to

warm humid ballroom) condensation may form on the internal electronics of the product. To

avoid causing a failure, allow the product to fully acclimate to the surrounding environment

before connecting it to power.

• Flashing light is known to trigger epileptic seizures. User must comply with local laws regarding

notification of strobe use.

• ALWAYS:

• Disconnect from power before cleaning the product or replacing the fuse.

• Replace the fuse with the same type and rating.

• Use a safety cable when mounting this product overhead.

• Connect this product to a grounded and protected circuit.

•DONOT:

• Open this product. It contains no user-serviceable parts.

• Look at the light source when the product is on.

• Leave any flammable material within 50 cm of this product while operating or connected to

power.

• Connect this product to a dimmer or rheostat.

• Operate this product if the housing, lenses, or cables appear damaged.

• Operate this product outdoors or in any location where dust, excessive heat, water, or humidity

may affect it. (IP20)

• ONLY use the hanging/mounting bracket to carry this product.

• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher

temperatures.

• The minimum startup temperature is -4°F (-20°C). Do not start the product at lower temperatures.

• The minimum ambient temperature is -22°F (-30°C). Do not operate the product at lower

temperatures.

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely

disconnect the product from power via breaker or by unplugging it.

• In the event of a serious operating problem, stop using immediately.

Expected LED Lifespan

Over time, use and heat will gradually reduce LED brightness. Clustered LEDs produce more heat than

single LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is

40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit

the overall intensity.

This product contains no user-serviceable parts. Any reference to servicing in this User

Manual will only apply to properly trained, certified technicians. Do not open the housing

or attempt any repairs.

All applicable local codes and regulations apply to proper installation of this product.

If a Chauvet product requires service, contact Chauvet Technical Support.

Ovation E-2 FC User Manual Rev. 1

Introduction

2. Introduction

Description

The Ovation E-2 FC is a compact LED ellipsoidal spotlight that delivers high quality of light and convenient

features in a quiet durable design optimized for smaller venues. Its advanced full spectrum Ovation RGBA-

Lime color mixing system produces exceptionally high CRI output that can be smoothly sized with an

integrated manual Zoom and focusing made easier with a dedicated Focus Mode button.

Features

• Full-spectrum LED ERS-style lighting fixture for small theaters and studios

• Integrated 25-50deg Zoom lens.

• Color temperature presets from 2800 K to 8000 K with high CRI and CQS

• +/- Green adjustment and emulated red-shift via DMX or on-board control

• Dedicated focus mode button for one-touch activation for focusing without a board-op.

• USB port for fixture software updates

Product Overview

buttons

LCD

display

DMX

in/out

Safety

loop

Power

Fuse

holder

USB C

port

Manual zoom and focus knobsFraming shutters (x4)

Power

out

Introduction

Ovation E-2 FC User Manual Rev. 1

Product Dimensions

12.2 in

310 mm

14.96 in

380 mm

17.5 in

445 mm

18.1 in

461 mm

6.24 in

158.5 mm

7.4 in

188 mm

Ovation E-2 FC User Manual Rev. 1

Setup

3. Setup

AC Power

The Ovation E-2 FC has an auto-ranging power supply and it can work with an input voltage range of 100

to 240 VAC, 50/60 Hz.

To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current

value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.

The listed current rating indicates the product’s average current draw under normal conditions.

AC Plug

The Ovation E-2 FC comes with a power input cable terminated with a Seetronic Powerkon A connector on

one end and an Edison plug on the other end (U.S. market). If the power cable which came with the

product has no plug, or if the plug needs to be changed, use the table below to wire a plug.

Fuse Replacement

1. Disconnect this product from the power outlet.

2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.

3. Remove the blown fuse and replace with another fuse of the same type and rating (T 3.15 A, 250 V).

4. Screw the fuse holder cap back in place and reconnect power.

Power Linking

The product supports power linking. It is possible to link up to 6 Ovation E-2 FC products at 100 V, 7

products at 120 V, 10 products at 208 V, or 12 products at 230/240 V. This product comes with a power

input cord. Power-linking cables are available for purchase from Chauvet.

DMX Linking

The Ovation E-2 FC can be linked to a DMX controller using a 5-pin DMX connection. If using other DMX-

compatible products with this product, it’s possible to control each individually with a single DMX controller.

DMX Personalities

The Ovation E-2 FC uses a 5-pin DMX data connection for the 1 Ch, 4 Ch, 5 Ch, 7 Ch, 11 Ch, 13 Ch1, 13

Ch2, 17 Ch, and HSV DMX personalities.

• Refer to the Introduction for a brief description of each DMX personality.

• Refer to the Operation chapter to learn how to configure the Ovation E-2 FC to work in these

personalities.

•TheDMX Channel Assignments and Values section provides detailed information regarding the

DMX personalities.

Remote Device Management (RDM)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate

bi-directionally along existing DMX cabling. Check the DMX controller’s User Manual or with the

manufacturer as not all DMX controllers have this capability. The Ovation E-2 FC supports RDM protocol

that allows feedback to make changes to menu map options.

• Always connect the product to a protected circuit (a circuit breaker or fuse). Ensure the

product has an appropriate electrical ground to avoid the risk of electrocution or fire.

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use

completely disconnect the product from power via breaker or by unplugging it.

Never connect the product to a rheostat (variable resistor) or dimmer circuit, even if the

rheostat or dimmer channel serves only as a 0 to 100% switch.

Connection Wire (U.S.) Wire (Europe) Screw Color

AC Live Black Brown Yellow or Brass

AC Neutral White Blue Silver

AC Ground Green/Yellow Green/Yellow Green

For information about DMX standards, Master/Slave connectivity, or the DMX cables

needed to link this product to a DMX controller, download the DMX Primer from the

Chauvet website: www.chauvetprofessional.com.

Setup

Ovation E-2 FC User Manual Rev. 1

Master/Slave Connectivity

The Master/Slave mode allows an Ovation E-2 FC (the master) to control one or more Ovation E-2 FC

products (the slaves) without a DMX controller. Once Ovation E-2 FC becomes the master when running

an auto or custom program, or in Static mode.

Each slave’s control panel must be configured to operate in Slave mode. During Master/Slave operation,

the slaves will operate in unison with the master.

USB Software Update

The Ovation E-2 FC allows for software update through USB using the built-in USB port. To update the

software using a USB flash drive, do the following:

1. Power on the product and plug the flash drive into the USB port.

2. Once the flash drive has been detected, the message “Upgrade Firmware” will be displayed. Press

<ENTER>. If a different message appears on the display, search for the updated software in the

menu (Updated Firmware) and select from Only This Fixture, Multiple Fixture, or Other

Fixture Type.. A list of the updated software files will be displayed.

3. Select the file that needs to be uploaded. The message “Are you sure?” will be displayed. Press

<ENTER>.

4. If the selected file is correct, the update will be completed. Restart the product.

If the selected file is incorrect, the update will fail, and the display will go back to the main interface.

Repeat steps 1–3 using the correct file.

Soft Focus Filter

The Ovation E-2 FC comes with a soft focus filter. To keep the soft focus filter in good condition:

• Ensure that no fingerprints are left on the filter, as this may cause the filter to heat unevenly and

eventually warp.

• When placing the filter in the holder, follow the orientation direction printed on the filter.

• When inserting shutter blades into the light path, note that the heat is reflected back at the filter. The

deeper the blades are inserted, and the longer the fixture runs, the more heat gets reflected on to

the filter, causing it to warp and potentially adhere to the shutter blades.

Manual Zoom Control

The Ovation E-2 FC has a manual zoom and focus, which is adjusted as follows:

1. Locate the zoom and focus knobs at the bottom of the product.

2. Loosen the knobs by turning them counterclockwise.

3. Slide the lenses forward or backward until the desired zoom and focus/beam edge is achieved.

4. Tighten the knobs by turning them clockwise, which locks the lenses in position.

DO NOT connect a DMX controller to products operating in Master/Slave mode. The DMX

controller signals may interfere with the signals from the master.

•TheOperation section of this manual provides detailed instructions on how to

configure the master and slaves.

•For more information about DMX standards or the DMX cables needed to link this product

to a DMX controller, download the DMX primer from the Chauvet website:

www.chauvetprofessional.com.

The “Other Fixture Type” option can only be selected for connected products compatible

with the Upload 03 (the first 2 digits of the item code must be 03).

The product's USB port supports up to 32GB capacity and only works with FAT32 file

format.

If there is a protective film on the soft-focus filter, it must be removed before use. The filter

is in a holder in the metal gobo slot.

To avoid changing menu settings while focusing the Ovation E-2 FC, press and hold the

<FOCUS MODE> button for 3 seconds. This will put the product in Focus Mode, by

increasing the intensity to 100%. To exit out of Focus Mode, press <MENU>.

Andere Handbücher für Ovation E-2FC

Inhaltsverzeichnis

Andere Chauvet Professional DJ-Equipment Handbücher

Chauvet Professional

Chauvet Professional ROGUE OUTCAST 2 BEAM Bedienungsanleitung

Chauvet Professional

Chauvet Professional Ovation E-910FC IP Bedienungsanleitung

Chauvet Professional

Chauvet Professional COLORado Solo Batten 4 Bedienungsanleitung

Chauvet Professional

Chauvet Professional COLORado 2 Solo VW Bedienungsanleitung

Chauvet Professional

Chauvet Professional COLORado PXL Curve 12 Bedienungsanleitung

Chauvet Professional

Chauvet Professional RB-F50CM Bedienungsanleitung

Chauvet Professional

Chauvet Professional Maverick MK3 Profile Bedienungsanleitung

Chauvet Professional

Chauvet Professional Rogue R2 Wash VW Bedienungsanleitung

Chauvet Professional

Chauvet Professional OVATION E-910FC Bedienungsanleitung

Chauvet Professional

Chauvet Professional Rogue Outcast 1 BeamWash Bedienungsanleitung

Chauvet Professional

Chauvet Professional ROGUE R3 SPOT Bedienungsanleitung

Chauvet Professional

Chauvet Professional Ovation F-915FC Bedienungsanleitung

Chauvet Professional

Chauvet Professional OVATION E-930VW Bedienungsanleitung

Chauvet Professional

Chauvet Professional COLORDASHACCENT3 Bedienungsanleitung

Chauvet Professional

Chauvet Professional EPIX DRIVE 2000 IP Bedienungsanleitung

Chauvet Professional

Chauvet Professional VIP DRIVE 10-5 Nova Bedienungsanleitung

Chauvet Professional

Chauvet Professional OMINE10WWZ Bedienungsanleitung

Chauvet Professional

Chauvet Professional Ovation F-55FC Bedienungsanleitung

Chauvet Professional

Chauvet Professional REM-RB50CM IP Curve Bedienungsanleitung

Chauvet Professional

Chauvet Professional COLORado Zoom CW Tour Bedienungsanleitung

Chauvet Professional

Chauvet Professional ROGUER3XWASH Bedienungsanleitung

Chauvet Professional

Chauvet Professional Rogue Outcast 2X Wash Bedienungsanleitung

Chauvet Professional

Chauvet Professional Ovation P-56FC Bedienungsanleitung

Chauvet Professional

Chauvet Professional COLORado Range IP Bedienungsanleitung

Beliebte DJ-Equipment Handbücher anderer Marken

ALPHA LITE

ALPHA LITE ALPHA 1500 Betriebsanleitung

Chauvet

Chauvet OVATION E-930VW Bedienungsanleitung

Zumtobel

Zumtobel APHRODITE Home Bedienungsanleitung

Snow Masters

Snow Masters Zig Oscillator Bedienungsanleitung

EuroLite

EuroLite 50530554 Bedienungsanleitung

Beamz

Beamz BUV243 Bedienungsanleitung

thomann

thomann Stairville DJ Lase 40-G MK-III Bedienungsanleitung

Eagletone

Eagletone 6 Eyes Flower Bedienungsanleitung

EuroLite

EuroLite FLD-1508 Bedienungsanleitung

Technical Pro

Technical Pro LG8xSEA Bedienungsanleitung

JB Systems

JB Systems Lounge Laser DMX Bedienungsanleitung

Lightmaxx

Lightmaxx Vega Halo 90 Bedienungsanleitung

Elation

Elation FUZE WASH Z350 Bedienungsanleitung

Maverick

Maverick MK3 WASH Bedienungsanleitung

Infinity

Infinity TF-260C7 Fresnel Bedienungsanleitung

Chauvet

Chauvet EVE E-50Z Bedienungsanleitung

Eliminator Lighting

Eliminator Lighting E 138 Bedienungsanleitung

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Bedienungsanleitung
