Chenbro SK32303 Series Bedienungsanleitung

SK32303 Series

Storage Expansion Kit User Manual

January 2020 Version 1.1

A document provides an overview of product features, functions, architecture, and support specifications.

SK32303 Series

│ 2

DISCLAIMERS

No license (express or implied, by estoppel or otherwise) to any intellectual property rights is granted by this document.

Chenbro disclaims all express and implied warranties, including without limitation, the implied warranties of merchantability, fitness

for a particular purpose, and non-infringement, as well as any warranty arising from course of performance, course of dealing, or

usage in trade.

This document contains information on products, services and/or processes in development. All information provided here is subject

to change without notice. Contact your Chenbro representative to obtain the latest Configuration Guide.

The products and services described may contain defects or errors known as errata which may cause deviations from published

specifications. Current characterized errata are available on request.

Chenbro, and the Chenbro logo are trademarks of Chenbro Micom Co., Ltd.in the worldwide.

*Other names and brands may be claimed as the property of others

 SK32303 Series
Table of Contents│  3

Table of Contents
List of Figures................................................................................................................................................4
List of Tables .................................................................................................................................................5
1. Product Overview..........................................................................................................................6
1-1 Front Panel..............................................................................................................................7
1-2 Back Panel...............................................................................................................................8
1-3 Front Control Panel .................................................................................................................9
1-4 System Dimensions ...............................................................................................................10
1-5 System Level Environmental Specifications............................................................................11
1-6 System Packaging.................................................................................................................12
2. Installation and Removal .............................................................................................................13
2-1 Storage Kit Installation...........................................................................................................13
2-2 HDD Tray Installation & Removal ...........................................................................................15
2-3 Storage Kit Fan Module Maintenance....................................................................................17
3. Backplane....................................................................................................................................18
3-1 Storage Backplane Options....................................................................................................19
3-2 3.5” 12Gbps SAS/SATA Backplane ..........................................................................................20
4. Maintenance and Service ............................................................................................................22

 SK32303 Series
 List of Figures│  4

List of Figures
Figure 1    Front panel.................................................................................................................................7
Figure 2    Back panel..................................................................................................................................8
Figure 3    Front control panel.....................................................................................................................9
Figure 4    Chassis dimensions...................................................................................................................10
Figure 5    Storage kit installation-1...........................................................................................................13
Figure 6    Storage kit installation-2...........................................................................................................13
Figure 7    Storage kit installation-3...........................................................................................................14
Figure 8      3.5” HDD installation (screw type)............................................................................................15
Figure 9      3.5” HDD removal (screw type).................................................................................................15
Figure 10    2.5” HDD/SSD installation (screw type).....................................................................................16
Figure 11    2.5” HDD/SSD removal (screw type) .........................................................................................16
Figure 12    Storage kit fan module installation ...........................................................................................17
Figure 13    Storage kit fan module removal................................................................................................17
Figure 14  Drive tray LED identification .....................................................................................................18
Figure 15    Backplane front view................................................................................................................20
Figure 16    Backplane rear view .................................................................................................................21

SK32303 Series

List of Tables│ 5

List of Tables

Table 1 Chenbro SK32303 series specifications.........................................................................................6

Table 2 Front control panel ......................................................................................................................9

Table 3 System environmental specifications summary..........................................................................11

Table 4 System packaging information ...................................................................................................12

Table 5 Product weight information .......................................................................................................12

Table 6 Drive power LED/activity LED behavior ......................................................................................18

Table 7 Backplane specifications ............................................................................................................20

Table 8 Connector and pin header function description .........................................................................21

SK32303 Series

Product Overview│ 6

1. Product Overview

The SK32303 series is designed with standard mounting holes for converting 2 x 5.25" drive bay into 3 x 3.5" SATA hot-swap hard

drive bay. This chapter provides a high-level overview of the system features and available options as support for different storage

configurations within this product series. More details for each major component, feature, or option are provided in the following

chapters.

Table 1 Chenbro SK32303 series specifications

Feature

Description

Dimension

(D x W x H)

218.7 x 146.0 x 84.4 (mm)

8.61" x 5.75" x 3.32"

Drive Bay

3 x 3.5" HDD Tray

Indicator

1 x Power Status, 1 x HDD Status

System Security

1 x System Alarm

Front Control

Alarm Mute

Cooling Fan

60 x 25 mm (1)

Material

SGCC

Net Weight

1.4 kg

Backplane

12Gbps SAS/SATA

Connector (To Drive)

3 x SFF8680

Connector (To Host)

3 x SATA 7-pin

Package Contents

1 x SK32303, 3 x 700 mm SATA Cable, 1 x 600 mm Signal Cable

SK32303 Series

Product Overview│ 7

1-1 Front Panel

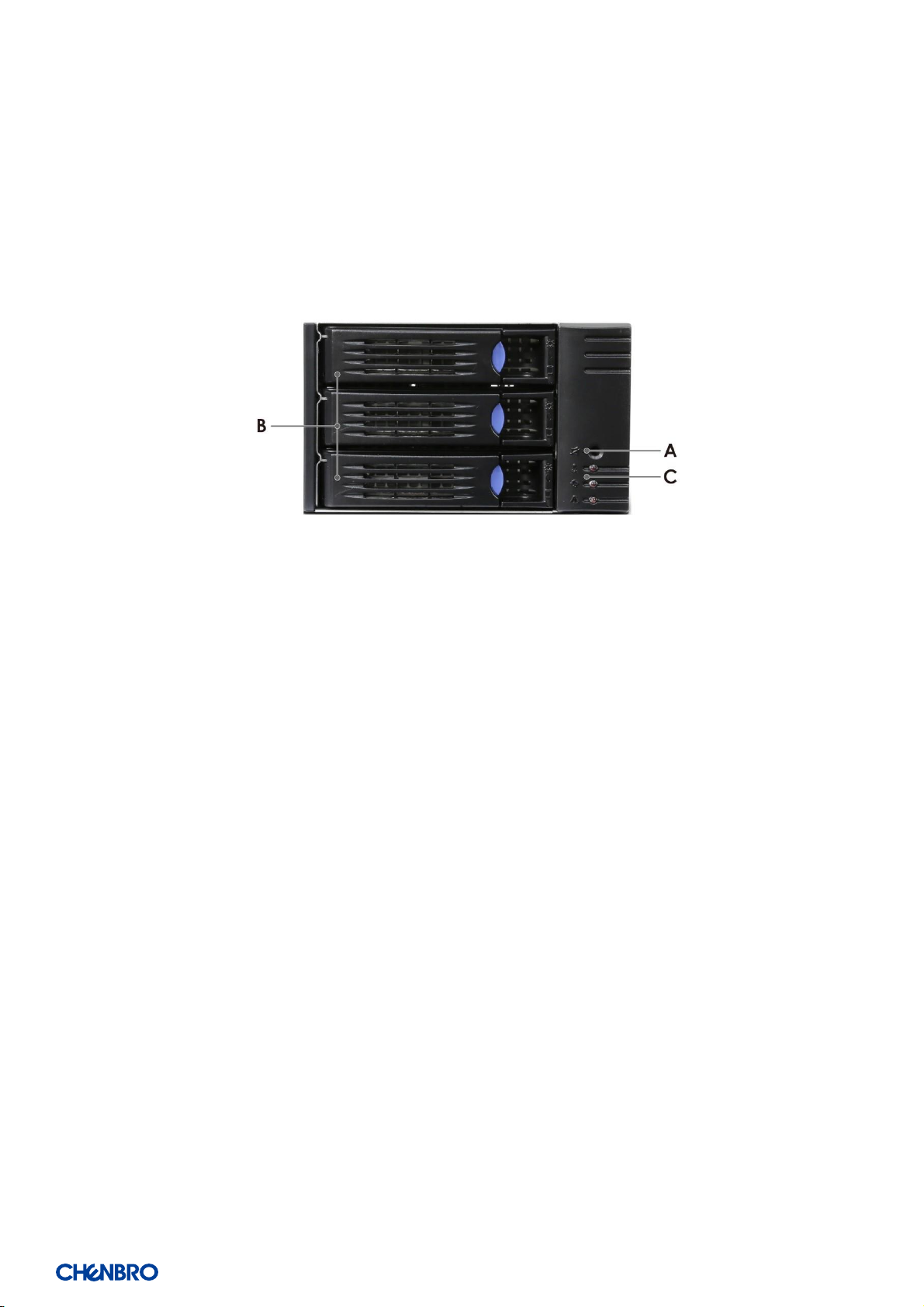

Figure 1 Front panel

A. Alarm Mute B. 3.5” Storage Drive Bays C. Indicator

SK32303 Series

Product Overview│ 8

1-2 Back Panel

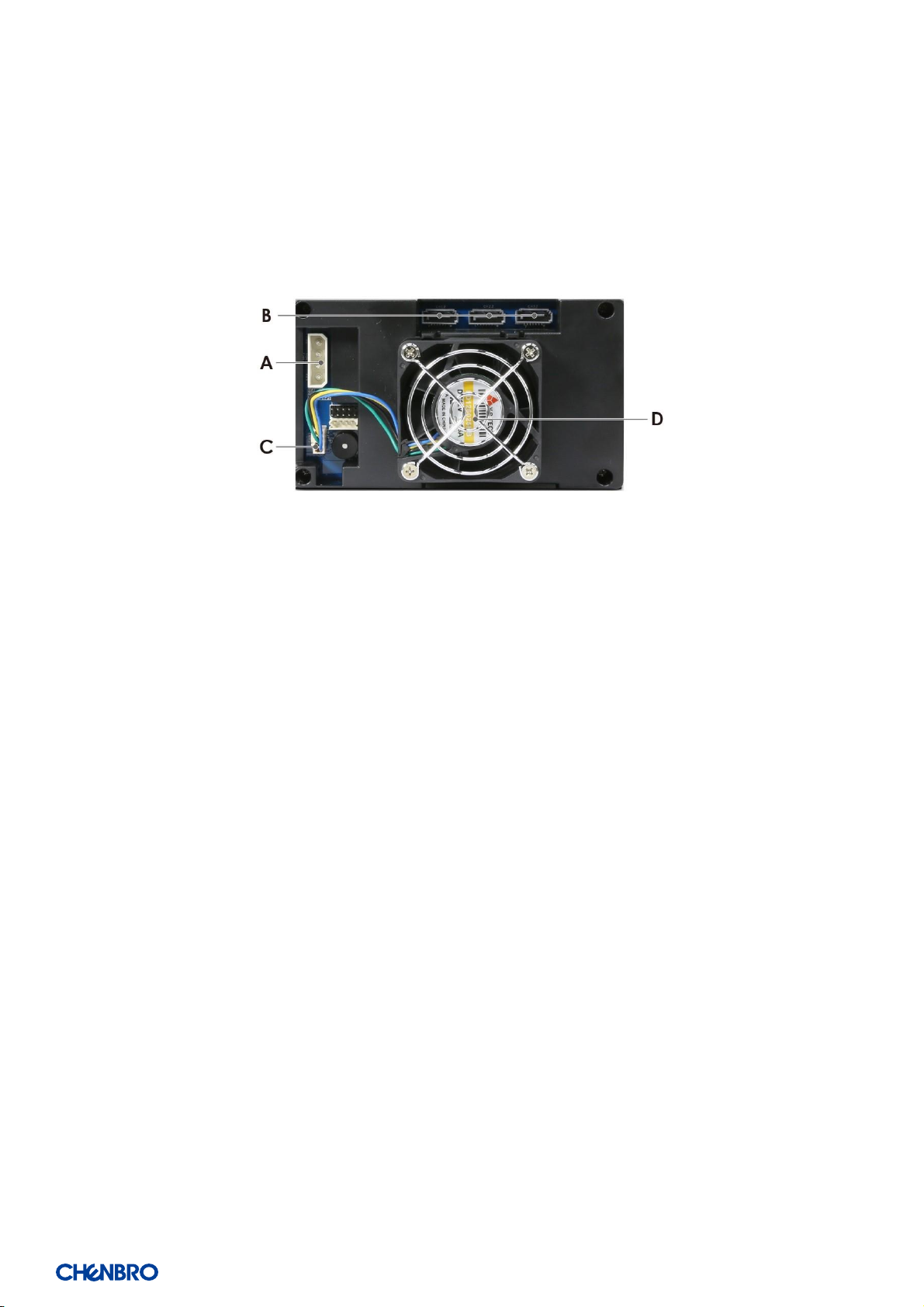

Figure 2 Back panel

A. Power Connector

B. SATA 3.0 Connectors

C. Fan Connector

D. Cooling Fan

SK32303 Series

Product Overview│ 9

1-3 Front Control Panel

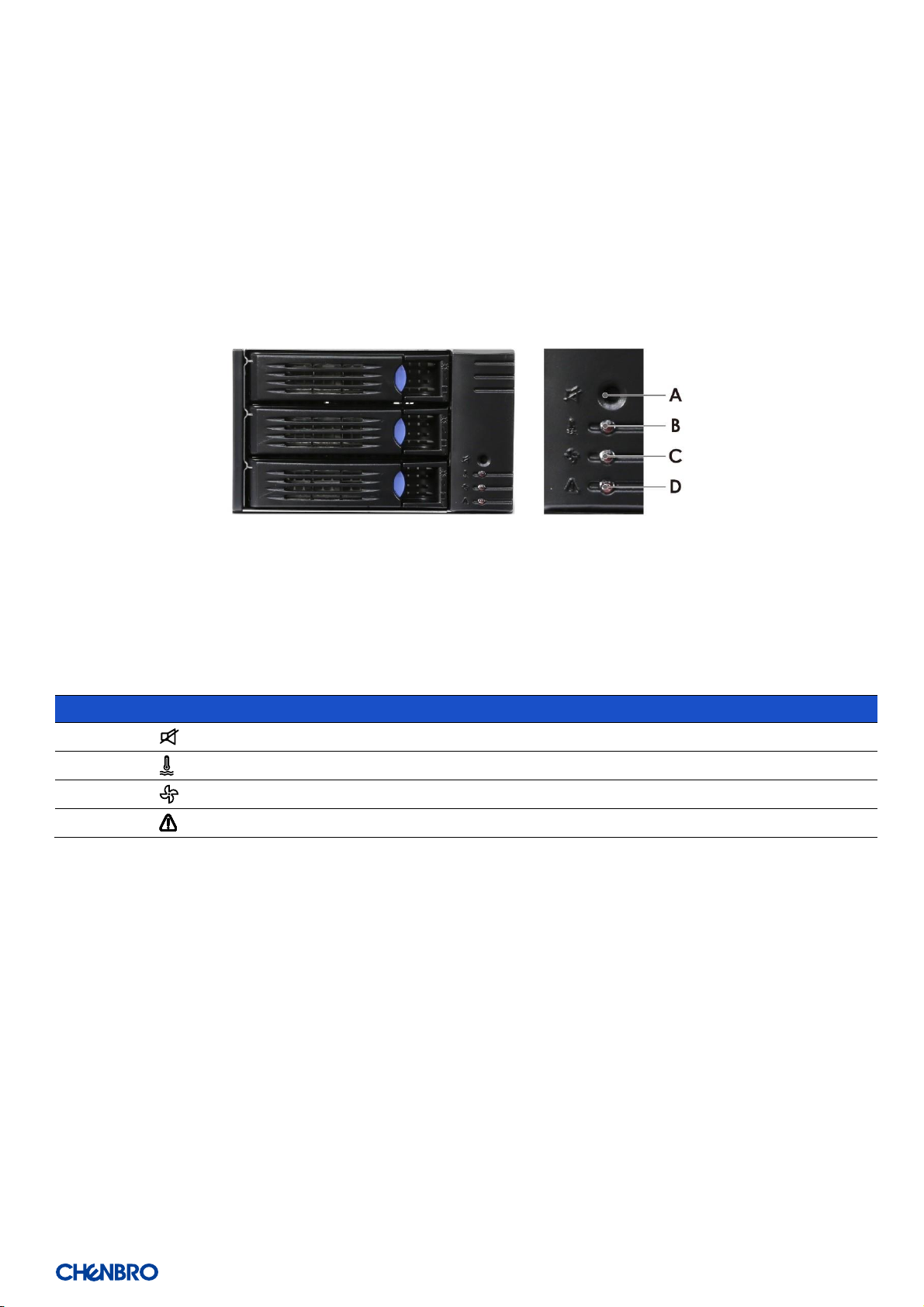

Figure 3 Front control panel

Table 2 Front control panel

Label

ICON

Indicator, button or connector

Alarm Off Switch

TemperatureAlarmLED

Fan Alarm LED

HDDAlarm LED

SK32303 Series

Product Overview│ 10

1-4 System Dimensions

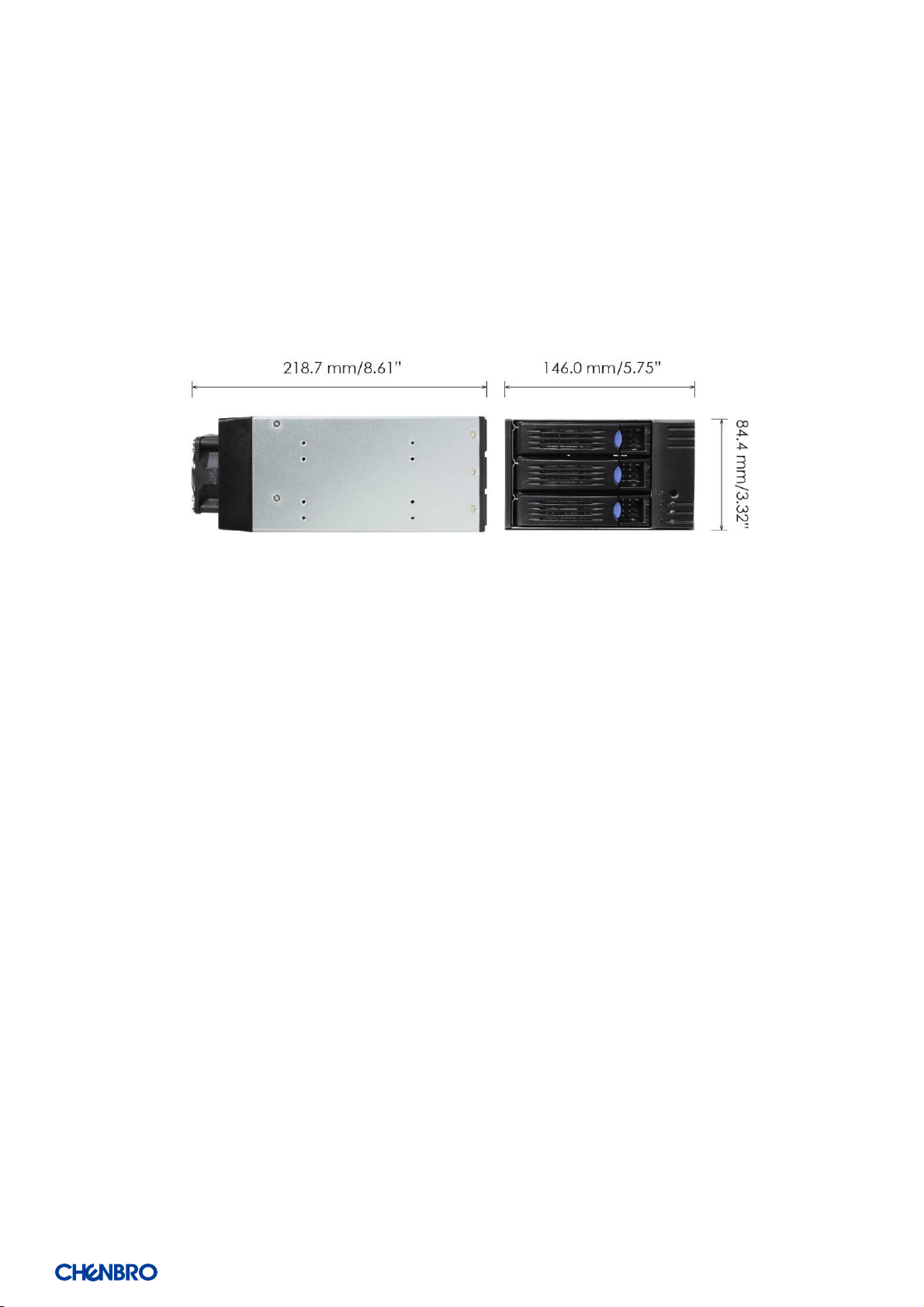

Figure 4 Chassis dimensions
