CHIEF CTV-3036 Bedienungsanleitung

INSTALLATION INSTRUCTIONS

CHIEF MANUFACTURING INC. 8809-000023 (Rev. B)

1-800-582-6480 952-894-6280 FAX 952-894-6918 2004 Chief Manufacturing

8401 EAGLE CREEK PARKWAY, STE. 700 www.chiefmfg.com

SAVAGE, MINNESOTA 55378 USA 1/05

CTV-3036

TV/MONITOR MOUNT

BEFORE YOU BEGIN

• CAUTION: To prevent damage to your monitor, which could affect or void the Factory warranty,

thoroughly study all instructions and illustrations before you begin to install the mount brackets. Pay

particular attention to the Warnings and Cautions in this document.

• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480 or

952-582-6480.

• The CTV-3036 is UL listed when used with the following UL listed accessories made by Chief Manufacturing:

CMA-100 8”Ceiling Plate with Attached Adjustable

1-1/2” NPT Column CMA-362 C-Clamp

CMA-110 8”Ceiling Plate with 1-1/2” NPT Opening CMA-395 100 Degree Angled Ceiling Plate with Threaded Coupler

CMA-115 6”Ceiling Plate with 1-1/2” NPT Opening CMA-0xx Fixed Extension Columns

CMA-330 Offset Ceiling Plate CMA-0xx Adjustable Extension Columns

CMA-345 Structural Ceiling Plate with Flexible Joints QD-1 Quick Disconnect

The CTV-3036 series mounts are used to mount TV/monitors to

ceilings and walls.

Adjustments include forward pitch, swivel, roll, and tray/height.

The CTV mounts are offered in two model numbers. The model

number matches the screen size range that fits the mount. Each

mount has a different maximum weight capacity, depending

upon the TV/monitor size.

The CTV mount specifications are provided on page 2 in this

document.

CTV-3036 Series Mount

Installation Instructions CTV-3036

MOUNT SPECIFICATIONS

Table 1. Mount Specifications

Model

TV/Monitor

Screen

Size

W-Width

Adjustment

H-Height

Adjustment

D-Tray

Depth

(fixed)

Max

Support

Weight

CTV-3036 30” – 36” 28” – 36” 21.75” – 34” 14.75”

300 lbs

(136.1 kg)

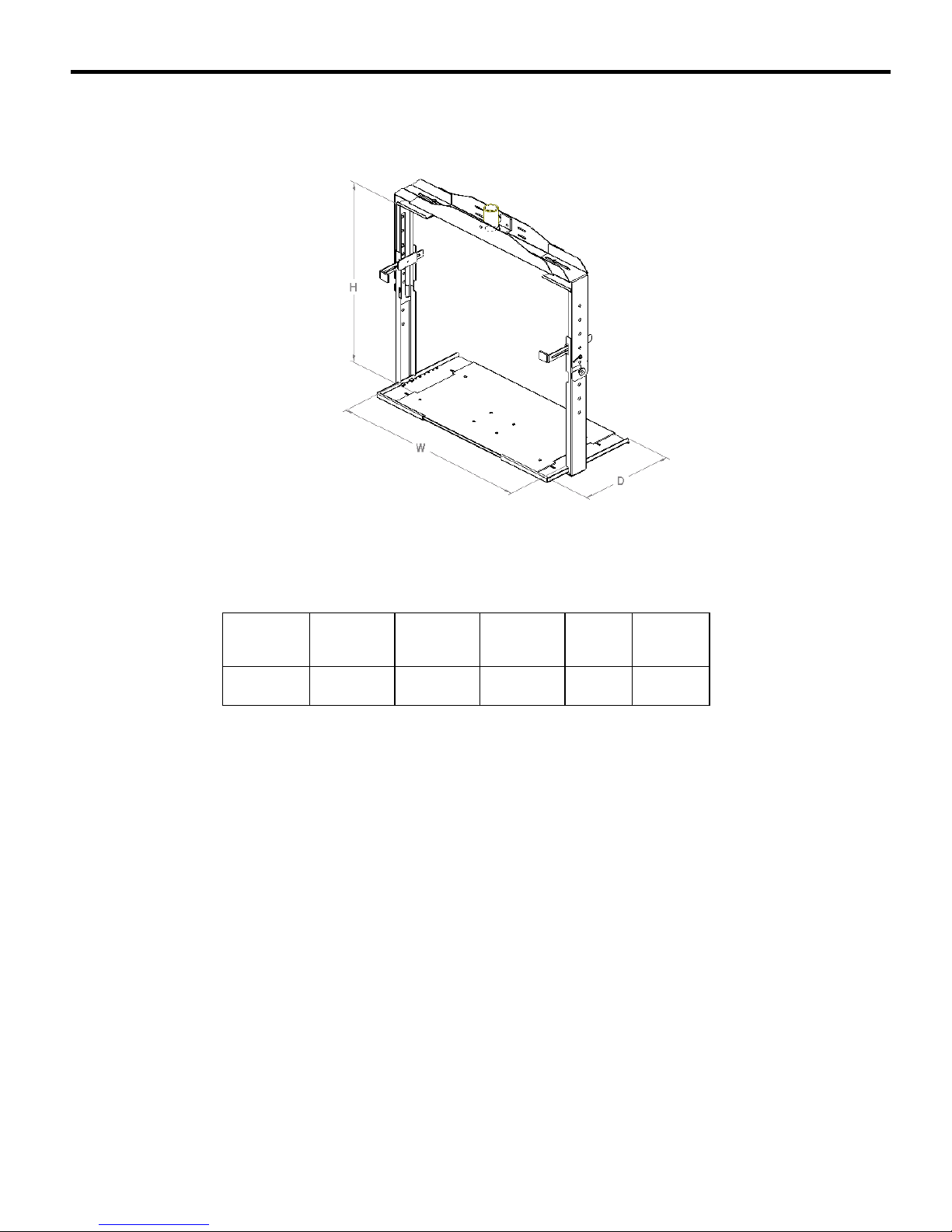

(H) Height, (W) Width, and (D) Depth

Installation Instructions CTV-3036

IMPORTANT WARNINGS and CAUTIONS!

WARNING A WARNING alerts you to the possibility of serious injury or death if you do not

follow the instructions.

CAUTION ACAUTION alerts you to the possibility of damage or destruction of equipment if you do

not follow the corresponding instructions.

WARNING Improper installation can result in serious personal injury! Make sure that the

mounting surface can support a redundant weight factor five times the total weight of

the equipment: if not, reinforce the mounting surface structural members before

installing the mount.

WARNING Be aware of the potential for personal injury or damage to the equipment if it is not

adequately mounted. Refer to Table 1. Mount Specifications on page 2 for the weight of

the mount without a display.

WARNING The installer is responsible for verifying that the mounting surface to which the

mount is anchored will safely support the combined load of all attached components or

other equipment.

WARNING The combined weight of the TV/monitor placed on the mount must not exceed the

maximum support weight of the mount. Refer to Table 1. Mount Specifications on page

2 for the weight of the mount without a display.

WARNING Watch for pinch points. Do not put your fingers between movable parts.

CAUTION Check the unit for shipping damage before you begin the installation.

CONTENTS

MOUNT SPECIFICATIONS ...........................................2

TOOLS REQUIRED FOR INSTALLATION..................4

SHIPPING CONTENTS...................................................4

PARTS ..............................................................................5

INSTALLATION INSTRUCTIONS................................6

Assembling the Tray Assembly.....................................6

Adjusting the Button Plates on Side Brackets...............7

Installing Covers on Roll Out Brackets.........................7

Installing Pads on Top Placement Brackets ..................7

Assembling the Side Brackets .......................................8

Attaching Side Brackets to End Trays...........................9

Placing the Monitor on the Center Tray ........................10

Assembling the Top Center Bracket..............................11

Attaching Support Brackets to Center Bracket..............11

Attaching Center Tray ...................................................12

Installing Quick-Connect Bracket .................................13

Connect and Secure CTV Mount ..................................13

Disconnect and Remove CTV Mount ...........................14

Installation Instructions CTV-3036

TOOLS REQUIRED FOR

INSTALLATION

• Phillips screwdriver

• Pipe Wrench

• M3 Allen Wrench (included)

NOTE: Other tools may be required depending on your

method of installation.

SHIPPING CONTENTS

BEFORE PROCEEDING: Unpack the carton. Verify

contents listed in:

• Table 2 and Figure 1

• Table 3 and Figure 2

Read installation instructions completely. If you are

missing any of the listed components, contact Customer

Service at: 1-800/582-6480.300.

Table 2. Parts List

ITEM DESCRIPTION QTY

10 Tray, Center 1

20 Tray, Left 1

30 Tray, Right 1

40 Bottom Side Bracket 2

50 Button Plate 2

60 Mounting Button 4

70 Roll Out Bracket 2

80 Rubber Cover, Black 2

90 Top Placement Bracket 2

100 4.25 X 1.75 Thin Foam Pad 2

110 Threaded Plate 2

120 Top Center Bracket 1

130 Top Left Bracket- LH 1

140 Top Left Bracket- RH 1

150 Quick-Connect Bracket 1

160 3” X 1.5” NPT Standard Pipe 1

Table 3. Hardware List

ITEM DESCRIPTION QTY

CC M5 X 8mm Phillips Head Cap Screw 4

DD M6 Flat Washer 18

EE M6 X 25mm Flat Head Cap Screw 2

FF M6 X 25mm Phillips Head Cap Screw 4

GG M6 Square Nut 4

HH M6 X 12mm Phillips Head Cap Screw 10

II M6 X 6mm Set Screw 1

JJ M3 Allen Wrench 1

Installation Instructions CTV-3036

PARTS

Figure 1. CTV-3036 Piece Parts Assembly

Figure 2. CTV Hardware Kit

20 30

150

160

100

120

110

130

140

Installation Instructions CTV-3036

INSTALLATION INSTRUCTIONS

STEP 1

Figure 3. Attach End Trays to Center Tray

Figure 4. Interlock the Flanges on Center Tray

Assembling the Tray Assembly

Assemble the tray assembly, as follows:

1. Attach each end tray (20 and 30, Figure 3) onto the

center tray (10) by interlocking the flanges on the

center tray (Figure 4).

2. Align the holes and slots and insert four M5 X 8mm

Phillips cap screws (CC) and flat washers (DD)

through the bottom as shown in Figure 3.

NOTE: The tray assembly will be adjusted to fit your

monitor at a later step.

3. Attach the cap screws (CC) and washers (DD)

loosely. These parts will be tightened later.

(

)

(

)

(

)

(DD)

(CC)

(

)

(

)

Installation Instructions CTV-3036

STEP 2

Figure 5. Adjust Button Plate on Side Plate

Figure 6. Install Roll Out Covers

Figure 7. Install Foam Pads

Adjusting the Button Plates on Side Brackets

Adjust button plates on side plates, as follows:

1. Determine the height of your monitor. If necessary,

use a tape measure.

2. Attach mounting button (60) and button plate (50) to

bottom side bracket (40) using the correct hole

depending on screen height. See Figure 5.

3. Repeat procedure for second side bracket.

Installing Covers on Roll Out Brackets

Install covers on roll out brackets, as follows:

1. Install roll out cover (80) on roll out bracket (70).

See Figure 6.

2. Repeat procedure for other roll out bracket.

Installing Pads on Top Placement Brackets

Install foam pads on top placement brackets, as follows:

1. Locate both top placement brackets (90) and the

foam pads (100).

2. Remove the protective strip to expose the adhesive

on the foam pad (100).

3. Carefully apply the foam pad (100) on the top

placement bracket (90) as shown in Figure 7.

4. Repeat procedure for other top placement bracket.

(

)

(

100

)

(

)

(

)

Installation Instructions CTV-3036

STEP 3

Figure 8. Assemble the Side Brackets

Assembling the Side Brackets

Assemble the side brackets, as follows:

1. Insert one M6 X 25mm flat head cap screw (EE) into

countersunk hole on the bottom side bracket (40).

NOTE: Shorter screens may require the use of the lower

countersunk hole for roll out and top placement

bracket installation.

2. Install the treaded plate (110) and roll out bracket

(70) in the notched cutout on the side bracket (40).

Do not tighten the cap screw (EE) at this point.

3. Slide the top placement bracket (90) inside the side

bracket (40). Make sure that the L-shape top

placement bracket is turned in the right direction as

shown in Figure 8.

4. Repeat procedure for second side bracket.

Installation Instructions CTV-3036

STEP 4

Figure 9. Determine Mounting Area of Monitor

Figure 10. Attach Side Brackets to End Trays

Attaching Side Brackets to End Trays

Attach side brackets to end trays, as follows:

NOTE: The top mounting area (size) of your monitor is

required to determine which set of end tray

mounting holes to use.

1. Determine the top mounting area of your monitor.

See Figure 9. If necessary, use a tape measure.

2. With the mounting area (size) in mind, position the

assembled side brackets (40) at the mid point of the

monitor top.

3. Mark the location of the set of holes in the end trays

(20 or 30) that are closest to mounting holes in the

side bracket (40). See Figure 10.

4. Align the holes and install two M6 square nuts (GG),

two flat washers (DD), and two M6 X 25mm Phillips

head cap screws (FF) in the mounting holes as shown

in Figure 10. Tighten the cap screws (FF) securely.

5. Repeat procedure to attach the other side bracket to

the other end tray.

(

)

(

)

(

)

(

)

(

)

(

)

(

)

(

)

Installation Instructions CTV-3036

STEP 5

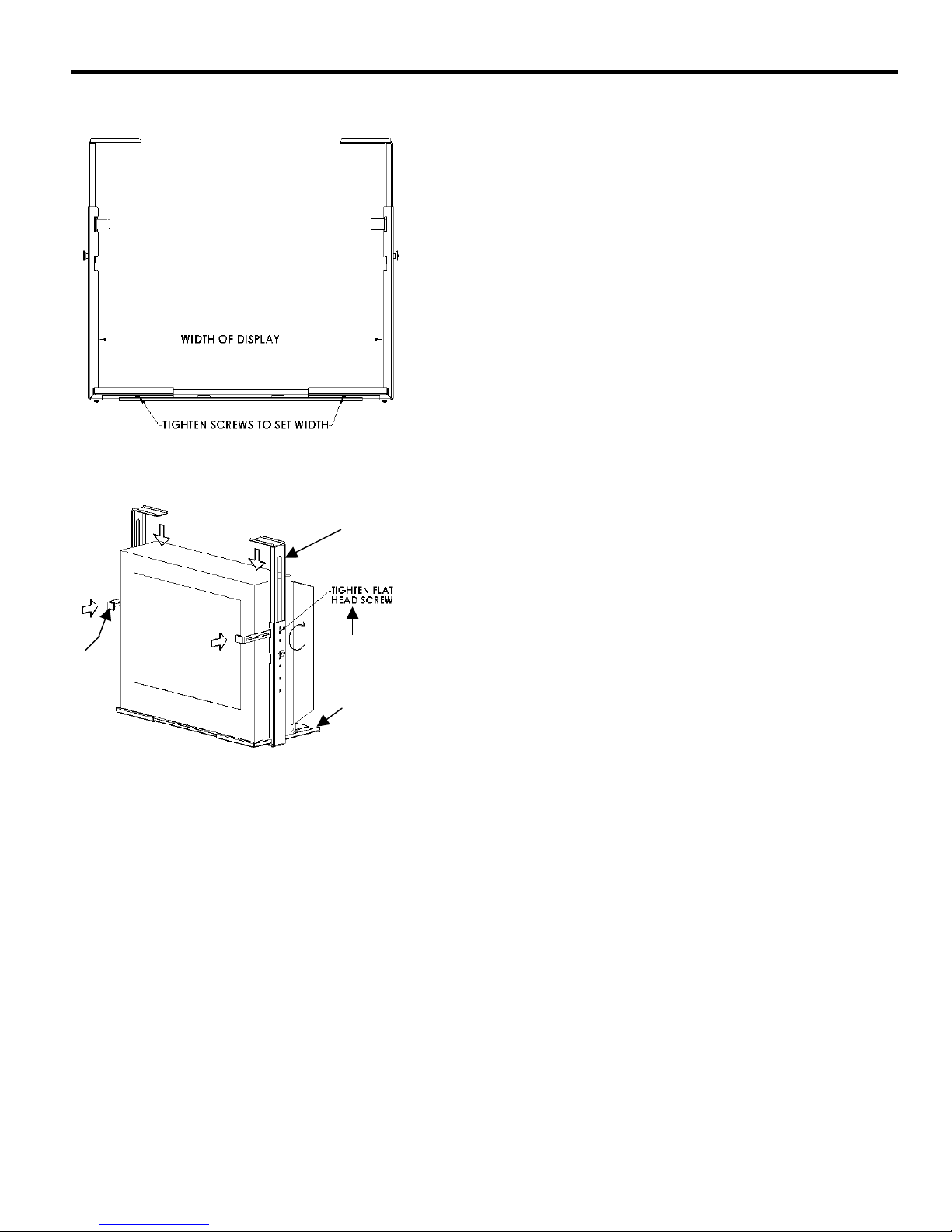

Figure 11. Measure Width of Display

Figure 12. Place Monitor on Mount

Placing the Monitor on the Center Tray

Place the monitor on the center tray, as follows:

1. Determine the width of your monitor (see Figure 11).

If necessary, use a tape measure.

2. Slide the end plates (20 and 30) to match the width of

your monitor. See Figure 12.

3. Tighten all four cap screws (CC) on bottom of trays

(20 and 30). Refer to Figure 11.

WARNING: Monitors are usually heavy and difficult to

move. Exercise extreme caution when

moving the monitor to avoid personal

injury and/or equipment damage.

4. With the assistance of another person, carefully place

the monitor on the center plate. Slide the monitor

onto the center tray (10) from the back end to avoid

lifting the monitor over the retaining edge of the

center tray.

5. Firmly push the roll out brackets (70) inward until

they make contact with your monitor. See Figure 12.

6. Firmly press down on the top placement brackets (90)

until they make contact with your monitor.

7. Tighten the flat head screws (EE) on both sides.

8. Check the mount to ensure that the mounting brackets

are adjusted correctly. The brackets should fit tightly

around your monitor. If not, repeat steps 2 through 7

until the monitor is secure.

20 and 30

Inhaltsverzeichnis

Andere CHIEF Rack & Stand Handbücher

CHIEF

CHIEF MSP-SPCM Bedienungsanleitung

CHIEF

CHIEF PSM-2096 Bedienungsanleitung

CHIEF

CHIEF MSA Series Bedienungsanleitung

CHIEF

CHIEF PACHFK2 Bedienungsanleitung

CHIEF

CHIEF Security SLM Series Mount RPMA1 Bedienungsanleitung

CHIEF

CHIEF Vibration Mount CMA-347 Bedienungsanleitung

CHIEF

CHIEF PAC527F-KIT Bedienungsanleitung

CHIEF

CHIEF GPM-110 Bedienungsanleitung

CHIEF

CHIEF Vibration Mount CMA-347 Bedienungsanleitung

CHIEF

CHIEF FTR1U Bedienungsanleitung

CHIEF

CHIEF SLBU Bedienungsanleitung

CHIEF

CHIEF MSP-SONMED1 Bedienungsanleitung

CHIEF

CHIEF PAC260D Bedienungsanleitung

CHIEF

CHIEF JHS210 Bedienungsanleitung

CHIEF

CHIEF SSB-452 Bedienungsanleitung

CHIEF

CHIEF KFA Series Bedienungsanleitung

CHIEF

CHIEF LTTU Bedienungsanleitung

CHIEF

CHIEF PDR Series Bedienungsanleitung

CHIEF

CHIEF MFAUBSP Bedienungsanleitung

CHIEF

CHIEF CM4S57 Bedienungsanleitung

CHIEF

CHIEF UPM-2401 Bedienungsanleitung

CHIEF

CHIEF RPM Bedienungsanleitung

CHIEF

CHIEF UU Series Bedienungsanleitung

CHIEF

CHIEF RMF Bedienungsanleitung

Beliebte Rack & Stand Handbücher anderer Marken

Salamander

Salamander Acadia AC/W/L400/WH Bedienungsanleitung

Fohhn

Fohhn VAT-09 Benutzerhandbuch

ricoo

ricoo FS0522 Bedienungsanleitung

AMSOIL

AMSOIL BMK-22 Kurzanleitung

Kargo Master

Kargo Master 48220 Bedienungsanleitung

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Bedienungsanleitung

ricoo

ricoo S1222 Bedienungsanleitung

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Bedienungsanleitung

VidaBox

VidaBox VB MNT FFS2 Bedienungsanleitung

Welch Allyn

Welch Allyn 48960 Bedienungsanleitung

Arkon

Arkon CM035-ST-2 Bedienungsanleitung

PROEL

PROEL PLWIN60C Bedienungsanleitung

Agilent Technologies

Agilent Technologies E2609B Bedienungsanleitung

Mustang

Mustang MV-ARM4 Bedienungsanleitung

Mounting Solutions

Mounting Solutions WRM-320 Bedienungsanleitung

Pyle

Pyle PMKSPAD1 Bedienungsanleitung

ShelterIt

ShelterIt 21208 Bedienungsanleitung

SPL

SPL RackPack?4 1040 Bedienungsanleitung
