CHIEF FHP18-110 Bedienungsanleitung

Small Flat Panel Ceiling Mount

with Adjustable Column (FHP18-110)

The FHP is a sleek, Centris™ mounting system designed for all

VESA® 75mm/100mm compliant displays. The mount includes

an adjustable column, cable management, and a variety of

screen positioning options. The all-metal mount is available in

either silver or black.

The slender column on the mount is finely finished with easy

adjustment between 12 inches and 18 inches in 1 inch incre-

ments. The snap on cable management cover, fitting snugly

against the column, conceals unsightly cabling.

The mount rotates 360 degrees, allowing portrait or landscape

mounting of your display. The friction-adjustable pivot points

include 15 degrees of up and down tilt for customized move-

ment.

BEFORE YOU BEGIN

•Caution: To prevent damage to the FHP, which could affect or void the Factory warranty, and to the equip-

ment that will be attached to it, thoroughly study all instructions and illustrations before you begin the

installation. Pay particular attention to the “Important Warnings and Precautions” on Page 1.

• The maximum weight to be installed on the FHP ceiling mount is 40 pounds (18.1 Kg)

• The FHP ceiling mount is designed to be installed using supporting framework. The structure to which the FHP

ceiling mount is anchored must be capable of supporting five times the total weight of the mount and all attached

equipment.

• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.

CHIEF MANUFACTURING INC.

1-800-582-6480 952-894-6280 FAX 952-894-6918

8401 EAGLE CREEK PARKWAY, STE.700

SAVAGE, MINNESOTA 55378 USA

PART NO. 8804-000306

2006 Chief Manufacturing

www.chiefmfg.com

Printed in USA 02-06

INSTALLATION INSTRUCTIONS

Installation Instructions FHP

IMPORTANT WARNINGS AND PRECAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: ACAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corre-

sponding instructions.

•WARNING:Improper installation can result in serious personal injury! Make sure that the structural members can

support a redundant weight factor five times the total weight of the equipment: if not, reinforce the struc-

ture before installing the FHP.

•WARNING:Be aware also of the potential for personal injury or damage to the unit if it is not adequately mounted.

•WARNING:The installer is responsible for verifying that the ceiling to which the FHP is anchored will safely support

the combined load of all attached components or other equipment.

•WARNING:The weight of the display placed on the FHP must not exceed 40 lbs. (18.1 kg), the maximum load capacity

of the FHP.

•WARNING:Watch for pinch points. Do not put your fingers between movable parts.

•WARNING:Make sure the mount and brackets are correctly oriented.

•CAUTION: Check the unit for shipping damage before you begin the installation.

TOOLS REQUIRED FOR INSTALLATION

• Saw (to cut plastic)

• Electric drill and bit set

• Phillips Screwdriver

• Level

NOTE: Other tools may be required depending on the

mounting surface and method of installation.

CONTENTS

DRAWINGS ................................................................ 2

INSPECT THE UNIT BEFORE INSTALLING ............. 3

FHP INSTALLATION .................................................. 3

DISPLAY INSTALLATION .......................................... 4

CABLE MANAGEMENT ............................................. 5

ADJUSTMENTS ......................................................... 5

Installation Instructions FHP

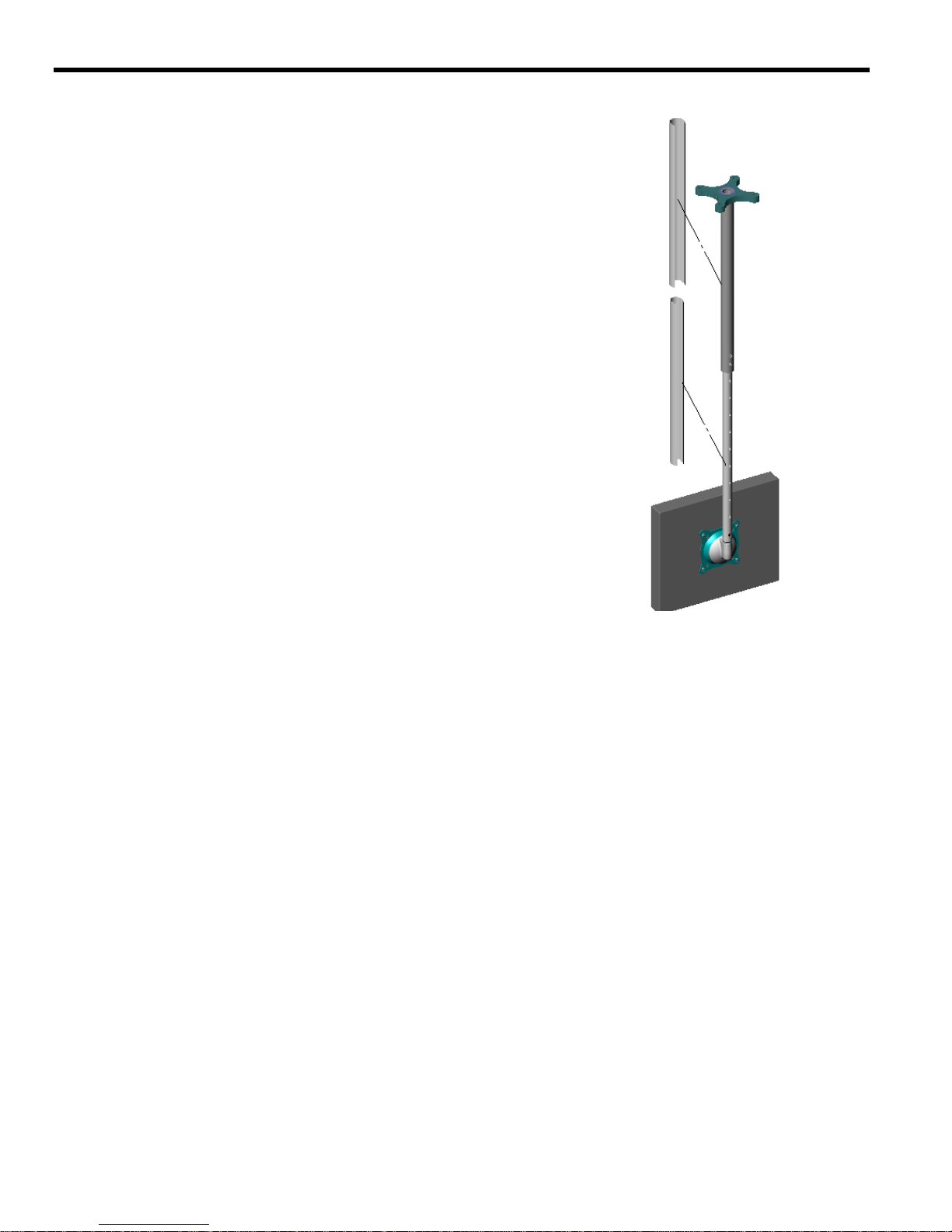

DRAWINGS

PHILLIPS PAN

(Adjustment Screw)

HEAD SCREW

(Adjustment Screw)

PHILLIPS PAN

HEAD SCREW

Installation Instructions FHP

INSPECT THE UNIT BEFORE INSTALLING

WARNING: Watch for pinch points. Do not put your fingers

between movable parts.

1. Carefully inspect the FHP for shipping damage. If any damage

is apparent, call your carrier claims agent and do not continue

with the installation until the carrier has reviewed the damage.

NOTE: Read all instructions before starting installation.

2. Lay out components to ensure you have all the required parts

before proceeding (see FHP drawing on page 2).

FHP INSTALLATION

WARNING: It is the responsibility of the installer to verify that

the surface to which the FHP is anchored will

safety support the combined load of all attached

components and equipment.

Install the FHP as follows:

1. Determine the exact mounting location prior to installation,

considering the unit’s swing radius.

WARNING: Improper installation can result in serious per-

sonal injury! Make sure that the structural mem-

bers can support a redundant weight factor five

times the total weight of the equipment: if not,

reinforce the structure before installing the FWP.

2. Secure the ceiling plate at the desired location.

3. Thread the outer column with pipe adapter securely into the

ceiling plate (see Figure 1).

4. Using the set screw, secure the outer column in the ceiling

plate.

5. Install the inner column into outer column at desired height and

secure using socket head cap screw, Nylon washer, and lock

nut (see Figure 2).

Figure 1. Outer Column Installation

Figure 2. Mount on Outer Column

Installation Instructions FHP

DISPLAY INSTALLATION

Install the display as follows:

VESA Compliant Flush Mounting

CAUTION: If monitor uses a screw size other than M4, DO NOT

use the M4 screws provided. Using the wrong screws

could result in damage to your display.

1. Start two M4 X .7 X 12mm Phillips pan head screws in the top

mounting holes of your display.

2. Matching the hole pattern on your display with the hole pattern

on the mount, hang the mount from the two screws started in

Step A (see Figure 3).

3. Install two remaining Phillips pan head screws through the

mount and into the mounting holes of your display.

4. Secure your display to the mount by tightening the four Phil-

lips pan head screws.

5. Connect and secure power/audio/video cables, making sure to

leave sufficient slack to allow for movement of the display.

VESA Compliant Recessed Mounting

1. Place four 1/2” X 3/8” Nylon spacers or four 1/2” X 3/4”

Nylon spacers, as necessary, over the mounting holes of your

display (see Figure 4).

2. Place the mount over the Nylon spacers, matching the hole pat-

tern on your display (75mm or 100mm) with the hole pattern

on the mount.

3. Using four M4 X .7 X 20mm Phillips pan head screws for 1/2”

X 3/8” Nylon spacer installation or four M4 X .7 X 30mm

Phillips pan head screws for the 1/2” X 3/4” Nylon spacer

installation, secure the mount to your display.

4. Connect and secure power/audio/video cables, making sure to

leave sufficient slack to allow for movement of the display.

Non-VESA Compliant Mounts

1. Contact Chief Manufacturing for custom interface brackets.

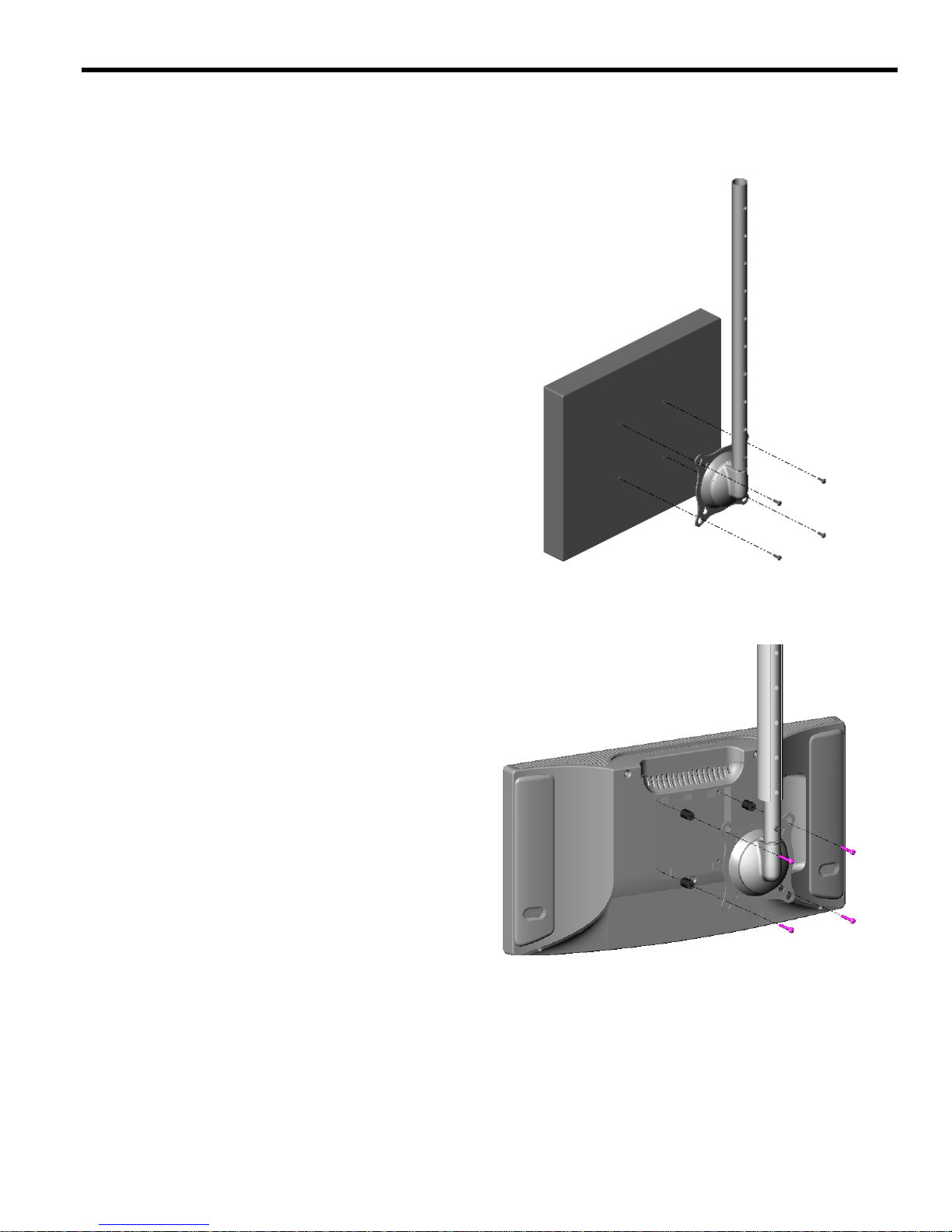

Figure 3. Install Flush Mount Display on Bracket

Figure 4. Install Recessed Mount Display on Bracket

Installation Instructions FHP

CABLE MANAGEMENT

WARNING: Make sure your cables do not run through a pinch

point.

1. Route power/audio/video cables against column, allowing suf-

ficient slack in cables for extension and avoiding pinch points.

2. Install top cable cover over cables (see Figure 5).

3. Measure distance of remaining exposed cables and, using a

saw or appropriate tool, cut lower cable cover to length.

4. Install bottom cable cover over remaining exposed cables.

ADJUSTMENTS

CAUTION: Overtightening adjustment will cause excessive

wear.

Rotational Tilt, Pitch, and Roll Adjustment

1. If necessary, use a Phillips screwdriver to tighten or loosen the

Phillips pan head screw (see “DRAWINGS” on page 3).

2. Check for desired tension.

3. Repeat Steps 1 and 2 until desired tension is obtained.

Figure 5. Install Cable Cover

Installation Instructions FHP
