BEFORE YOU BEGIN

HEAVY DUTY FIXED WALL MOUNT

Model: PSH-2000

Specifications:

• Accomodates Akira and Orion 84" displays

without interface bracket; accomodates other

large flat panel displays with optional interface

bracket.

NOTE: Interface bracket, if required, will result in

additional installation depth. Contact Chief for

details.

• Designed for installation on dual wood studs (16"

or 24" on center).

• Weight capacity of 250 lbs (113 kg).

CAUTION: To prevent damage to your display and this unit, which could affect or void the factory warranty,

thoroughly study all instructions and illustrations before installation. Pay particular attention to the Warnings and

Cautions in this document.

• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480 or 952-894-

6280.

Model: PSH-2000 Installation Instructions

IMPORTANT WARNINGS AND CAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING: It is the installer’s responsibility to make sure the structure to which this unit is attached can support five

times the combined weight of all equipment. Reinforce the structure as required before installing the unit. Failure to

provide adequate structural strength for this unit can result in serious personal injury or damage to equipment!

WARNING: It is the installer’s responsibility to make sure all components are properly assembled and installed using

the instructions provided. Failure to follow instructions can result in serious personal injury or damage to equipment!

WARNING: It is the installer’s responsibility to make sure the combined weight of the display, mount, accessories,

and any other attached equipment must not exceed 250 lbs (113 kg), the maximum support weight of this unit.

Exceeding the maximum support weight can result in serious personal injury or damage to equipment!

WARNING: Make sure the latches securing the display are fully closed at all times except when removing or

installing the display. The latches must be fully closed when installing or removing cables from the display.

CAUTION: Check the unit for shipping damage before you begin the installation.

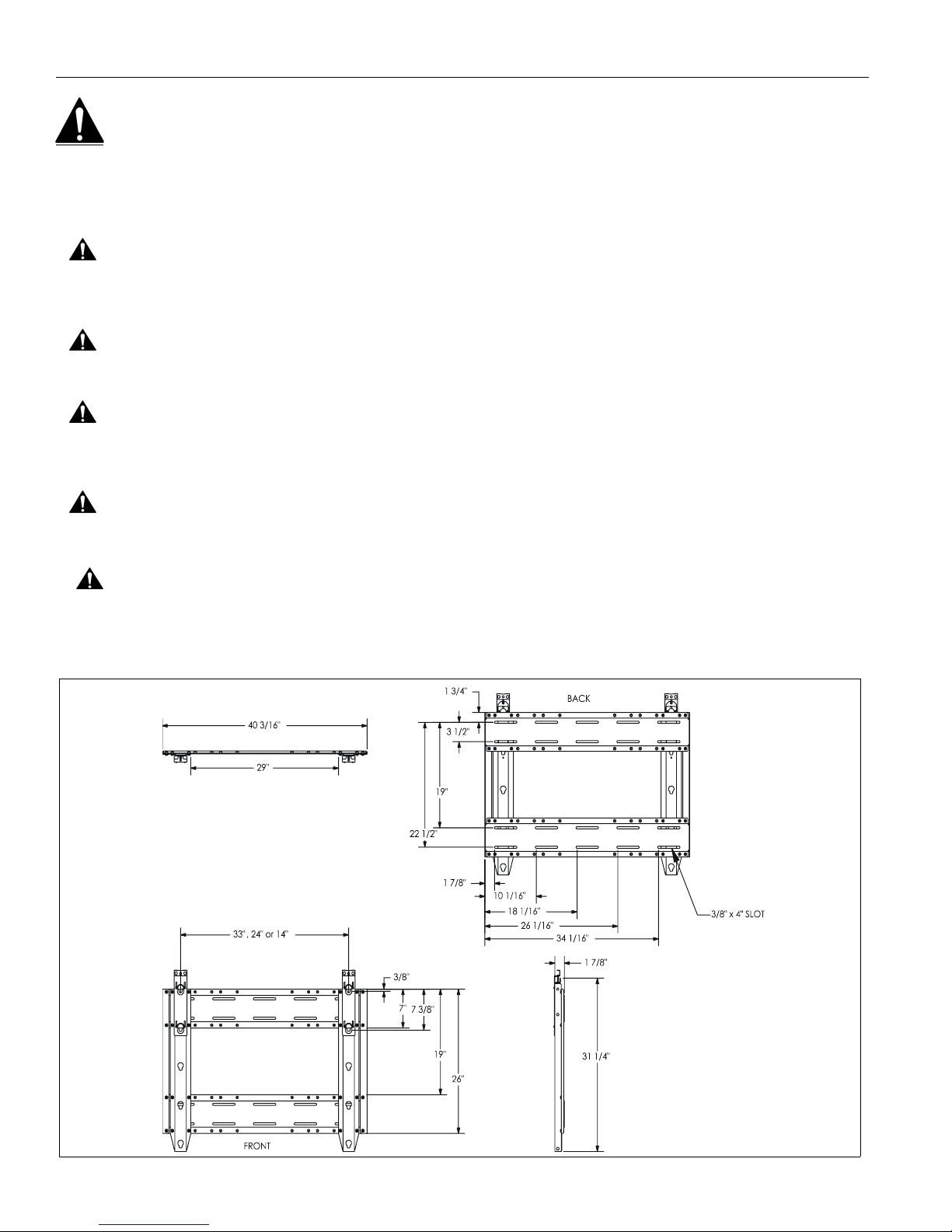

DIMENSIONS

Installation Instructions Model: PSH-2000

TOOLS REQUIRED FOR INSTALLATION

• Drill and 7/32" drill bit

• 13mm wrench

•1/2"wrench

• Phillips screwdriver, #2

• M5 Hex Key (provided)

• 3/16" Hex Key (provided)

• 5/32" Hex Key (provided)

NOTE: Other tools may be required depending on your

method of installation.

PARTS

Unpack carton, inspect and verify contents

(See Figure 1). Read installation instructions completely.

If any listed parts are missing or damaged, contact Chief

Customer Service at 1-800-582-6480.

Table 1: Parts

Item Description Qty

10 PLATE, Wall 2

20 BRACKET, Static 2

30 BRACKET, Side Support 2

40 LATCH 2

50 SPACER, 0.194" ID x 0.375" OD x 0.032" 8

60 SCREW, Button Head Cap, 10-24 x 1/2" 8

70 SCREW, Phillips Pan Machine, 10-24 x 1-1/2" 2

80 SCREW, Button Head Cap, M8-1.25 x 25mm 6

90 BUTTON, Mounting 6

100 WASHER, Flat, Machine, M8 6

110 WASHER, Lock, Split, M8 6

120 NUT, Hex, Finished Standard, M8 6

130 SCREW, Button Head Cap, 5/16"-18 x 1/2" 24

140 KEY, Hex, M5 (Slightly larger than 150) 1

150 KEY, Hex, 3/16" 1

160 KEY, Hex, 1/8" 1

BOLTS, Hex Head Lag, 5/16" x 2-1/2"

(Required, not supplied)

WASHER, Flat, Machine, 5/16" (Required, not

supplied)

Figure 1: Parts

(10) (20) (30)

(40)

(80)

(90)

(100)

(110)

(120)

(130)

(140)

(150)

(160)

(50)

(60)

(70)

Model: PSH-2000 Installation Instructions

ASSEMBLY AND INSTALLATION

NOTE: Read the Warnings and Cautions on page 2.

INSTALL MOUNTING BUTTONS

Installation of the mounting buttons is dependent on your

specific display. Three options are provided:

• Akira 84" and Orion 84" displays

• Modular 84" displays

• Other large flat panel displays

AKIRA 84" AND ORION 84" DISPLAYS

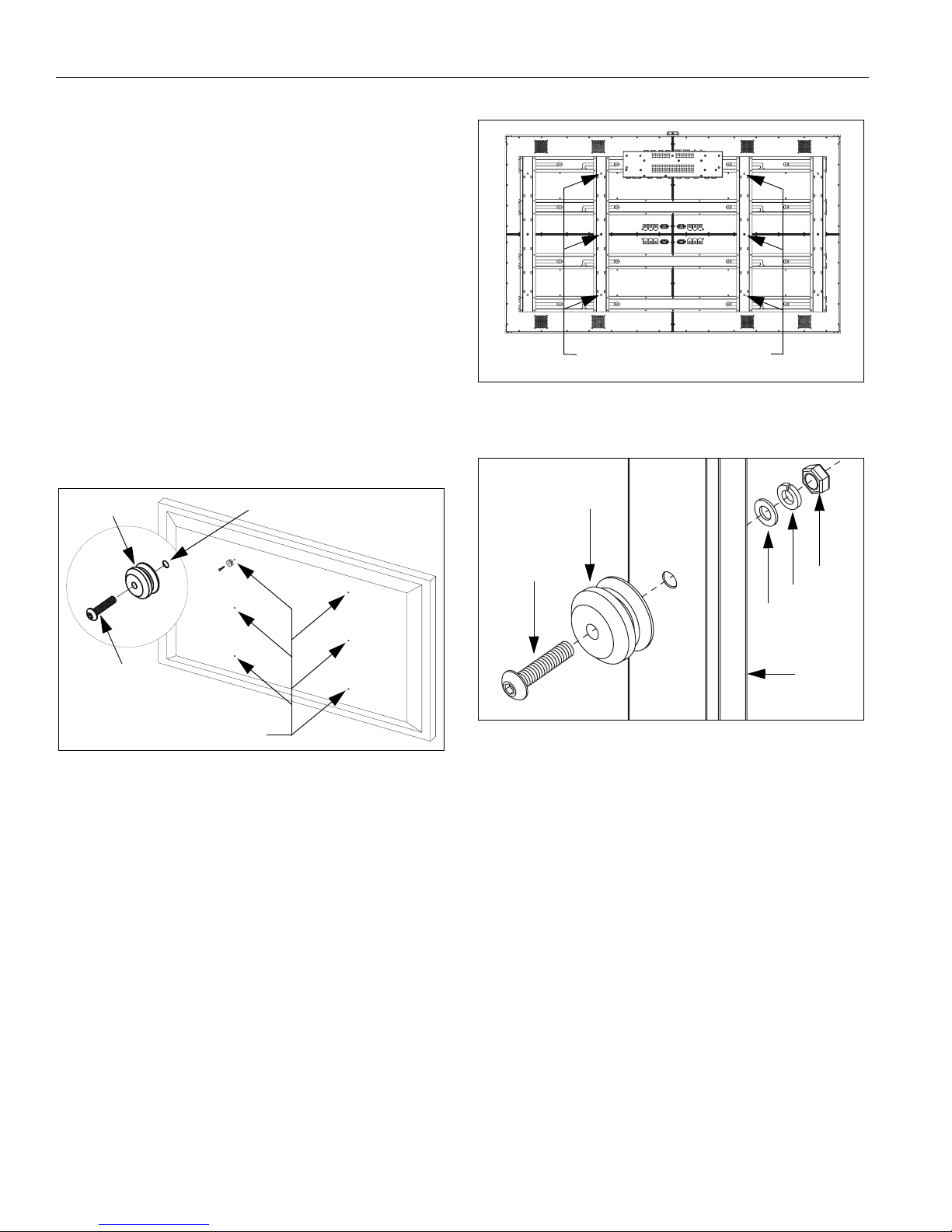

1. Using key (140), insert screw (80) through button (90)

and install into threaded mounting hole on back of

display (See Figure 2). Tighten securely.

2. Repeat for remaining five buttons.

Figure 2: Akira 84" and Orion 84" Mounting Button

MODULAR 84" DISPLAYS

NOTE: Modular displays are four independent displays

attached together within a single frame. The

assembly performs as a single display.

1. Insert screw (80) through button (90) and frame on

back of modular display (See Figure 3)(See Figure 4).

Using key (140) and 13mm wrench, install washer

(100), washer (110), and nut (120). Tighten securely.

2. Repeat for remaining five buttons.

Figure 3: Modular Display Frame

Figure 4: Modular 84" Mounting Button

OTHER LARGE FLAT PANEL DISPLAYS

1. Install the optional interface bracket to display

according to the instructions provided with the

interface bracket.

NOTE: Mounting buttons are pre-installed on optional

interface bracket. PSH-2000 items (80) through

(120), and key (140)(See Figure 1), will not be

used with optional interface bracket.

Install buttons (90) at these

6 mounting hole locations.

(80)

(90) Mounting Hole

Install buttons (90) at these

6 mounting hole locations.

(80)

(90)

(100)

(110)

(120)

Modular

Frame

Installation Instructions Model: PSH-2000

ASSEMBLE STATIC BRACKETS

1. Using key (160), loosely install screws (60) through

latch (40) and spacers (50) into threaded holes in

bracket (20) (See Figure 5). Ensure latch (40) is

installed on the end of bracket (20) with the square

cutout.

Figure 5: Latch Assembly

2. Repeat for remaining bracket (20).

3. Tighten screws (60) only as required to keep latches

(40) from freely slipping on bracket (20). Latches are

designed to slide; do not overtighten screws (60).

4. Slide latch (40) to fully open (raised) position.

5. Using Phillips screwdriver, install screw (70) through

slotted hole in latch (40) into threaded hole in bracket

(20) (See Figure 6). Tighten only as required to take

up slack; overtightening will close latch preventing

mounting button installation.

• If latch begins to close, loosen screw (70) and pull

latch (40) to open position.

Figure 6: Open Latch

ASSEMBLE SIDE SUPPORTS

1. Using key (150), loosely install support (30) to plate

(10) with screws (130) (See Figure 7). Ensure lip of

support (30) covers edge of plate (10).

2. Repeat for other 3 corners.

3. Once all screws (130) are installed, tighten securely.

Figure 7: Side Support Assembly

(40)

(60)

(50)

(20)

(4 Places)

Square

Cutout

Threaded

Hole in

Bracket

(4 Places)

(70)

Slotted Hole

Threaded Hole

in Latch (40)

Threaded Hole

in Bracket (20)

in Latch (40)

(130)

(10)

(30)

Model: PSH-2000 Installation Instructions

INSTALL MOUNT TO WALL

1. Determine approximate mounting location, keeping in

mind the display size.

WARNING: The mount must be installed on two or

three wood studs (or other equivalent vertical or

horizontal supporting framework). Do not mount to

single wood studs. Failure to properly install unit can

result in serious personal injury or damage to

equipment!

2. Use a stud sensor to locate applicable wood studs.

Mark locations with a pencil.

3. Level mount at desired height per one of the

configurations below:

NOTE: Either configuration below provides ± 2" of lateral

shift.

• 16" on center studs: The mount is approximately

centered between two or three studs as shown

(See Figure 8).

• 24" on center studs: The mount is offset to the left

or right of center between two studs as shown

(See Figure 9).

Figure 8: 16" On Center Stud Installation

Figure 9: 24" On Center Installation

4. Using mount as a template, mark the location of the

pilot holes. Ensure the following:

• Marks are in the center of wood studs.

• 8 pilot holes are marked (one in each slot).

NOTE: For 16" on center, 3 stud installation: Lag bolts

and washers on center stud are optional.

5. Drill pilot holes using a 7/32" drill bit. Ensure pilot

holes are straight.

6. Using 1/2" wrench, install eight 5/16" x 2 ½" lag bolts

and eight 5/16" washers through mounting holes and

into pilot holes. Tighten all lag bolts.

NOTE: Lag bolts and washers are not supplied.

Centered between 3 studs

Centered between 2 studs

Lag Bolt &

(8 Places)

Washer

Lag Bolt &

(8 Places)

Washer

Left of center installation

Right of center installation

Lag Bolt & Washer

(8 Places)

Lag Bolt &

(8 Places)

Washer

Installation Instructions Model: PSH-2000

INSTALL STATIC BRACKETS

AKIRA 84", ORION 84", AND MODULAR 84"

DISPLAYS

1. Using key (150), loosely install brackets (20) to plates

(10) with screws (130) (See Figure 10). Ensure the

following:

• Brackets (20) are installed to outside set of

mounting holes, closest to supports (30).

• Brackets (20) are installed so that latches (40) are

towards top of mount.

2. Tighten all 16 screws (130) securely.

Figure 10: Installation on Outside Mounting Holes

OTHER LARGE FLAT PANEL DISPLAYS

1. Determine horizontal dimension between mounting

buttons on back of display (or interface bracket, if

required) (See Figure 11).

Figure 11: Horizontal Dimension

2. Using key (150), loosely install brackets (20) to plates

(10) with screws (130) according to dimension noted

in previous step. Ensure that brackets (20) are

installed so that the latches (40) are towards the top

of the mount.

• 14" horizontal dimension: Install brackets (20) to

inside set of mounting holes, closest to center of

mount (See Figure 12).

• 24" horizontal dimension: Install brackets (20) to

middle set of mounting holes (See Figure 13).

• 33" horizontal dimension: Install brackets (20) to

outside set of mounting holes, closest to supports

(30) (See Figure 10).

3. Tighten all 16 screws (130) securely.

Figure 12: Installation on Inside Mounting Holes

Figure 13: Installation on Middle Mounting Holes

(130)

(16 Places)

Mounting Buttons

(6 buttons shown;

4 buttons similar)

Back of Display

(130)

(16 Places)

(130)

(16 Places)

Model: PSH-2000 Installation Instructions

INSTALL DISPLAY

WARNING: Display is very heavy! Ensure display can

be safely lifted and maneuvered as required to install

on mount. Failure to take adequate precautions can

result in serious personal injury or damage to

equipment!

1. Ensure latches (40) are in fully open (raised) positions

(See Figure 6).

2. Note button openings to be used on each bracket (20)

when installing display (See Figure 14).

Figure 14: Mounting Holes

3. Lift and maneuver display such that all buttons (90) fit

into button openings on brackets (20). Lower display

firmly into place. Ensure each button (90) has fully

seated in its button opening.

4. Using Phillips screwdriver, tighten screw (70) until

latch (40) slides into closed position (See Figure 15).

Figure 15: Closed Latch

5. Repeat for second latch (40).

6. Connect cables to display as required.

REMOVE DISPLAY

WARNING: Display is very heavy! Ensure display can

be safely lifted and maneuvered as required to remove

from mount. Failure to take adequate precautions can

result in serious personal injury or damage to

equipment!

1. Disconnect all cables from display.

2. Using Phillips screwdriver, fully remove screw (70)

from threaded hole in bracket (20) (See Figure 6).

3. Re-install screw (70) into threaded hole in latch (40).

Turn screw (70) until latch (40) slides into fully open

position.

4. Repeat for second latch (40).

5. Lift and maneuver display mounting buttons (90) out

of button openings.

Four

Button

Installation

Six

Button

Installation

(20)

(70)

(40)

Inhaltsverzeichnis

Andere CHIEF Rack & Stand Handbücher

CHIEF

CHIEF JSB2090 Bedienungsanleitung

CHIEF

CHIEF NS1F1223 Bedienungsanleitung

CHIEF

CHIEF Single Ceiling Mount PCS Series Bedienungsanleitung

CHIEF

CHIEF PACCC1 Bedienungsanleitung

CHIEF

CHIEF Structural Ceiling Plate with Flex Joint... Bedienungsanleitung

CHIEF

CHIEF MSM1U Bedienungsanleitung

CHIEF

CHIEF FSB1U Bedienungsanleitung

CHIEF

CHIEF Fusion Service-Handbuch

CHIEF

CHIEF SSB-054 Bedienungsanleitung

CHIEF

CHIEF D8089 Bedienungsanleitung

CHIEF

CHIEF LCM1UP Bedienungsanleitung

CHIEF

CHIEF PT Series Bedienungsanleitung

CHIEF

CHIEF XCM1U Bedienungsanleitung

CHIEF

CHIEF PXR Bedienungsanleitung

CHIEF

CHIEF FCA623S Bedienungsanleitung

CHIEF

CHIEF PAC527F-KIT Bedienungsanleitung

CHIEF

CHIEF Vibration Mount CMA-347 Bedienungsanleitung

CHIEF

CHIEF RFWD-110 Bedienungsanleitung

CHIEF

CHIEF PAC527 Series Bedienungsanleitung

CHIEF

CHIEF raxxess series Bedienungsanleitung

CHIEF

CHIEF RSE Bedienungsanleitung

CHIEF

CHIEF CM2L40 Bedienungsanleitung

CHIEF

CHIEF J Series Bedienungsanleitung

CHIEF

CHIEF MTSAV Bedienungsanleitung

Beliebte Rack & Stand Handbücher anderer Marken

Salamander

Salamander Acadia AC/W/L400/WH Bedienungsanleitung

Fohhn

Fohhn VAT-09 Benutzerhandbuch

ricoo

ricoo FS0522 Bedienungsanleitung

AMSOIL

AMSOIL BMK-22 Kurzanleitung

Kargo Master

Kargo Master 48220 Bedienungsanleitung

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Bedienungsanleitung

ricoo

ricoo S1222 Bedienungsanleitung

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Bedienungsanleitung

VidaBox

VidaBox VB MNT FFS2 Bedienungsanleitung

Welch Allyn

Welch Allyn 48960 Bedienungsanleitung

Arkon

Arkon CM035-ST-2 Bedienungsanleitung

PROEL

PROEL PLWIN60C Bedienungsanleitung

Agilent Technologies

Agilent Technologies E2609B Bedienungsanleitung

Mustang

Mustang MV-ARM4 Bedienungsanleitung

Mounting Solutions

Mounting Solutions WRM-320 Bedienungsanleitung

Pyle

Pyle PMKSPAD1 Bedienungsanleitung

ShelterIt

ShelterIt 21208 Bedienungsanleitung

SPL

SPL RackPack?4 1040 Bedienungsanleitung
