INSTALLATION INSTRUCTIONS

Medium Flat Panel

Pivot/Pitch Wall Mount

(JWP-210)

The JWP Pivot/Pitch wall mount is designed for mounting

a medium sized flat panel display. The mount can be

tilted up and down to 15° of center as well as pivot left

and right.

The JWP is shipped with the VESA®100mm/100mm

Centris™ interface which is compatible with most

medium flat panels.

To accommodate other mounting patterns in displays,

the JWP comes with a VESA Plate that accommodates

other VESA 200mm x 100mm and 200mm x 200mm

mounting patterns. This VESA Plate can also be used

with an MSB Custom Interface for non-VESA screens.

By design, the JWP can be configured to fit your medium

flat panel display, providing that your display does not

exceed the specified weight rating.

JWP-210

BEFORE YOU BEGIN

• CAUTION: To prevent damage to your display and/or the JWP, which could affect or void factory

warranty, thoroughly study all instructions and illustrations before you begin to install the mount. Pay

particular attention to ALL Warnings and Cautions in this document.

• The maximum weight allowable for use with the JWP wall mount is 75 lbs (34 kg).

• The JWP wall mount is designed to be installed using wall studs or supporting framework. The structure to which

the JWP wall mount is anchored must be capable of supporting five times the total weight of the mount and all

attached equipment.

• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.

Installation Instructions JWP-210

IMPORTANT WARNINGS and CAUTIONS!

WARNING A WARNING alerts you to the possibility of serious injury or death if you do not follow

the instructions.

CAUTION A CAUTION alerts you to the possibility of damage or destruction of equipment if you

do not follow the corresponding instructions.

• WARNING Improper installation can result in serious personal injury! Make sure that the structural

members can support a redundant weight factor five times the total weight of the

equipment. If not, reinforce the structure before installing the mount.

• WARNING Be aware of the potential for personal injury or damage to the equipment if it is not

adequately mounted.

• WARNING The installer is responsible for verifying that the display to which the JWP mount is

anchored will safely support the combined load of all attached components or other

equipment.

• WARNING The weight of the display placed on the JWP must not exceed 75 lbs (34 kg), the

maximum support weight of the JWP.

• WARNING Watch for pinch points. Do not put your fingers between movable parts.

• WARNING Make sure the mount and brackets are correctly oriented.

• CAUTION Check the unit for shipping damage before you begin the installation.

DIMENSIONAL DRAWING

Installation Instructions JWP-210

CONTENTS

DIMENSIONAL DRAWING........................................2

TOOLS REQUIRED FOR INSTALLATION .............3

INSPECT UNIT BEFORE INSTALLING ..................3

SPECIFICATIONS ......................................................3

INTRODUCTION .........................................................4

Reference Chart.......................................................4

Mounting-Hole Configurations ...............................4

COMPONENTS ...........................................................5

PARTS ..........................................................................6

SECURE WALL BRACKET .......................................7

INSTALLATION (100mm x 100mm).........................7

Flush Mount Centris Bracket to Display...............7

Recess Mount Centris Bracket to Display ...........8

INSTALLATION (200mm x 100mm)........................8

Attach VESA Plate to Display ................................8

Attach Display to Centris Bracket..........................8

INSTALLATION (200mm x 200mm).........................9

Attach VESA Plate to Display ................................9

Attach Display to Centris Bracket..........................9

INSTALLATION (MSB CUSTOM INTERFACE).....10

Attach Display to Centris Bracket..........................10

ATTACH MOUNT TO WALL BRACKET .................11

CABLE MANAGEMENT.............................................12

ADJUST LATERAL TENSION ..................................12

ADJUST PITCH TENSION ........................................12

TOOLS REQUIRED FOR

INSTALLATION

• Electric drill and bit set

• Hex wrench set

• Phillips screwdriver

• Level

NOTE: Other tools may be required depending on your

display, JWP configuration and method of

installation.

INSPECT UNIT BEFORE

INSTALLING

WARNING: Watch for pinch points. Do not put

your fingers between movable parts.

1. Carefully inspect mount for shipping damage. If any

damage is apparent, call your carrier claims agent

and do not continue with installation until carrier has

reviewed damage.

NOTE: Read all instructions before starting

installation.

2. Lay out components to ensure you have all required

parts before proceeding (see PARTS on page 6). If

you are missing any listed parts, contact Customer

Service at: 1-800/582-6480.

SPECIFICATIONS

Table 1. JWP Specifications

Depth from

Wall 3.35” (85.07mm)

Maximum

Extension Not Applicable

Dimensions

W x H x D

6.0” x 8.32” x 3.35”

(152 x 211.43 x 85.07mm)

Weight

Capacity 75 lbs (34kg)

Installation Instructions JWP-210

INTRODUCTION

There are three main steps in the JWP-210

installation process. These steps are:

• Selecting an appropriate mounting configuration.

• Connect display cables

• Making required adjustments

Before starting the installation process, determine the

correct mounting-hole configuration for your display by

reviewing the information located within Table 2.

NOTE: If the displays mounting hole configuration does

not match those identified at right, a custom MSB

interface is required. Refer to a Chief Mfg. cross-

reference or visit www.chiefmfg.com to identify

the appropriate MSB for your display.

Reference Chart

Table 2 below provides a reference chart to help you

determine the mounting-hole configuration of your display

and quickly find the appropriate installation instructions.

Table 2. Installation Reference Chart

Screw Size VESA Hole Pattern

Ref.

Page

M4 x 12mm 100mm x 100mm

(Flush Mount) 7

M4 x 20mm 100mm x 100mm

(Recess Mount) 7

M4 x 16mm 200mm x 100mm 8

M4 x 20mm

M6 x 20mm

M6 x 30mm

M6 x45mm

200mm x 200mm 10

N/A

Non-VESA

(used with MSB Custom

Interface bracket, purchased

separately)

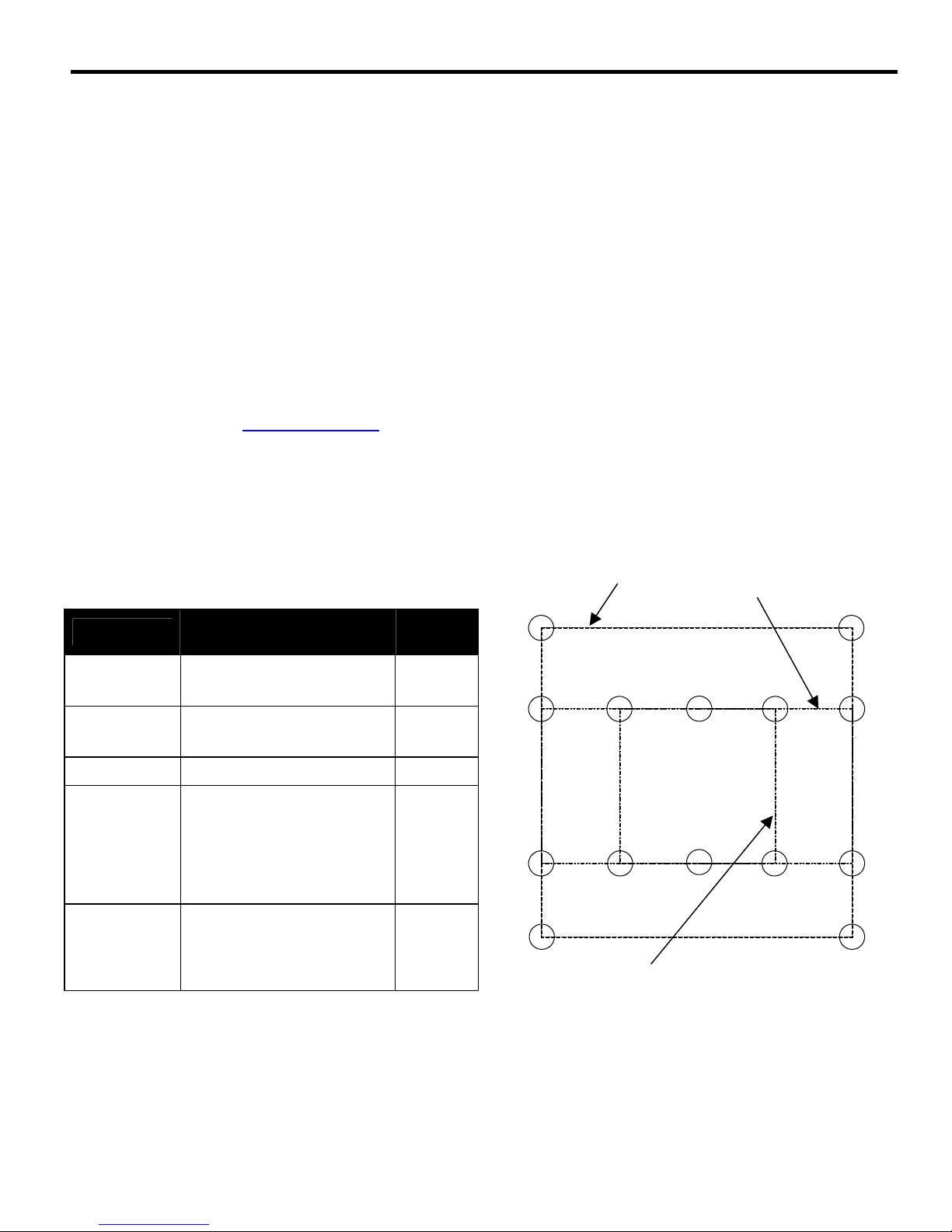

Mounting-Hole Configurations

Figure 1 depicts the various mounting-hole configurations

that are available to mount your display.

Figure 1. Typical VESA Mounting Hole Configurations

100mm x 100mm

200mm x 100mm

200mm x 200mm

Installation Instructions JWP-210

COMPONENTS

Figure 2 shows the parts and parts bags shipped with JWP.

Figure 2. JWP Components

Centris Bracket

(See notes)

Set Screw

(

see

150

160

140

130

120

110

100

Installation Instructions JWP-210

PARTS

Table 3 provides a list of the individual part and parts bags shipped with JWP parts.

Table 3. JWP Parts List

Item Bag Description Qty Notes

10 10 JWP MOUNT 1 See page 5 for graphic.

20 — Interface Adapter 1 Use with 50

30 — Wall Bracket 1 Use with 40

40 — Lag Screws, 3/8” x 3” 2 Use with 30

50 Phillips Pan Head Machine Screw, M4 X 8mm 4 Use with 20

60 Phillips Pan Head Machine Screw, M4 X 12mm 4 [Color Black] Use with

Centris Interface

70 Phillips Flat Head Machine Screw, M4 X 16mm 6 Use with 120

Phillips Pan Head Machine Screw, M4 X 20mm 4 Use with 130

90 Phillips Pan Head Machine Screw, M6 X 20mm 4 Use with 130

100 Phillips Pan Head Machine Screw, M6 X 30mm 4 Use with 130

110

Phillips Pan Head Machine Screw, M6 X 45mm 4 Use with 130

120 Nylon Spacer, 1/8” 6 Use with 70

130 C

Nylon Spacer, 1/4” 4 Use with 80, 90, 100

and 110

140 Nylock Nut, 10-24 4 Use with MSB

150 Hex Key, 5/32” 1 For Set Screw

160

Hex Key, 3/16” 1 For Tension Adjust.

Installation Instructions JWP-210

SECURE WALL BRACKET

WARNING: It is the responsibility of the

installer to verify that the surface to which the mount

is anchored will safely support the combined load of

all attached components and equipment.

Install wall bracket as follows:

1. Determine exact mounting location prior to

installation, considering unit’s swing arm and

extension radius.

2. Using wall bracket (30) as a template, mark two pilot

holes. (See Figure 3).

3. Drill two ¼” pilot holes a minimum depth of 2” into

wood stud.

NOTE: Make sure wall bracket is level before installing

lag bolts.

4. Using a 9/16” socket wrench, install two lag bolts (40)

to wall. Do not over-tighten the lag bolts.

INSTALLATION

(100mm x 100mm)

Flush Mount Centris Bracket to Display

To flush mount Centris Bracket:

1. Start two M4 x 12mm screws (80) into top mounting

holes (not shown) on display.

2. Align mounting holes on Centris Bracket with screws

installed on display. Hang display on Centris Bracket

(see Figure 4).

3. Install two remaining M4 x 12mm screws (80) into

bottom mounting holes on display.

4. Tighten screws.

5. Proceed to “ATTACH MOUNT TO WALL BRACKET”

on page 11.

Figure 3. Secure Wall Bracket

Figure 4. Flush Mount Centris Bracket to Display

Pilot Holes

Centris Bracket

Installation Instructions JWP-210

Recess Mount Centris Bracket to Display

To recess mount Centris bracket:

1. Lay display down on a flat surface.

CAUTION: Make sure surface is clean and

free of dirt and debris before laying display down.

2. Select four screws M4 x 20mm screws (80) and four

spacers (130) from parts bag.

3. Place four spacers (130) over mounting holes on

back of display (see Figure 5).

4. Align mounting holes on Centris bracket with spacers

installed on display.

5. Install four screws M4 x 20mm screws (80) to attach

Centris bracket to display.

6. Tighten screws.

7. Refer to “ATTACH MOUNT TO WALL BRACKET”

section on page 11.

INSTALLATION

(200mm x 100mm)

Attach VESA Plate to Display

1. Lay display face down on a flat surface.

CAUTION: Make sure surface is clean and

free of dirt and debris before laying display down.

2. Place six spacers (120) over six mounting holes in

display as shown in Figure 6.

3. Attach VESA Plate (20) to display using six

M4 x 16mm flat head screws (70).

4. Tighten screws.

Attach Display to Centris Bracket

1. Start two M4 x 8mm Phillips pan head screws (50)

into top mounting holes on VESA Plate (20).

2. Align mounting holes on Centris bracket with screws

installed in Step 1 (see Figure 7).

3. Install remaining two M4 x 8mm Phillips pan head

screws (50) into bottom mounting holes of VESA

Plate (20).

4. Tighten screws.

5. Proceed to “ATTACH MOUNT TO WALL BRACKET”

section on page 11.

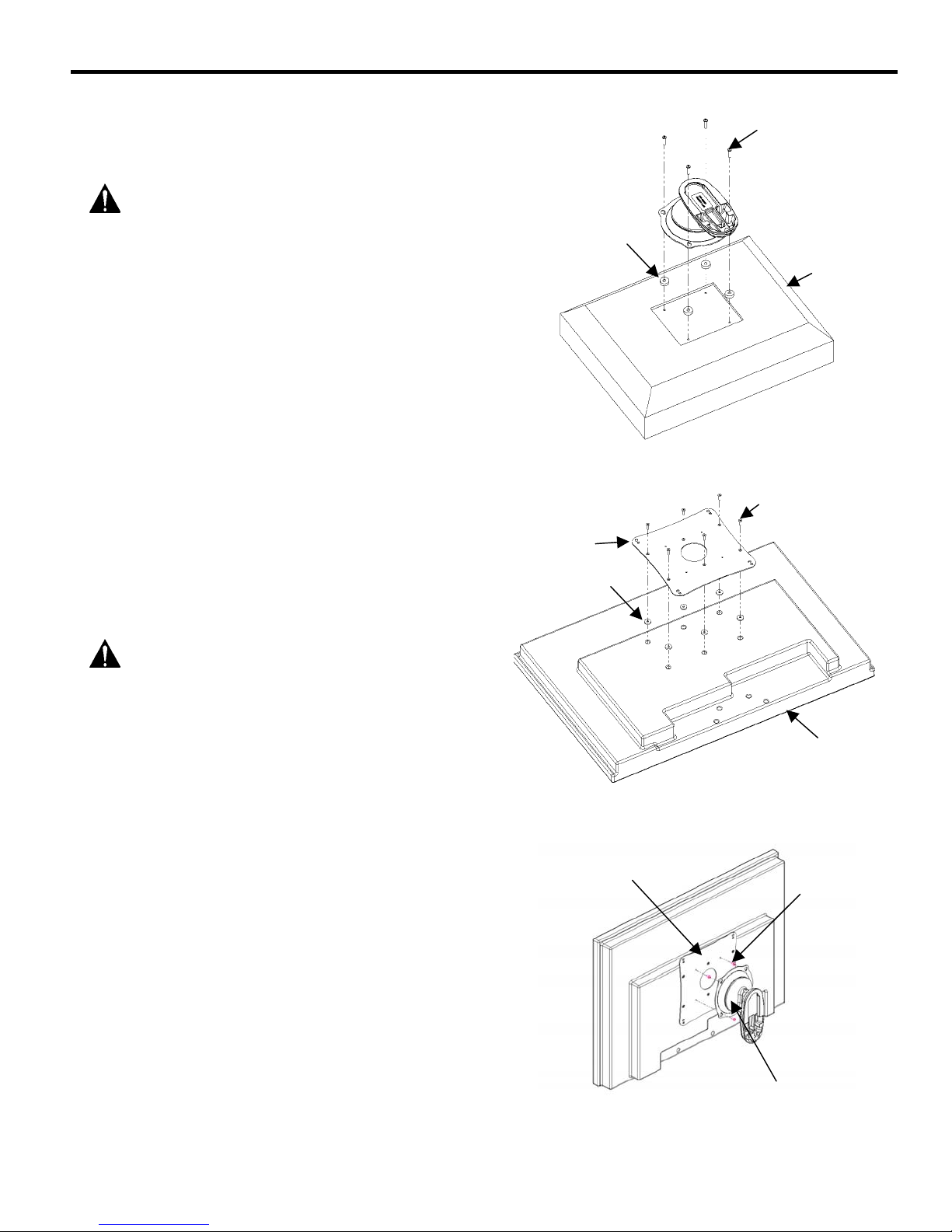

Figure 5. Recess Mount Centris Bracket to Display

Figure 6. Attach Interface Bracket to Display

(200mm x 100mm)

Figure 7. Attach Display to Centris Bracket

Dis

120

Dis

130

Centris Bracket

Installation Instructions JWP-210

INSTALLATION

(200mm x 200mm)

WARNING: It is the responsibility of the

installer to use the correct diameter and length of

fastener to attach interface to back of display.

Failure to do so may cause damage to the display or

personal injury.

Attach VESA Plate to Display

1. Lay display face down on a flat surface.

NOTE: Make sure surface is clean and free of dirt and

debris before laying display down.

2. Place four spacers (130) over four mounting holes in

display as shown in Figure 8.

3. Depending on mounting hole size and depth, attach

VESA Plate (20) by selecting applicable screws size,

as follows (see Figure 9):

a. Use four M4 x 20mm pan head screws (80) and

square holes to attach VESA Plate (20). Or,

b. Use four M6 x 20mm pan head screws (90) and

round holes to attach VESA Plate (20). Or,

c. Use four M6 x 30mm pan head screws (100) and

round holes to attach VESA Plate (20). Or,

d. Use four M6 x 45mm pan head screws (110) and

round holes to attach VESA Plate (20).

4. Tighten screws.

Attach Display to Centris Bracket

1. Start two M4 x 8mm Phillips pan head screws (50)

into top mounting holes on VESA Plate (20). See

Figure 10.

2. Align mounting holes on Centris bracket with screws

installed in Step 1.

3. Install two remaining M4 x 8mm Phillips pan head

screws (50) through bottom mounting holes of

Centris bracket, and into VESA Plate (20).

4. Tighten screws.

5. Proceed to “ATTACH MOUNT TO WALL BRACKET”

section on page 11.

Figure 8. Attach Interface Bracket to Display

Figure 9. VESA Plate Mounting Holes

Figure 10. Mount Display to Centris Bracket

Dis

130

80,90, 100 or 110

M4 Screws

M6 Screws

Centris

Bracket

Installation Instructions JWP-210

INSTALLATION

(MSB CUSTOM INTERFACE)

Attach Display to Centris Bracket

NOTE: Many MSB Custom Interface brackets require the

use of the VESA Plate (20) and the 10-24 Nylock

nuts shipped with this mount. Follow specific

instructions received with the MSB Custom

Interface to install the MSB to back of display.

1. Start two M4 x 8mm Phillips pan head screws (50)

into top mounting holes of VESA Plate (20) or MSB

interface bracket, depending on configuration (see

Figure 11or Figure 12).

2. Align mounting holes on Centris bracket with screws

installed in MSB or VESA Plate in Step 1. See

Figure 13.

3. Install two remaining M4 x 8mm Phillips pan head

screws (50) into bottom two mounting holes of MSB

or VESA Plate (20). See Figure 13.

4. Tighten screws.

5. Proceed to “ATTACH MOUNT TO WALL BRACKET”

section on page 11.

Figure 11. MSB without VESA Plate

Figure 12. MSB with VESA Plate

Figure 13. Mount MSB to Centris Bracket

Centris Bracket

MSB

(

)

VESA Plate

MSB

Inhaltsverzeichnis

Andere CHIEF Rack & Stand Handbücher

CHIEF

CHIEF Small Flat Panel In-Wall Swing Arm Mount FWDIW-I... Bedienungsanleitung

CHIEF

CHIEF MSM Series Bedienungsanleitung

CHIEF

CHIEF NE1D20F Bedienungsanleitung

CHIEF

CHIEF KRA300 Bedienungsanleitung

CHIEF

CHIEF iC Series Bedienungsanleitung

CHIEF

CHIEF OLCB2X1U Bedienungsanleitung

CHIEF

CHIEF LCD Swivel Stand MSS6000 Bedienungsanleitung

CHIEF

CHIEF WBM2 Bedienungsanleitung

CHIEF

CHIEF J Series Bedienungsanleitung

CHIEF

CHIEF MIWRF Series Bedienungsanleitung

CHIEF

CHIEF SSB-301 Bedienungsanleitung

CHIEF

CHIEF Kontour K4W120 Bedienungsanleitung

CHIEF

CHIEF SL-150 Bedienungsanleitung

CHIEF

CHIEF NAID1B Bedienungsanleitung

CHIEF

CHIEF FCA623S Bedienungsanleitung

CHIEF

CHIEF PSMH-2046 Bedienungsanleitung

CHIEF

CHIEF MSPFB3 Bedienungsanleitung

CHIEF

CHIEF PAC-710 Bedienungsanleitung

CHIEF

CHIEF NAG1BW Bedienungsanleitung

CHIEF

CHIEF KCG220 Bedienungsanleitung

CHIEF

CHIEF Fusion FCA831 Bedienungsanleitung

CHIEF

CHIEF MSM1U Bedienungsanleitung

CHIEF

CHIEF PAC717 Bedienungsanleitung

CHIEF

CHIEF PXR Bedienungsanleitung

Beliebte Rack & Stand Handbücher anderer Marken

Salamander

Salamander Acadia AC/W/L400/WH Bedienungsanleitung

Fohhn

Fohhn VAT-09 Benutzerhandbuch

ricoo

ricoo FS0522 Bedienungsanleitung

AMSOIL

AMSOIL BMK-22 Kurzanleitung

Kargo Master

Kargo Master 48220 Bedienungsanleitung

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Bedienungsanleitung

ricoo

ricoo S1222 Bedienungsanleitung

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Bedienungsanleitung

VidaBox

VidaBox VB MNT FFS2 Bedienungsanleitung

Welch Allyn

Welch Allyn 48960 Bedienungsanleitung

Arkon

Arkon CM035-ST-2 Bedienungsanleitung

PROEL

PROEL PLWIN60C Bedienungsanleitung

Agilent Technologies

Agilent Technologies E2609B Bedienungsanleitung

Mustang

Mustang MV-ARM4 Bedienungsanleitung

Mounting Solutions

Mounting Solutions WRM-320 Bedienungsanleitung

Pyle

Pyle PMKSPAD1 Bedienungsanleitung

ShelterIt

ShelterIt 21208 Bedienungsanleitung

SPL

SPL RackPack?4 1040 Bedienungsanleitung
