CHIEF KWK-110 Bedienungsanleitung

INSTALLATION INSTRUCTIONS

Instrucciones de instalación

Installationsanleitung

Instruções de Instalação

Istruzioni di installazione

Installatie-instructies

Instructions d´installation

Height Adjustable Dual Arm with Keyboard Tray

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

KWK-110

KWK-110 Installation Instructions

DISCLAIMER

Milestone AV Technologies, and its affiliated corporations and

subsidiaries, (collectively Milestone) intend to make this manual

accurate and complete. However, Milestone makes no claim

that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Milestone

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Milestone assumes

no responsibility for accuracy, completeness or sufficiency of

the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies.

IMPORTANT WARNINGS AND

CAUTIONS!

WARNING:

A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION:

A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING:

Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all components are

properly assembled and installed using the instructions

provided.

WARNING:

Failure to provide adequate structural strength

for this component can result in serious personal injury or

damage to equipment! It is the installer’s responsibility to

make sure the structure to which this component is attached

can support five times the combined weight of all equipment.

Reinforce the structure as required before installing the

component.

WARNING:

Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all components located between the KWK-110 mount up to

(and including) the keyboard does not exceed 10 lbs (4.5 kg).

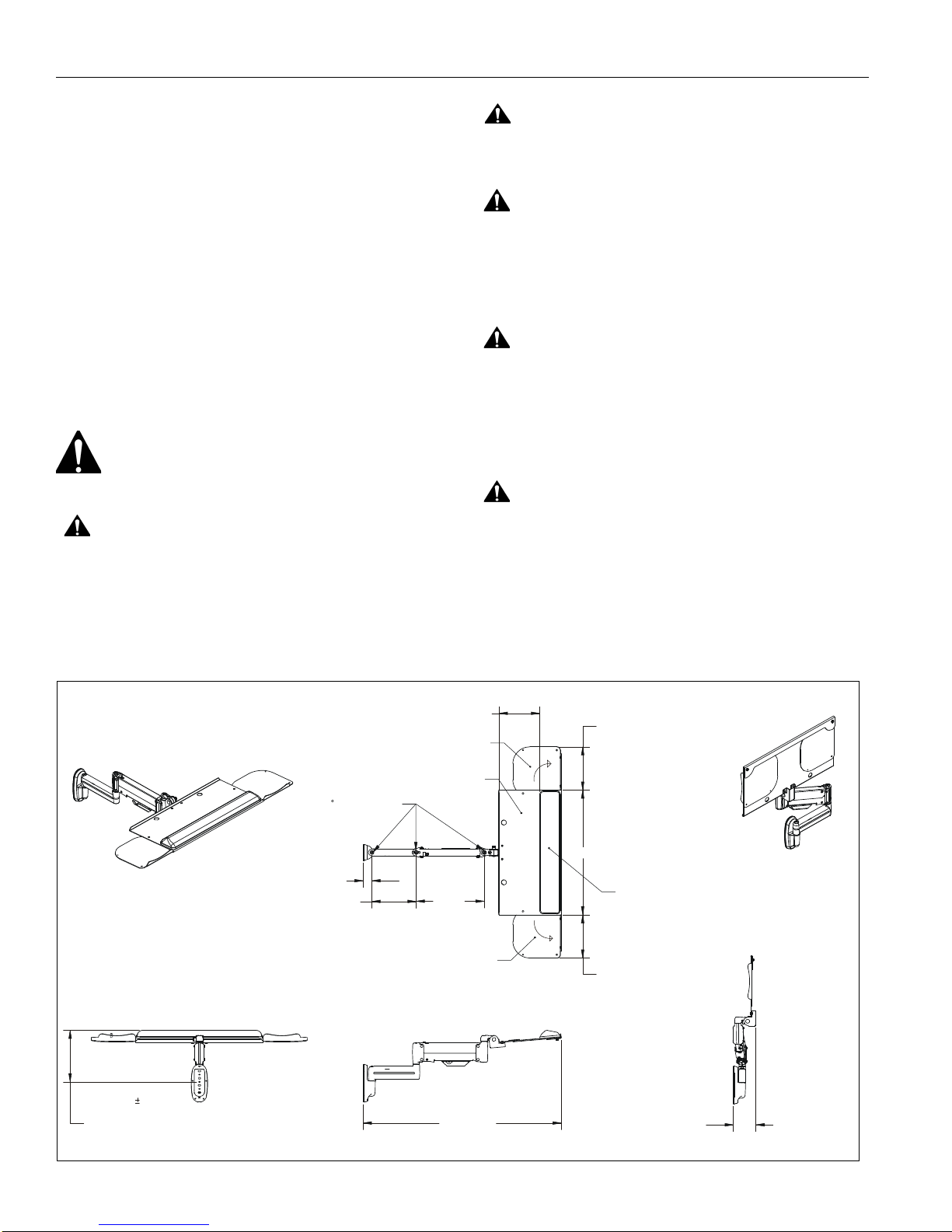

DIMENSIONS

MAX

29.15

18.75

6.50

1.30

6.50

10.02

5.99

KEYBOARD DEPTH

SWING OUT

MOUSE TRAY

SWING OUT

MOUSE TRAY

WRIST PAD

(REMOVABLE FOR

DEEPER KEYBOARDS)

KEYBOARD TRAY

180 PIVOT POINTS

EXTENDED

7.73 6.50

DISTANCE TO THE

CENTER OF THE

COMPONENT

MOUNTING BRACKET

3.33 COLLAPSED

COLLAPSED

Installation Instructions KWK-110

LEGEND

Tighten Fastener

Apretar elemento de fijación

Befestigungsteil festziehen

Apertar fixador

Serrare il fissaggio

Bevestiging vastdraaien

Serrez les fixations

Loosen Fastener

Aflojar elemento de fijación

Befestigungsteil lösen

Desapertar fixador

Allentare il fissaggio

Bevestiging losdraaien

Desserrez les fixations

Phillips Screwdriver

Destornillador Phillips

Kreuzschlitzschraubendreher

Chave de fendas Phillips

Cacciavite a stella

Kruiskopschroevendraaier

Tournevis à pointe cruciforme

Open-Ended Wrench

Llave de boca

Gabelschlüssel

Chave de bocas

Chiave a punte aperte

Steeksleutel

Clé à fourche

By Hand

A mano

Von Hand

Com a mão

A mano

Met de hand

À la main

Hex-Head Wrench

Llave de cabeza hexagonal

Sechskantschlüssel

Chave de cabeça sextavada

Chiave esagonale

Zeskantsleutel

Clé à tête hexagonale

Pencil Mark

Marcar con lápiz

Stiftmarkierung

Marcar com lápis

Segno a matita

Potloodmerkteken

Marquage au crayon

Drill Hole

Perforar

Bohrloch

Fazer furo

Praticare un foro

Gat boren

Percez un trou

Adjust

Ajustar

Einstellen

Ajustar

Regolare

Afstellen

Ajuster

Remove

Quitar

Entfernen

Remover

Rimuovere

Verwijderen

Retirez

Optional

Opcional

Optional

Opcional

Opzionale

Optie

En option

Security Wrench

Llave de seguridad

Sicherheitsschlüssel

Chave de segurança

Chiave di sicurezza

Veiligheidssleutel

Clé de sécurité

KWK-110 Installation Instructions

TOOLS REQUIRED FOR INSTALLATION

PARTS

(included)

1/8"

5/32"

(included)

3/16"

(included)

1/4"

I/M

A (1)

B (1) C (1)

J (2)

E (1) F (6)

D (1)

G (2) H (2)

#10 x 2 1/2" #10

#8-32 x 3/8"

1/4"

M(1)

5/32"

K(1) L(1)

3/16"

C (1)

Installation Instructions KWK-110

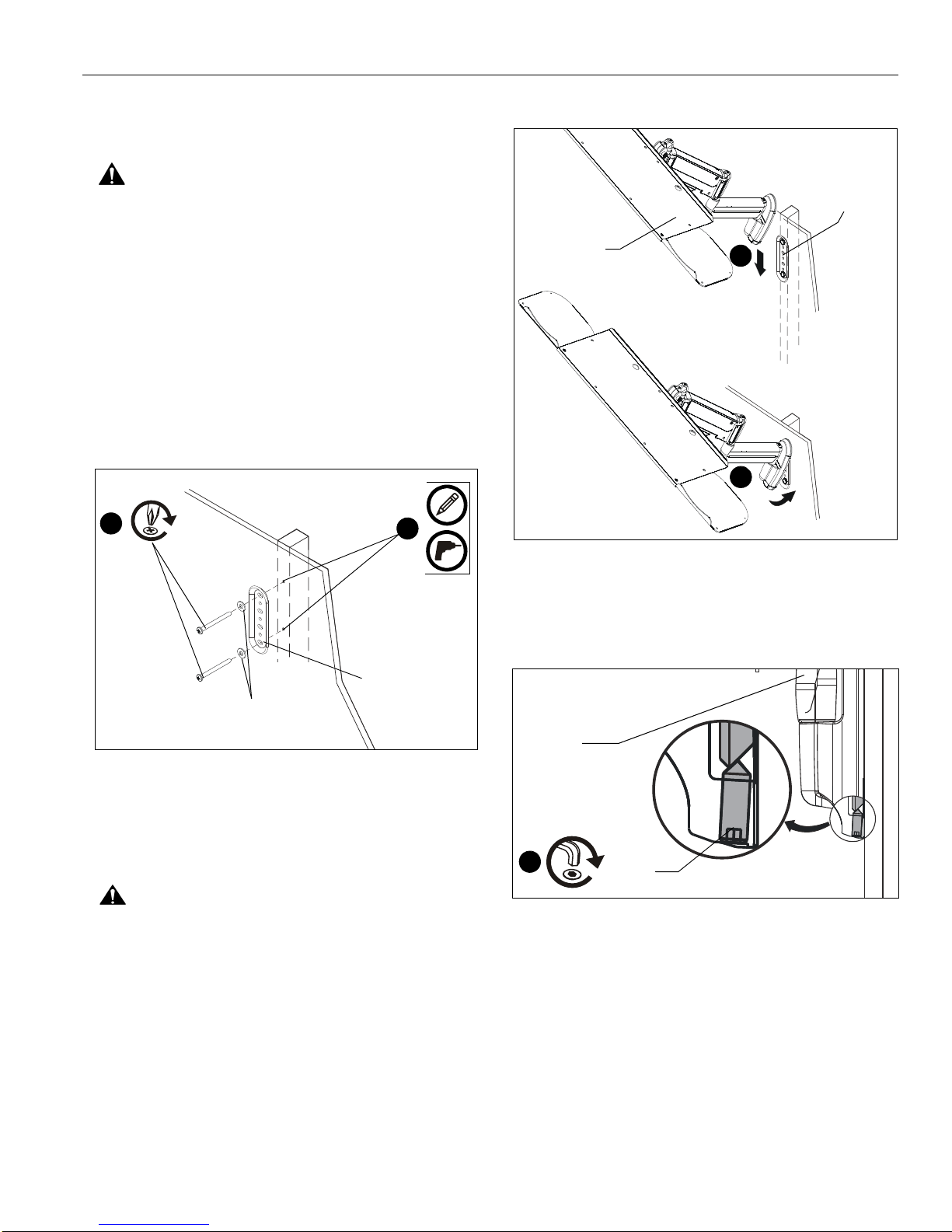

MOUNT INSTALLATION

WARNING:

FAILURE TO PROVIDE ADEQUATE

STRUCTURAL STRENGTH FOR THIS MOUNT CAN

RESULT IN SERIOUS PERSONAL INJURY OR DAMAGE

TO EQUIPMENT! It is the installer’s responsibility to make

sure the structure to which this mount is attached can support

five times the combined weight of the mount and all

equipment attached to it. Reinforce the structure as required

before installing the mount.

Mount Installation Using Wood Studs

1. Determine location for mount keeping in mind extension

and height adjustment (if applicable) requirements.

2. Using wall plate (C) as a template, mark then drill two 1/8"

diameter pilot holes through top and bottom holes of wall

bracket into wall structure. (See Figure 1)

Figure 1

3. Install two #10 x 2 1/2" Phillips Pan Head Tapping screws

(H) through #10 washers (J), wall plate (C) and drywall into

wood stud. (See Figure 1)

4. Ensure wall plate (C) is vertical, then tighten screws (H).

CAUTION:

Overtightening screws may cause wall bracket

to compress into soft wall surface, resulting in difficult mount

installation or improper engaging of set screw in later step.

5. Insert top of wall mount (A) over lip on top of wall plate (C).

(See Figure 2)

6. Swing wall mount down flush against wall. (See Figure 2)

Figure 2

7. Use 5/32" hex driver to tighten set screw in bottom of wall

mount. (See Figure 3)

NOTE:

Ensure set screw engages on back side of wall plate to

properly secure wall mount.

Figure 3

(H) x 2

(C)

(J) x 2

(A)

(C)

Set

Screw

(A)

KWK-110 Installation Instructions

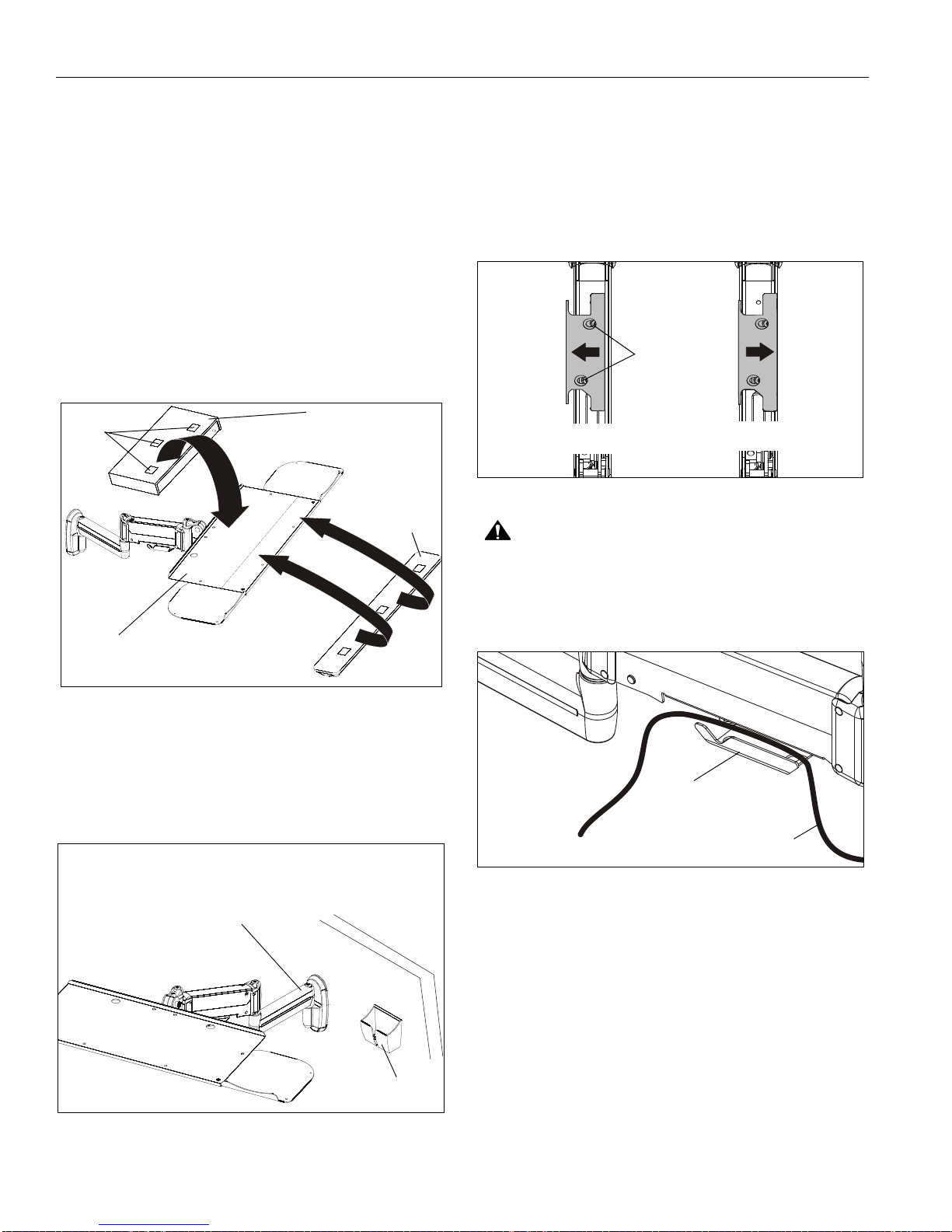

KEYBOARD AND WRIST PAD INSTALLATION

1. Remove adhesive backing from one side of hook and loop

connectors (F).

2. Place hook and loop connectors (F) on bottom of the

keyboard and bottom of wrist pad approximately as shown.

(See Figure 4)

NOTE:

Place connectors only on flat sections of the keyboard

to ensure that they stick to the surface.

3. Remove the adhesive backing from the other side of the

hook and loop connectors (F).

4. Firmly place keyboard on keyboard tray making sure to

leave room for the wrist pad if necessary. (See Figure 4)

5. Firmly place wrist pad (D) on keyboard tray in front of the

keyboard. (See Figure 4)

Figure 4

Mouse Holder Installation

1. Remove adhesive backing from mouse holder (E).

2. Place mouse holder (E) on wall at desired location. (See

Figure 5)

Figure 5

CABLE MANAGEMENT

1. Thread keyboard cable through one of two holes along the

back edge of the keyboard tray.

2. Open the cable management bracket by sliding it towards

the edge of the arm. (See Figure 6)

NOTE:

Ifnecessary,cable management bracket attach screws

may be loosened using hex key (L).

Figure 6

CAUTION:

Ensure that adequate cable slack exists for

movement of keyboard and mouse, and that cables will not

be pinched when bracket is closed.

3. Carefully insert cables into bracket. (See Figure 7)

Figure 7

4. Close cable management bracket by sliding it back towards

the centerline of the arm.

NOTE:

Ifnecessary,cable management bracket attach screws

may be tightened using hex key (L).

5. Carefully insert cables in cavity located in lower portion of

mount arm. (See Figure 8)

6. Using Phillips screwdriver, install cover (B) with two #8-32 x

3/8" Phillips flat screws (G). (See Figure 8)

keyboard

(D)

(A)

(F) x 6

(A)

(E)

OPEN Position CLOSED Position

Attach

Screws

View from Bottom

Cable Management

Bracket (in open position)

Cable Path (typical)

Installation Instructions KWK-110

Figure 8

ADJUSTMENTS

Swing Arm

Pivot/Swing

1. Using 3/16" hex key (L), slightly loosen or tighten the

adjustment screw(s) as necessary. (See Figure 9)

Figure 9

Mouse Tray Adjustment

1. Mouse trays slide open and closed on both sides of the tray

for both right-handed and left-handed users. (See Figure 9)

Height Adjustable

1. Using 5/32" hex key (M), slightly loosen or tighten the

adjustment screw as necessary. (See Figure 10)

• If display settles on its own, rotate adjustment

screw counterclockwise (towards the "+" symbol).

• If display rises on its own, rotate adjustment

screw clockwise (towards the "-" symbol).

NOTE:

It may be necessary to raise or lower the height

adjustable arm to expose the adjustment screw.

Figure 10

Tray Tension Adjustment

1. Using 1/4" hex key (K), slightly loosen or tighten the tray

tension adjustment screw as necessary. (See Figure 11)

Figure 11

Cable Path

(typical)

(B) x 1

(G) x 2

Pivot/Swing Adjustment Screws

Adjustable Mouse

Trays

Height Adjustable Screw

Tray Tension Adjustment Screw

KWK-110 Installation Instructions

USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378

P800.582.6480 / 952.894.6280

F877.894.6918 / 952.894.6918

Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands

P+31 (0)40 2668620

F+31 (0)40 2668615

Asia Pacific A Room 24F, Block D, Lily YinDu International Building

LuoGang, BuJi Town, Shenzhen, CHINA.

P+86-755-8996 9226

F+86-755-8996 9217

Chief Manufacturing, a division of

Milestone AV Technologies

8834-000005

www.chiefmfg.com

10/08

Inhaltsverzeichnis

Andere CHIEF Rack & Stand Handbücher

CHIEF

CHIEF PWS Series Bedienungsanleitung

CHIEF

CHIEF PSMO2085 Bedienungsanleitung

CHIEF

CHIEF MAC1005 J Series Bedienungsanleitung

CHIEF

CHIEF PAC810 Bedienungsanleitung

CHIEF

CHIEF Kontour K4W210 Bedienungsanleitung

CHIEF

CHIEF FPD-110 Bedienungsanleitung

CHIEF

CHIEF LDB1U Bedienungsanleitung

CHIEF

CHIEF PSM-2540 Bedienungsanleitung

CHIEF

CHIEF SSB-265 Bedienungsanleitung

CHIEF

CHIEF MSP-DCCPPNR Bedienungsanleitung

CHIEF

CHIEF PNRIW Series Bedienungsanleitung

CHIEF

CHIEF FSD-4100 Bedienungsanleitung

CHIEF

CHIEF FCA103 Bedienungsanleitung

CHIEF

CHIEF MTMP1U Bedienungsanleitung

CHIEF

CHIEF PAC260D Bedienungsanleitung

CHIEF

CHIEF MSP-TDKCG110 Bedienungsanleitung

CHIEF

CHIEF Ceiling Plate CMA-330 Bedienungsanleitung

CHIEF

CHIEF CM4S57 Bedienungsanleitung

CHIEF

CHIEF RSE Bedienungsanleitung

CHIEF

CHIEF FCAC06B Bedienungsanleitung

CHIEF

CHIEF Hospitality Solutions Bedienungsanleitung

CHIEF

CHIEF MSPFB3 Bedienungsanleitung

CHIEF

CHIEF Dual Stud Wall Arm CTA-225 Bedienungsanleitung

CHIEF

CHIEF MCB1U Bedienungsanleitung

Beliebte Rack & Stand Handbücher anderer Marken

Salamander

Salamander Acadia AC/W/L400/WH Bedienungsanleitung

Fohhn

Fohhn VAT-09 Benutzerhandbuch

ricoo

ricoo FS0522 Bedienungsanleitung

AMSOIL

AMSOIL BMK-22 Kurzanleitung

Kargo Master

Kargo Master 48220 Bedienungsanleitung

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Bedienungsanleitung

ricoo

ricoo S1222 Bedienungsanleitung

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Bedienungsanleitung

VidaBox

VidaBox VB MNT FFS2 Bedienungsanleitung

Welch Allyn

Welch Allyn 48960 Bedienungsanleitung

Arkon

Arkon CM035-ST-2 Bedienungsanleitung

PROEL

PROEL PLWIN60C Bedienungsanleitung

Agilent Technologies

Agilent Technologies E2609B Bedienungsanleitung

Mustang

Mustang MV-ARM4 Bedienungsanleitung

Mounting Solutions

Mounting Solutions WRM-320 Bedienungsanleitung

Pyle

Pyle PMKSPAD1 Bedienungsanleitung

ShelterIt

ShelterIt 21208 Bedienungsanleitung

SPL

SPL RackPack?4 1040 Bedienungsanleitung
