MWH

MWH Installation Instructions

DISCLAIMER

Milestone AV Technologies, and its affiliated corporations and

subsidiaries (collectively, "Milestone"), intend to make this

manual accurate and complete. However, Milestone makes no

claim that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Milestone

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Milestone assumes

no responsibility for accuracy, completeness or sufficiency of

the information contained in this document.

IMPORTANT WARNINGS AND

CAUTIONS!

WARNING:

A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION:

A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

WARNING:

Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all components are

properly assembled and installed using the instructions

provided.

WARNING:

Failure to provide adequate structural strength

for the installation of this kit can result in serious personal

injury or damage to equipment! It is the installer’s

responsibility to make sure the structure to which this mount

is attached can support five times the combined weight of all

equipment.

WARNING:

Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all components attached to this accessory does not exceed

100 lbs (45.36 kg).

Chief® and ClickConnect™ are trademarks of Milestone AV

LEGEND

Tighten Fastener

Apretar elemento de fijación

Befestigungsteil festziehen

Apertar fixador

Serrare il fissaggio

Bevestiging vastdraaien

Serrez les fixations

Сожмите Застежку

Loosen Fastener

Aflojar elemento de fijación

Befestigungsteil lösen

Desapertar fixador

Allentare il fissaggio

Bevestiging losdraaien

Desserrez les fixations

Ослабьте Застежку

Open-Ended Wrench

Llave de boca

Gabelschlüssel

Chave de bocas

Chiave a punte aperte

Steeksleutel

Clé à fourche

Открытый Рывок

Adjust

Ajustar

Einstellen

Ajustar

Regolare

Afstellen

Ajuster

Приспособьтесь

Hex-Head Wrench

Llave de cabeza hexagonal

Sechskantschlüssel

Chave de cabeça sextavada

Chiave esagonale

Zeskantsleutel

Clé à tête hexagonale

Главный ведьмой Рывок

Phillips Screwdriver

Destornillador Phillips

Kreuzschlitzschraubendreher

Chave de fendas Phillips

Cacciavite a stella

Kruiskopschroevendraaier

Tournevis à pointe cruciforme

Отвертка

Installation Instructions MWH

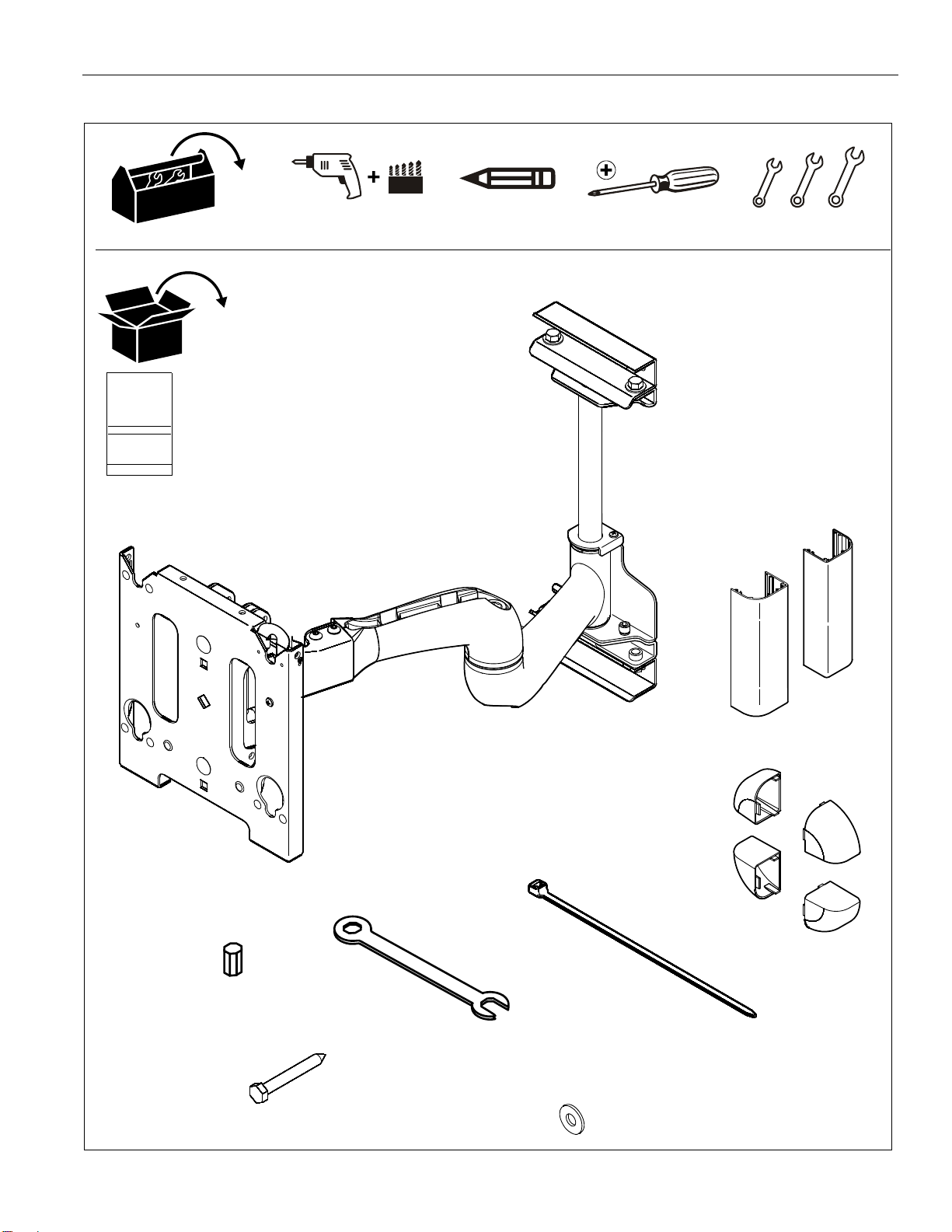

TOOLS REQUIRED FOR INSTALLATION AND PARTS

7/32" (Ø 6mm)

I/M

B (2)

F (4)

C (1)

D (1)

A (1)

E (4)

G (4)

H (4)

5/16 x 2-1/2"

5/16"

MWH Installation Instructions

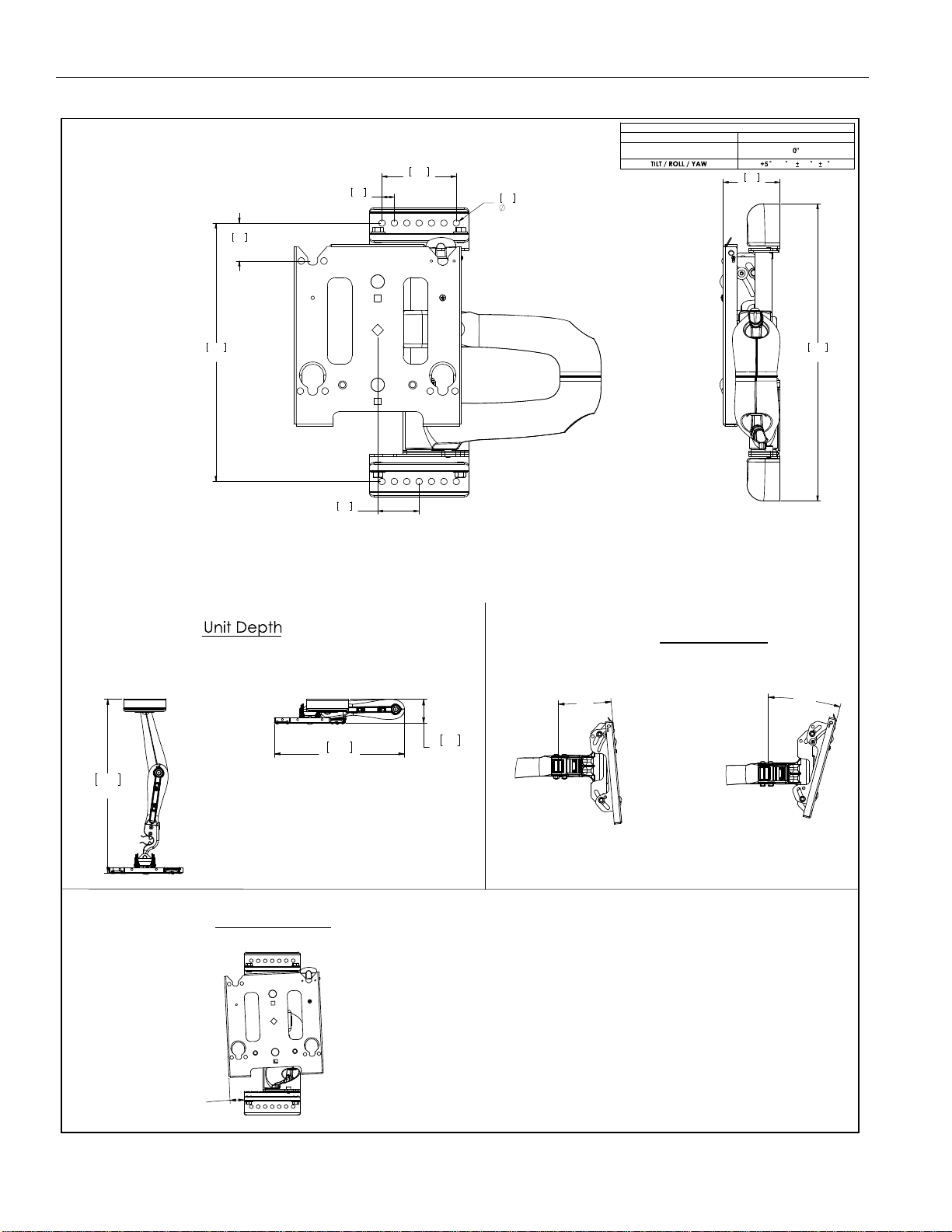

DIMENSIONS

Figure 1

24.90

632

3.43

18.61

473

15°

5°

2.5°

Tilted DownTilted Up

Extended Retracted

Tilt Adjustment

Roll Adjustment

.75

19 4.50

114

2.51

2.30

15.65

397

.39

18.00

457

3.43

ALL MEASUREMENTS ARE IN

THE FOLLOWING FORMAT:

[MILLIMETERS]

INCHES

Mounting Pattern

PRODUCT FEATURES

WEIGHT CAPACITY 100 LBS

HEIGHT ADJUSTMENT

,-15

2.5

NOTE: CUSTOM INTERFACE BRACKET

NOT SHOWN. THE CUSTOM INTERFACE

BRACKET NEEDED FOR YOUR DISPLAY

WILL ADD BETWEEN 1/2" AND 2" IN DEPTH

AND MAY AFFECT LOCATION OF DISPLAY

ON THE MOUNT.

SEE MSB-XXXX DRAWING ALSO.

Installation Instructions MWH

Mount Installation

WARNING:

IMPROPER INSTALLATION CAN LEAD TO

MOUNT FALLING CAUSING SERIOUS PERSONAL

INJURY OR DAMAGE TO EQUIPMENT! It is the installer’s

responsibility to make sure the structure to which the MWH is

being installed is capable of supporting five times the

combined weight of the mount and all attachments.

1. Determine mounting location taking into consideration

display size and mount movement.

2. Using a stud sensor locate stud. (See Figure 2)

3. Using two people, place mount against wall and level mount

aligning mounting holes in upper and lower wall channels

with stud. (See Figure 2)

NOTE:

Horizontal location can be adjusted right or left as long

as the upper and lower mounting holes align with one

another on stud.

4. Use a pencil mark two mounting holes making sure

mounting holes are located as close as possible to center of

stud. (See Figure 2)

5. Drill two pilot holes where the mounting holes were marked

using a 7/32” (6mm) drill bit. (See Figure 2)

6. Install one 5/16" x 2-1/2" lag bolt (G) and one 5/16" flat

washer (H), through mounting holes in upper wall channel

and into pilot hole. DO NOT tighten at this time.

(See Figure 3)

7. Using two people place mount against wall aligning

mounting holes in upper wall channel with lag bolt and hang

mount on lag bolt making sure washers are located in front

of mount.

8. Install one 5/16" x 2-1/2" lag bolt (G) and one 5/16" flat

washer (H), through mounting holes in lower wall channel

and into pilot hole. (See Figure 3)

9. Tighten all hardware. DO NOT overtighten!

Figure 2

7/32" (Ø 6mm) x2

Mounting holes

centered on

studs

Figure 3

(G) X 2

(H) X 2

MWH Installation Instructions

Cover Installation

To install channel covers:

1. Install upper and lower wall channel covers (B) by tipping

cover top down and positioning as shown in end view of

figure below. (See Figure 4)

2. Tap firmly across bottom of channels to lock in place as

shown in figure below. (See Figure 4)

3. Install four R.H. and L.H. end caps (F) by aligning tabs on

end caps (F) with slots in wall channel covers (B) and sliding

tabs in until end caps (F) are flush with wall channel covers

(B). (See Figure 4)

Figure 4

(B) x 2

(F) x 4

END VIEW

Installation Instructions MWH

Display Installation

If the mounting pattern of the display being installed is a VESA

standard 200 x 200 pattern the mounting buttons can be

installed directly to the back of the display. If the display has any

other mounting pattern an interface bracket must be obtained

before proceeding. Consult a Chief Customer Service

representative if an interface bracket is required by calling

1-800-582-6480 or visit www.chiefmfg.com.

WARNING:

IMPROPER INSTALLATION CAN LEAD TO

MOUNT FALLING CAUSING SEVERE PERSONAL INJURY

OR DAMAGE TO EQUIPMENT. Displays can weigh in

excess of 40 lbs (18.1kg). ALWAYS use two people and

proper lifting techniques when installing display.

WARNING:

IMPROPER INSTALLATION CAN LEAD TO

MOUNT FALLING CAUSING SEVERE PERSONAL INJURY

OR DAMAGE TO EQUIPMENT. Make sure mounting buttons

on display are properly seated in mounting holes in faceplate.

To install display:

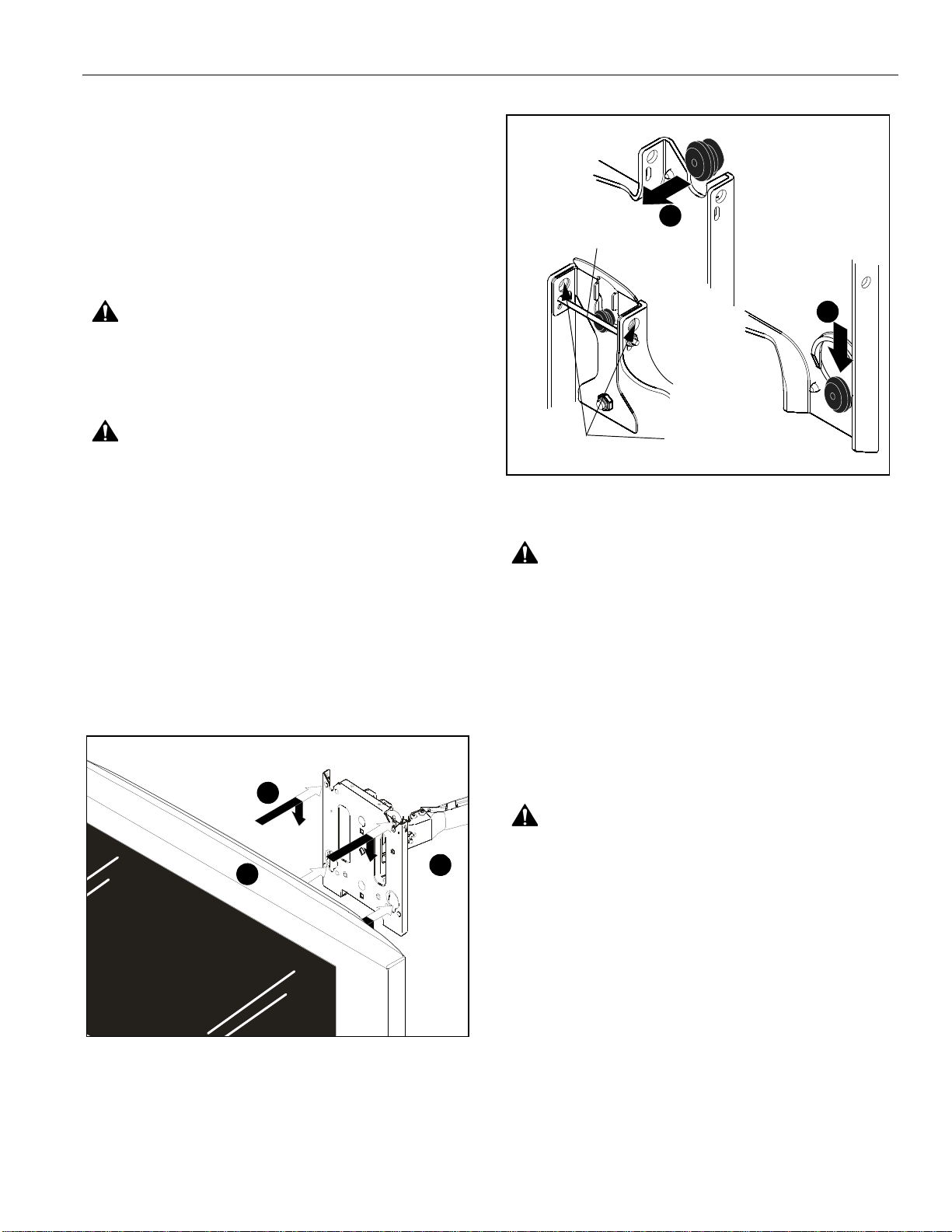

1. Move mount faceplate to extended position by grasping

faceplate and pulling outward away from wall.

(See Figure 5)

2. While supporting both sides of display, align four mounting

buttons on display or interface bracket with four mounting

holes in faceplate. (See Figure 5)

3. Lower display into place listening for audible "click" to

ensure recessed area of mounting buttons are properly

seated in lower area of mounting holes and "click lock"

mechanism has engaged. (See Figure 5) and (See Figure

Figure 5

NOTE:

Holes are provided in the faceplate for use with a

padlock or similar locking device, if desired. In addition,

the pin and nut may be removed from the upper holes

and moved to the lower holes for use as a more

permanent locking device. (See Figure 6)

Figure 6

CABLE MANAGEMENT

WARNING:

IMPROPER INSTALLATION CAN LEAD TO

SERIOUS PERSONAL INJURY OR DAMAGE TO

EQUIPMENT! Make sure cables do not run through pinch

points.

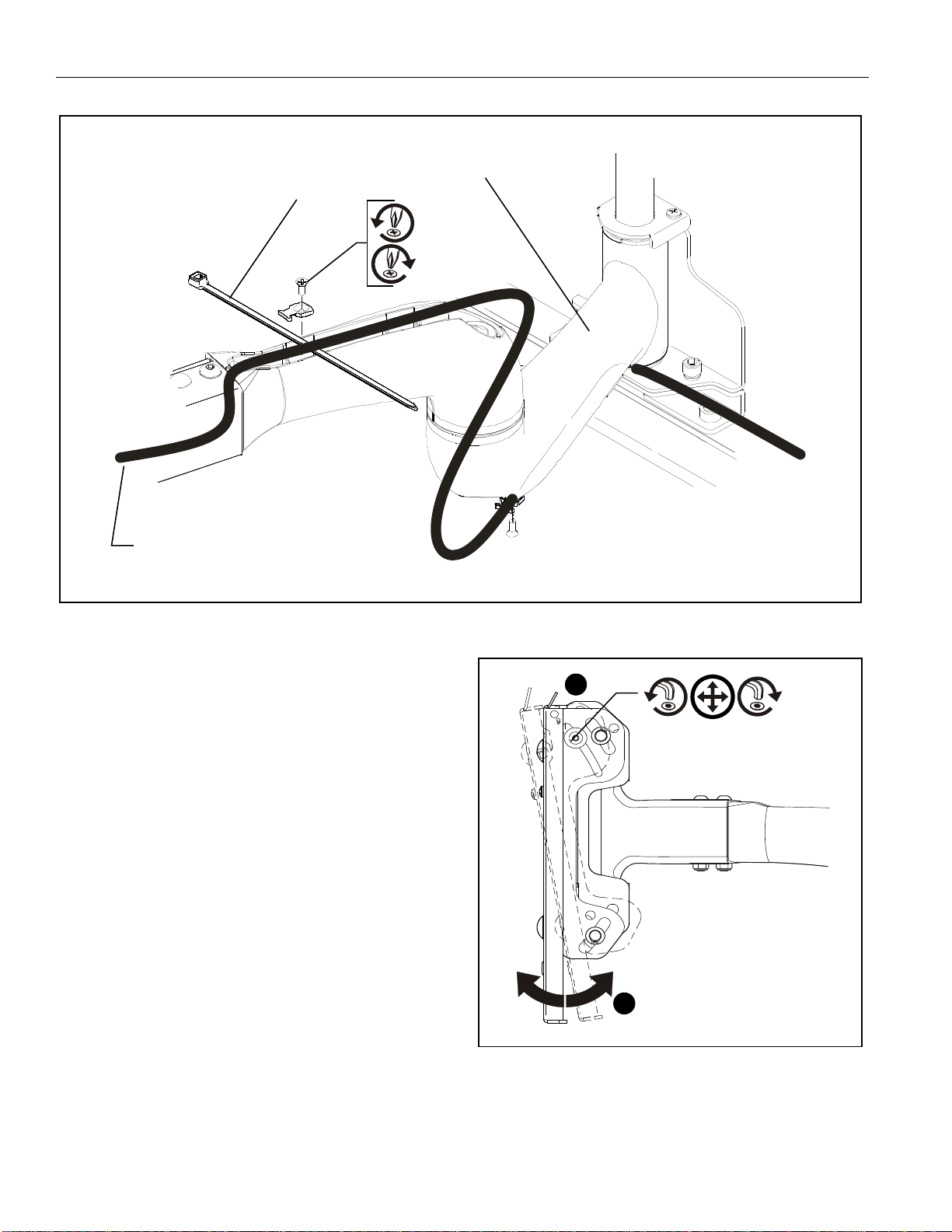

1. Loosen front and rear cable clamps on top arm.

(See Figure 7)

2. Thread cable ties (E) under cable clamps and secure

clamps to top arm. (See Figure 7)

3. Route power/audio/video cables through the cable channel

in top arm (See Figure 7), allowing sufficient slack in cables

for left/Right movement of display and swing arm and also

swing arm extension and retraction.

4. Secure cables to top arm using two cable ties (E).

5. Repeat steps 1 through 4 for lower arm.

WARNING:

IMPROPER INSTALLATION CAN LEAD TO

SERIOUS PERSONAL INJURY OR DAMAGE TO

EQUIPMENT! DO NOT route cables through holes in

faceplate.

Remove pin

and nuts and

move to lower holes.

A padlock or bolt may

be placed through latch

holes

MWH Installation Instructions

Figure 7

(E) x 4

x 4

From Display

(A) x 4

ADJUSTMENTS

Pitch Tension Adjustment

To adjust display pitch tension:

1. With display installed, tighten or loosen two screws, one on

each side, using the 5/32” hex wrench. (See Figure 8)

2. Check for desired tension.

3. Repeat Steps 1 and 2 until desired tension is obtained.

Figure 8

Installation Instructions MWH

Roll Adjustment

The MWH allows for the horizontal alignment (Roll)of the

display to be adjusted up to 2 deg. right or left to level the

display after installing.

To adjust Roll:

1. Loosen the roll tensions adjustment nut located on the back

side of the faceplate assembly. (See Figure 9)

2. Level display.

3. Tighten roll tension adjustment nut. (See Figure 9)

Figure 9

Swing Arm Tension Adjustment

Swing arm tension is pre-set at the factory and is adjusted to

accommodate displays with weights near the top of the mounts

capacity.

If smaller displays are used it may be difficult to reposition the

display after mounting. Swing arm tension can be adjusted to

compensate for smaller display by:

The display must be mounted prior to adjusting swing arm

tension.

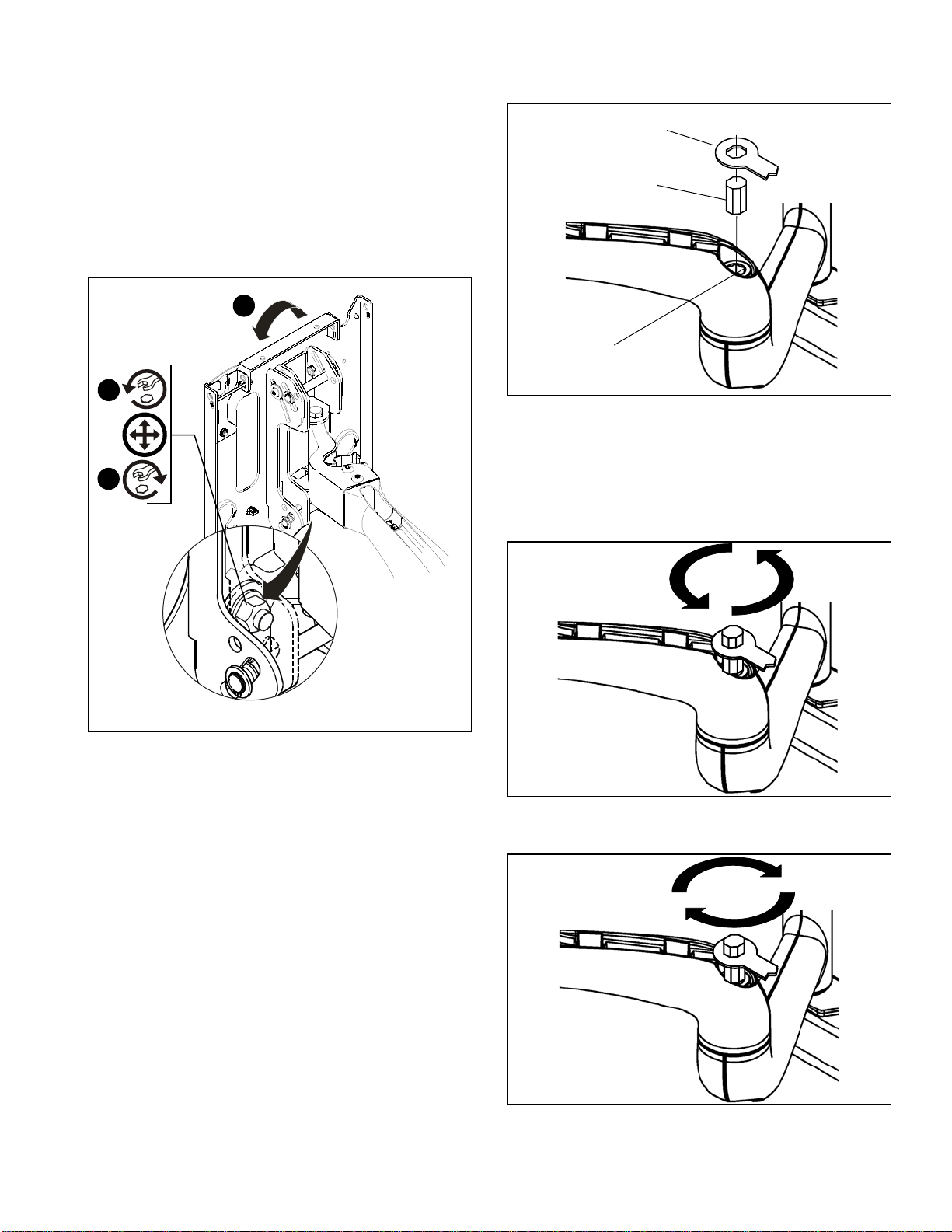

1. Locate the adjustment bar (H) and adjustment wrench (J).

2. Place adjustment bar (H) into socket head cap screw

located at swing arm pivot point. (See Figure 10)

NOTE:

The display may need to be repositioned in order to

gain access to the tension adjustment screw(s).

3. Check swing arm tension. If desired tension is present,

tension adjustment is complete. If additional tension

adjustment is required, repeat steps 2 thru 4 until desired

tension is achieved.

NOTE:

If changing from a smaller display to a larger display

may be necessary to increase swing arm tension.

Figure 10

4. Using the adjustment wrench (D), turn adjustment bar (C)

clockwise to increase swing arm tension or

counterclockwise to reduce swing arm tension. (Small

adjustments of 1/8 turn or less are typically all that is

required to achieve desired tension.) (See Figure 11) and

(See Figure 12)

Figure 11

Figure 12

Socket Head

Capscrew

(D) x 1

DECREASE

INCREASE

MWH Installation Instructions

Inhaltsverzeichnis

Andere CHIEF Rack & Stand Handbücher

CHIEF

CHIEF Vibration Mount CMA-347 Bedienungsanleitung

CHIEF

CHIEF NW1 series Bedienungsanleitung

CHIEF

CHIEF K1C250 Bedienungsanleitung

CHIEF

CHIEF OFB204 Bedienungsanleitung

CHIEF

CHIEF MTSAV Bedienungsanleitung

CHIEF

CHIEF Fusion FCA115 Bedienungsanleitung

CHIEF

CHIEF NAG1BW Bedienungsanleitung

CHIEF

CHIEF Ceiling Plate CMA-330 Bedienungsanleitung

CHIEF

CHIEF Direct Attach Ceiling Mount JHS Series Bedienungsanleitung

CHIEF

CHIEF MSP-SONMED1 Bedienungsanleitung

CHIEF

CHIEF FCA113 Bedienungsanleitung

CHIEF

CHIEF Dual J Series Bedienungsanleitung

CHIEF

CHIEF Wall Mount PLP Series Bedienungsanleitung

CHIEF

CHIEF SSB-202 Bedienungsanleitung

CHIEF

CHIEF MSR Series Bedienungsanleitung

CHIEF

CHIEF Fusion FCA802 Bedienungsanleitung

CHIEF

CHIEF MSP-DARAC3 Bedienungsanleitung

CHIEF

CHIEF SL-236 Bedienungs- und Sicherheitshinweise

CHIEF

CHIEF SSB-301 Bedienungsanleitung

CHIEF

CHIEF KSA-1020 Bedienungsanleitung

CHIEF

CHIEF F-Series Steel Stud FSA1018 Bedienungsanleitung

CHIEF

CHIEF FTR Series Bedienungsanleitung

CHIEF

CHIEF MSP-DARAC1B Bedienungsanleitung

CHIEF

CHIEF LCD2TS Bedienungsanleitung

Beliebte Rack & Stand Handbücher anderer Marken

Salamander

Salamander Acadia AC/W/L400/WH Bedienungsanleitung

Fohhn

Fohhn VAT-09 Benutzerhandbuch

ricoo

ricoo FS0522 Bedienungsanleitung

AMSOIL

AMSOIL BMK-22 Kurzanleitung

Kargo Master

Kargo Master 48220 Bedienungsanleitung

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Bedienungsanleitung

ricoo

ricoo S1222 Bedienungsanleitung

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Bedienungsanleitung

VidaBox

VidaBox VB MNT FFS2 Bedienungsanleitung

Welch Allyn

Welch Allyn 48960 Bedienungsanleitung

Arkon

Arkon CM035-ST-2 Bedienungsanleitung

PROEL

PROEL PLWIN60C Bedienungsanleitung

Agilent Technologies

Agilent Technologies E2609B Bedienungsanleitung

Mustang

Mustang MV-ARM4 Bedienungsanleitung

Mounting Solutions

Mounting Solutions WRM-320 Bedienungsanleitung

Pyle

Pyle PMKSPAD1 Bedienungsanleitung

ShelterIt

ShelterIt 21208 Bedienungsanleitung

SPL

SPL RackPack?4 1040 Bedienungsanleitung
