BLUETOOTH CUBEBLUETOOTH CUBE

The Bluetooth Cube can function like a standard Battery Cube to

power all the outputs at the same time with the 3-way switch in

the ON position. Move the switch to the Bluetooth position for

broadcast mode [flashing blue LED] to pair the Cube with your

device. Once connected [solid blue LED], you can control the

three outputs [ A | B | C ] independently using the app.

MEET THE CUBES!MEET THE CUBES!

Bring your toys to life with Circuit Cubes, the electronic building blocks thatBring your toys to life with Circuit Cubes, the electronic building blocks that

add power, motion, and light to your creations. Designed by STEM teachers,add power, motion, and light to your creations. Designed by STEM teachers,

Circuit Cubes can turn a light on, power a motor, or make wheels spin — plus,Circuit Cubes can turn a light on, power a motor, or make wheels spin — plus,

they work with your LEGOthey work with your LEGO® bricks.bricks.

MOTOR CUBEMOTOR CUBE

A perfect fit for your LEGO® gears and wheels, this

mighty little Motor actually rotates at more than

1,000 RPM [rotations per minute], but the tiny gears

attached to the shaft reduce the rotations to about

75 RPM. This ensures maximum torque to turn the

wheels or gears of your build.

RGB LED CUBERGB LED CUBE

The Red-Green-Blue [RGB] LED has three different

LEDs in one bulb. Use the small switches to turn on

each of the LEDs and control the red, green, and

blue lights. Try combining the colored lights

in different combinations to make purple, teal,

and yellow.

BLUETOOTH MODEBLUETOOTH MODE

Once connected [ ], you can control the three outputs

[ A | B | C ] independently with the Circuit Cubes app. Each

ouput allows you to control & power different parts of the

build. Similar to the metal posts on the Cubes, each output has

positive and negative polarity. This makes the Motor move, either

clockwise or counterclockwise.

OFF ONOFF ON

BATTERY MODE [ON]BATTERY MODE [ON]

Flip the switch to the right to use

the Bluetooth Cube as a power

source, like your Battery Cube.

BLUETOOTH MODE [BLUETOOTH MODE [ ]]

Flip the switch to the left to

control your creation via the

Circuit Cube app — find it in

the Apple App Store or

Google Play Store.

PAIRINGPAIRING

A blinking blue light indicates

that the Bluetooth Cube is

pairing with your device.

When the light is solid blue

[ ], it's connected.

CIRCUIT CUBES APPCIRCUIT CUBES APP

The Circuit Cubes App allows you

to push the limits of what you can

do with your builds. Control your

creation by using the Gamepad

to move in all directions.

OUTPUTSOUTPUTS

The Bluetooth Cube has three

outputs [ A | B | C ]. In Bluetooth

Mode, ouput A and the metal

posts are the same, and are

linked when powered on.

– A B C +– A B C +

A B CA B C

OUTPUTSOUTPUTS

BATTERY MODEBATTERY MODE

Flip the switch to the right to power your creation in

standard Battery mode. A solid green light [ ] indicates

that the Bluetooth Cube is powered on. Outputs [ A | B | C ]

are on and you cannot control voltage.

CHARGINGCHARGING

To charge your Bluetooth Cube,

plug the provided USB cable into

the charging port on the side, and

connect it to a standard USB port.

The LED will turn red [ ] while

charging and green [ ] when

charging is complete.

OFF ONOFF ON

PROTECT YOUR BATTERYPROTECT YOUR BATTERY

Your Bluetooth Cube has short

circuit protection for when you

cause a shortage. Power will be

disabled and the top LED will flash

green [ ] and blue [ ]. You

will hear a beeping sound until

the short is removed.

MAGNETSMAGNETS WIRESWIRES

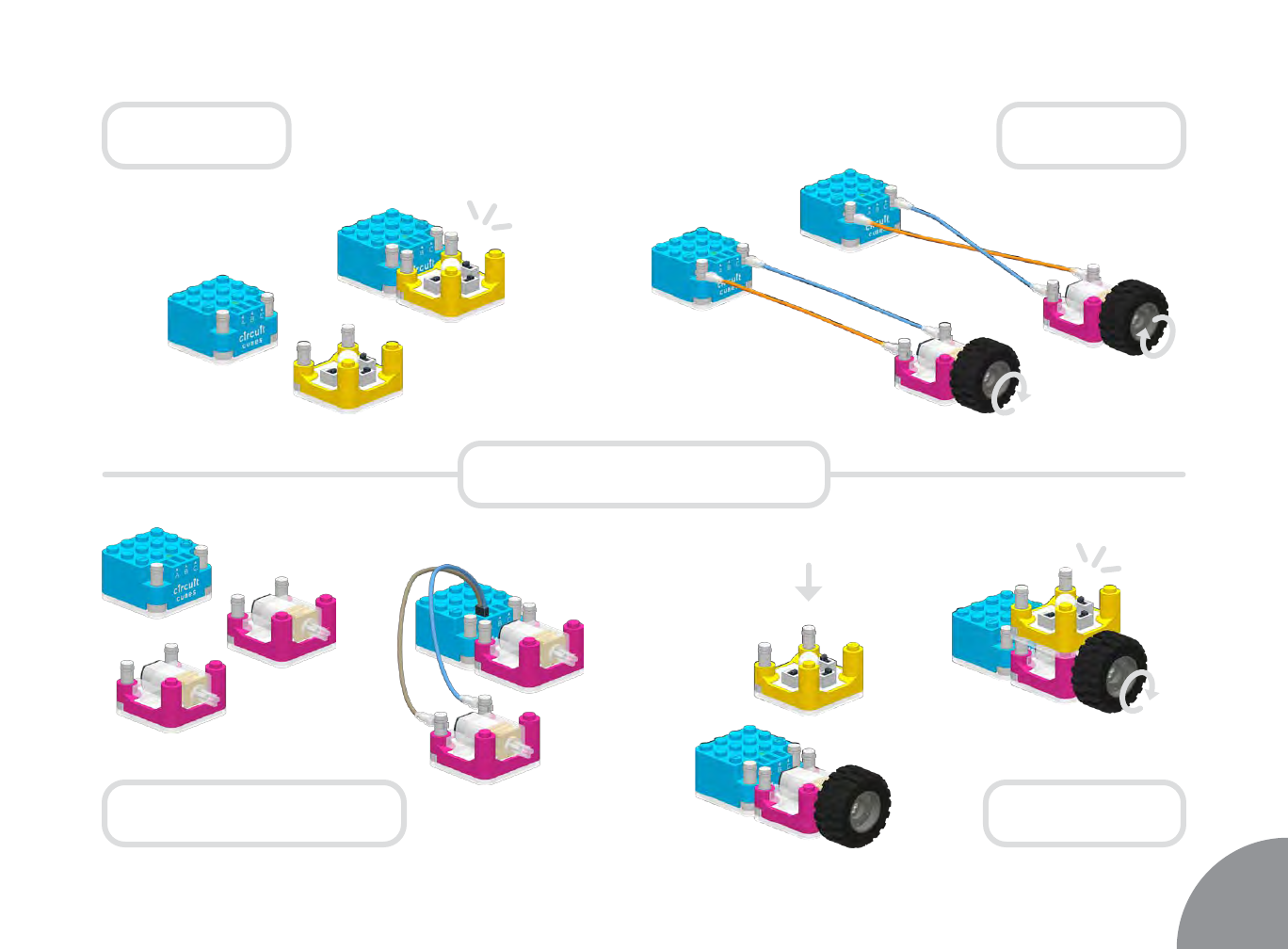

POSTS & OUTPUTSPOSTS & OUTPUTS STACKINGSTACKING

CONNECT YOUR CUBESCONNECT YOUR CUBES

TXR-A1TXR-A1

BUILT FOR SPEED & ROLLING ROBOTSBUILT FOR SPEED & ROLLING ROBOTS

1:1 SCALE1:1 SCALE
