Cisco ASR 9000 Series Line Card Quick Reference Guide
Topics
The Cisco ASR 9000 Series Routers
meet the regulatory compliance
and safety approval requirements.
Note: Unless specied otherwise, the
images are for only representational
purposes.
For detailed safety information, see:
Regulatory Compliance and Safety
Information for the Cisco ASR 9000
Series Routers.
Safety Warnings
Failure to observe the safety
warnings may result in serious injury
to personnel or damage to the
hardware.
For hardware installation
documentation, see
Cisco ASR 9000 Series Aggregation
Services Router Hardware
Installation Guide
Cisco ASR 9000 Series Aggregation
Services Router Ethernet Line Card
Installation Guide
Cisco ASR 9000 Series Aggregation
Services Router Overview and
Reference Guide
1. Unpacking the Line Card
2. Installing the Line Card
3. Cable Management
4. Maintenance Best Practices
1
© 2020 Cisco Systems, Inc. All rights reserved.
ALLOTHERBOARDS-THISSIDETOBOARD
SURESHOT-THISSIDETOBOARD
ALLOTHERBOARDS-THISSIDETOBOARD
SURESHOT-THISSIDETOBOARD
ALLOTHERBOARDS-THISSIDETOBOARD
SURESHOT-THISSIDETOBOARD
Plastic side rails
Line card
ALLOTHERBOARDS-THISSIDETOBOARD
SURESHOT-THISSIDETOBOARD
Plastic blocker
Wooden base
board
Foam cushion
Rolled Foam
Sealed line card
package placed
sideways
Foam cushion
Foam cushion
Outer packaging
box
d
c
b
a
Unpacking the Line Card
Package Contents
.Foam Cushion
.Pink Antistatic Rolled Foam
.Sealed Line Card Package
For packaging guidelines, see Page 6
Caution!
.For convenience and safety purposes,
two persons should handle the line card.
.To avoid damage, place the line card
horizontally on a at antistatic surface.
The outer packaging box contains an
antistatic pink rolled foam that can be used
for this purpose.
.Wear ESD gloves to unwrap the ESD
bag, and remove the line card.
Cisco ASR 9000 Series
Line Card
2
© 2020 Cisco Systems, Inc. All rights reserved.
Lift the inner packaging box that
contains the line card and place it
on a at surface.
Open the seal of the inner
packaging box.
Remove the line card from the
plastic side rails of the wooden
base board.
Unscrew the screws from the
plastic blocker that is on the
wooden base board.
Wear ESD gloves and unwrap the
ESD bag, which contains the line
card placed on a wooden base board.
Open the seal on the outer packaging
box. Remove the foam cushion.
1 2 3
4
Place the line card on an antistatic
surface while preparing the chassis
for card installation.
7
5 6
For future use, store the packaging
boxes.
Follow the directions provided on the plastic
blocker for its correct orientation while
reinserting the card on the wooden base
board.
To repack a line card to return it, perform the
steps in the reverse order.
98 Screw back the plastic blocker on
the wooden base board.

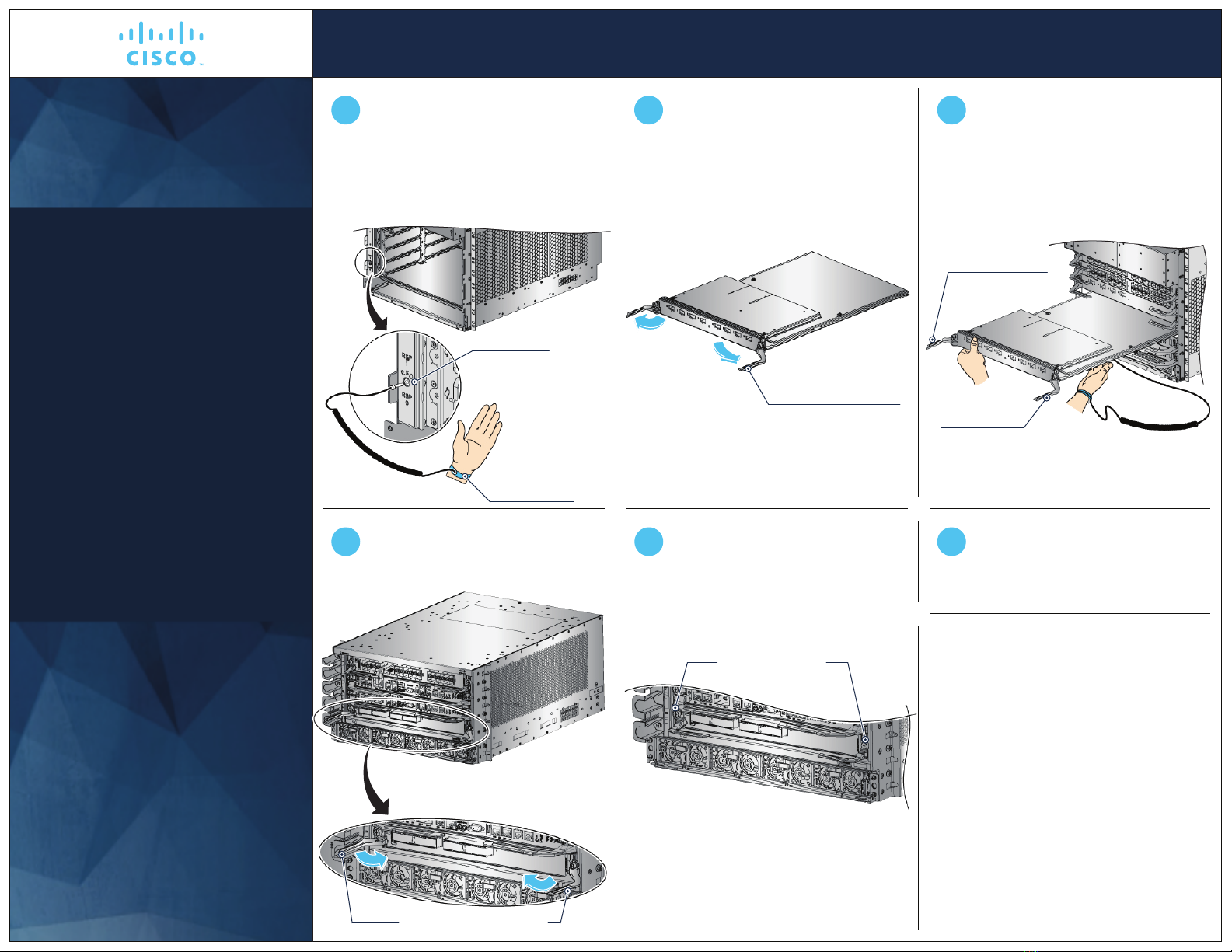

Installing the Line Card
Caution!
.For convenience and safety purposes,
two persons should handle the line card.
.Never carry the line card by holding it by
the ejector levers or put pressure on the
captive screws.
.To avoid damage, place the line card
horizontally on a at antistatic surface.
The outer packaging box contains an
antistatic pink roller foam that can be used
for this purpose.
.Retain the dust caps on the line card
throughout the installation procedure.
Also, use dust caps on unused ports in the
line card.
Cisco ASR 9000 Series
Line Card
Open the ejector levers on either
side of the line card.
Carry the line card and slide the card
into the slot to connect with the
backplane connector. Start with the
lowest numbered line card slot.
Attach an antistatic wrist strap to your
wrist and to the ESD socket of the
chassis, or to a bare metal surface on
the chassis or frame.
1 2 3
Pivot the ejector levers to seat the
card into the backplane connector.
4Repeat Step 2 through Step 5 to
install another line card.
To uninstall a line card, perform the steps in
the reverse order.
For manual OIR (online insertion and removal)
of cards, disengage the line card from the
backplane connector, and partially pull out
the line card. Reseat the card to
establish the connection again.
65 Tighten the captive screws on either
side of the line card to a torque of
10 1 in-lb.
This procedure explains installing the line
card in the horizontal position.
To install the line card in the vertical
position, follow the same steps but
hold the card vertically.
+
-
3
© 2020 Cisco Systems, Inc. All rights reserved.
Captive screws
Ejector lever (closed)
Ejector lever (open)
Ejector lever
Captive screws
Antistatic
wrist band
Ensure to verify the eectiveness of
ESD wrist strap before handling the
hardware.
ESD socket
Line card 3
Cable bundle
Cable management bracket
Slot 1
Line card 0
Slot 4 Cable management
bracket
Cable bundle
Line card 0
Slot 5
Slot 3
Line card 3
Cable management tray
Dividers
Cable bundle routed
through the tray
Hinged cover in raised position
DividersCable bundle routed
through the tray
Cable management tray
Cisco ASR 9000 Series
Line Card
Chassis cable management bracket
Install the cable management bracket on one side of the
chassis.
Cisco ASR 9904 Router Cisco ASR 9006 Router
Cisco ASR 9010 Router
Cisco ASR 9910 Router
1
Route the cable bundle from the line card through the cable
management bracket slot. Each line card has its own cable
routing slot.
2
Each line card has its own cable routing divider in the
cable management tray. Route the cable or cable bundle
from the line card through the dividers of the cable
management tray.
1(Cisco ASR 9010 Router) Raise the hinged cover to
increase access to the dividers.
2
Cable Management
Cable management can be achieved by
routing the cables through the following
brackets:
1. Chassis cable management bracket.
2. Cable management tray.
Note: Use cable dust cap to protect the
cables from dust when the cables are
not in use.
Cable management brackets keep the
cables organized. Ensure cables from other
equipment installed in the rack do not
restrict access to the card cages.
To avoid noise interference in network
interface cables, do not route them directly
across or along power cables.
Cable management tray
4
© 2020 Cisco Systems, Inc. All rights reserved.
2
Cisco ASR 9000 Series
Line Card
Chassis Airow
Chassis Airow
ESD
Compatible Modules
Replacement
Provide unrestricted airow by maintaining adequate clearance at both the inlet and exhaust openings of the chassis and the
power modules. For more details on chassis airow clearance, click here.
Prevent any airow obstruction that may be caused by cables or blocked lters. Manage and route the cables in ideal directions to
prevent such airow obstructions.
Maintenance Best Practices
ESD
While performing any function or replacement on the chassis, ensure that you use an ESD-preventive antistatic wrist strap
(or ankle strap) to avoid damage by static electricity.
Periodically, check the resistance value of the ESD-preventive strap. The measurement should be between 1 and 10 M Ohm.
For more details, click here.
Replacement
Inspect air lters once every 3 months. If there is an increase in temperature, please check the air lters and fans for any
malfunctioning. For troubleshooting, reach out to Cisco TAC and isolate any possible hardware failure.
Replace air lters that are clogged or damaged. Cleaning the air lters is not recommended.
Use only compatible versions of power modules and fan trays for operations. For the product datasheet, click here.
Compatible Modules
During maintenance, to avoid dust accumulation and air leakage that can increase the chassis temperature, do not keep the fan tray
slot empty for a long duration.
5
© 2020 Cisco Systems, Inc. All rights reserved.
Packaging
Clean Environment
Operating Temperature
Cisco ASR 9000 Series
Line Card
Packaging
Maintenance Best Practices
Clean Environment
Ensure that the chassis installation site is dust free.
Use ller cards in empty slots to prevent dust accumulation and to maintain proper airow.
Always use dust caps on empty optical ports to prevent dust accumulation and airow leakage.
Clean the optical ports according to standard cleaning procedures.
Maintain good air quality, and check air chemical composition at regular intervals. Impure air with high levels of chemical
concentration can cause corrosion that, in turn, would result in product degradation.
Operating Temperature
While packing and transporting line cards or other modules, use only Cisco provided packaging. Any other improper packaging for
moving equipment may severely damage the product.
Repackage the components the same way as it was packaged at the time of product delivery by including all packaging materials.
Orienting the product incorrectly inside the package may cause damage to the product during transportation.
Always use the ESD cover to wrap the hardware before packing it into packaging cartons. Handle any failed hardware with care, and
use an ESD wrist band or an antistatic bag.
Maintain normal operations by anticipating and correcting environmental anomalies before they approach critical values by properly
planning and preparing your site before you install the router.
If the temperature or power requirement of the line card or the chassis exceeds the operating temperature or power requirement,
a thermal shutdown procedure is initiated as applicable.
Operate the chassis only within the limits of the recommended temperature. For technical specications, refer to the respective
product datasheet- click here.
6
© 2020 Cisco Systems, Inc. All rights reserved.
Grounding
Corrosion
Cisco ASR 9000 Series
Line Card
Grounding
Ensure that all equipment racks are grounded to the building. Otherwise, it can pose a serious safety risk to personnel.
Additionally, an electrical current can cause operational deciencies or expose the networking equipment to the risk of permanent
failure due to ESD risks.
Verify the eectiveness of a good ground connection using a multimeter. The multimeter readings should display less than 1 Ohm
for good point-to-point resistivity.
Maintenance Best Practices
For more details on grounding, click here.
Corrosion
Over a period of time, corrosion can degrade the performance of the components. It leads to blocked currents, brittle connection
points, and overheated electrical systems. As chemical reactions continue, the corrosion by-products form insulating layers on
circuits, and they usually cause electronic failure, short circuits, pitting, and metal loss. Therefore, ensure that the maximum
concentration of contaminants for indoor installation does not exceed the prescribed limit.
Avoid touching contacts on modules and protect the equipment from extreme temperatures and moist, salty environments. Monitor
the environmental factors that impact the corrosion rate: ambient pressure, humidity, and temperature. Whenever possible, ensure
that the installation site is fully air conditioned to ensure that the environmental factors are under control.
Install real-time corrosion measurement systems. Corrosion monitors enable you to take preventive action before serious
damage occurs.
The use of HEPA lters is advised to maintain clean air circulation systems.
Avoid using direct air cooling on the product (network equipment).
7
© 2020 Cisco Systems, Inc. All rights reserved.
Andere Handbücher für ASR 9000 Series
33
Inhaltsverzeichnis
Andere Cisco Netzwerk-Router Handbücher
Cisco
Cisco ASR 14000 Series Bedienungsanleitung
Cisco
Cisco RV130W Installations- und Betriebshandbuch
Cisco
Cisco 3825 Series Kurzanleitung
Cisco
Cisco Linksys EA2700 Bedienungsanleitung
Cisco
Cisco 7507 Bedienungsanleitung
Cisco
Cisco CISCO7206 Originalbetriebsanleitung
Cisco
Cisco 901 Bedienungsanleitung
Cisco
Cisco Broadband Access Center Bedienungsanleitung
Cisco
Cisco 811 Anleitung zur Verwendung
Cisco
Cisco 500 Series Bedienungsanleitung
Cisco
Cisco ASR-920-12SZ-IM Bedienungsanleitung
Cisco
Cisco RV180 Gebrauchs- und Pflegehandbuch
Cisco
Cisco ASR 1000 series Handbuch
Cisco
Cisco 1600 series Bedienungsanleitung
Cisco
Cisco ASR 901 10G Series Handbuch
Cisco
Cisco 6500 - Catalyst Series 10 Gigabit EN Interface Module... Bedienungsanleitung
Cisco
Cisco IR8300 Kurzanleitung
Cisco
Cisco ASR 5000 Series Bedienungsanleitung
Cisco
Cisco 3200 Series Installations- und Betriebshandbuch
Cisco
Cisco 1721 - VPN Security Router Bundle Leitfaden
