Cisco NCS 5700 Series Handbuch

Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port

Routers

First Published: 2021-06-23

Last Modified: 2021-08-19

Americas Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA

http://www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 527-0883

CONTENTS

NCS 5700 Router Overview 1

CHAPTER 1

Cisco NCS 5700 Router Overview 1

Field Replaceable Units 2

Route Processor Card 7

Modular Port Adapters 7

Network Interfaces 11

Specification 14

Network Timing Interfaces 14

GNSS 15

GNSS Module RF Input Requirements 16

Console 17

Online Insertion and Removal 17

Transceiver and Cable Specifications 17

Prepare for Installation 19

CHAPTER 2

Review Installation Roadmap 19

Review Safety Guidelines 20

Cautions and Regulatory Compliance Statements for NEBS 20

Review Installation Guidelines 21

Clearance Requirements 22

Airflow Directions 23

Procure Tools and Equipment 24

Accessory Kits for Fixed Port Routers 25

Prepare Your Location 25

Airflow for Site Planning 26

Prepare Yourself 27

Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers

iii

Prepare Rack for Chassis Installation 29

Install the Chassis 31

CHAPTER 3

Rack Types 31

Rack Mount the Chassis 33

Rack Mount the NCS-57B1 Chassis in a 2-Post Rack 34

Rack Mount the NCS-57C3-MOD Chassis in a 2-Post Rack 36

Rack-Mount the NCS-57B1 Chassis in a 4-Post Rack 38

Rack Mount the NCS-57C3-MOD Chassis in a 4-Post Rack using Sliders 41

Ground the Chassis 53

Connect AC Power to the Chassis 55

Connect DC Power to the Chassis 57

Power Supply Unit Input and Output Ranges 59

Connect Router to the Network 61

CHAPTER 4

Port Connection Guidelines 61

Connect to the Console Port 62

Create the Initial Router Configuration 65

Connect to the Management Ethernet Port 67

Accessing RJ-45 Cable 68

Install and Remove Transceiver Modules 70

Install and Remove SFP28 and SFP+ Modules 70

Bale Clasp SFP+ Module 72

Install a Bale Clasp SFP+ Module 72

Remove a Bale Clasp SFP+ Module 73

Install and Remove QSFP-DD Transceiver Modules 75

Install and Remove QSFP+/QSFP28 Transceiver Modules 77

Overview 77

Required Tools and Equipment 78

Installing the 40-Gigabit QSFP+ or 100-Gigabit Transceiver Module 78

Attach the Optical Network Cable 80

Removing the 40-Gigabit QSFP+ or 100-Gigabit QSFP28 Transceiver Module 81

Connect Interface Ports 82

Connect a Fiber-Optic Port to the Network 82

Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers

Contents

Disconnect Optical Ports from the Network 82

Connecting a Cable to the GNSS Antenna Interface 83

Maintain Transceivers and Optical Cables 85

Replace Chassis Components 87

CHAPTER 5

Replace Fan Modules and Fan Trays 87

Replace Power Supply 89

Remove the DC Power Supply Module 90

Install the DC Power Supply Module 91

Remove the AC Power Supply Module 91

Install the AC Power Supply Module 92

Replace a Route Processor Card 93

Installing and Removing Modular Port Adapters 95

Handling Modular Port Adapters 95

Online Insertion and Removal 96

Modular Port Adapter Installation and Removal 97

Verify Chassis Installation 99

CHAPTER 6

Verify Device Installation 99

LEDs 101

CHAPTER 7

Chassis LEDs 101

Route Processor Card LEDs 103

Port Status LEDs 105

Port Status LED Display 105

MPA LEDs 106

Management Port LEDs 107

Fan Module and Fan Tray LED 108

Power Supply LED 109

System Specification 111

APPENDIX A

Weight and Power Consumption 111

Environmental Specifications 111

RJ-45 Connectors 111

Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers

Contents

Management Pinouts 112

Time-of-Day Port Pinouts 112

USB Flash or MEM Port Pinouts 113

Console Port Pinouts 113

Power Supply Power Cord Specifications 114

Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers

Contents

CHAPTER 1

NCS 5700 Router Overview

•Cisco NCS 5700 Router Overview, on page 1

•Field Replaceable Units, on page 2

•Route Processor Card, on page 7

•Modular Port Adapters, on page 7

•Network Interfaces, on page 11

•Specification, on page 14

•Network Timing Interfaces, on page 14

•GNSS, on page 15

•Console, on page 17

•Online Insertion and Removal, on page 17

•Transceiver and Cable Specifications, on page 17

Cisco NCS 5700 Router Overview

The Cisco NCS 5700 series fixed-port routers provide aggregation, distributed core, and peering fabric.

The Cisco NCS 5700 series offers two types of systems. Those without external-TCAM (non-SE) rely only

on the on-chip resources available for feature scale. The second type of system is equipped with external-TCAM

(-SE) which provides an extended scale in addition to the on-chip scale. These systems provide functionality

vital to both Top of Rack (ToR) and modern spine-and-leaf architectures.

NCS-57B1

The NCS-57B1 routers provide a power-efficient package with 4.8 Terabits of 400GE/100GE optimized

forwarding capacity.

Table 1: Cisco NCS-57B1 Chassis Variants

Port ConfigurationVariant

A total of 29 ports:

• 24x100G QSFP-DD

• 5x400G QSFP-DD

NCS-57B1-5D24H-SE (Perpetual

Licensing)

NCS-57B1-5DSE-SYS (Flexible

Consumption Model)

Also known as SE variant

Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers

Port ConfigurationVariant

A total of 30 ports:

• 24x100G QSFP-DD

• 6x400G QSFP-DD

NCS-57B1-6D24H-S (Perpetual

Licensing)

NCS-57B1-6D24-SYS (Flexible

Consumption Model)

Also known as non-SE variant

For more information on its features and benefits, see the Cisco NCS-57B1 Fixed Chassis Data Sheet.

NCS-57C3-MOD

The NCS-57C3-MOD routers provide a power-efficient package with up to 2.4 Terabits of optimized forwarding

capacity.

Table 2: Cisco NCS-57C3-MOD Chassis Variants

Port ConfigurationVariant

A total of 52 ports:

• 48 ports of 25G SFP28

• 4 ports of 100G QSFP28

In addition, the chassis has 3 Modular Port Adapter (MPA) slots. See

Modular Port Adapters, on page 7 for information on MPAs.

NCS-57C3-MOD-SE-S (Perpetual

Licensing)

NCS-57C3-MODS-SYS (Flexible

Consumption Model)

Also known as SE variant

A total of 56 ports:

• 48 ports of 25G SFP28

• 8 ports of 100G QSFP28

In addition, the chassis has 3 Modular Port Adapter (MPA) slots. See

Modular Port Adapters, on page 7 for information on MPAs.

NCS-57C3-MOD-S (Perpetual

Licensing)

NCS-57C3-MOD-SYS (Flexible

Consumption Model)

Also known as non-SE variant

For more information on its features and benefits, see the Cisco NCS-57C3 Fixed Chassis Data Sheet.

Field Replaceable Units

The NCS 5700 series fixed-port routers support the following FRUs:

• Fan modules (NCS-57B1) and fan trays (NCS-57C3-MOD)

• Power Supply Units

• Modular Port Adapters (MPAs)—supported on the NCS-57C3-MOD routers

• Route Processors

All FRUs support OIR (Online Insertion and Removal).

Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers

NCS 5700 Router Overview

Field Replaceable Units

Fan Modules and Fan Trays

Fans are responsible for cooling the system and to maintain proper airflow through the system. The fan modules

work with N+1 redundancy.

The NCS-57B1 router has 6 latched fan modules that install into the chassis from the rear. The router supports

the NC57-B1-FAN1-FW fan module.

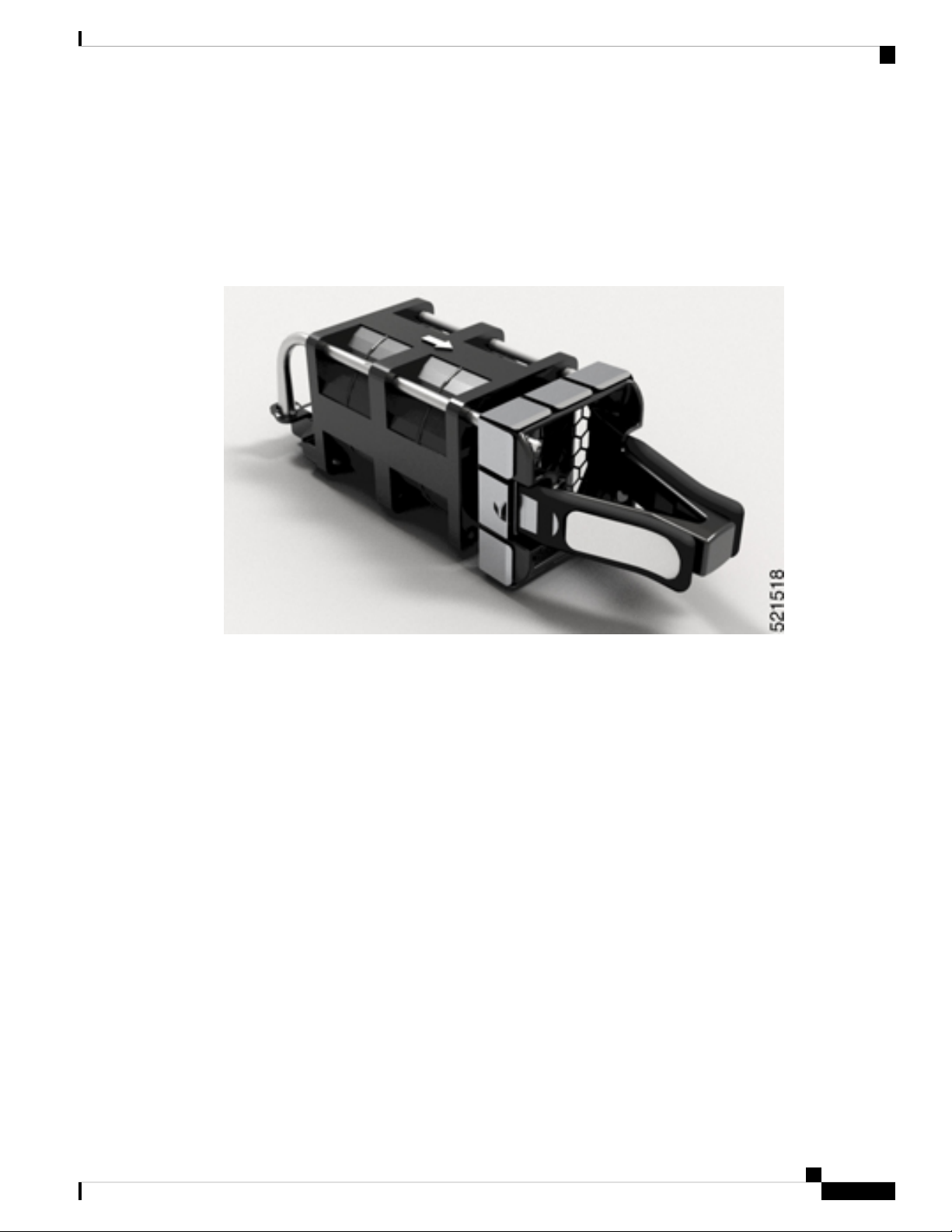

Figure 1: NCS-57B1 Fan Module

The NCS-57C3-MOD router has 6 latched fan trays that install into the chassis from the rear:

• Fan tray slots 0 and 1 support fan tray assembly with 2x60mm fans (NC57-C3-FAN2-FW)

• Fan tray slots 2 through 5 support fan tray assembly with 2x40mm fans (NC57-C3-FAN1-FW)

Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers

NCS 5700 Router Overview

Field Replaceable Units

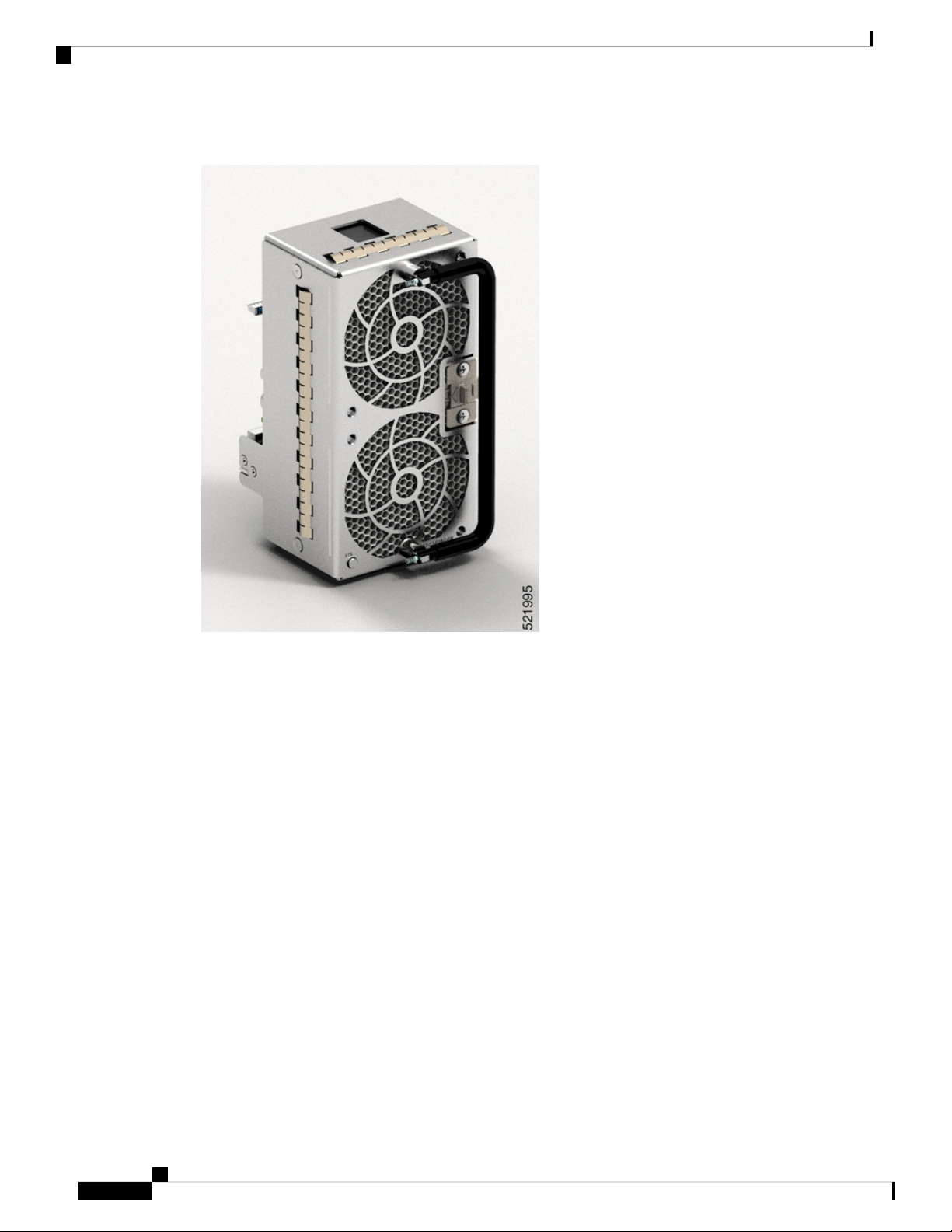

Figure 2: NC57-C3-FAN2-FW Fan Tray - 2x60mm

Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers

NCS 5700 Router Overview

Field Replaceable Units
